Better Pipe Organ Database

Schantz Organ Co. Opus 2209 (2023)

Our Lady of Peace Catholic Church: Rear gallery
12601 Shaker Boulevard
Cleveland, OH

Images

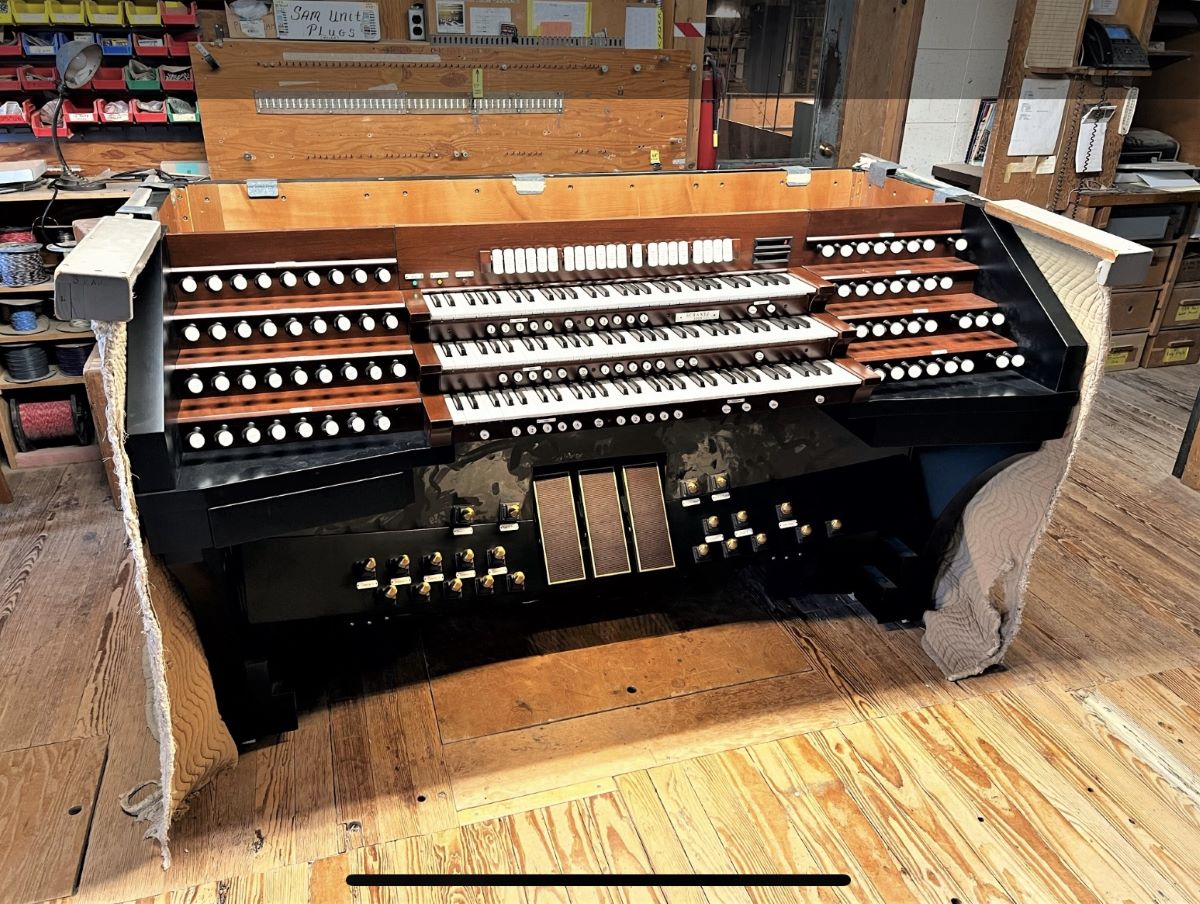

April 2023 - Console in builder's shop during refurbishing (Photograph by Matthew Fodor/Matthew Fodor)

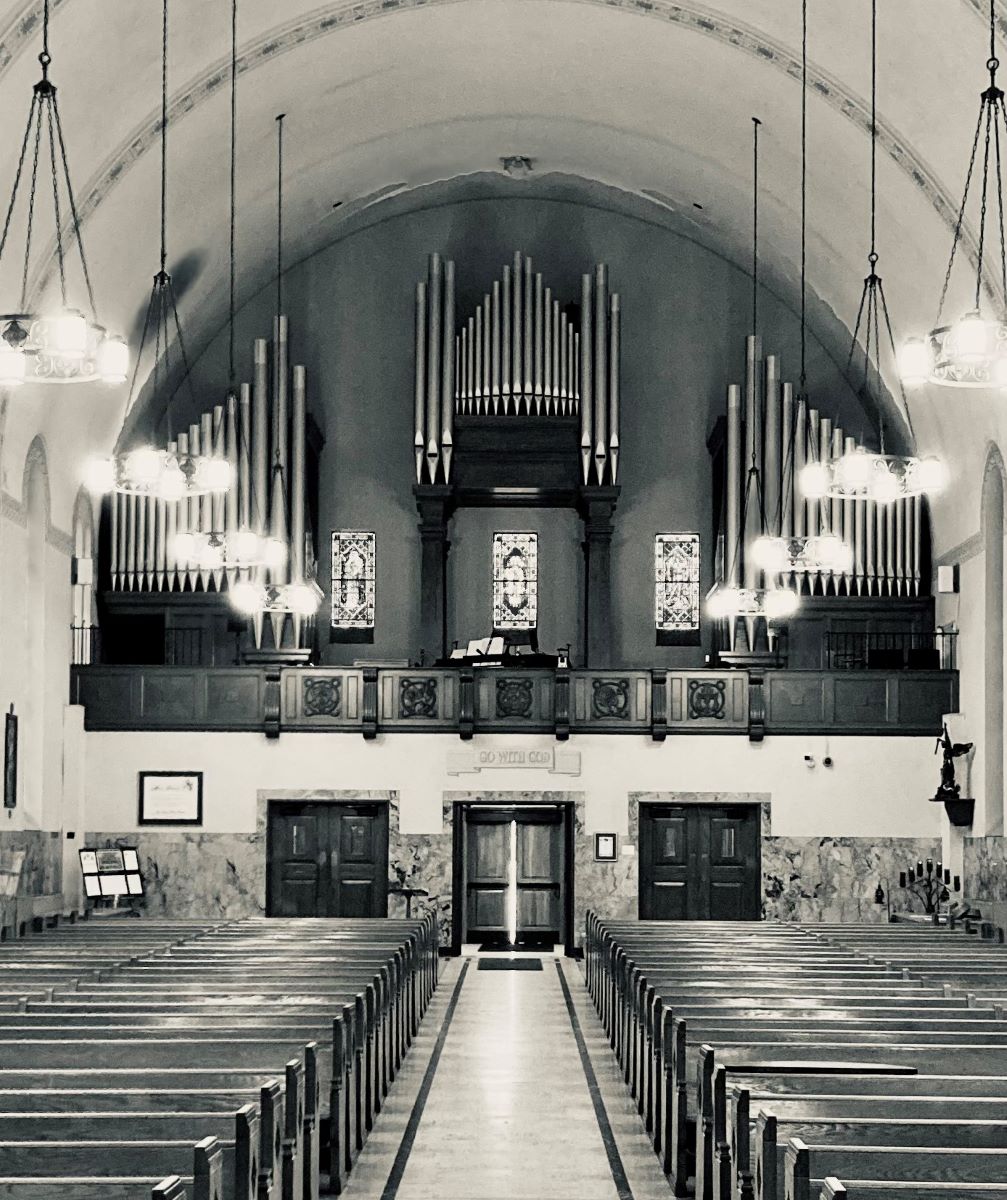

2023-06-18 - Organ in rear gallery (Photograph by Matthew Fodor/Matthew Fodor)

2023-06-18 - View from Sanctuary (Photograph by Kim Hoover, submitted by Matthew Fodor/Matthew Fodor)

Consoles

Gallery

Organ type: Traditional Without Cover
3 manuals
26 stops
49 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Peterson ICS 4000
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2023-06-23 - This entry represents the removal, moving, rebuilding, and reinstallation of an existing organ for a new congregation in a new location, and by the original builder. The organ was originally built in 2003 for St. Mark's Reformed/Community Church in Burlington, North Carolina. -Jim Stettner

Stoplist

Source: Taken from Organ Builder Specifications 2024

Great Bourdon 16, Principal 8, Hohlflöte 8 ([EXISTING 8' ROHRFLÖTE 1-12; NEW OPEN WOOD 13-61]), Octave 4, Dulciana 8, Rohrflöte 4 ([EXISTING 8' C/13-61]), Super Octave 2, Fourniture 1 1/3 IV, Festival Trumpet 8 (Under Pressure, not affected by coupler), Zimbelstern

Swell Bourdon 16, Geigenprincipal 8, Viole de Gambe 8, Viole Celeste 8' (TC), Bourdon 8, Prestant 4, Flute Harmonique 4, Octave 2, Plein Jeu 2' IV, Basson-Hautbois 16, Trompette 8, Hautbois 8, Clarion 4, Festival Trumpet 8 (Not affected by coupler-under pressure)

Choir Holzgedeckt 8, Dulciana 8, Unda Maris 8 (TC), Principal 4, Koppelflöte 4, Nazard 2 2/3, Tierce 1 3/5, Octavin 2 ([HARMONIC]), Cromorne 8, Festival Trumpet 8 (High Pressure-Not affected by coupler), Festival Trumpet 16 (TC)

Pedal Trompette 8, Resultant 32 (32 notes), Principal 16, Bourdon 16, Subbas 16, Octave 8 (Partially exposed), Subbas 8, Bourdon 8, Choral Bass 4, Choral Flute 4, Grand Cornet 32 (32 Notes), Bassoon 16, Bombarde 16, Bombarde 8, Trompette 8, Hautbois 4, Festival Trumpet 8 (High Pressure), Festival Clarion 4 (High Pressure)

Great to Great 4, Great to Great 16, Swell to Swell 16, Great to Great, Swell to Swell 4, Choir to Choir 16, Swell to Swell, Choir to Choir 4, Choir to Choir, Swell to Great 16, Swell to Great 8, Swell to Great 4, Choir to Great 16, Choir to Great 8, Choir to Great 4, Choir to Swell 8, Swell to Choir 16, Swell to Choir 8, Swell to Choir 4, Great to Pedal 8, Swell to Pedal 8, Great to Pedal 4, Swell to Pedal 4, Choir to Pedal 8, Choir to Pedal 4

Documents

2023 Specifications 2023 Specifications - Builder Document -Matthew Fodor

Related Pipe Organ Database Entries

#23009†* - Schantz Organ Co. Opus 2209 (2003)
