Pompton Reformed Church: Sanctuary; front
59 Hamburg Turnpike
Pompton Lakes, NJ
Images

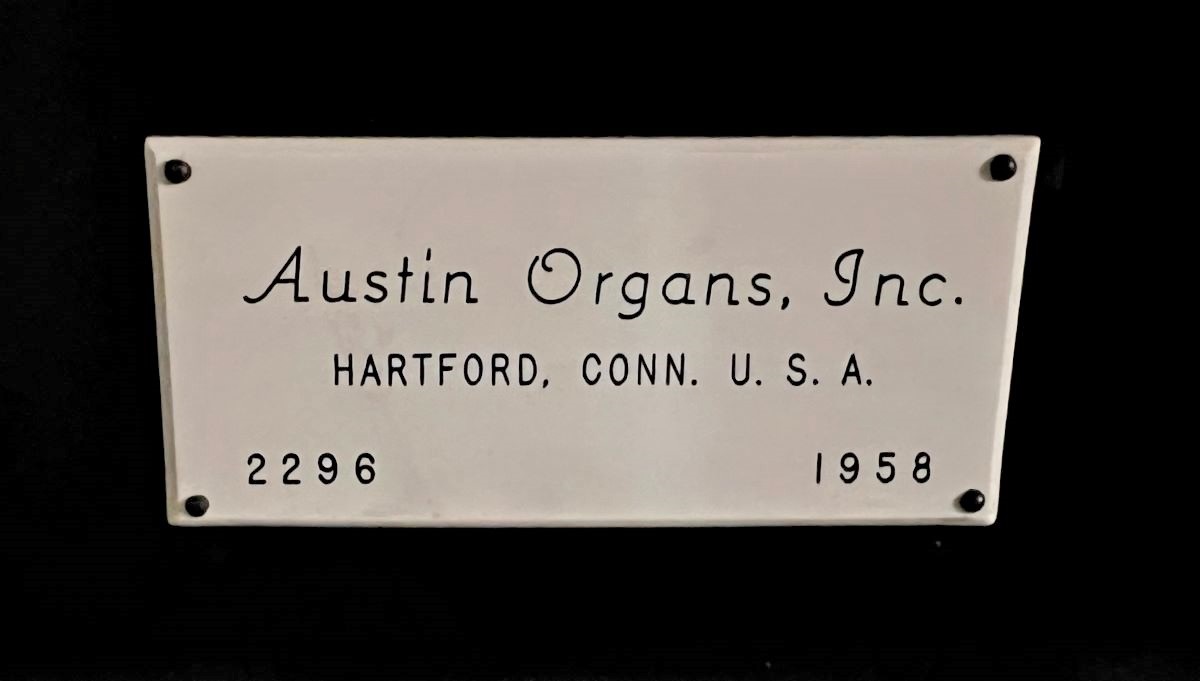

2023-07-23 - Builder's nameplate (Photograph by Scott Burzynski, submitted by Jim Stettner/Jim Stettner)

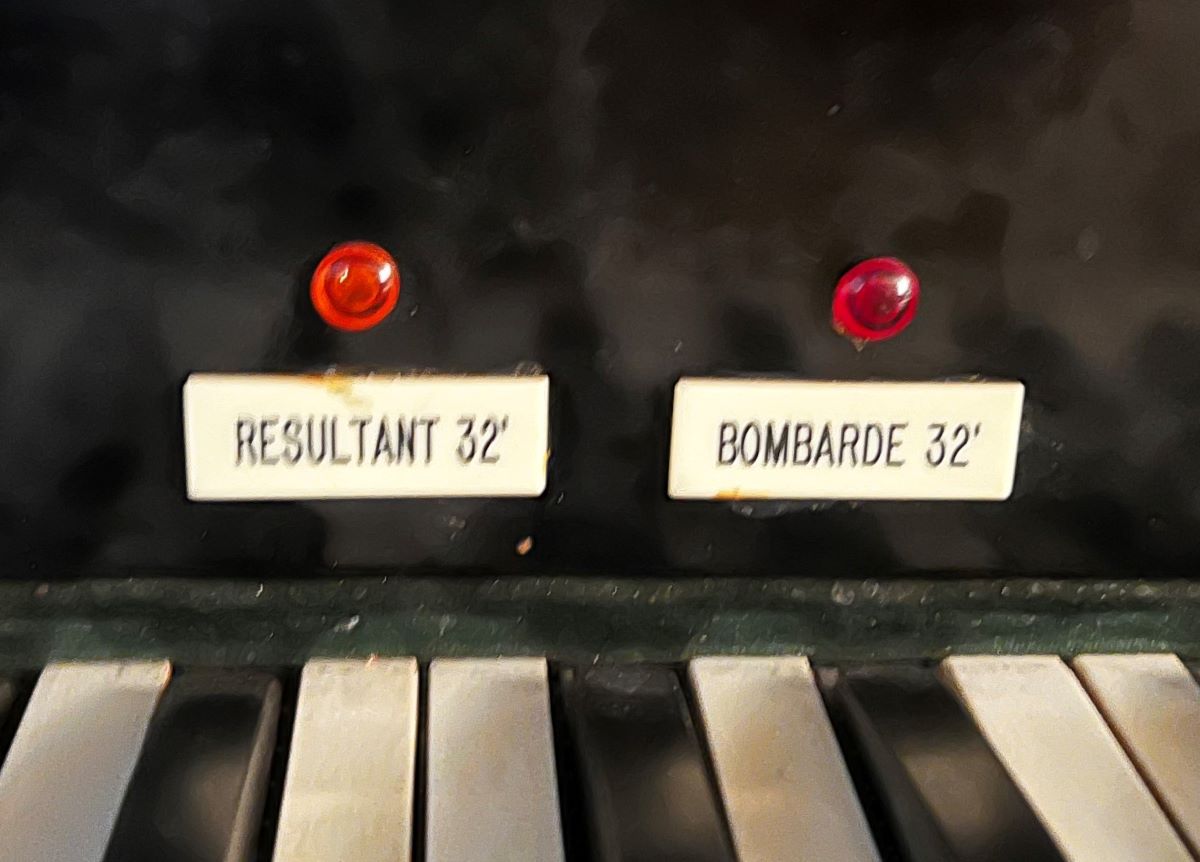

2023-07-23 - Indicator lights for pistons now controlling speaking stops (Photograph by Scott Burzynski, submitted by Jim Stettner/Jim Stettner)

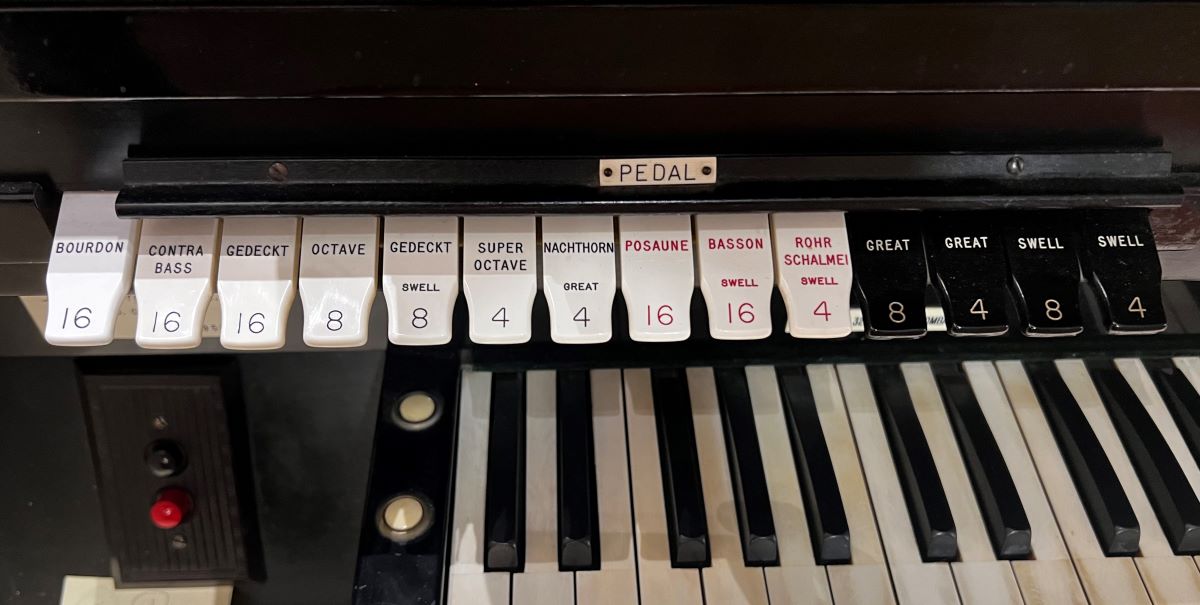

2023-07-23 - Console: Pedal stops (Photograph by Scott Burzynski, submitted by Jim Stettner/Jim Stettner)

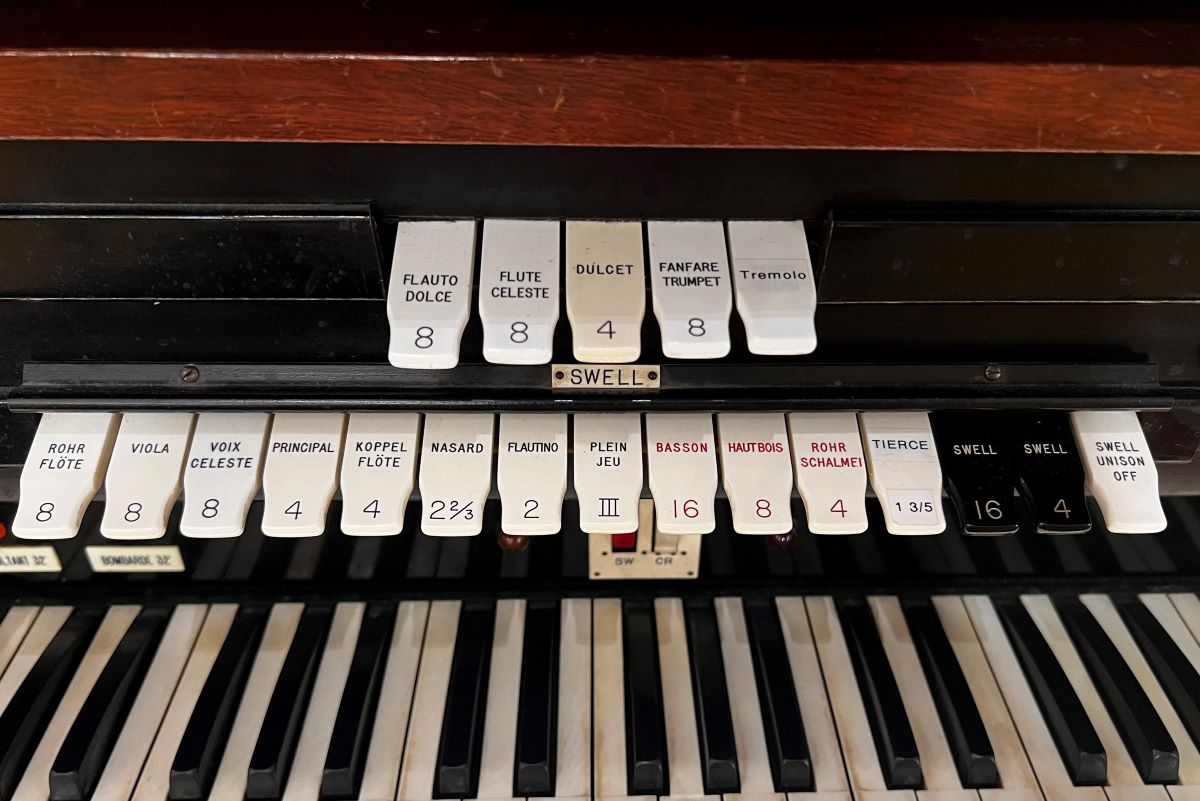

2023-07-23 - Console; Swell and former Antiphonal stops (Photograph by Scott Burzynski, submitted by Jim Stettner/Jim Stettner)

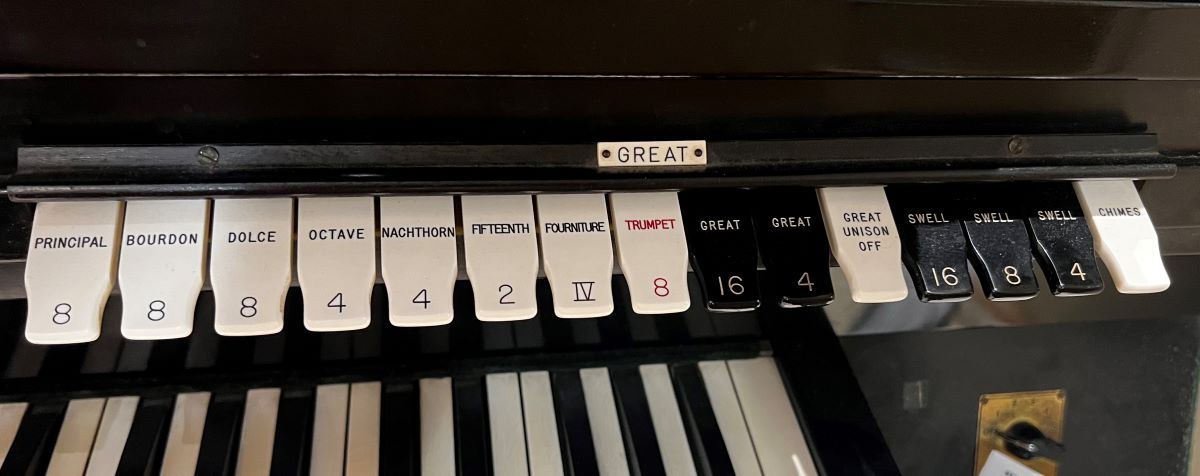

2023-07-23 - Console: Great stops (Photograph by Scott Burzynski, submitted by Jim Stettner/Jim Stettner)

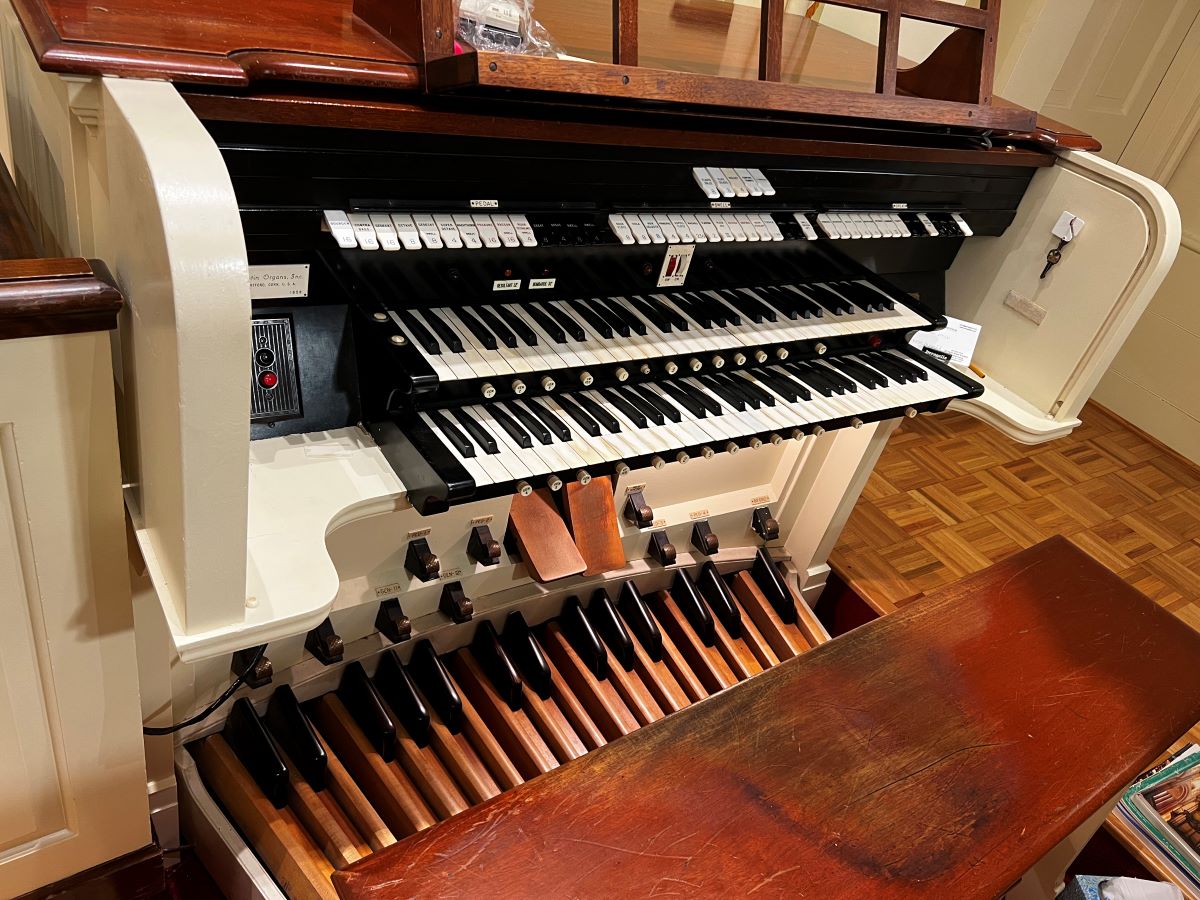

2023-07-23 - Console (Photograph by Scott Burzynski, submitted by Jim Stettner/Jim Stettner)

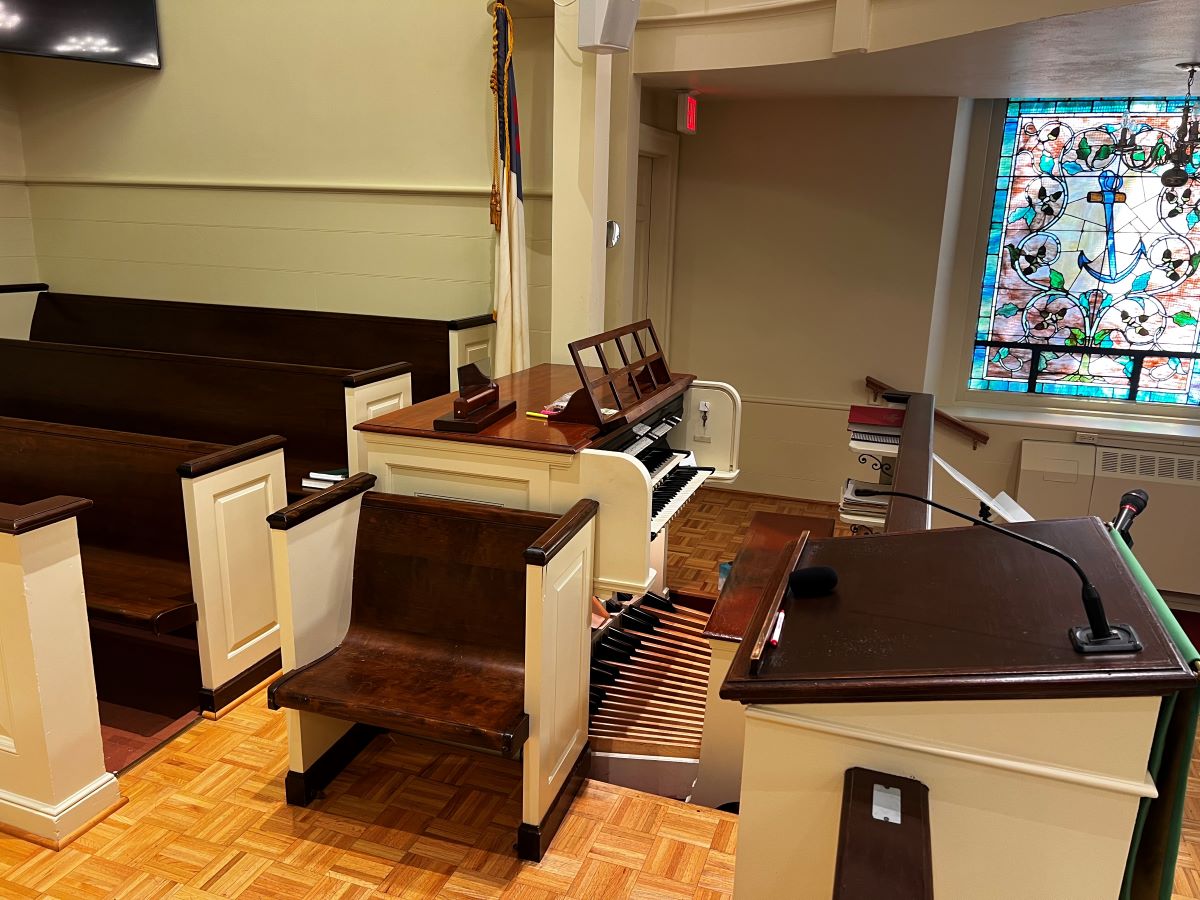

2023-07-23 - Console at right side of pulpit platform (Photograph by Scott Burzynski, submitted by Jim Stettner/Jim Stettner)

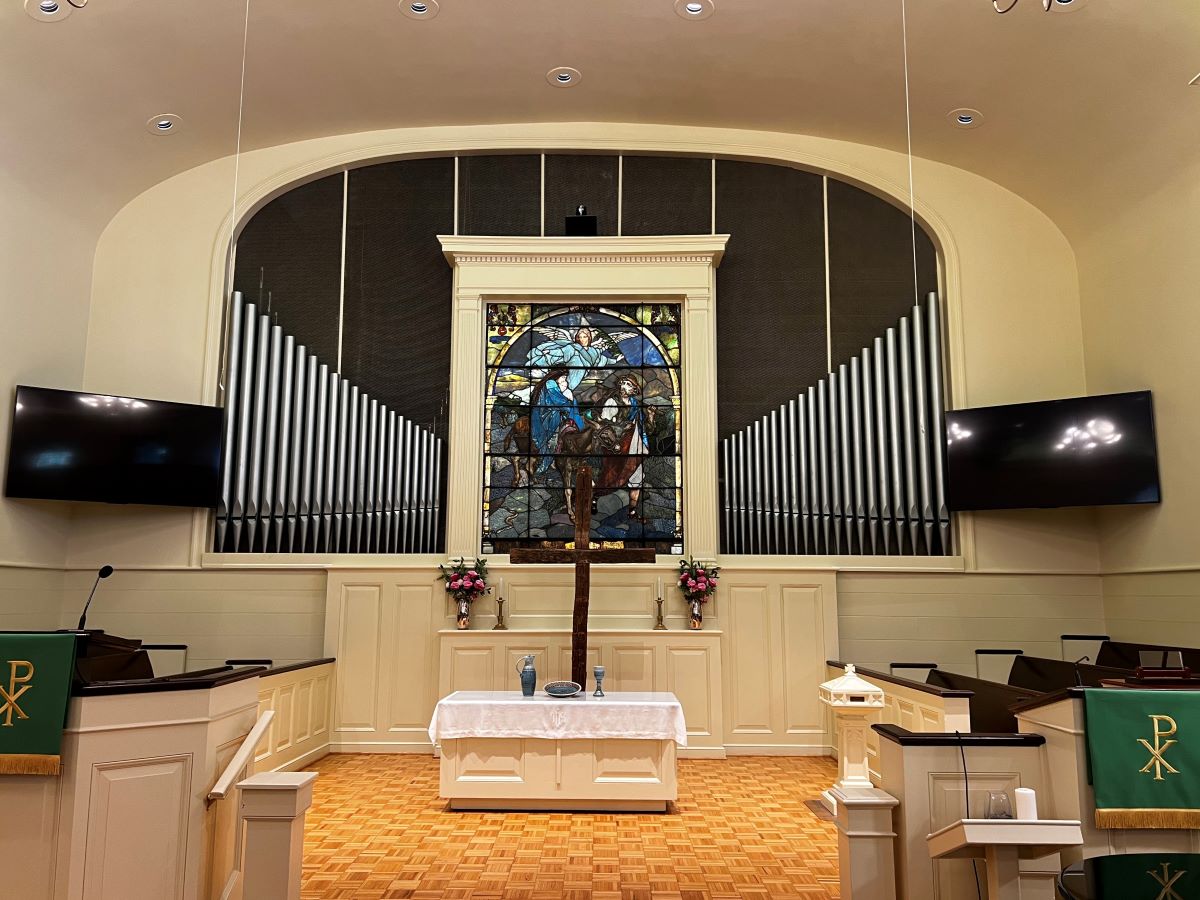

2023-07-23 - Chancel showing organ chamber and exposed Principal pipes (Photograph by Scott Burzynski, submitted by Jim Stettner/Jim Stettner)
Notes
2023-07-23 - This entry represents tonal alterations/additions to an existing instrument. Identified from online information from Scott Burzynski. -Jim Stettner
2023-07-24 - Update through online information from Scott Burzynski: The upper row of stop tabs were added by Mr. Oliphant and are not included in/affected by the combination action.
At some point Mr. Oliphant added a homemade zimbalstern, (literally a record player with a mallet and some wind chimes,) which was on the tab in the top row that currently controls the Swell division tremolo. Peragallo currently maintains the instrument, and I had them remove the zimbalstern and assign the Swell tremolo to that tab, choosing to leave the added tierce on the original tremolo tab so as to be included in the combination action. -Jim Stettner
Stoplist
Source: Stoplist copied from the console
Pompton Lakes, New Jersey
Pompton Reformed Church
Austin Organs, Inc., Opus 2296, 1958
Unknown Builder, 19__ - Tonal Changes/additions
GREAT:
8 Principal
8 Bourdon
8 Dolce
4 Octave
4 Nachthorn
2 Fifteenth
IV Fourniture
8 Trumpet
Chimes
Great 16
Great Unison Off
Great 4
SWELL (Expressive):
8 Rohr Flöte
8 Viola
8 Voix Celeste
4 Principal
4 Koppel Flöte
2⅔ Nasard
2 Flautino
1⅗ Tierce Addition by Bob Oliphant, date and provenance of
pipework unknown. Using orig. Tremolo stoptab.
III Plein Jeu
16 Basson
8 Hautbois
4 Rohr Schalmei
Swell 16
Swell Unison Off
Swell 4
ANTIPHONAL (Removed 2016)
8 Flauto Dolce
8 Flute Celeste
4 Dolce
8 Fanfare Trumpet [in Gt]. Unenclosed, later addition, date & builder unknown
Tremolo [Swell]
PEDAL:
32 Resultant From 16' Bourdon. Controlled by General 7 piston
repurposed as reversible
16 Bourdon
16 Contra Bass
16 Gedeckt
8 Octave
8 Gedeckt (Sw)
4 Super Octave
4 Nachthorn (Gt)
32 Bombarde Electronic addition, date/builder unknown, controlled
by General 8 piston repurposed as reversible
16 Posaune (Gt) 12 Builder unknown
16 Basson (Sw)
4 Rohr Schalmei (Sw)
INTER-DIVISIONAL COUPLERS
Swell 8 [to Pedal]
Swell 4 [to Pedal]
Great 8 [to Pedal]
Great 4 [to Pedal]
Swell 16 [to Great]
Swell 8 [to Great]
Swell 4 [to Great]
FINGER PISTONS
General 1 - 8
Swell 1 - 8
Sw Ped (rev)
Great 1 - 8
Gt Ped (rev)
Sfz (rev)
0 [Gen. Can.]
TOE STUDS
General 9 - 12
Pedal 1 - 4
Great Rev (rev)
Sforz. (rev)
PEDAL MOVEMENTS
Swell Expression (bal.)
Crescendo (bal.)
NOTES
An Antiphonal division consisting of Flauto Dolce 8’, Flute Celeste
8’, and Dulcet 4’ was installed by Bob Oliphant at an unknown date.
The pipe work in this division was of unknown provenance and was in-
stalled in a closet in the balcony at the rear of the sanctuary. In
2016 this pipe work was removed to gain access to the roof for
structural repairs of the building and the division was never rein-
stalled. The Tremolo tablet with the Antiphonal division is the re-
located Swell Tremolo. The 8' Fanfare Trumpet is located in the
non-expressive Great chamber.
[Stoplist courtesy of Scott Burzynski 2023-07-23.]
