Trinity Lutheran Church: Sanctuary; front
1220 W Maple St.
Valley View, PA
Images
2023-08-19 - Church exterior (Photograph by Jack Umholtz/Jack Umholtz)

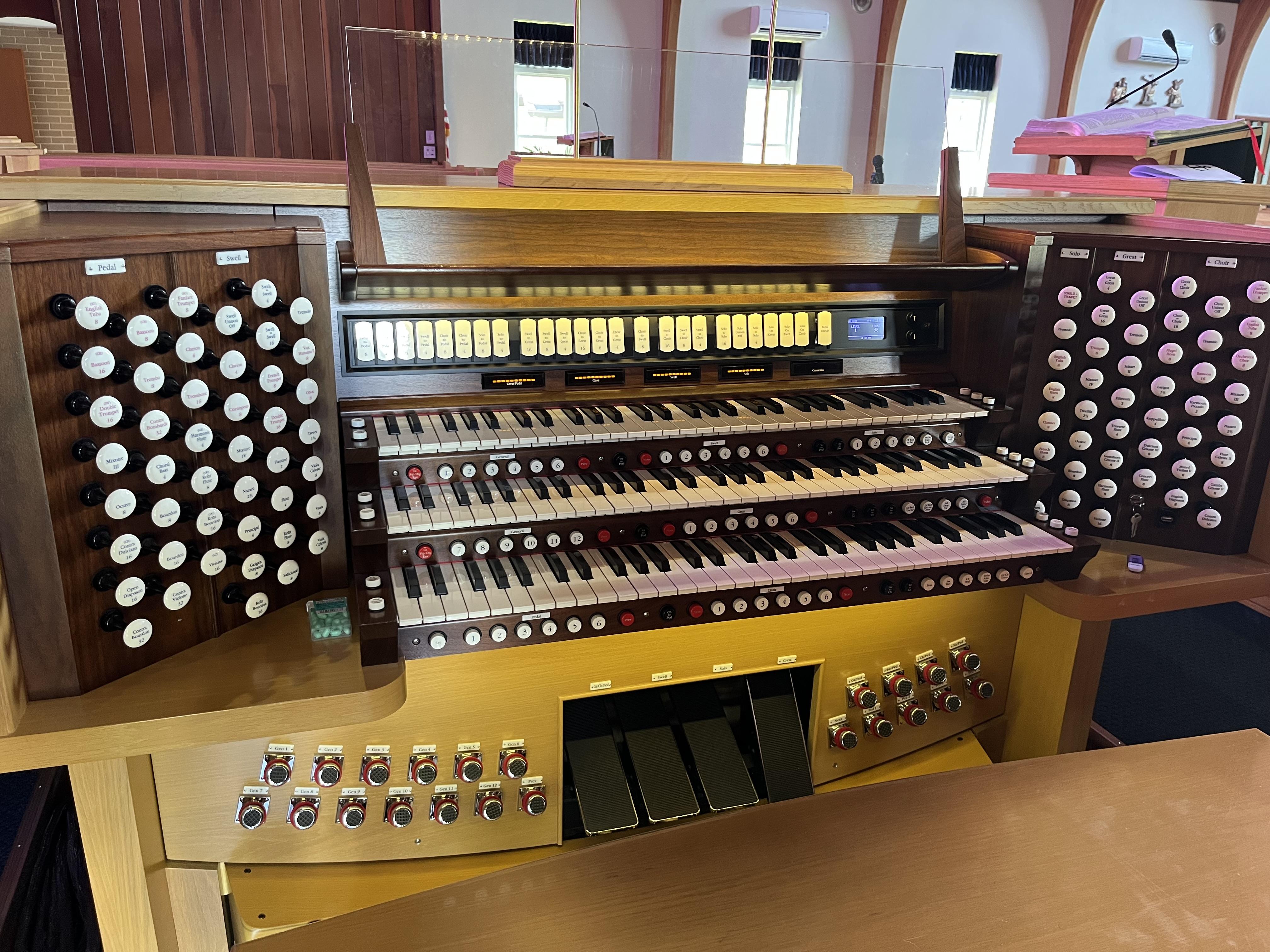

2023-07-31 - Console in chancel (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Console (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Keycheeks, RH side (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Keycheeks, LH side (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Pistons, RH side (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Pistons, LH side (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Pedalboard, RH side (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Pedalboard, LH side (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Swell, Choir, Solo coupler rail plus console controller (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Pedal and Great coupler rail (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Solo, Great, Choir stops (Photograph by Jack Umholtz/Jack Umholtz)
2023-07-31 - Pedal and Swell Stops (Photograph by Jack Umholtz/Jack Umholtz)
Consoles
Chancel
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 3 manuals
- 86 stops
- 128 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Walker Technical
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2023-08-03 - Digital expansion of OHS organ #21852, Reuter Opus # 2012, 2 manual 14 rank organ from 1979. 14 original ranks and chimes playable from new 3 manual drawknob console with 72 Walker digital ranks and percussions added. -Jack Umholtz
Stoplist
Source: Stoplist coped from detailed console photos 2023-09-05
GREAT Violone 16, Diapason 8, Harmonic Flute 8, Bourdon 8, Gemshorn Celeste II 8, Octave 4, Traverse Flute 4, Twelfth 2⅔, Fifteenth 2, Mixture IV, Scharf II, Trumpet 8, Tremolo, , Great to Great, Great Unison Off, Great to Great
SWELL (Expressive) Rohr Bourdon 16, Geigen Diapason 8, Rohr Flute 8, Salicional 8, Voix Celeste 8, Viola 8, Viola Celeste 8, Principal 4, Flute 4, Nazard 2⅔, Flautino 2, Tierce 1⅗, Mixture IV, Double Trumpet 16, Cornopean 8, French Trumpet 8, Oboe 8, Vox Humana II 8, Clarion 4, Tremolo, , Swell to Swell, Swell Unison Off, Swell to Swell
CHOIR (Expressive) Contra Dulciana 16, English Diapason 8, Concert Flute 8, Gamba Celeste II 8, Muted Violins II 8, Flute Celeste II 8, Dulciana Celeste III 8, Principal 4, Koppelflute 4, Nazard 2⅔, Harmonic Piccolo 2, Larigot 1⅓, Mixture III, Bassoon 16, Flugel Horn 8, Orchestral Oboe 8, Tremolo, English Tuba (So) 8, Fanfare Trumpet (So) 8, , Choir to Choir, Choir Unison Off, Choir to Choir
SOLO (Expressive) Doppel Flute 8, Cello Celeste II 8, French Horn 8, Clarinet 8, English Horn 8, English Tuba 8, Tremolo, Donald J Trumpet (With image of DJT's face), , Solo to Solo (16 (in coupler rail)), Solo Unison Off (in coupler rail), Solo to Solo (4 (in coupler rail))
PEDAL Contra Bourdon 32, Contra Violone 32, Open Diapason 16, Violone 16, Bourdon 16, Rohr Bourdon (Sw) 16, Contra Dulciana (Ch) 16, Octave 8, Bourdon 8, Rohr Flute (Sw) 8, Choral Bass 4, Harmonic Flute (Gt) 4, Mixture III, Contra Bombarde 32, Trombone 16, Double Trumpet 16, Bassoon (Ch) 16, Tromba 8, English Tuba (So) 8, Fanfare Trumpet (So) 8, Bassoon (Ch) 8, Clarion 4
INTER-DIVISIONAL COUPLERS Solo to Pedal (8,4), Swell to Pedal (8,4), Great to Pedal (8,4), Choir to Pedal (8,4), , Swell to Great (16,8,4), Choir to Great (16,8,4), Solo on Great, , Swell to Choir (16,8,4), Solo on Choir, , Choir to Swell, Solo on Swell, , Pedal Divide
FINGER PISTONS General (1 - 12), Prev, Solo (1 - 3), So to Ped (rev), So to Sw (rev), So to Gt (rev), So to Ch (rev), Swell (1 - 6), Sw to Ped (rev), Sw to Gt (rev), Sw to Ch (rev), Prev, Next, Great (1 - 6), Gt to Ped (rev), Prev, Next, Choir (1 - 6), Ch to Ped (rev), Ch to Gt (rev), Prev (rev), Next (rev), Pedal (1 - 6), Sw Pip/Dig Rev (rev), Gt Pip/Dig Rev (rev), Gt/Ped Unenc (rev), Gt/Ped Enc on Cresc (rev), Ch Exp to Sw (rev), Sw/So Exp Rev (rev), All Sws/So (rev), All Sws/Sw (rev), Gt/Ch Trans (rev), Trems Full (rev), Tuba Solo Sub (rev), Sw Mel (rev), Ch Mel (rev), Bass (rev), Sw Cels Off (rev) Top left Sw keycheek, Sus Cym/Pedl (rev) Top left Sw keycheek, Sw Celesta (rev) Top right Sw keycheek, Sw Harp (rev) Top right Sw keycheek, Sw Chimes (rev) Top right Sw keycheek, Gt Cels Off (rev) Top left Gt keycheek, Zimbel (rev) Top left Gt keycheek, Gt Celesta (rev) Top right Gt keycheek, Gt Harp (rev) Top right Gt keycheek, Gt Tower Chms (rev) Top right Gt keycheek, Ch Cels Off (rev) Top left Ch keycheek, Ped Tower Chms (rev) Top left Ch keycheek, Ch Celesta (rev) Top right Ch keycheek, Ch Harp (rev) Top right Ch keycheek, Ch Chimes (rev) Top right Ch keycheek, Tutti (rev), Set, Cancel
TOE STUDS General (1 - 12), Pedal (1 - 4), Gt/Ped (rev), Sw/Ped (rev), Ch/Ped (rev), So/Ped (rev), Prev, Next
PEDAL MOVEMENTS (L - R) Gt/Ch/Ped (bal.), Swell (bal.), Solo (bal.), Crescendo (bal.)
MISC. CONTROLS (Digital Display Panel) ↑, ↓, Rotary Dial
