Keates-Geissler Pipe Organs Ltd (1972)

St. Olave's Anglican Church
360 Windermere Avenue
Toronto, ON, CA

Images

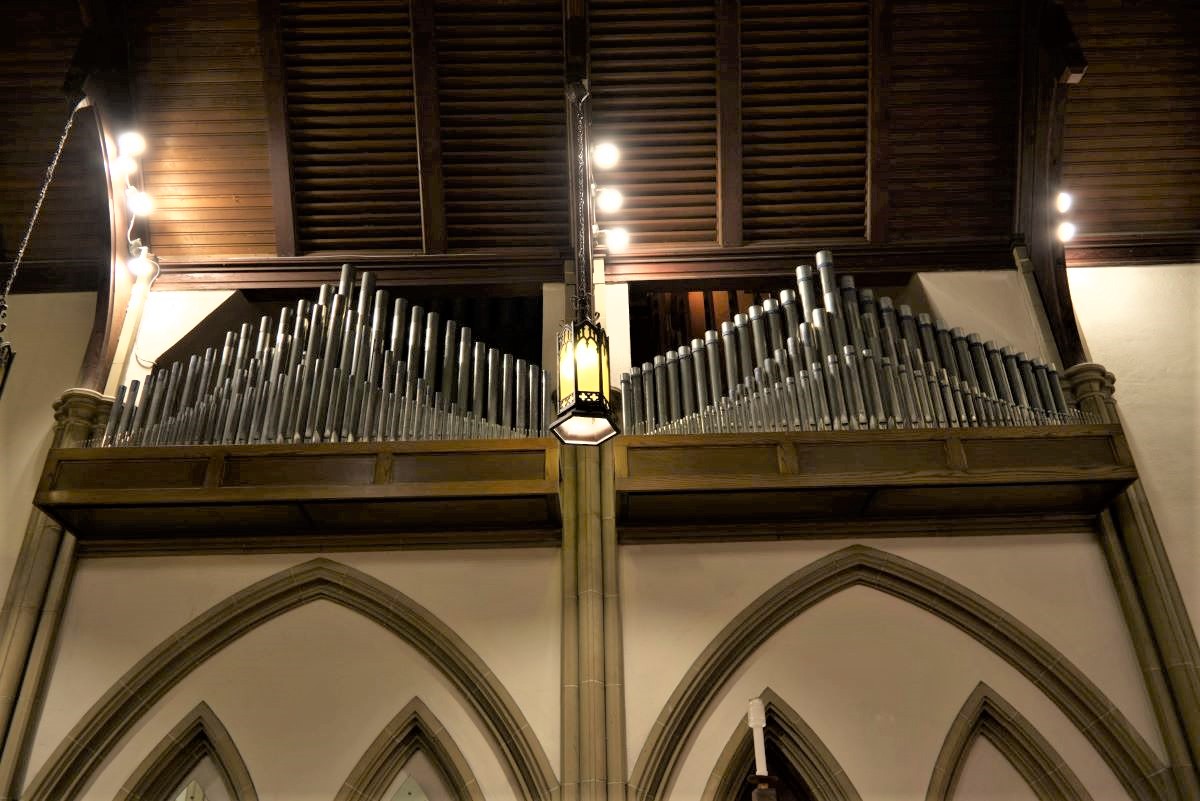

2023-01-22 - View of the exposed Great Organ pipework and the side chamber (Photograph by Jeremy Tingle/Jeremy Tingle)

Consoles

Chancel, North Side

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
34 stops
34 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons

Notes

2023-08-25 - Replaced an S.R. Warren instrument (relocated from another church) in 1963. Sw. Rohr Schalmei 4' extended to 8', moved to Choir Organ, and duplexed to Pedal in 1972. Blowers replaced and relocated to loft in 2013. -Jeremy Tingle

Stoplist

Source: Taken from console

Great Organ (II) Quintaten 16 (61 pipes), Principal 8 (61 pipes), Hohlflute 8 (61 pipes), Octave 4 (61 pipes), Quintadena (ext.) 4 (24 pipes), Octave 2 (61 pipes), Fourniture IV (244 pipes (19.22.26.29))

Choir Organ (I) (Enclosed) Gedeckt 8 (61 pipes), Dolce 8 (61 pipes), Koppelflote 4 (61 pipes), Nazard 2⅔ (61 pipes), Italian Principal 2 (61 pipes), Cimbel III (183 pipes (19.22.24)), Rohr Schalmei 8 (61 pipes)

Swell Organ (III) (Enclosed) Rohrflote 8 (61 pipes), Viola da Gamba 8 (61 pipes), Voix Celeste (TC) 8 (49 pipes), Aeoline 8 (61 pipes), Principal 4 (61 pipes), Harmonic Flute 4 (61 pipes), Piccolo 2 (61 pipes), Scharf III (183 pipes (22.26.29)), Trompette 8 (61 pipes), Oboe 4 (61 pipes, added in 1972 replacing Rohr Schalmei 4')

Pedal Organ Resultant 32 (Contrabass 16' quinted with Bourdon 16'), Contrabass 16 (32 pipes), Bourdon 16 (32 pipes), Octave (ext. Contrabass) 8 (12 pipes), Bass Flute (ext. Bourdon) 8 (12 pipes), Choral Bass 4 (32 pipes), Super Octave (ext. Choral Bass) 2 (12 pipes), Trombone (ext. Sw. Trompette) 16 (12 pipes), Rohr Schalmei (Ch.) 8 (-)
