M. P. Möller Opus M-1188 (1979)

Images

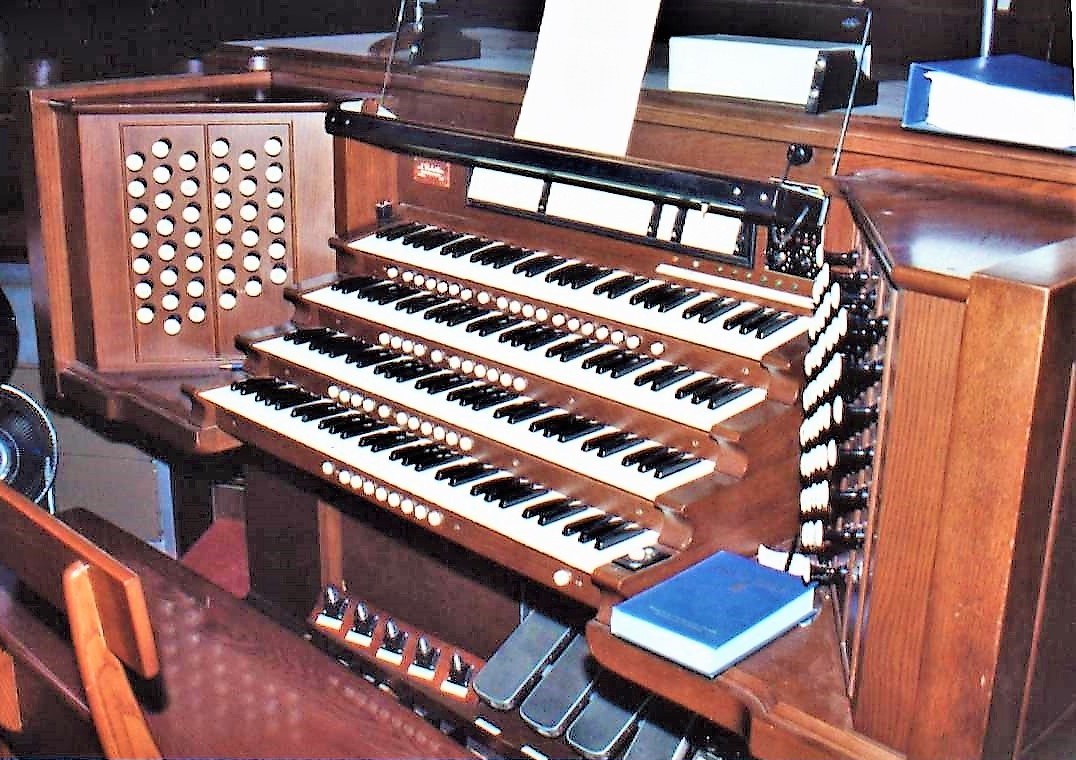

2001-03-19 - Console (Photograph by Doug Cassell , submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

• Organ type: Traditional Without Cover
• Console position: Console in Fixed Position, Center
• 4 manuals
• 29 stops
• 43 registers
• 6 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: 'Hold and Set' Pneumatic/Mechanical
• Has combination thumb pistons
• Has combination toe pistons
• Has coupler thumb pistons
• Has coupler toe pistons
• Has tutti toe pistons

Notes

2024-01-01 - This was a console-only job for the 1927 4/29 Reuter, with plans to reuse it for new Moller Op. 11620 in 1983. -Jeff Scofield

Stoplist

Source: Factory specifications, OHS Archives via Jeff Scofield

GREAT Open Diapason 8, Doppel Flute 8, Viole de Game 8, Clarabella 8, Harmonic Flute 4, Erzähler 4, Trumpet 8, Sub, Unison Off, Super, Major Bells, Blank

SWELL Bourdon 16, Diapason 8, Gedeckt 8, Quintadena 8, Viole d'Orchestre 8, Salicional 8, Voix Celeste 8, Aeoline 8, Flauto Dolce 4, Nazard 2 2/3, Piccolo 2, Cornopean 8, Oboe 8, Tremolo, Sub, Unison Off, Super, Symphonic Carillon, Blank

CHOIR Violin Diapason 8, Concert Flute 8, Dulciana 8, Unda Maris 8, Flute d'Amour 4, English Horn 8, Tremolo, Sub, Unison Off, Super, Blank, Blank, Blank, Blank

POSITIV Nason Flute 8, Koppel Flute 4, Nasat 2 2/3, Italian Principal 2, Terz 1 3/5, Sifflote 1, Krummhorn 8, Tremolo

GALLERY Viola Etheria 8, Wald Flute 8, Clarinet 8, Tremolo, Blank, Blank, Blank, Blank, Blank

PEDAL Resultant Bass 32, Diapason 16, Bourdon 16, Violone 16, Lieblich Gedeckt 16, Cello 8, Flauto Dolce 8, Blank, Blank, Blank, Blank, Blank, Blank, Blank, Blank, Blank, Blank, Blank, Blank, Blank, Blank, Blank (Prepared for Bells)

Documents

• (1979-03-29) Factory specifications, OHS Archives via Jeff Scofield Stoplist and accessories -Jeff Scofield
