Walker Technical Company (2023)

Images

2023-09-09 - Organ in rear gallery (David Perry Ouzts/Paul R. Marchesano)

2023-08-26 - Console (David Perry Ouzts/Paul R. Marchesano)

2023-08-21 - Console detail; manuals & couplers (David Perry Ouzts/Paul R. Marchesano)

2023-08-21 - Left stop jamb (David Perry Ouzts/Paul R. Marchesano)

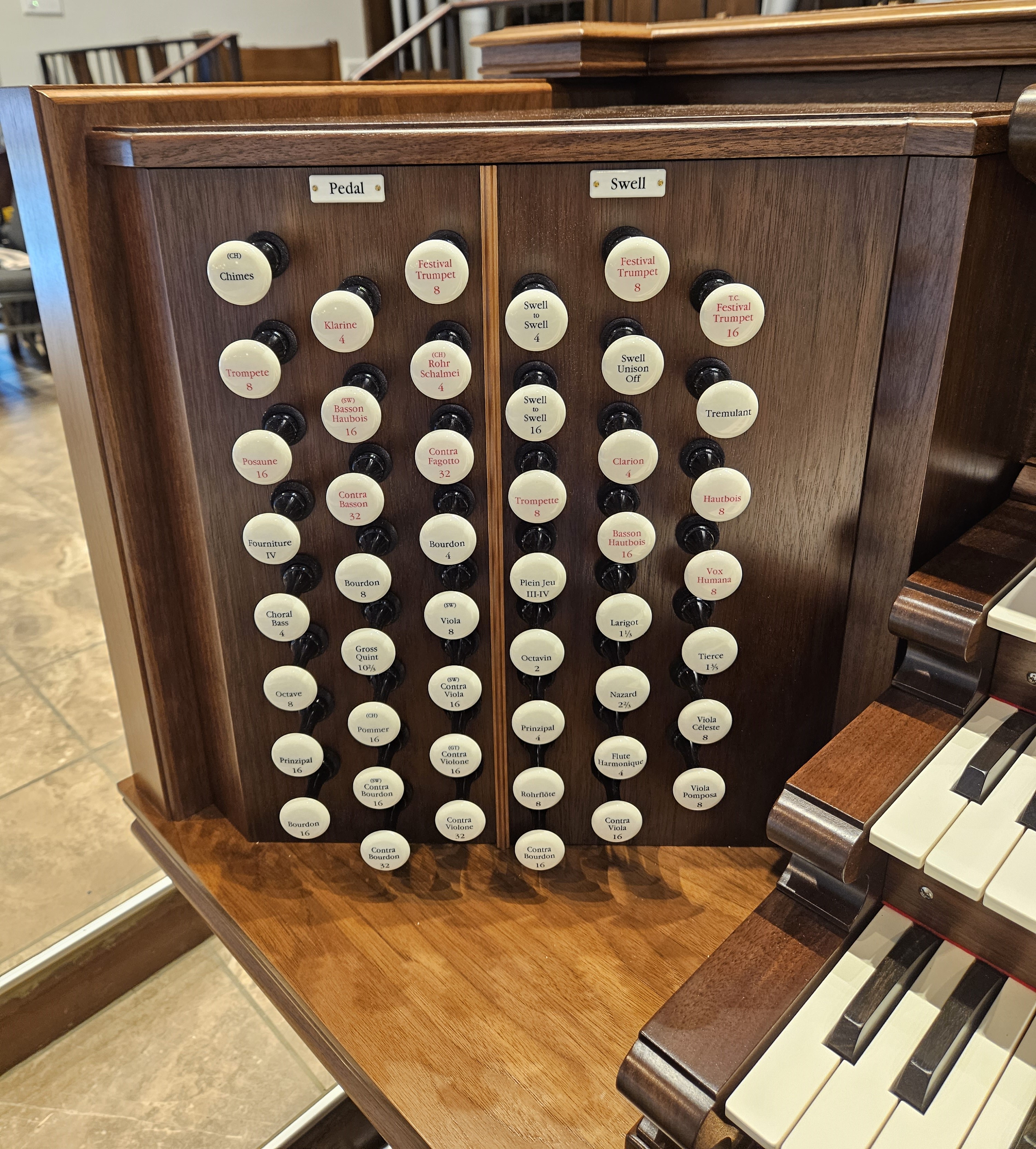

2023-08-21 - Right stop jamb (David Perry Ouzts/Paul R. Marchesano)

Consoles

Main

• Organ type: Traditional With Roll Top
• 3 manuals
• 71 stops
• 80 registers
• 4 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: Computerized/Digital
• Peterson
• Has sequencer
• Has record/playback
• Has combination thumb pistons
• Has combination toe pistons
• Has coupler thumb pistons
• Has coupler toe pistons
• Has tutti thumb pistons
• Has tutti toe pistons

Stoplist

Full manual and pedal couplers (pistons & toe studs) General Pistons 1-12 (duplicate toe studs) Great Pistons 1-8 Swell Pistons 1-8 Choir Pistons 1-8 Pedal Pistons 1-8 (duplicate toe studs) Sforzando Piston (duplicate toe stud) General Cancel and Set pistons Gt/Ch Manual Transfer (piston & toe stud) All Swells to Swell (piston & toe stud) Expression pedals – Swell, Choir, Crescendo Source: Provided by Dr. David Perry Ouzts

GREAT Prinzipal 8, Contra Violone 16, Gamba 8, Bourdon 8, Harmonic Flute 8, Oktave 4, Waldflote 4, Super Oktave 2, Quinte 2 2/3, Fourniture IV, Terz 1 3/5, Scharf IV, Trompete 8, Festival Trumpet 8, Cymbelstern

SWELL Contra Bourdon 16, Contra Viola 16, Rohrflote 8, Viola Pomposa 8, Viola Celeste 8, Prinzipal 4, Flute Harmonique 4, Nazard 2 2/3, Octavin 2, Tierce 1 3/5, Larigot 1 1/3, Plein Jeu III-IV, Hautbois 8, Trompette 8, Vox Humana 8, Clarion 4, Festival Trumpet (TC) 16, Tremulant, Basson Hautbois 16

CHOIR Pommer 16, Gedeckt 8, Gemshorn 8, Spitzflote Celeste II 8, Nasat 2 2/3, Koppelflote 4, Rohrschalmei 8, Blockflote 2, English Horn 8, Clarinet 8, Tuba Mirabilis 8, Festival Trumpet 8, Chimes, Tremulant

PEDAL Contra Violone 32, Contra Bourdon 32, Bourdon 16, Prinzipal 16, Contra Viola 16, Contra Violone 16, Pommer 16, Gross Quint 10 2/3, Contra Bourdon 16, Bourdon 8, Octave 8, Viola 8, Bourdon 4, Contra Fagotto 32, Contra Basson 32, Fourniture IV, Posaune 16, Basson Hautbois 16, Rohrschalmei 4, Chimes, Festival Trumpet 8

GREAT to GREAT 16, GREAT to GREAT, GREAT to GREAT 4, SWELL to SWELL, SWELL to SWELL 16, SWELL to SWELL 4, CHOIR to CHOIR 16, CHOIR to CHOIR, CHOIR to CHOIR 4
