Trinity Episcopal Church
1329 Jackson Avenue
New Orleans, LA
Images
2005-01-09 - Church Exterior (Photograph by John G. DeMajo/Database Manager)

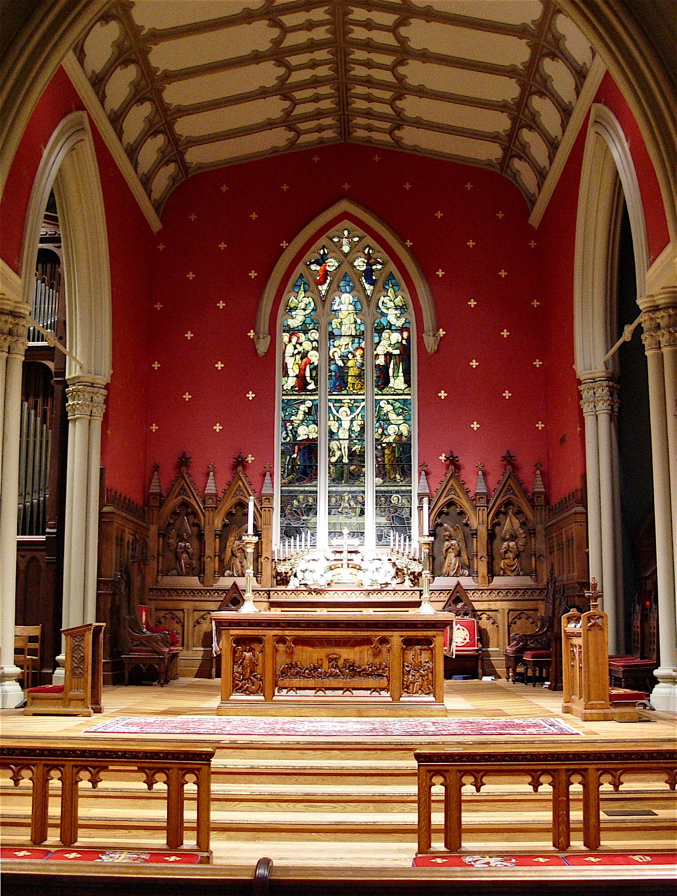

2005-01-09 - Chancel (Photograph by John G. DeMajo/Database Manager)
2005-01-09 - Chancel and Organ Case (Photograph by John G. DeMajo/Database Manager)

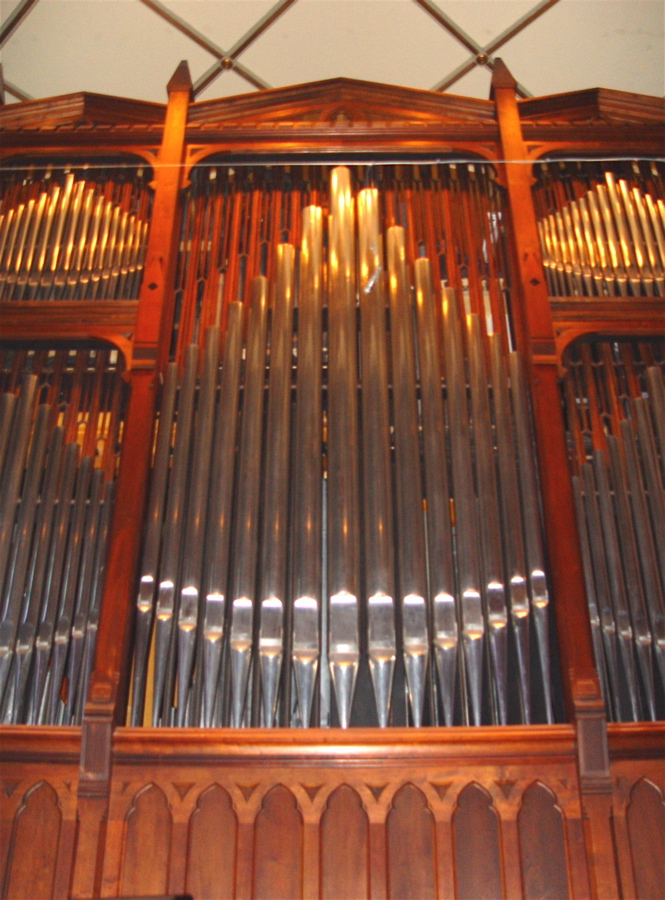

2005-01-09 - Organ Case (Photograph by John G. DeMajo/Database Manager)
2005-01-09 - Sanctuary Interior and Chancel (Photograph by John G. DeMajo/Database Manager)
2005-01-09 - Nave and Balcony (Photograph by John G. DeMajo/Database Manager)
2005-01-09 - Trompeete en Chamade (Photograph by John G. DeMajo/Database Manager)
2005-01-09 - Console (Photograph by John G. DeMajo/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Detached Keydesk (Mechanical Action)
- 4 manuals
- 62 stops
- 5 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Horizontal Rows on Curved Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
Notes
2004-10-30 - Status Note: There 1997 -Database Manager
2004-10-30 - Detached console. -Database Manager
2004-10-30 - The original builder was Cole & Woodberry (1890). -Database Manager
2009-09-03 - Updated through online information from Stephen Hall. -- According to the church website, the organ has some problems caused by high humidity following Hurricane Katrina, and needs some work. it remains playable and is in regular use for services and concerts. (church website accessed Sept 2009) -Database Manager
Stoplist
Specification from builder's web site Source: Source not recorded Date not recorded
New Orleans, Louisiana
Trinity Episcopal Church
Redman Organ Company Opus 56 1990 4 manuals, 62 stops, 81 ranks
________________________________________________________________________________________
GREAT ORGAN SWELL ORGAN
16' Principal 61 16' Gedackt 61
8' Octave 61 8' Principal 61
8' Bourdon 61 8' Rohrflöte 61
8' Flute Harmonique 61 8' Salicional 61
8' Viola de Gamba 61 8' Schwebung (TC) 49
5 1/3' Nasat 61 4' Octave 61
4' Octave 61 4' Spillflöte 61
4' Nachthorn 61 2 2/3' Nazard 61
3 1/5' Terz 61 2' Blockflöte 61
2 2/3' Quinte 61 1 3/5' Tierce 61
2' Octave 61 2' Mixture IV 244
8' Cornet V 305 16' Basson 61
1 1/3' Mixture IV 244 8' Trompette 61
16' Trompete 61 8' Oboe 61
8' Trompete 61 8' Vox Humana 61
8' Trompete de Fete 61 4' Clairon 61
Tremulant Tremulant
Chimes Swell to Swell 16'
Great to Great 4' Swell to Swell 4'
CHOIR ORGAN PEDAL ORGAN
8' Principal 61 32' Bourdon 44
8' Holzgedackt 61 16' Diapason 32
8' Quintadena 61 16' Principal GT
8' Gemshorn 61 16' Subbass GA pf
8' Gemshorn Schwebung (TC) 49 16' Bourdon (from 32') --
4' Octave 61 16' Lieblich Gedackt 32
4' Rohrflöte 61 16' Violone 44
2 2/3' Sesquialtera II 122 10 2/3' Nasat 32
2' Octave 61 8' Octave 32
1 1/3' Larigot 61 8' Gedacktbass 32
1' Mixture IV 244 8' Violone (fr. 16') --
16' Cor Anglais 61 4' Choralbass 32
8' Tuba Imperial 61 4' Koppelflöte 32
8' Cromorne 61 10 2/3' Cornet III 96
Tremulant 2 2/3' Mixture IV 128
Glockenstern 32' Posaune 32
Choir to Choir 16' 16' Posaune 32
Choir to Choir 4' 8' Trompete 32
4' Kopftrompete 32
WEST GALLERY
8' Principal pf COUPLERS (electric)
8' Rohrflöte pf Great to Pedal 8 4
8' Suavial pf Swell to Pedal 8 4
8' Schwebung pf Choir to Pedal 8 4
4' Octave pf Swell to Great 16 8 4
2' Flachflöte pf Choir to Great 16 8 4
1 1/3' Mixture III pf Swell to Choir 16 8 4
8' Musette pf Gallery to Great 8
8' Trompette en Chamade 61 Gallery to Pedal 8
8' Trompete de Fete GT
Gallery to Gallery 16' EXPRESSION
Gallery to Gallery 4' Balanced Pedal - Swell
Balanced Pedal - Choir
COMBINATIONS (32 levels) Balanced Pedal - Gallery
Great 8 (thumb) Crescendo Pedal
Swell 8 (thumb)
Choir 8 (thumb)
Pedal 8 (toe)
Gallery 4 (thumb)
General 18 (thumb & toe)
General Cancel (thumb)
Set (thumb)
REVERSIBLES
Gallery to Pedal (thumb)
Swell to Pedal (thumb)
Great to Pedal (thumb)
Choir to Pedal (thumb)
Tutti I (thumb)
Tutti II (thumb)
Glockenstern (thumb)
[Received from Steven E. Lawson 2015-08-22]
