Northridge Presbyterian Church: Sanctuary; North Transept
6920 Bob O Link Dr.
Dallas, TX
Images
2024-05-22 - North transept with organ (Bryan Page/Jim Stettner)
2024-05-22 - North transept with organ (Bryan Page/Jim Stettner)
2024-05-22 - Organ case (Bryan Page/Jim Stettner)

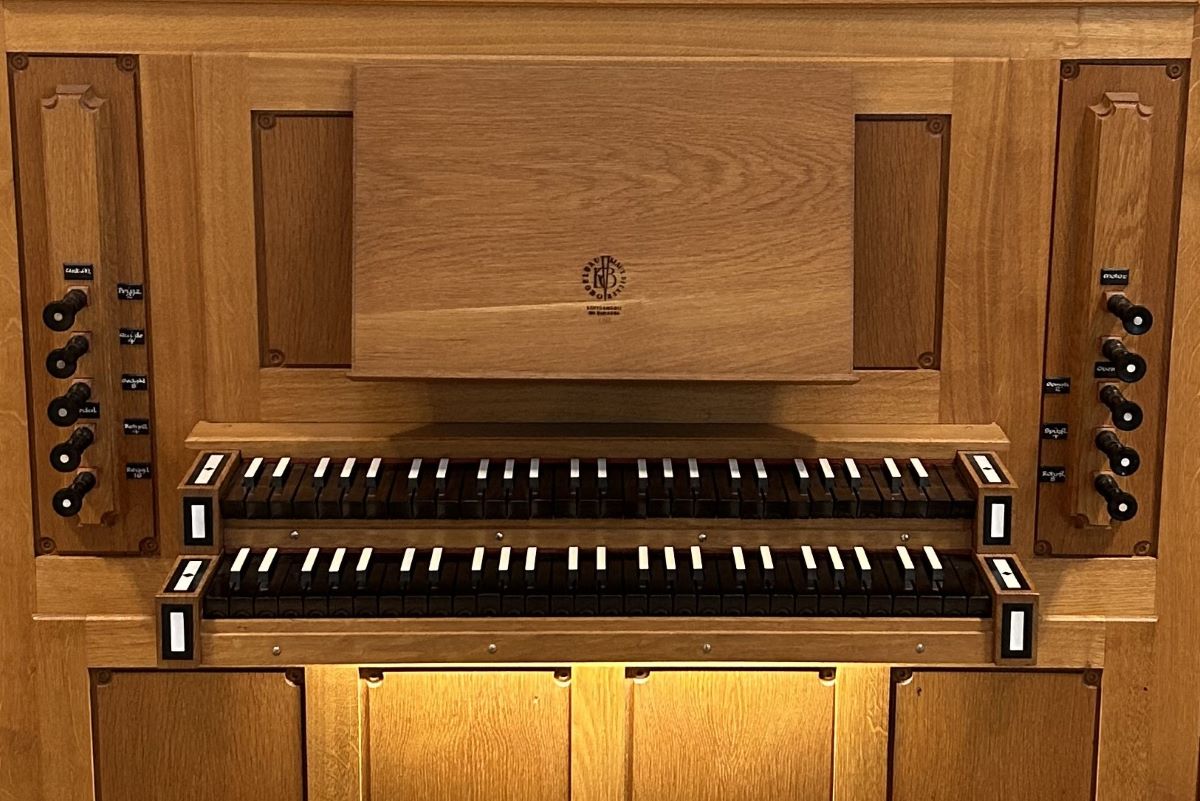

2024-05-22 - Keydesk (Bryan Page/Jim Stettner)

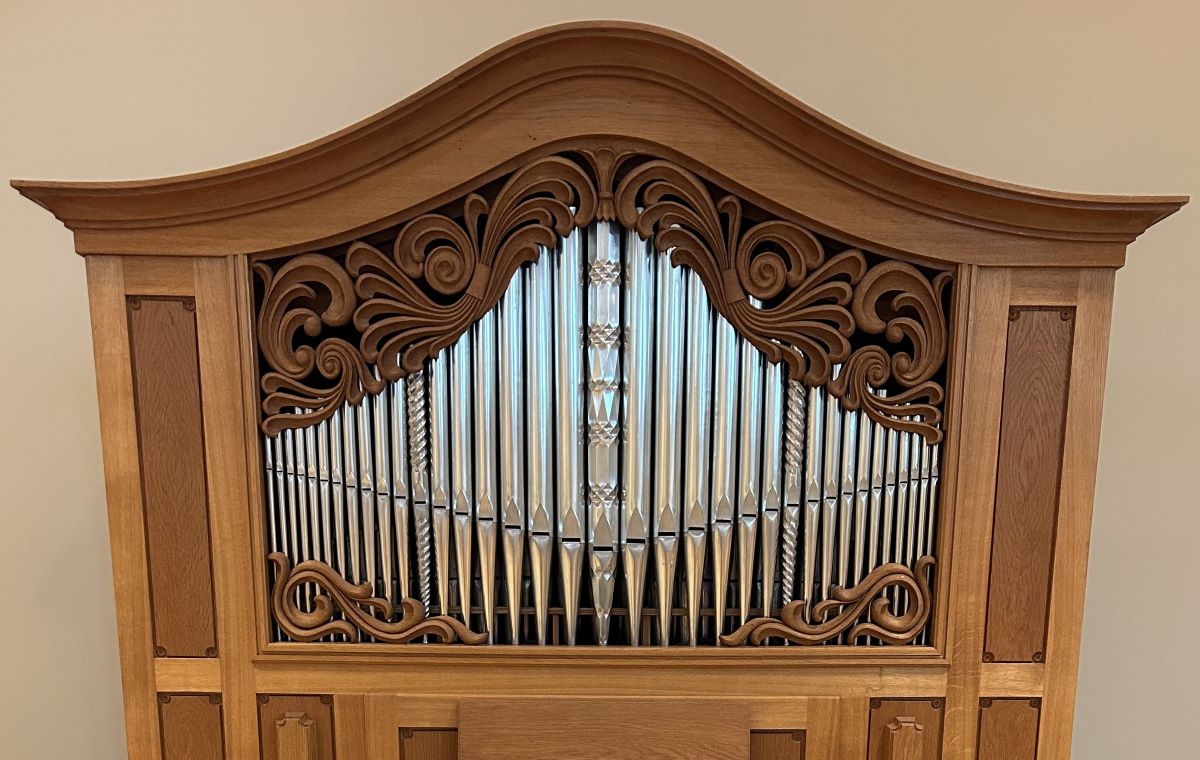

2024-05-22 - Upper casework with facade (Bryan Page/Jim Stettner)
2024-05-22 - Keydesk: Right stopjamb (Bryan Page/Jim Stettner)
2024-05-22 - Keydesk: Left stopjamb (Bryan Page/Jim Stettner)
2024-05-22 - Interior pipework from treble end, rear (Bryan Page/Jim Stettner)
2024-05-22 - Interior pipework from bass end, rear (Bryan Page/Jim Stettner)

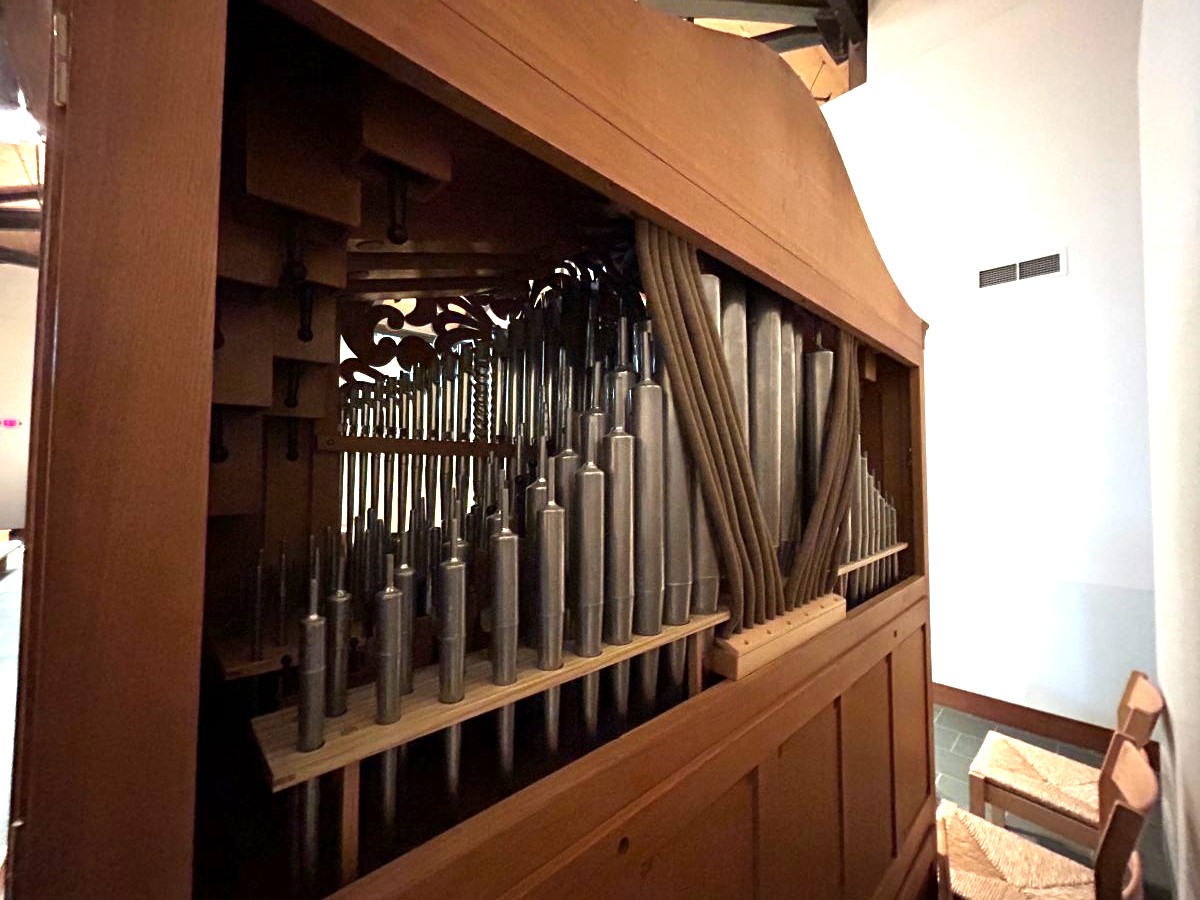

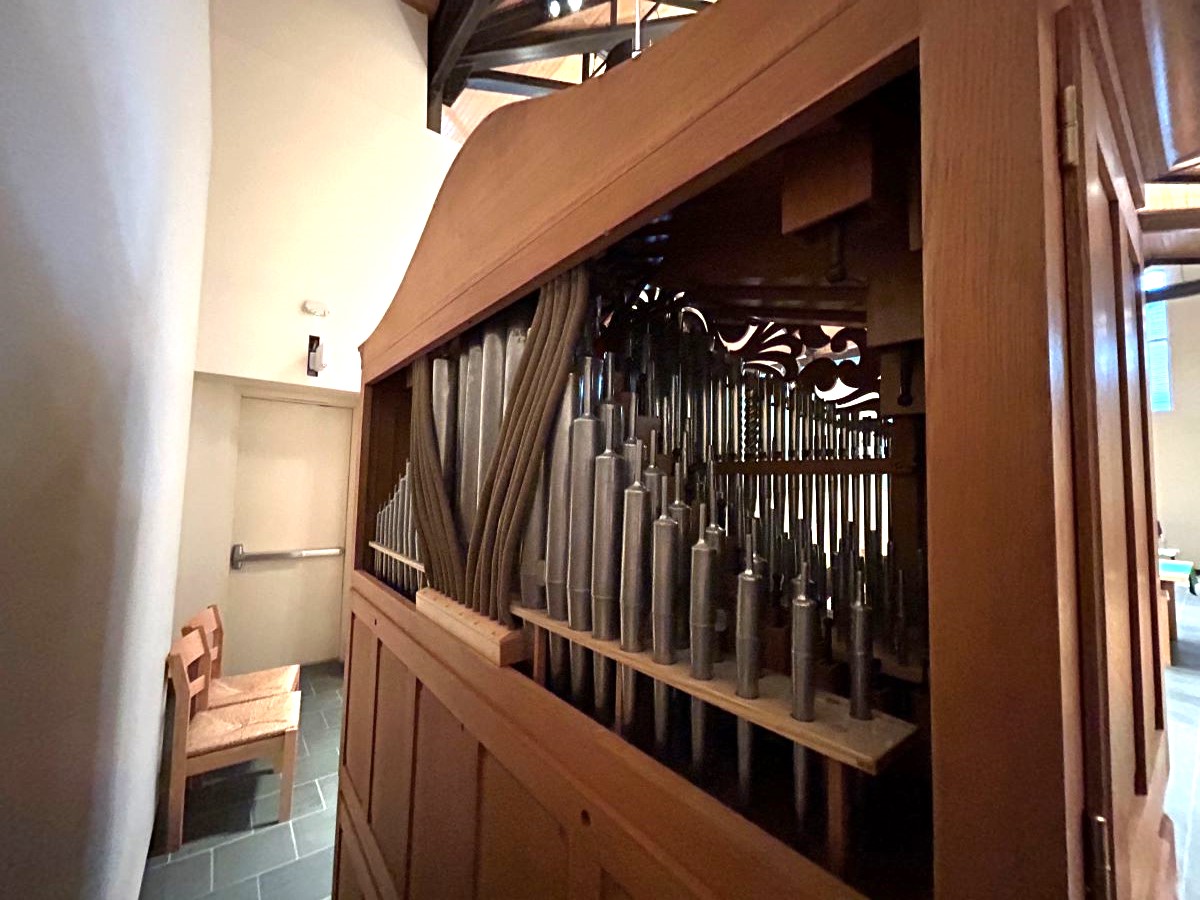

2024-05-22 - Treble end of case with Manual (above) and Pedal (below) pipework (Bryan Page/Jim Stettner)
2024-05-22 - Bass end of case with Manual (above) and Pedal (below) pipework (Bryan Page/Jim Stettner)

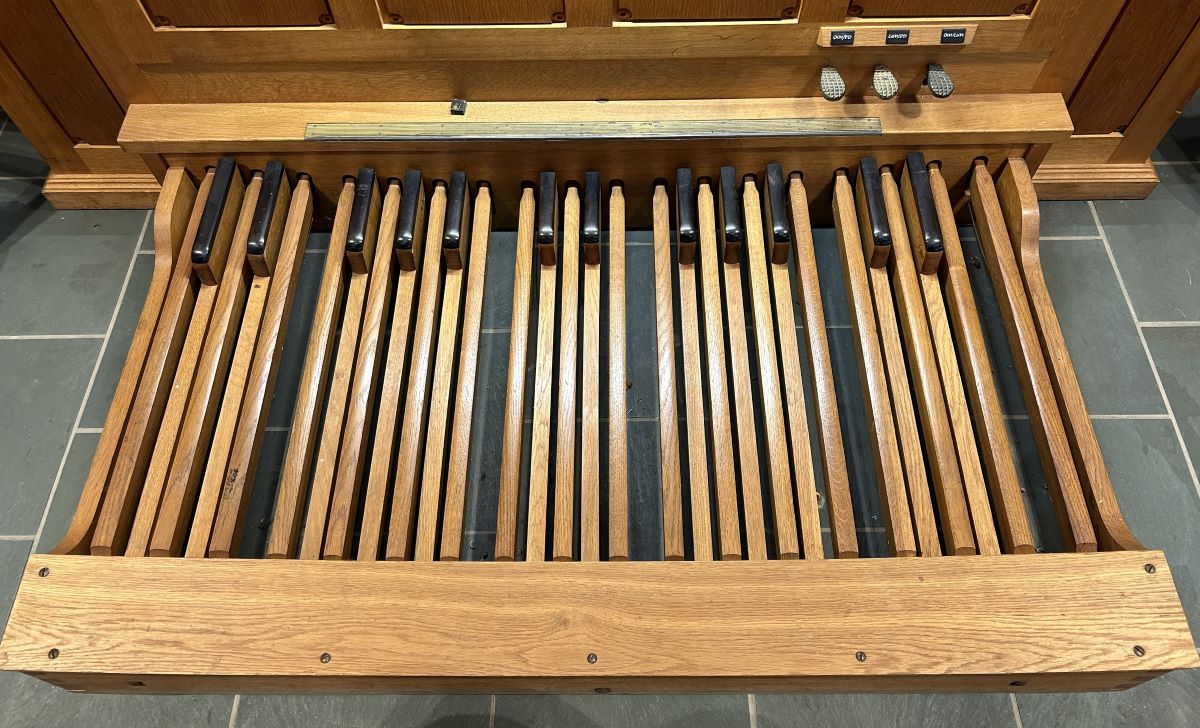

2024-05-22 - Keydesk: pedalboard (Bryan Page/Jim Stettner)
2024-05-22 - Keydesk: Hitch-down couplers (Bryan Page/Jim Stettner)
2024-05-22 - Builder's mark (Bryan Page/Jim Stettner)

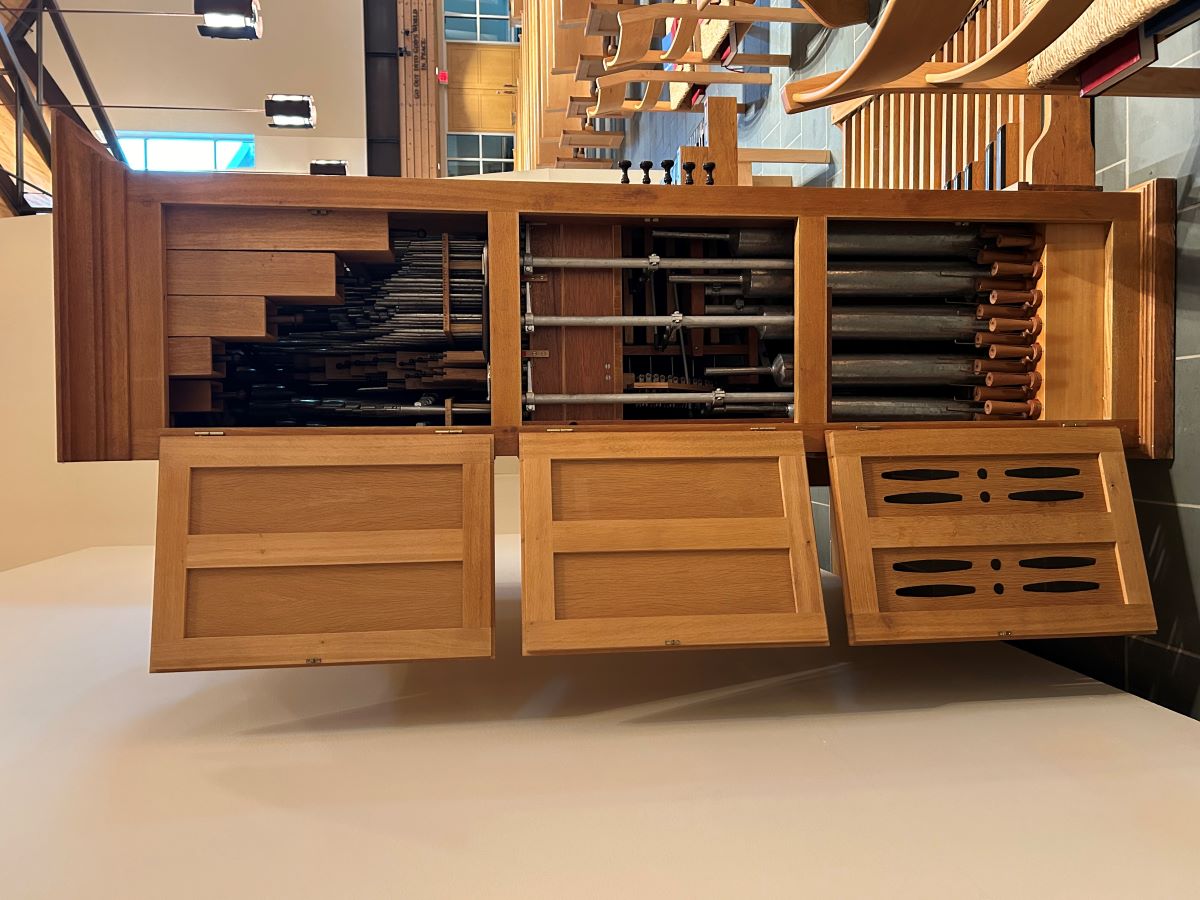

2024-05-22 - Back of case and windtrunk (Bryan Page/Jim Stettner)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Keydesk Attached
- 2 manuals
- 8 stops
- 8 registers
- 3 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
- Manual compass: 54 notes
- Pedal compass: 30 notes
- Pedal Type: Flat Straight
- Expression Type: No Enclosed Divisions
- Combination action: None
- Has hitchdown couplers
Notes
2024-05-21 - This entry represent the moving and re-installation of a used organ in a new location. Originally built for the Dallas, Texas residence of Joan Tallis. Identified through online information from Grady Coyle (May 19, 2024). -Jim Stettner
Stoplist
Source: Stoplist copied from detailed keydesk photos 2024
Obermanual Rohrfl. 8, Spitzfl. 4, Gemsh. 2
Pedal RohrG. 4, Regal 16
Untermanual Gedakt 8, Qui'de 4, Prinz. 2
Obermanual to Pedal 8 (OM/PD), Untermanual to Pedal 8 (UM/PD), Obermanual to Untermanual 8 (OM/UM)
