Trinity Christian Reformed Church
539 E Pine Street
Fremont, MI
Note: Not extant. Not playable. (in this location)
Images

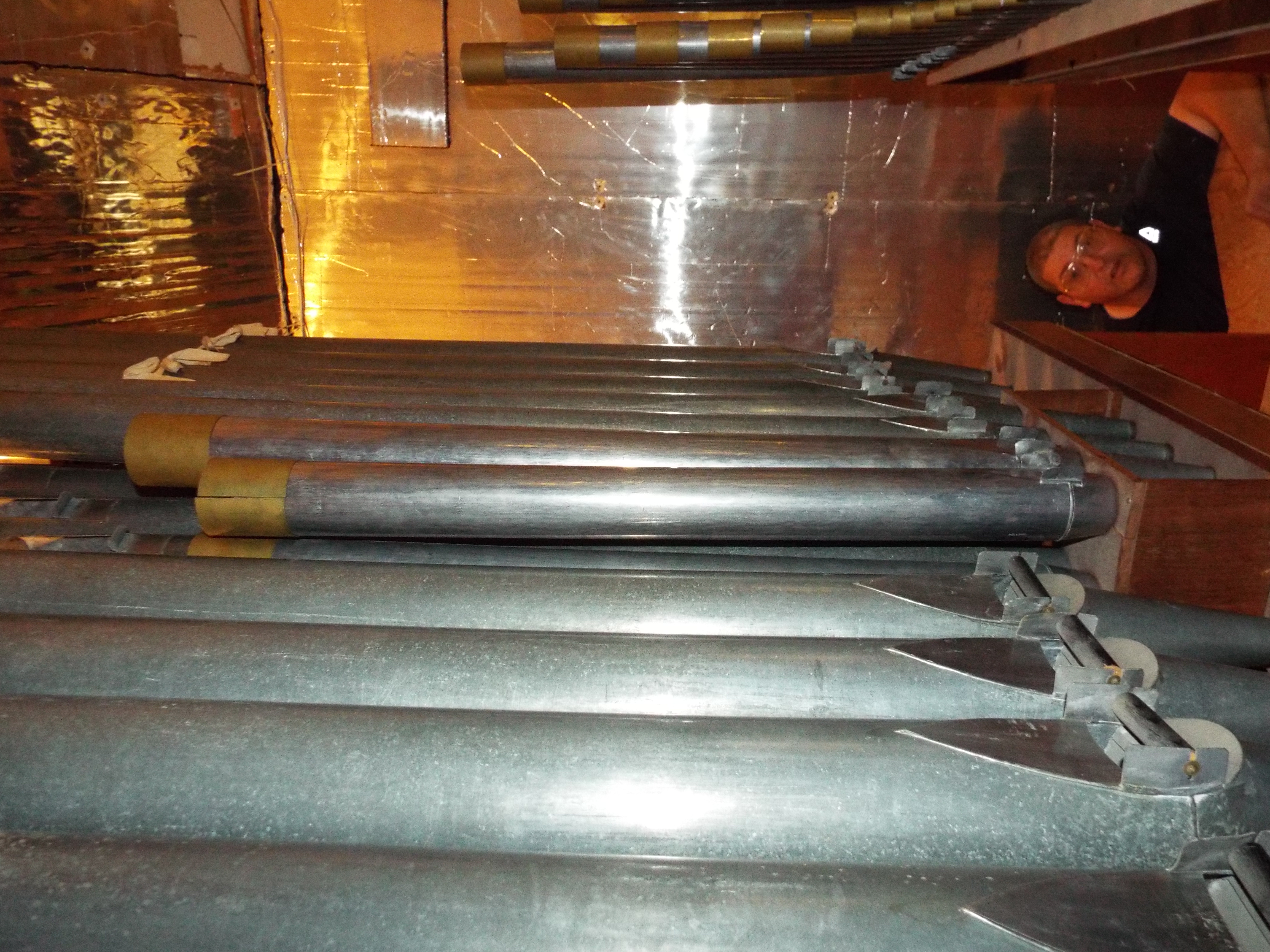

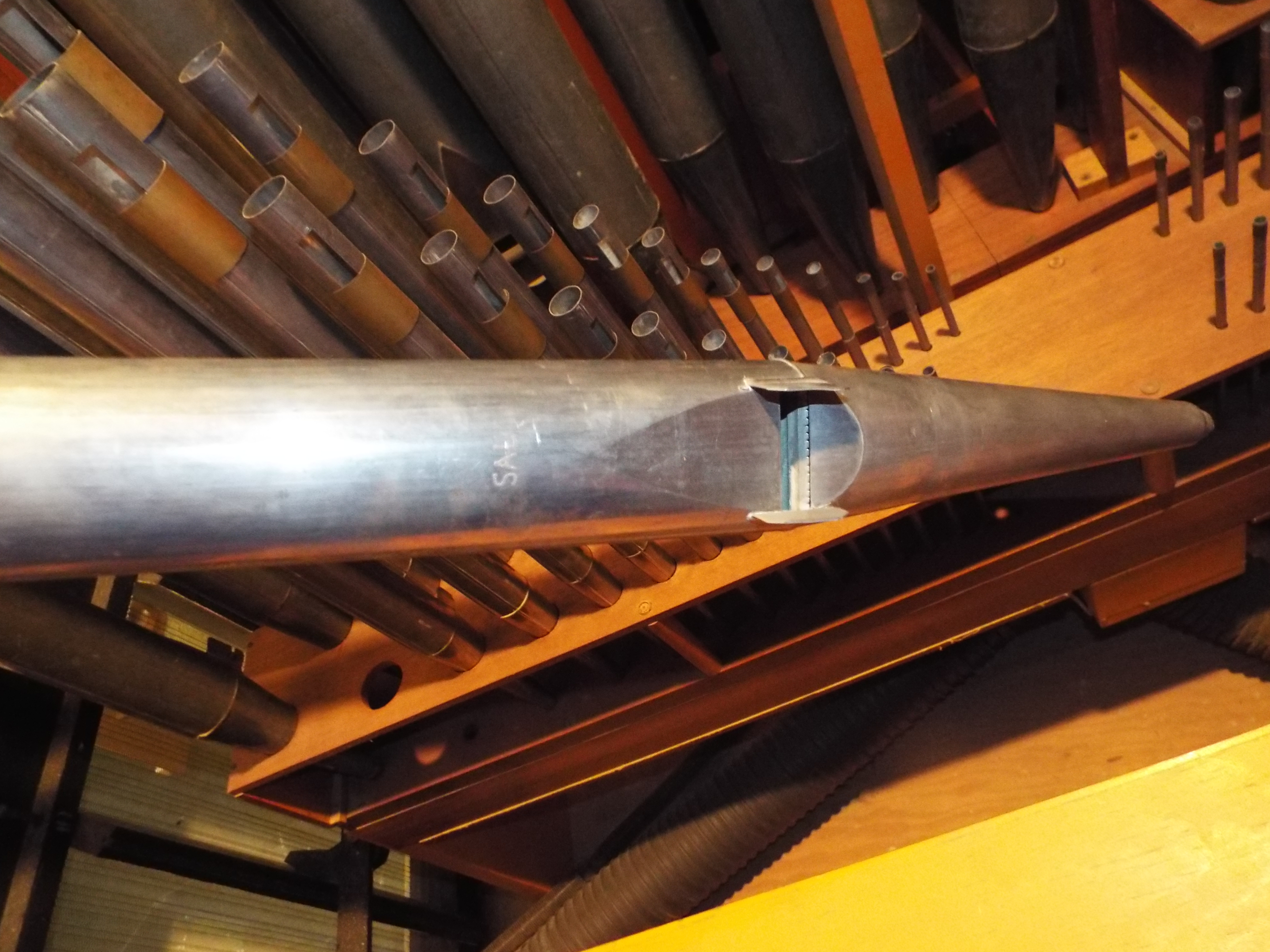

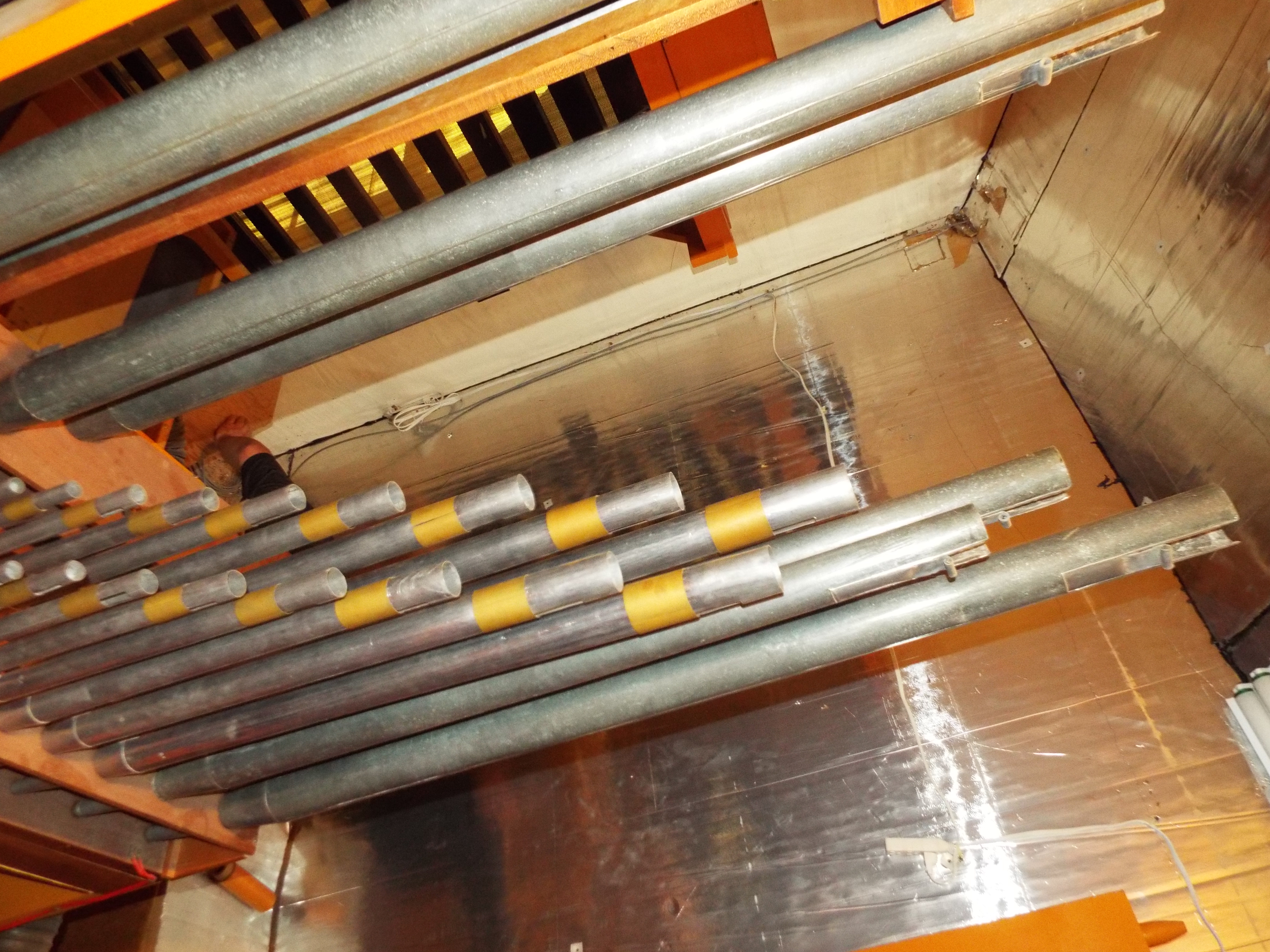

2024-10-18 - Original Kilgen, now part of Swell division (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Original Kilgen, now part of Swell division (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Original Kilgen, now part of Swell division (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Original Kilgen, now part of Swell division (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Original Kilgen, now part of Swell division (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Original Kilgen, now part of Swell division (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Original Kilgen, now part of Swell division (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Original Kilgen, now part of Swell division (chancel expression) (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Original Kilgen, now part of Swell division (nave expression) (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Swell 8' Salicional (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Swell 8' Salicional (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Great Chimes (in Swell chamber) (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Added Swell regulator (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Pedal 16' Bourdon (Great chamber) (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Pedal 16' Bourdon (Great chamber) (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Great pitman C# side pipework (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Great pitman C side pipework (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Great pitman C side pipework (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Great 8' Flute (Flauto Dolce) (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Great 8' Flute (Flauto Dolce) bass (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Great main regulator (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Pedal 16' Bourdon regulator (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Spencer Blower (side outlet) (Shawn P. Keith/Shawn P. Keith)
2024-10-18 - Stoprail (Shawn P. Keith/Shawn P. Keith)
2024-11-02 - Chambers (Andrew A. Clark/Andrew A Clark)
2024-11-02 - Chamber grill cloth (Andrew A. Clark/Andrew A Clark)
Notes
2024-11-09 - The Kilgen instrument was incorporated into a II/14 Mutchler instrument in about 1968. All original Kilgen pipework, wind regulator, and chests were incorporated, with the Dulciana relocated to the Great division and replaced with a similar 8' Aeoline. In November 2024 the instrument was disabled, the console destroyed, and the remainder of the organ offered for sale. -Shawn P. Keith
Stoplist
Source: Personal inspection of the instrument
PEDAL BOURDON 16 (European pipework, mahogany.), LIEBLICH GEDECKT 16, GEDECKT 8, DIAPASON 8, FLUTE 4, CHORAL BASS 4
GREAT (The Great straight chest was divided into two sections due to chamber limitations, with the exception of the 8' Flute (a cylindrical Flauto Dolce, which is on a pair of electric-action chests. The Swell 8' Salicional was on a pair of electric-action chests while the rest of the Swell division was on the original Kilgen four-rank electro-pneumatic unit chest. The Pedal 16' Bourdon was on a pair of electric-action chests, even down to 16'C.) OPEN DIAPASON 8 (European pipework), DULCIANA 8 (Original Kilgen 8' Dulciana, relocated from Swell.), FLUTE 8 (European pipework on electric unit chests.), MIXTURE IV (Notes 1-12 have three ranks. Fourth rank begins at note 13.), PRINCIPAL 4 (European pipework)
SWELL OPEN DIAPASON 8 (Original Kilgen.), LIEBLICH GEDECKT 16 (Original Kilgen. 1-61 stopped wood, 62-97 open metal.), QUINTADENA 8 (Plays 8' Aeoline and 2-2/3' Nazard together.), SALICIONAL 8 (European pipework.), GEDECKT 8, AEOLINE 8 (Replaced original Kilgen 8' Dulciana (relocated to Great), possibly with vintage Kilgen pipework.), OCTAVE 4, FLUTE 4, NAZARD 2-2/3, FLAUTINO 2, CLARION 4 (37 reeds, 24 flues), TRUMPET 8 (TC) from 4' Clarion, no bass octave, TREMOLO
GREAT to PEDAL 8, SWELL to PEDAL 8, SWELL to SWELL 16, SWELL to SWELL 4, SWELL to GREAT 16, SWELL to GREAT 8, GREAT to GREAT 16, SWELL to GREAT 4, GREAT to GREAT 4
