Trinity Episcopal "Old Swedes" Church
1208 Kings Highway
Swedesboro, NJ
Images

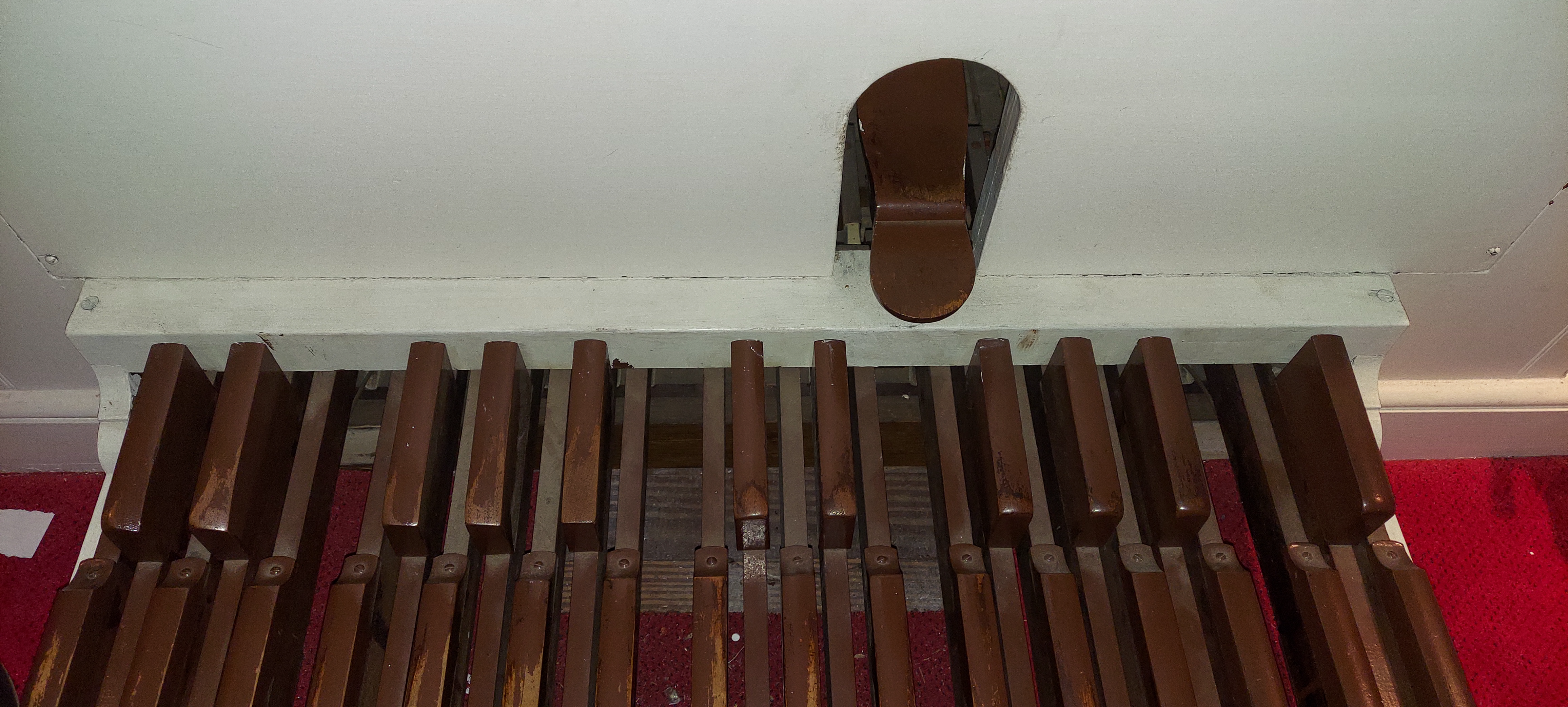

2021-12-24 - Pedal clavier (naturals stained/painted brown at some point) (Photograph by Paul R Marchesano/Paul R. Marchesano)

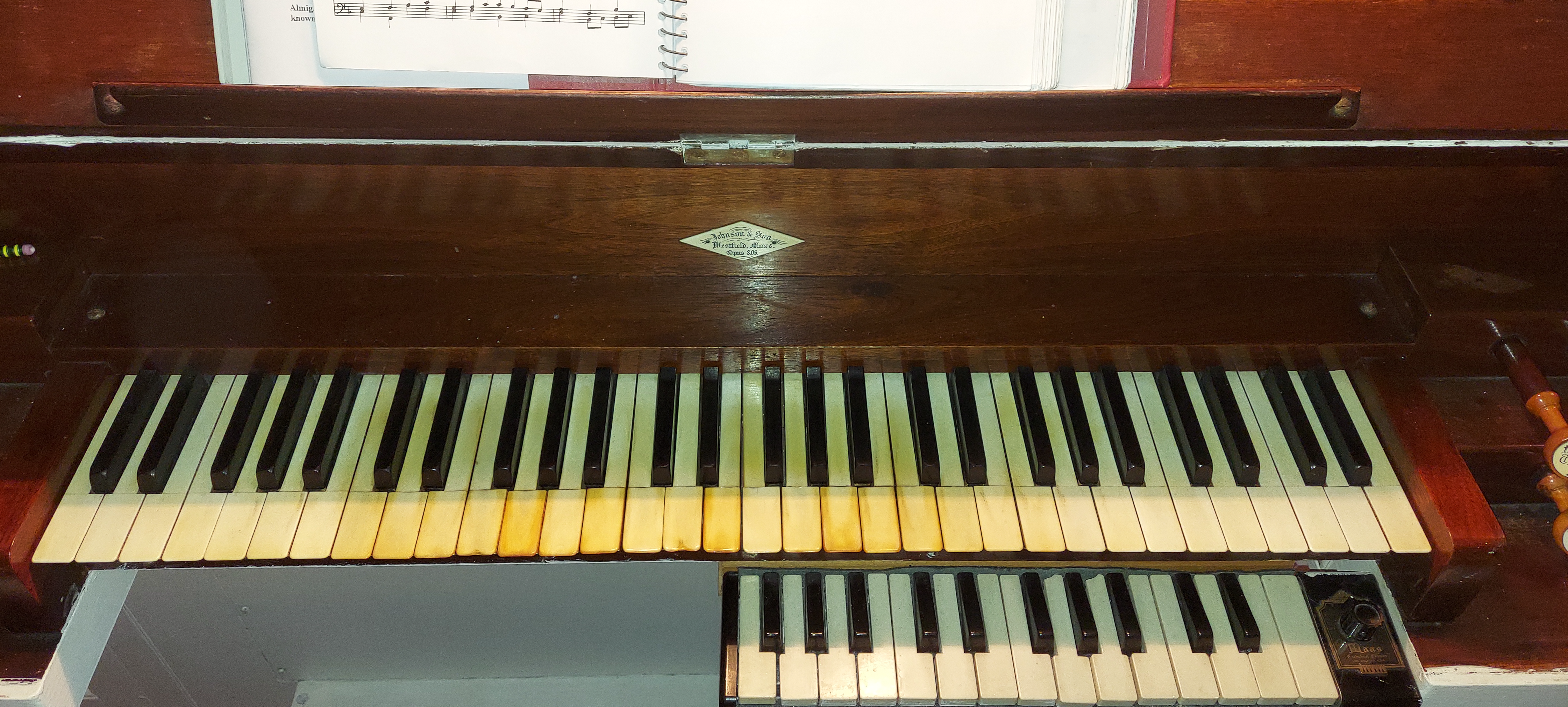

2021-12-24 - Keydesk (with added chimes keyboard) (Photograph by Paul R Marchesano/Paul R. Marchesano)

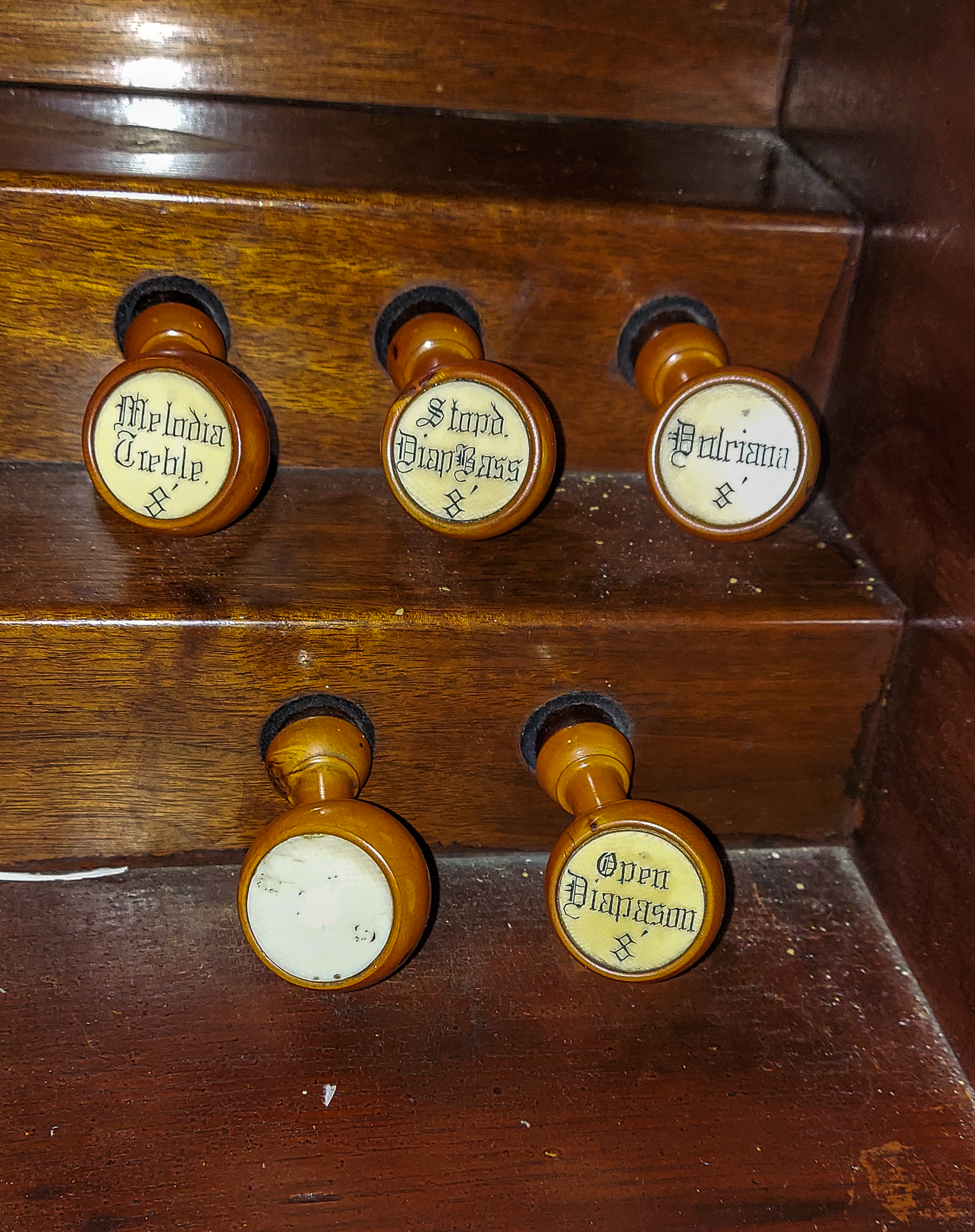

2021-12-24 - Left stopjamb (Photograph by Paul R Marchesano/Paul R. Marchesano)

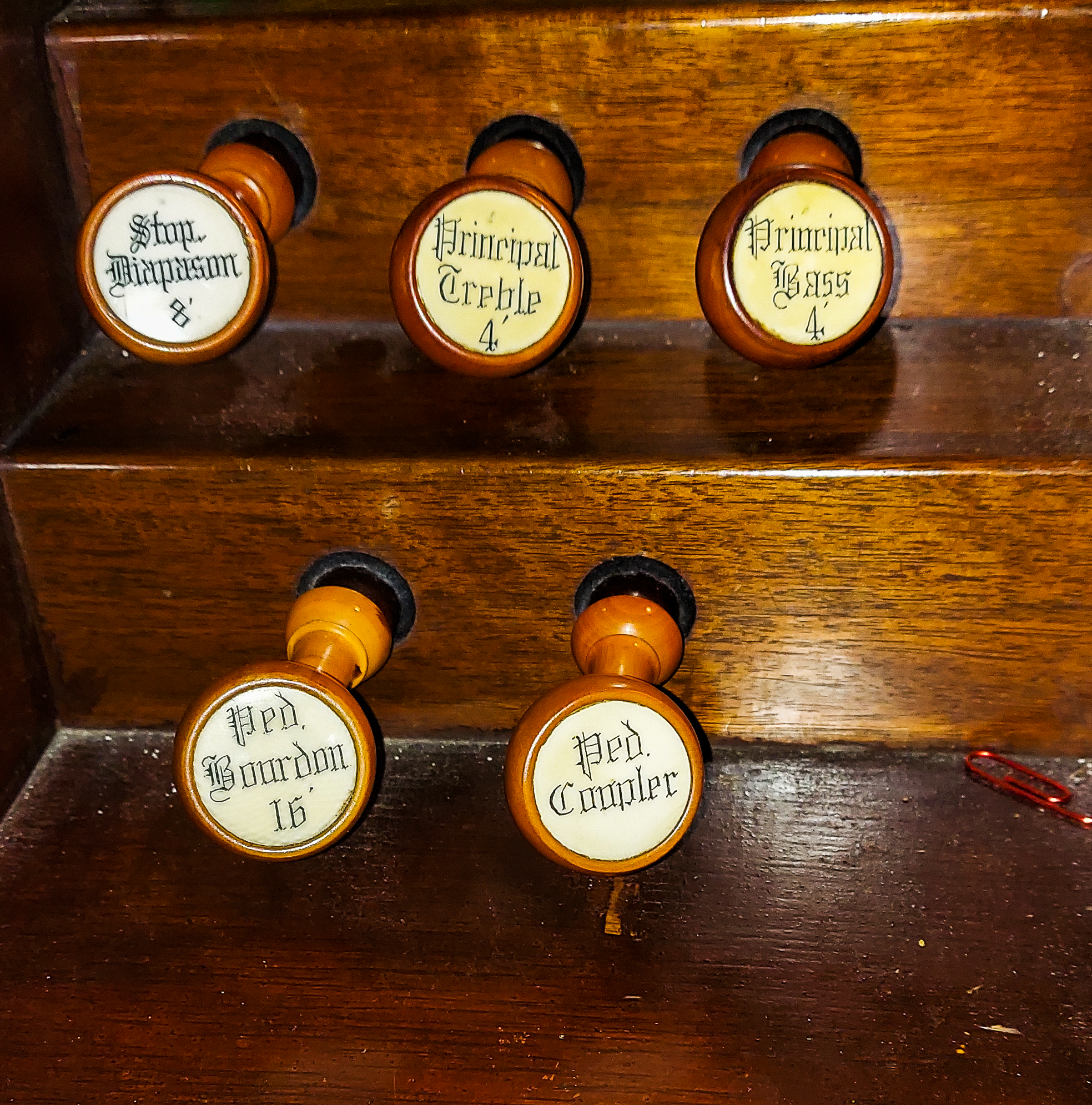

2021-12-24 - Right stop jamb (Photograph by Paul R Marchesano/Paul R. Marchesano)

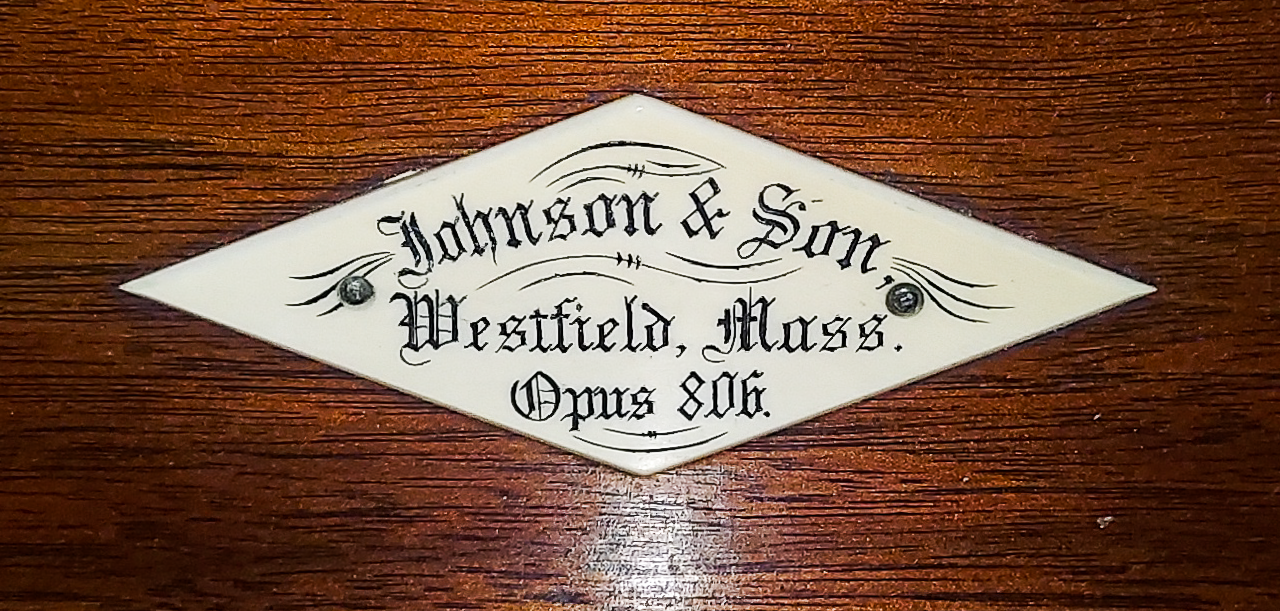

2021-12-24 - Nameplate (Photograph by Paul R Marchesano/Paul R. Marchesano)

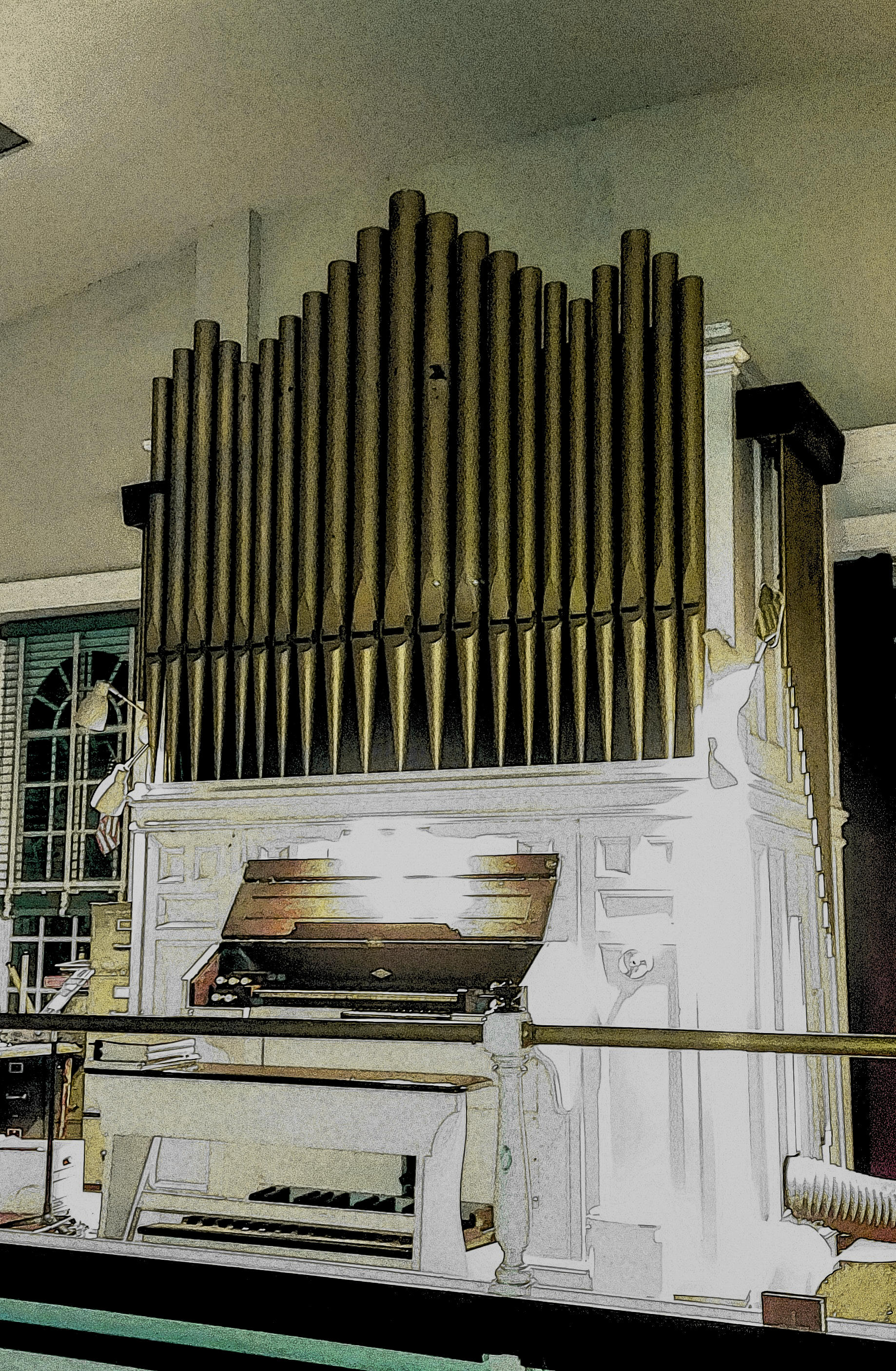

2021-12-24 - Organ case in rear gallery (Photograph by Paul R Marchesano/Paul R. Marchesano)
Consoles
Keydesk
- Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
- Console position: Keydesk Attached
- 1 manuals
- 8 stops
- 10 registers
- 2 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 58 notes
- Pedal compass: 27 notes
- Pedal Type: Flat Straight
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: None
Notes
2004-10-30 - Status Note: There 1996. -Database Manager
2004-10-30 - Altered? Organ stored while building was strengthened, then reinstalled. Under care of Mudler--Hunter, Philadelphia. -Database Manager
2021-12-25 - Blank knob, currently stationary, was likely bellows signal. Original feeders and pump handle gone (slot in side of case and indicator marker extant), valve wheel for water motor extant on front of case to right of keydesk. Winding altered at some point -- feeders and pump handle as well as water motor connection removed at undetermined time. Chimes added, hanging on right and left sides of case, chimes keyboard mounted awkwardly below and forward of keyboard. These appear to be the only alterations to the organ. -Paul R. Marchesano
Stoplist
Source: Taken from console
Manual (58 notes) Open Diapason 8 (58 pipes, metal, 21 in case facade), Dulciana 8 (46 pipes, metal), Melodia Treble 8 (46 pipes, wood), Stopd. Diapason Bass 8 (12 pipes, wood), Blank (was bellows signal), Stopd. Diapason 8 (46 pipes, wood), Principal Treble 4 (46 pipes, metal), Principal Bass 4 (12 pipes, metal), Pedal Bourdon 16 (27 pipes, wood)
