All Saints Catholic Church: Sanctuary; rear gallery
22824 Second St
Hayward, CA
Images
2025-02-07 - Console (Nicholas Yung/Nicholas Yung)
2025-02-08 - Facade (Nicholas Yung/Nicholas Yung)
2025-02-08 - Choir Division (Nicholas Yung/Nicholas Yung)
2025-02-08 - Chamades (Nicholas Yung/Nicholas Yung)
2025-02-08 - Pedalboard (Nicholas Yung/Nicholas Yung)

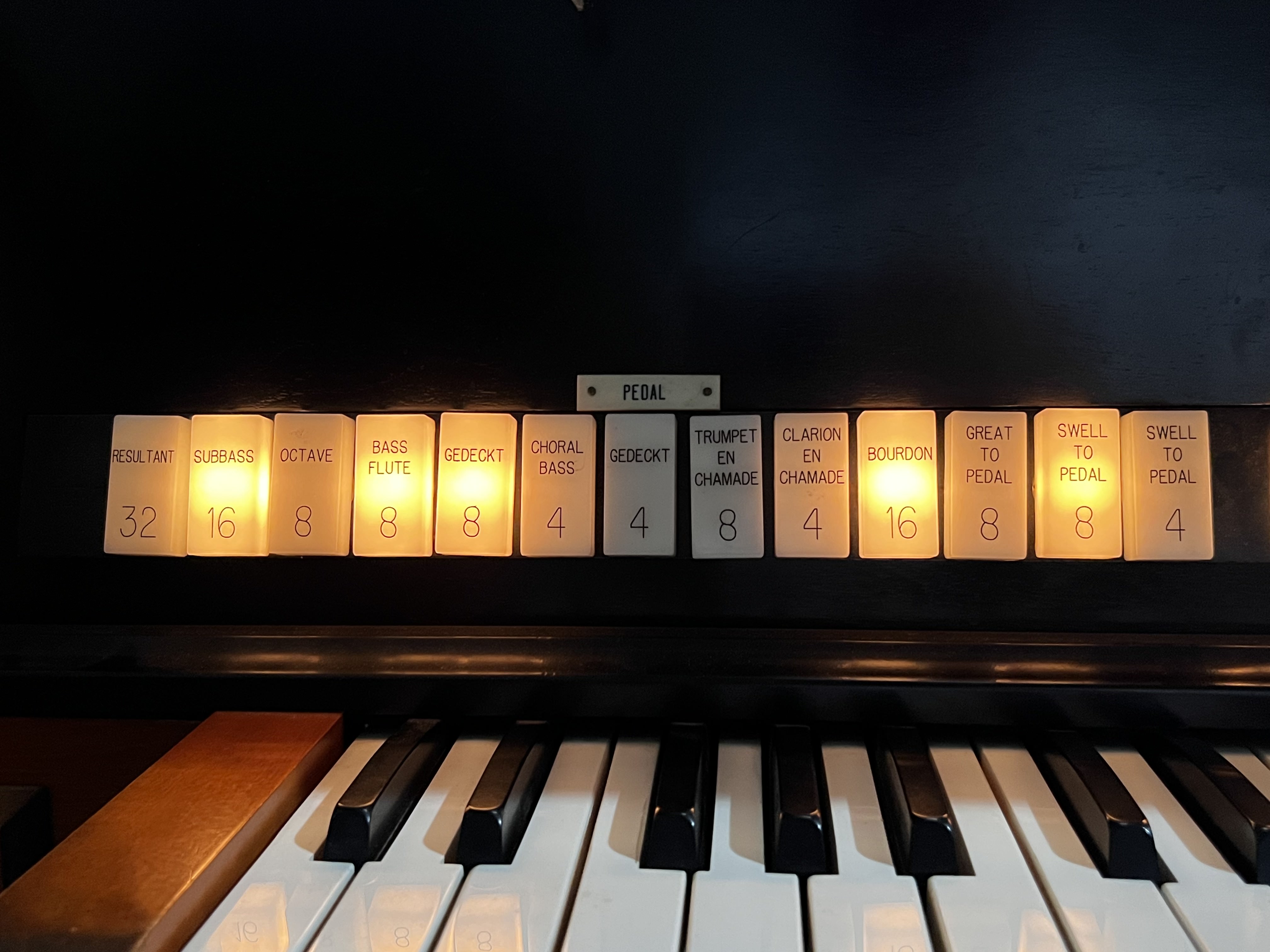

2025-02-08 - Pedal stoptabs (Nicholas Yung/Nicholas Yung)
2025-02-08 - Swell stoptabs (Nicholas Yung/Nicholas Yung)
2025-02-08 - Great stoptabs (Nicholas Yung/Nicholas Yung)
2013-09-14 - Church exterior; facade (Eunice Park on Church Facebook page/Jim Stettner)
2025-02-08 - Choir stoptabs (Nicholas Yung/Brad Engelland)
Consoles
Main; rear gallery
- Organ type: Traditional With Roll Top
- 2 manuals
- 35 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2025-02-12 - This entry represents the installation of a new organ. Identified through online information from Nicholas Yung (February 9, 2025).
The organ has obviously been enlarged with an en Chamade Trumpet, and the console has been updated. -Jim Stettner
Stoplist
Source: Taken from console photos
Pedal Subbass 16, Resultant 32, Bourdon 16, Bass Flute 8, Octave 8, Gedeckt 8, Choral Bass 4, Gedeckt 4, Trumpet en Chamade 8, Clarion en Chamade 4
Swell Gedeckt 8, Principal 2, Viola 8, Principal 4, Harmonic Flute 4, Nazard 2 2/3, Tierce 1 3/5, Fife 1, Scharf III, Oboe 8, Oboe 4, blank, Tremolo
Choir Bourdon 8, Bourdon 4, Dulciana 8, Dulciana 4, Principal 2
Great Principal 8, Viola 8, Harmonic Flute 8, Gedeckt 4, Octave 4, Harmonic Flute 2, Mixture III, Trumpet en Chamade 8, Clarion en Chamade 4
Swell to Pedal 8, Swell to Pedal 4, Great to Pedal 8, Swell to Swell 8
