Greystone Park Psychiatric Hospital (1875): Chapel; front, right
Morris Plains, NJ
Images

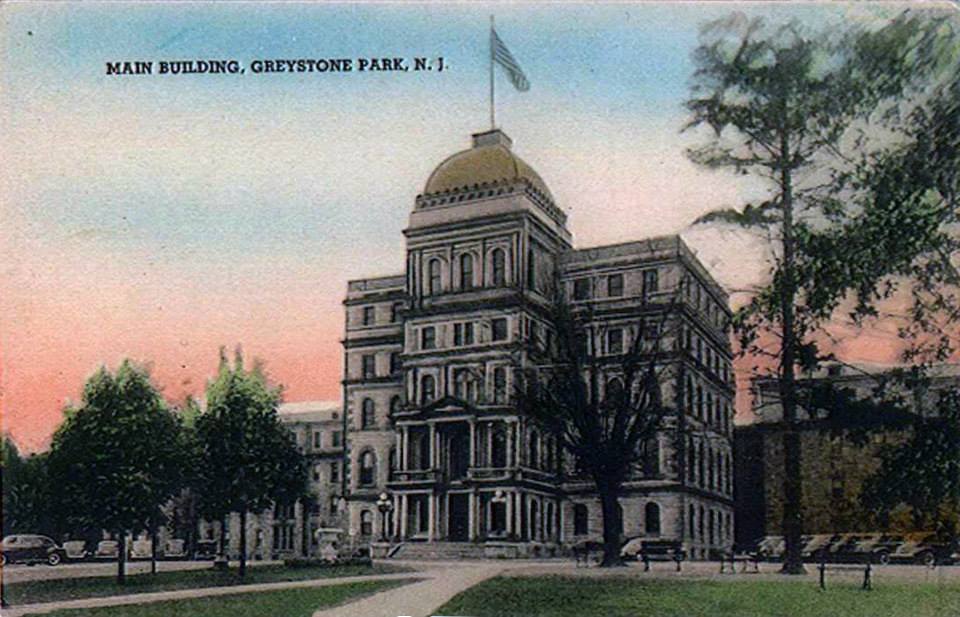

ca. 1905-1910 - Main building (Vintage postcard on 'Preserve Greystone' Facebook page/Jim Stettner)

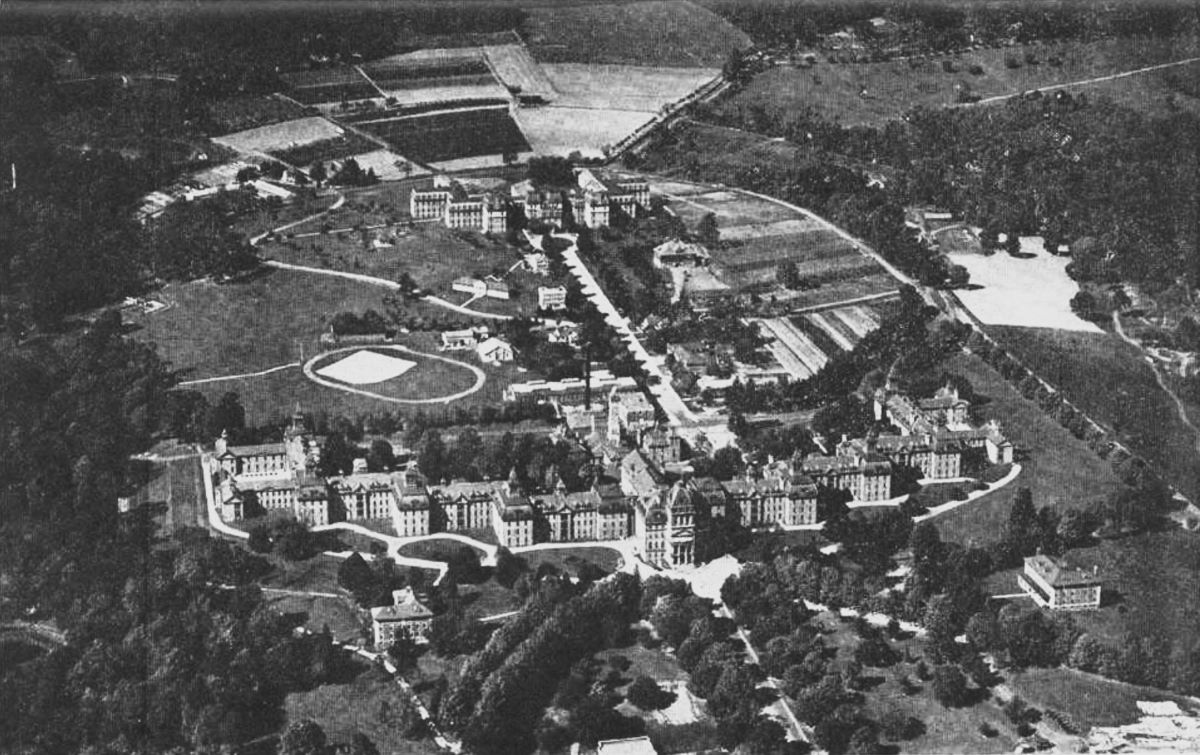

1921 - Hospital campus (Capt. James Suydam, Aerial Photographer; on 'Preserve Greystone' Facebook page/Jim Stettner)

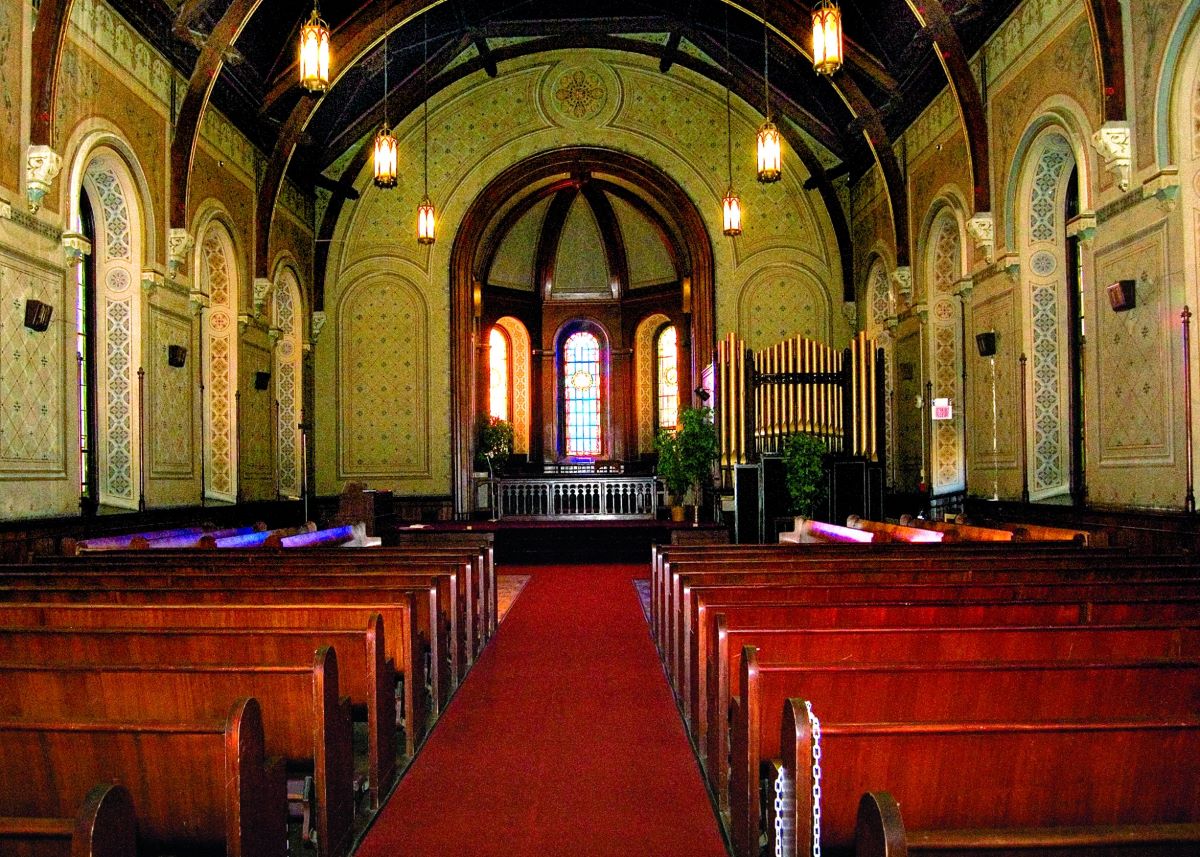

ca. 2010's - Chapel interior with organ at front, right ('Preserve Greystone' Facebook page/Jim Stettner)

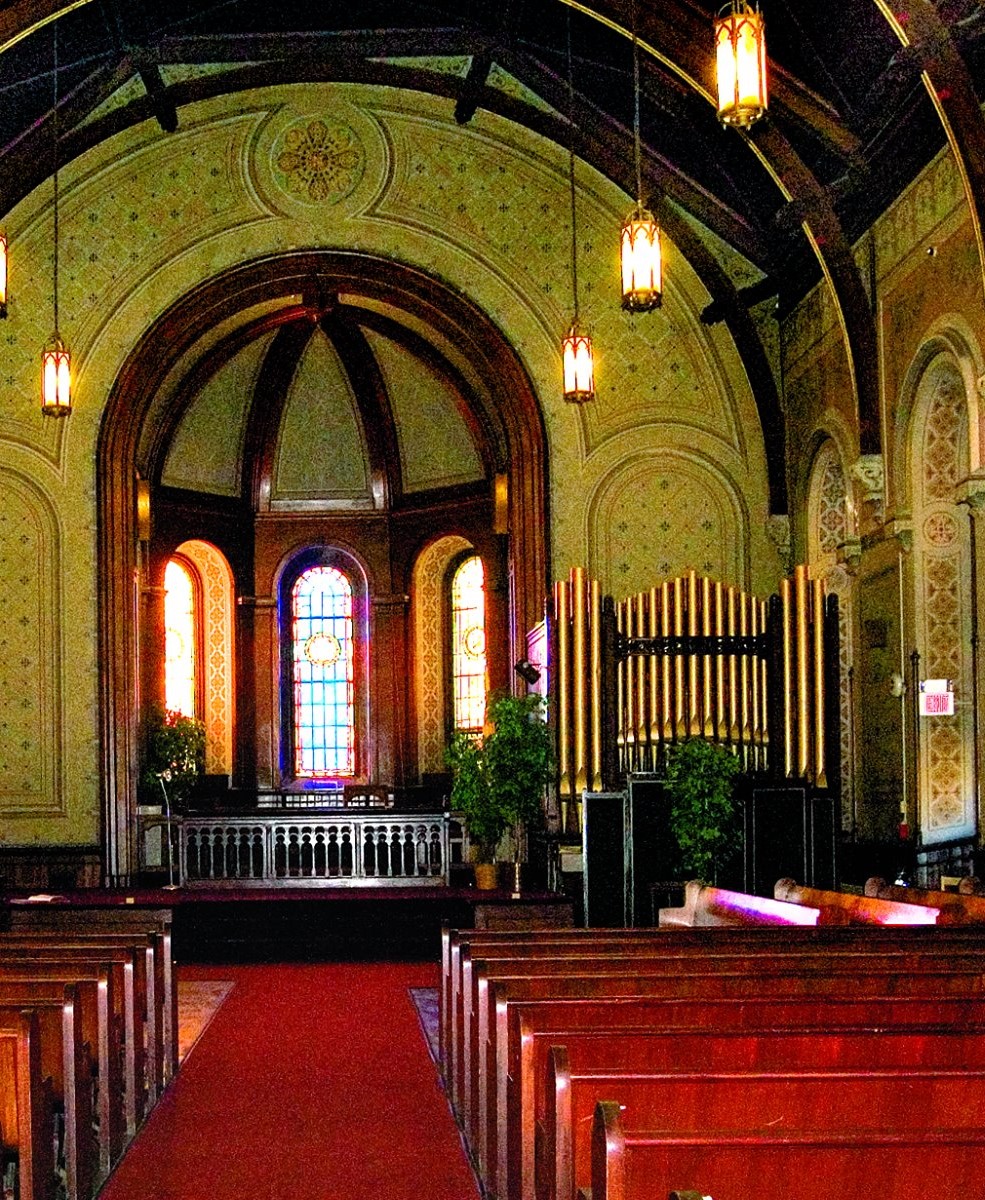

ca. 2010's - Center aisle, altar, and organ at right ('Preserve Greystone' Facebook page/Jim Stettner)

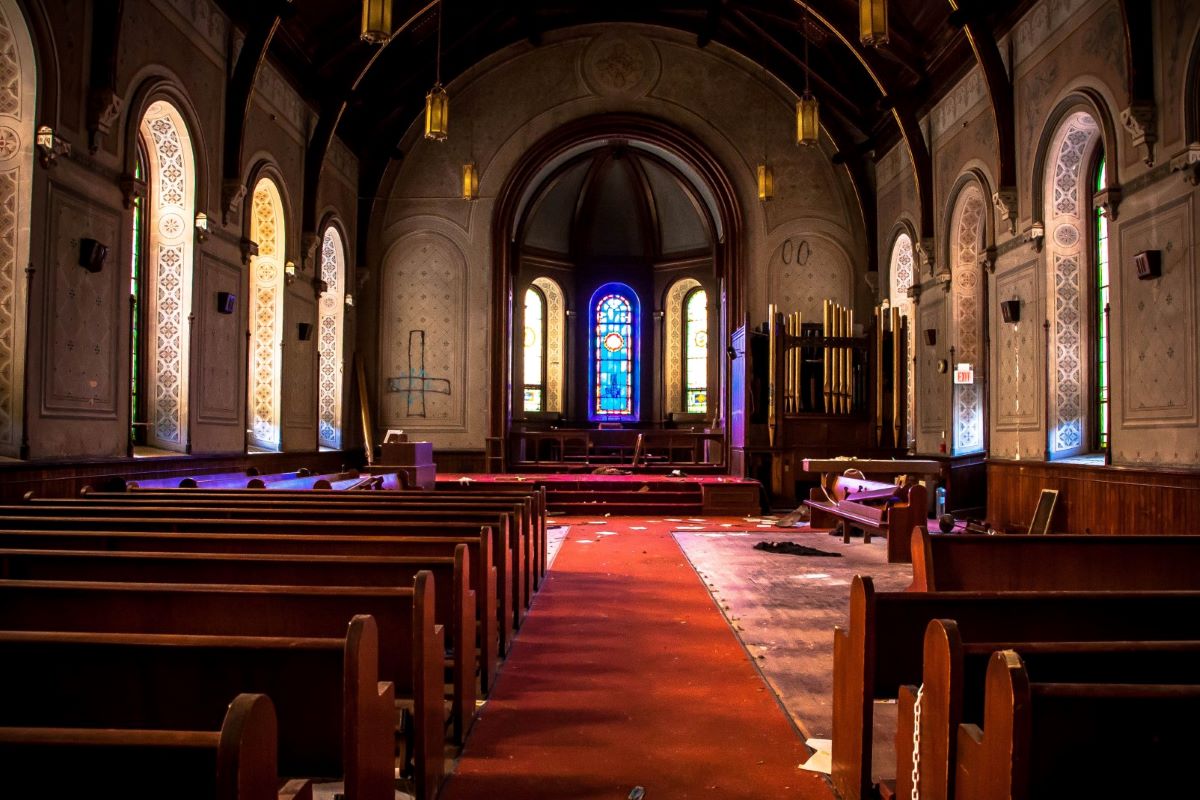

2013-09-21 - Chapel interior with organ in front; after facility abandoned (Genevieve Ferrence/Jim Stettner)

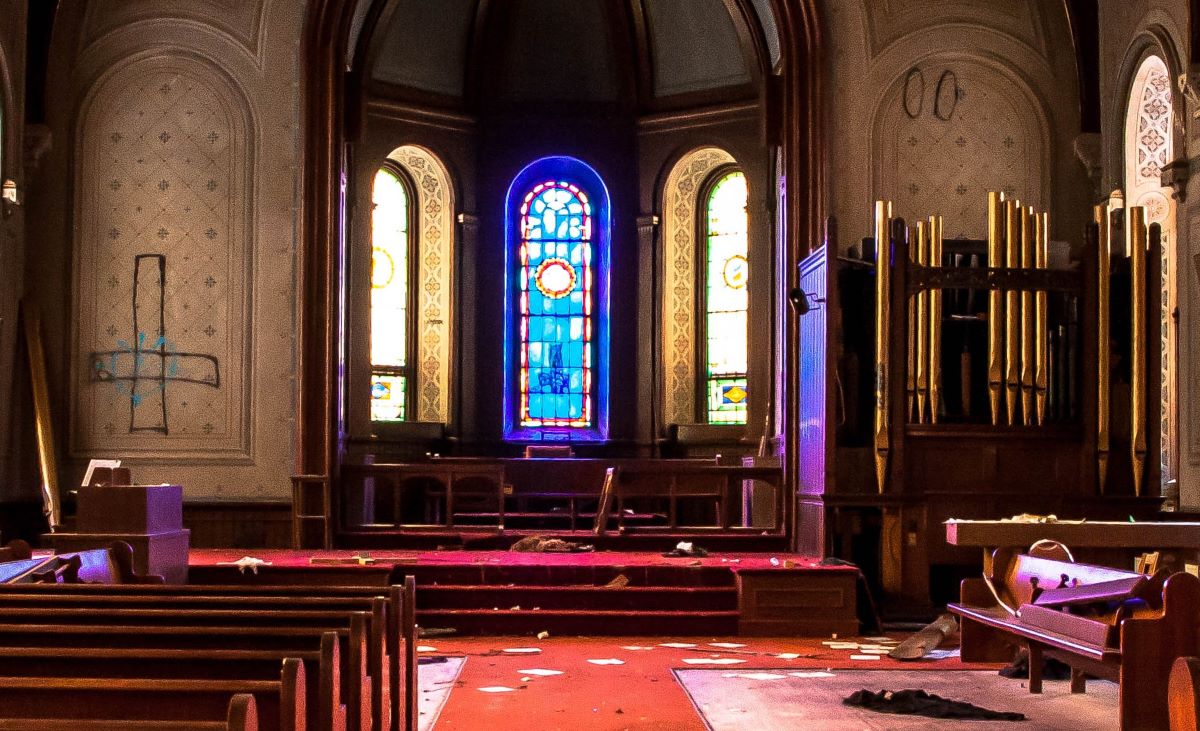

2013-09-21 - Front of church; console at left, organ on right (Genevieve Ferrence/Jim Stettner)

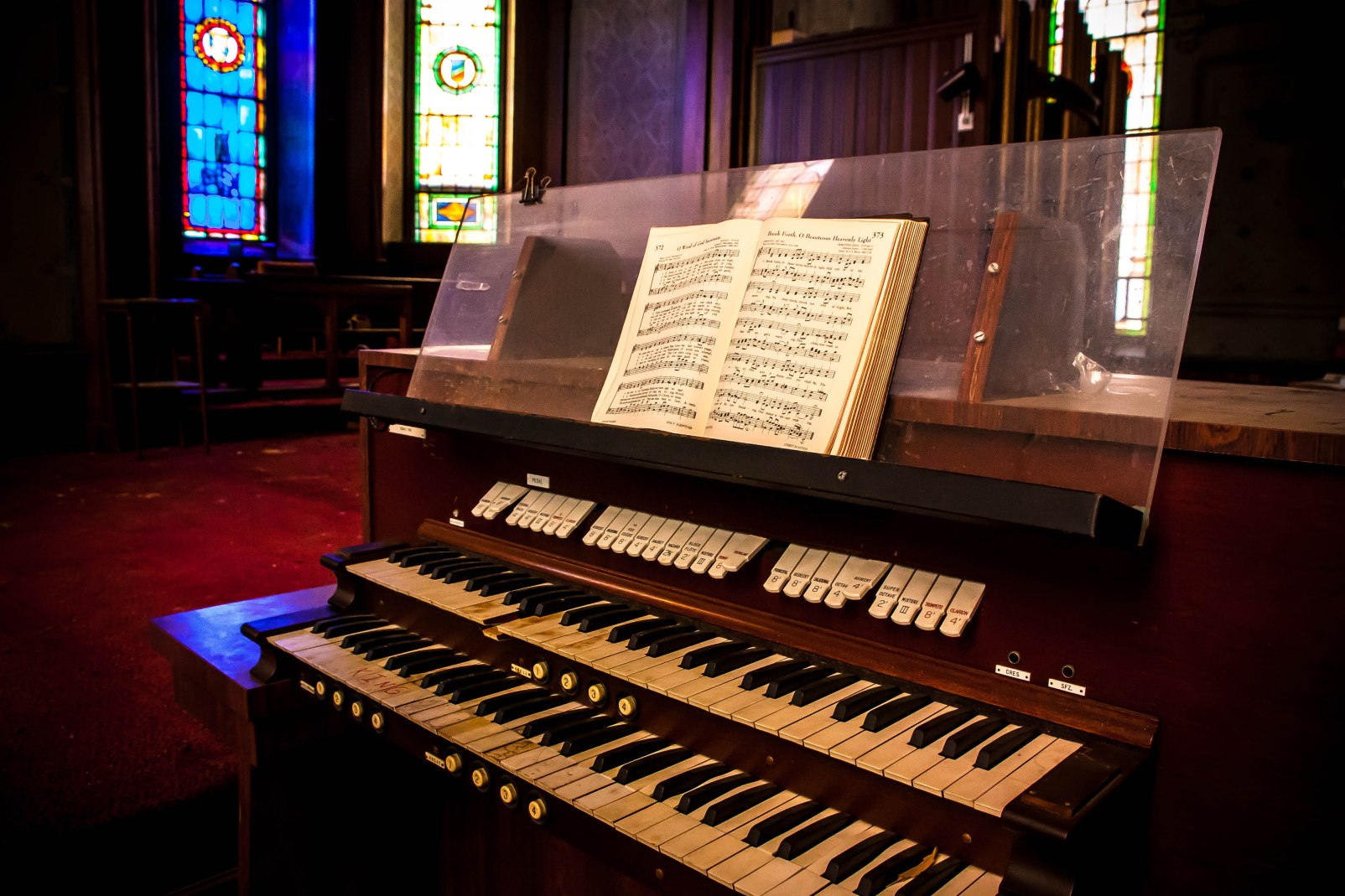

2013-09-21 - Console from right (Genevieve Ferrence/Jim Stettner)

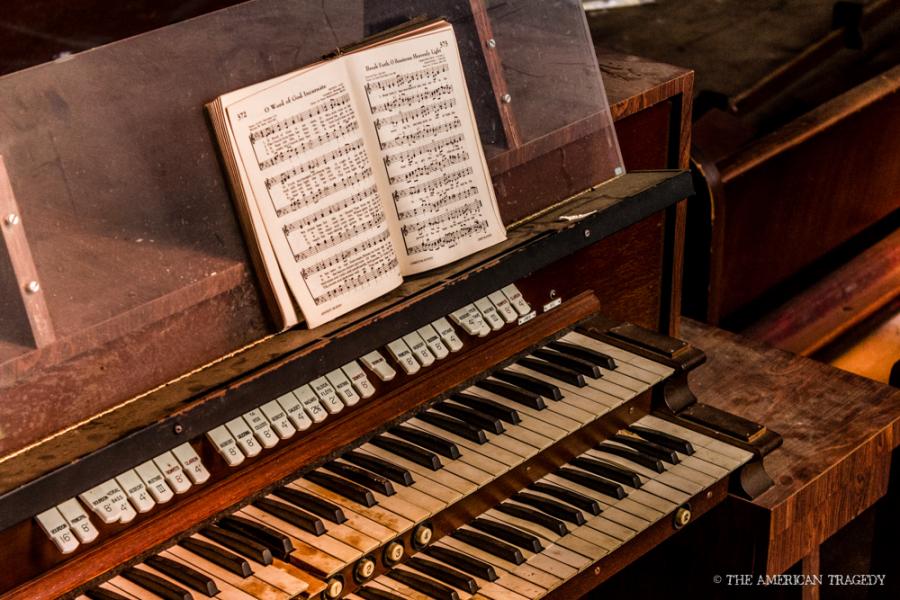

Date unknown - Console from left (Unknown/Jim Stettner)
Consoles
Main
- Organ type: Non-Traditional Style, As Consoles by Holtkamp, Schlicker, et al
- Console position: Console in Fixed Position, Left
- 2 manuals
- 6 stops
- 26 registers
- 2 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
Notes
2025-06-14 - This entry represents the rebuilding and electrification of an existing instrument. Identified from photos showing the original case/facade, and a new, remote console. -Jim Stettner
Stoplist
Source: Taken from console photos June 14, 2025
Great Principal 8, Gedeckt 8, Salicional 8, Octave 4, Gedeckt 4, Super Octave 2, Mixture III, Trompette 8, Clarion 4
Swell Gedeckt 8, Salicional 8, Vox Celeste [tc] 8, Gedeckt 4, Salicet 4, Nazard 2⅔, Block Flöte 2, Mixture III, Trompette 8, Tremolo
Pedal Bourdon 16, Principal 8, Bourdon 8, Choral Bass 4, Gedeckt 4, Mixture III, Trompette 8, Clarion 4
