Lawrence University: Memorial Chapel
Appleton, WI
Images

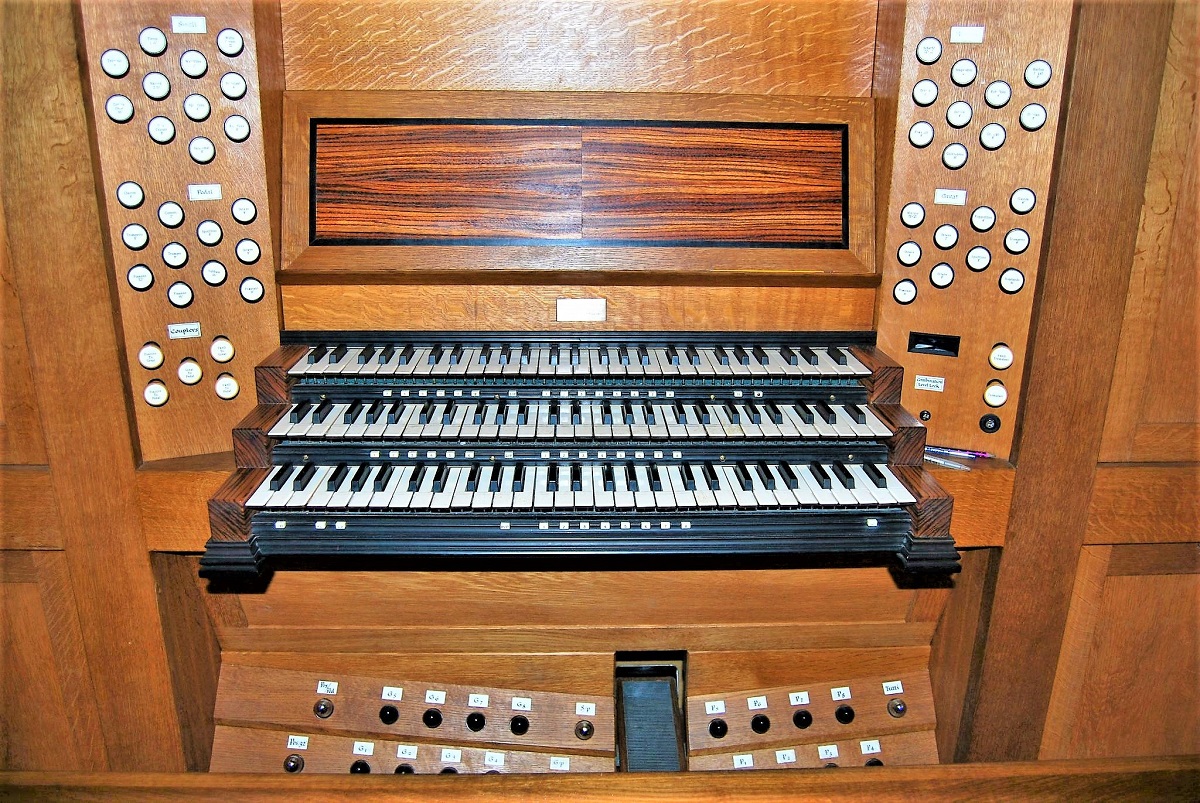

2010-11-14 - Console (Photograph by Stephen Schnurr/Database Manager)

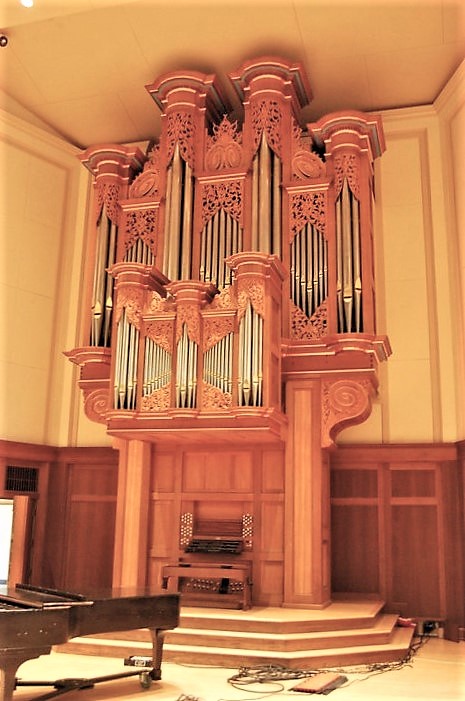

2010-11-14 - Organ and case (Photograph by Stephen Schnurr/Database Manager)

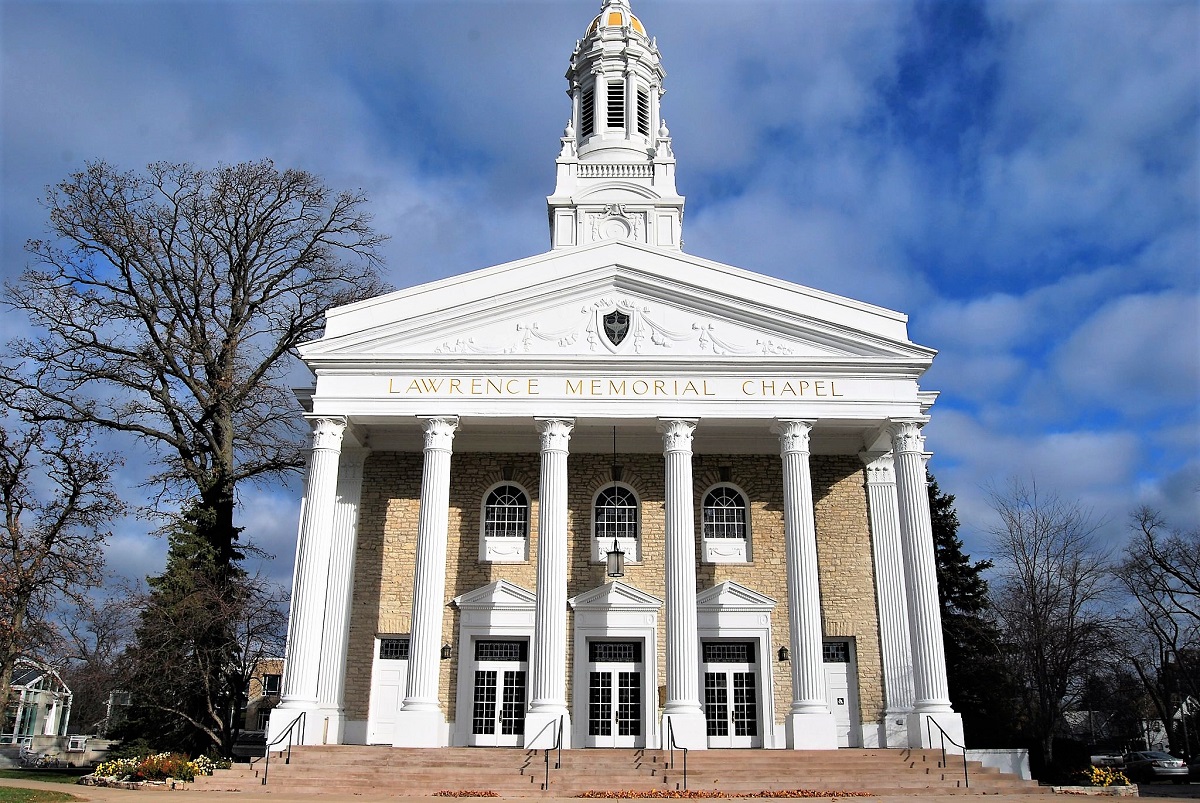

2010-11-14 - Chapel Exterior (Photograph by Stephen Schnurr/Database Manager)

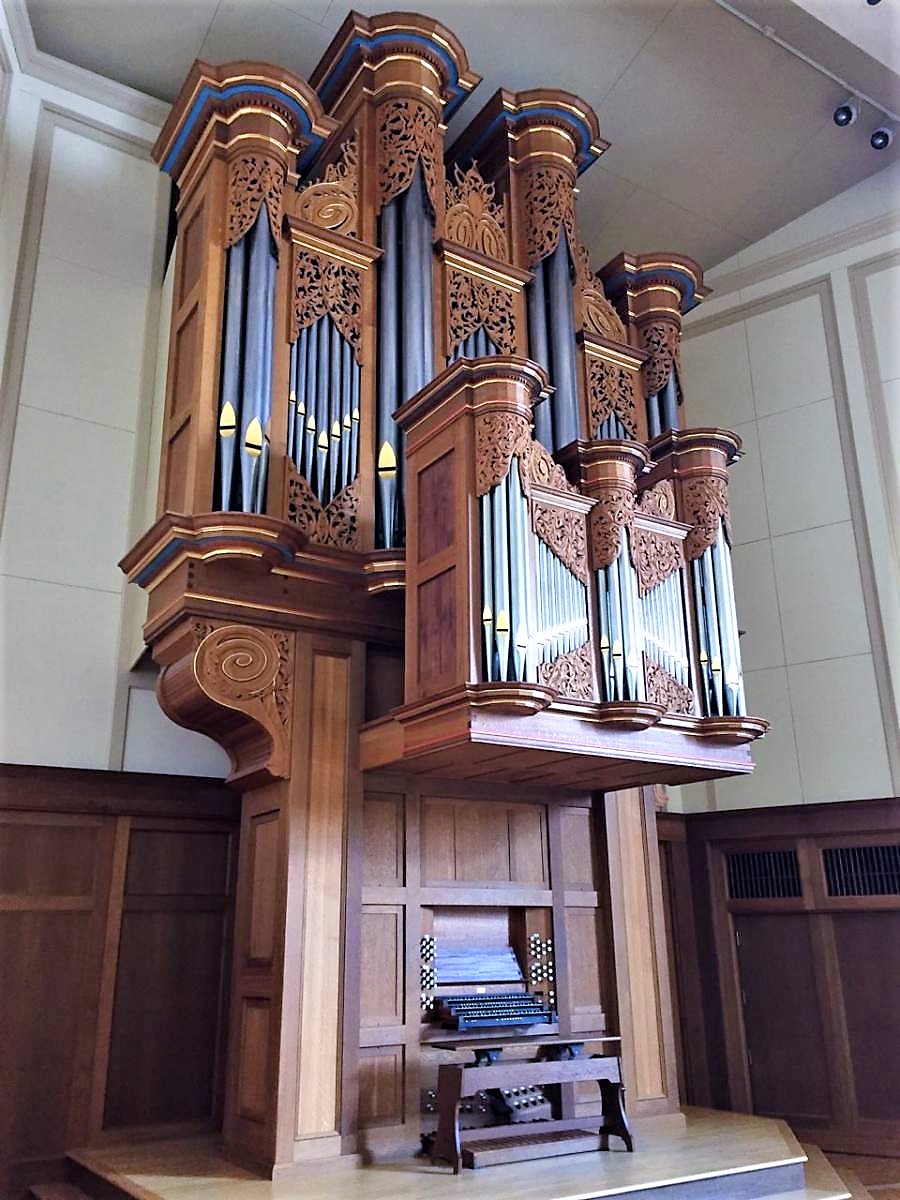

2018-04-07 - Organ Case (Photograph by Jake Cihla/Database Manager)

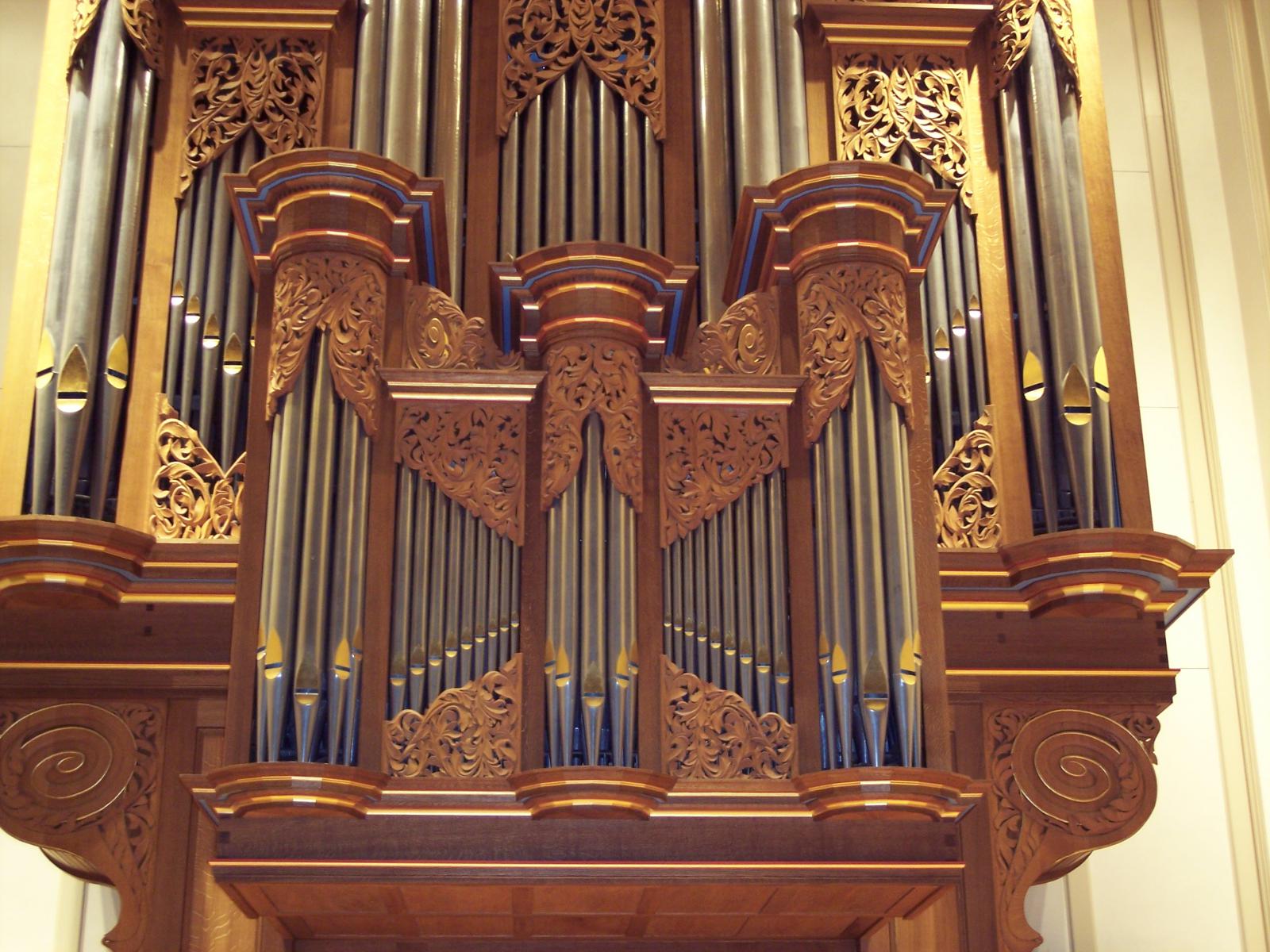

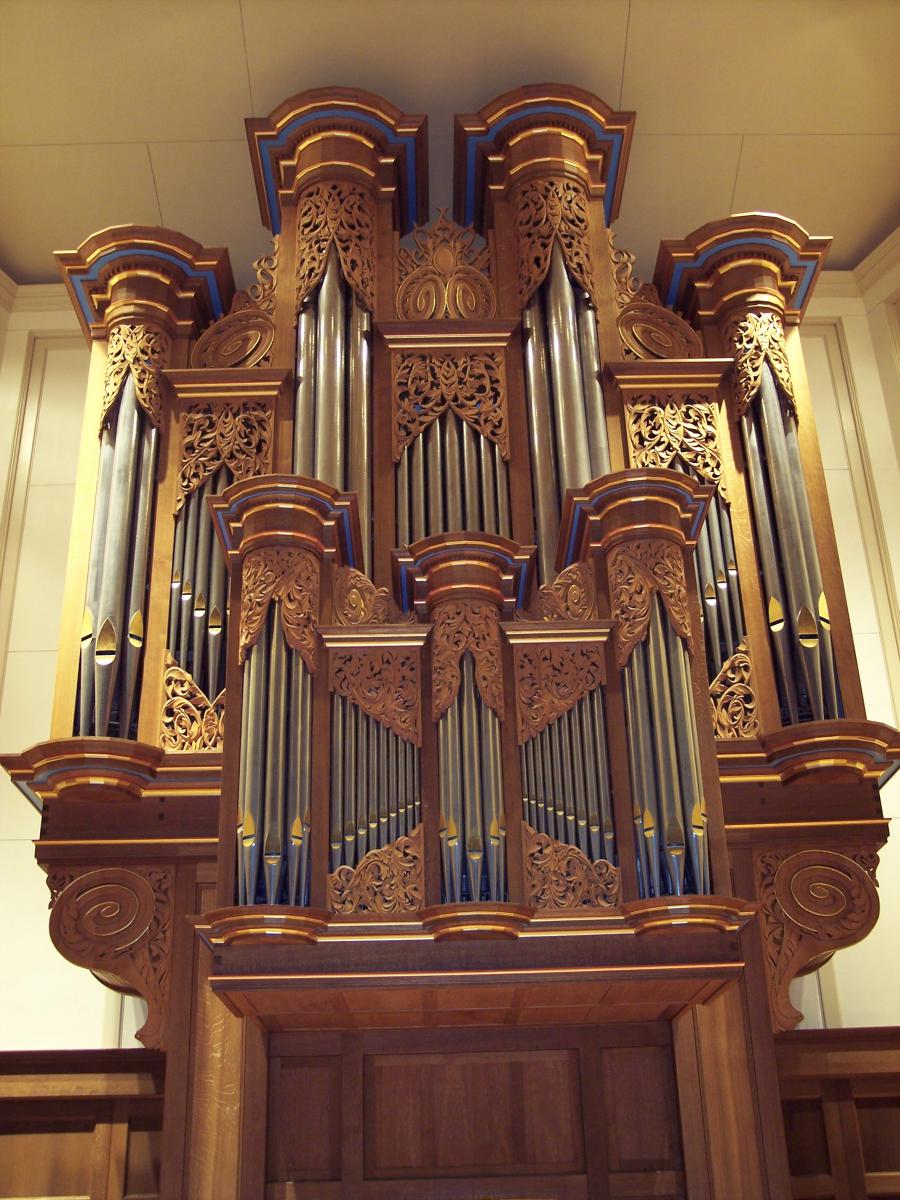

2006-01-19 - Organ Case (Photograph by Ryan D. Hulshizer/Database Manager)

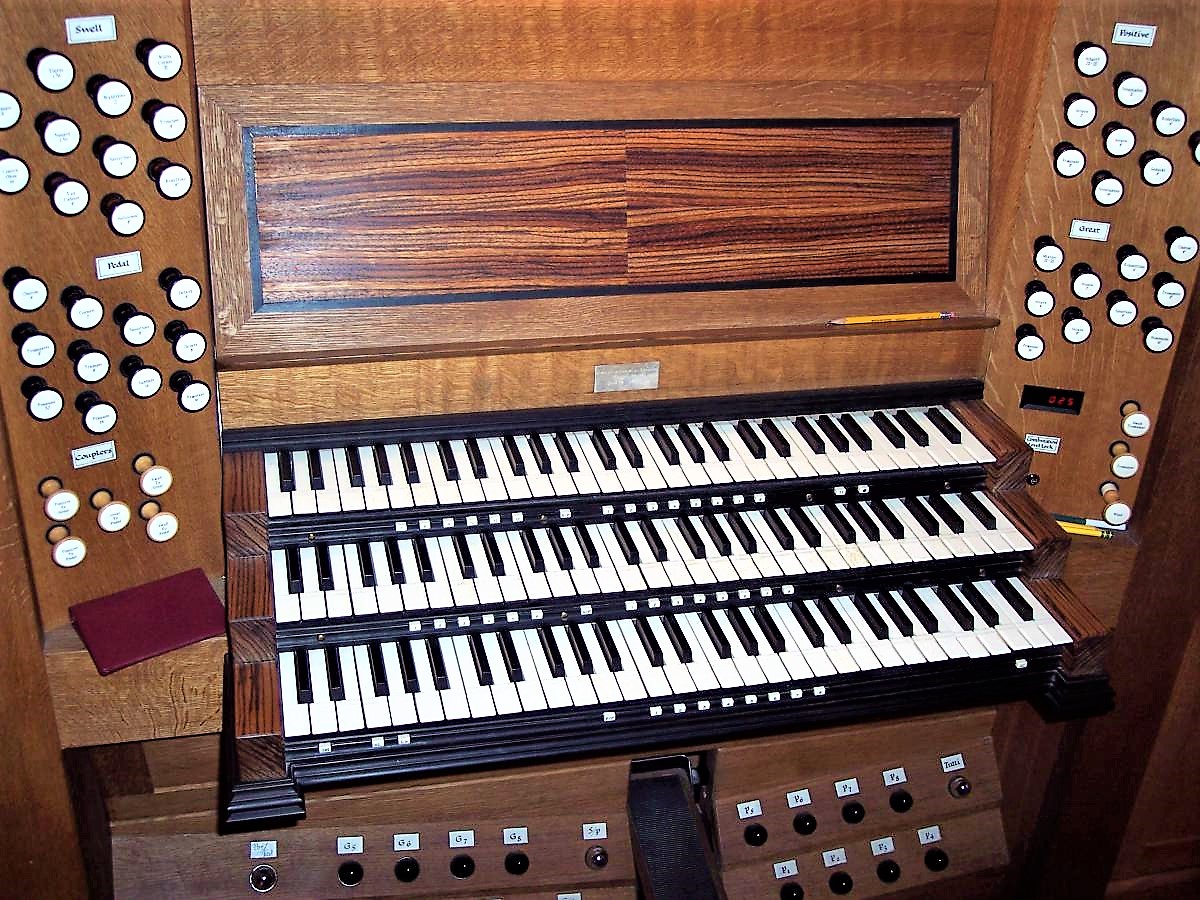

2006-01-06 - Keydesk (Photograph by Ryan D. Hulshizer/Database Manager)
2006-02-06 - Positiv Organ Case (Photograph by Ryan D. Hulshizer/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Keydesk Attached
- 3 manuals
- 36 stops
- 42 registers
- 4 divisions
- Key action Type: Mechanical (Suspended Tracker)
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
- Manual compass: 56 notes
- Pedal compass: 30 notes
- Pedal Type: Flat Straight
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
Notes
2004-10-30 - Status Note: There 1996. -Database Manager
2004-10-30 - SS combination action. Kellner 1/5-comma temperament. Case modelled after Bernard Smith organ at Christ Church, Oxford, England. -Database Manager
2008-11-17 - Updated through online information from James R. Stettner. -- The organ is beautifully encased at the front of the room with a 7-sectional facade. The main case holds the Great and Pedal divisions. The expressive Swell is placed behind the case. The Positiv is uniquely positioned as a "Rückpositiv" but elevated above the keydesk and forward of the Great. It was a 5-sectional facade. Three stops from the Great are borrowed to the Pedal by transmission. And the Pedal 8' Octave has notes 1-12 in common with the Great 8' Octave. The Pedal 32' Contra Posaune (of wood) is mechanically unified to play at 32, 16, & 8. The organ was dedicated by Professor George Damp on May 5, 1995. Source: L.U. website. -Database Manager
2010-10-29 - Updated through online information from Bret Van Nuland. -Database Manager
Stoplist
Stoplist from Lawrence University Source: Source not recorded Date not recorded
Appleton, Wisconsin
Lawrence Memorial Chapel
John Brombaugh & Associate (1995, Opus 33)
GREAT ORGAN
16 Praestant 56
8^ Octave 56
8* Spielflöte 56
4 Octave 56
4 Koppelflöte 56
2 Octave 56
IV-VI Mixture
16 Bombarde 56
8 Trompette 56
4 Clarion 56
SWELL ORGAN
8 Rohrflöte 56
8 Salicional 56
8 Vox Celeste tc 44
4 Principal 56
4 Spitzflöte 56
2-2/3 Nasard 56
2 Waldflöte 56
1-3/5 Tierce 51
III Willis Mixture
16 Contra Oboe 56
8 Trumpet 56
Tremulant
POSITIVE ORGAN
16 Quintadena 56
8^ Praestant 48
8 Gedackt 56
4 Octave 56
4 Rohrflöte 56
2 Octave 56
II Sesquialter 112
IV-V Scharff
8 Dulcian 56
8 Harfenregal 56
Great/Positive Tremulant, adjustable
PEDAL ORGAN
16 Subbass (wood) 30
16* Praestant
8^ Octave 18
8* Spielflöte
4 Octave 30
32# Contra Posaune (wood) 30
16# Posaune 12
8# Trumpet 12
8* Trompette
4* Clarion
2 Cornett 30
* Great stops that transmit to Pedal
# Notes of the same pitch share common pipes
^ Some bass tones common with another stop
[Received from Richard C Greene 2011-08-08.]
