Better Pipe Organ Database

Edward Lye & Sons (1899)

Newburgh United Church
339 Academy Street
Newburgh, ON, CA

Images

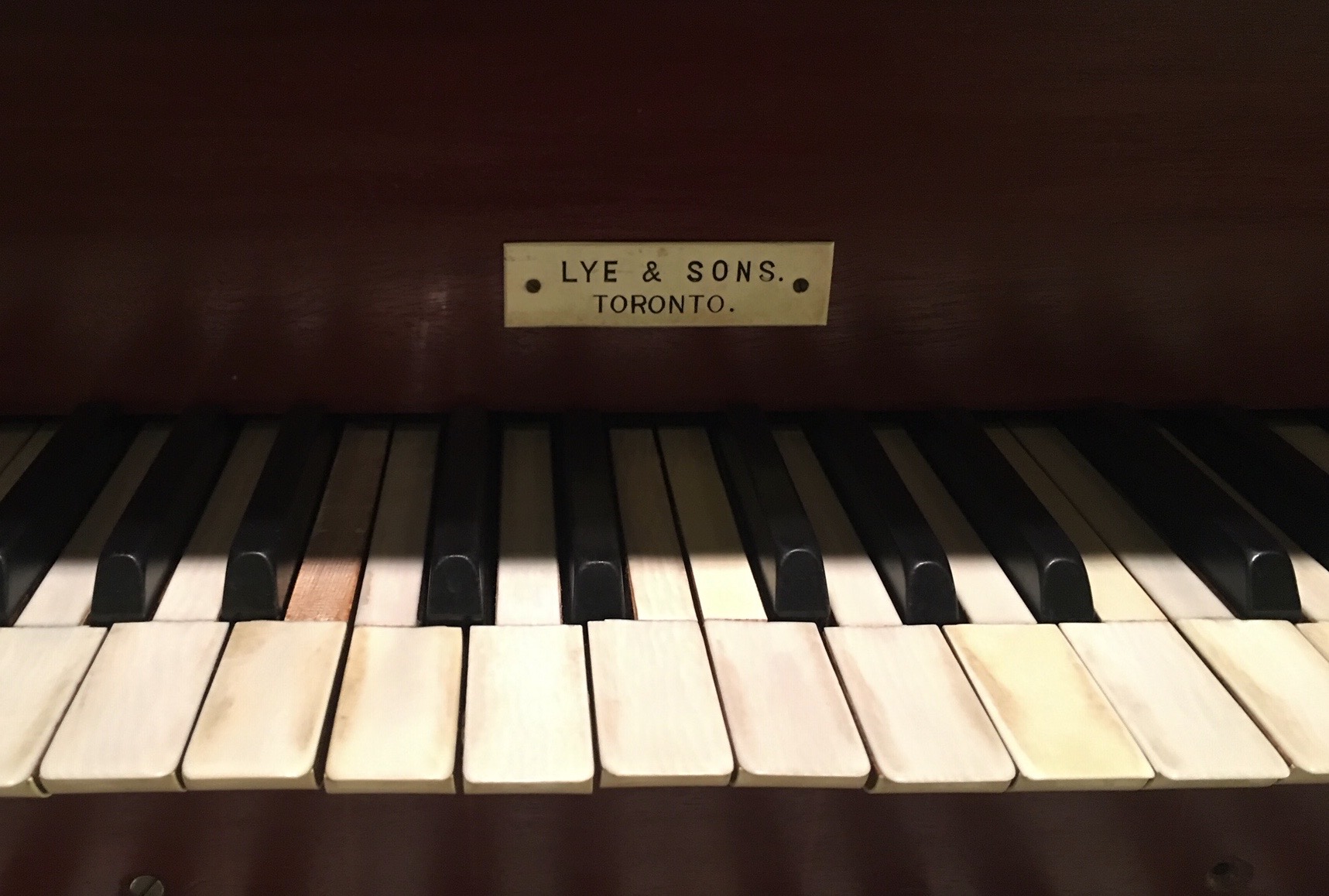

2020-06-21 - Builder's nameplate (Photograph by David Rankine, submitted by Andrew Henderson/Andrew Henderson)

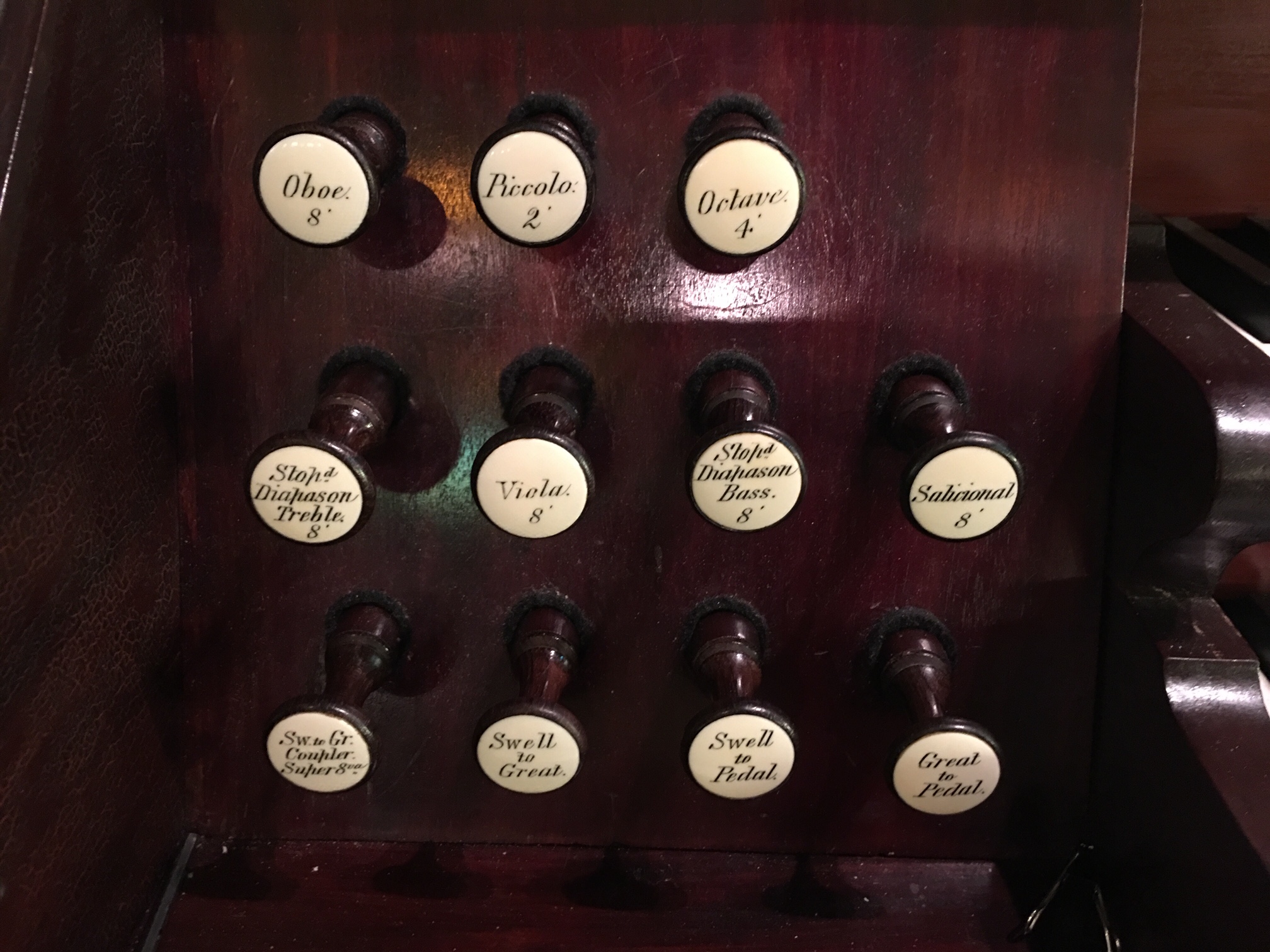

2020-06-21 - Right stop jamb (Photograph by David Rankine, submitted by Andrew Henderson/Andrew Henderson)

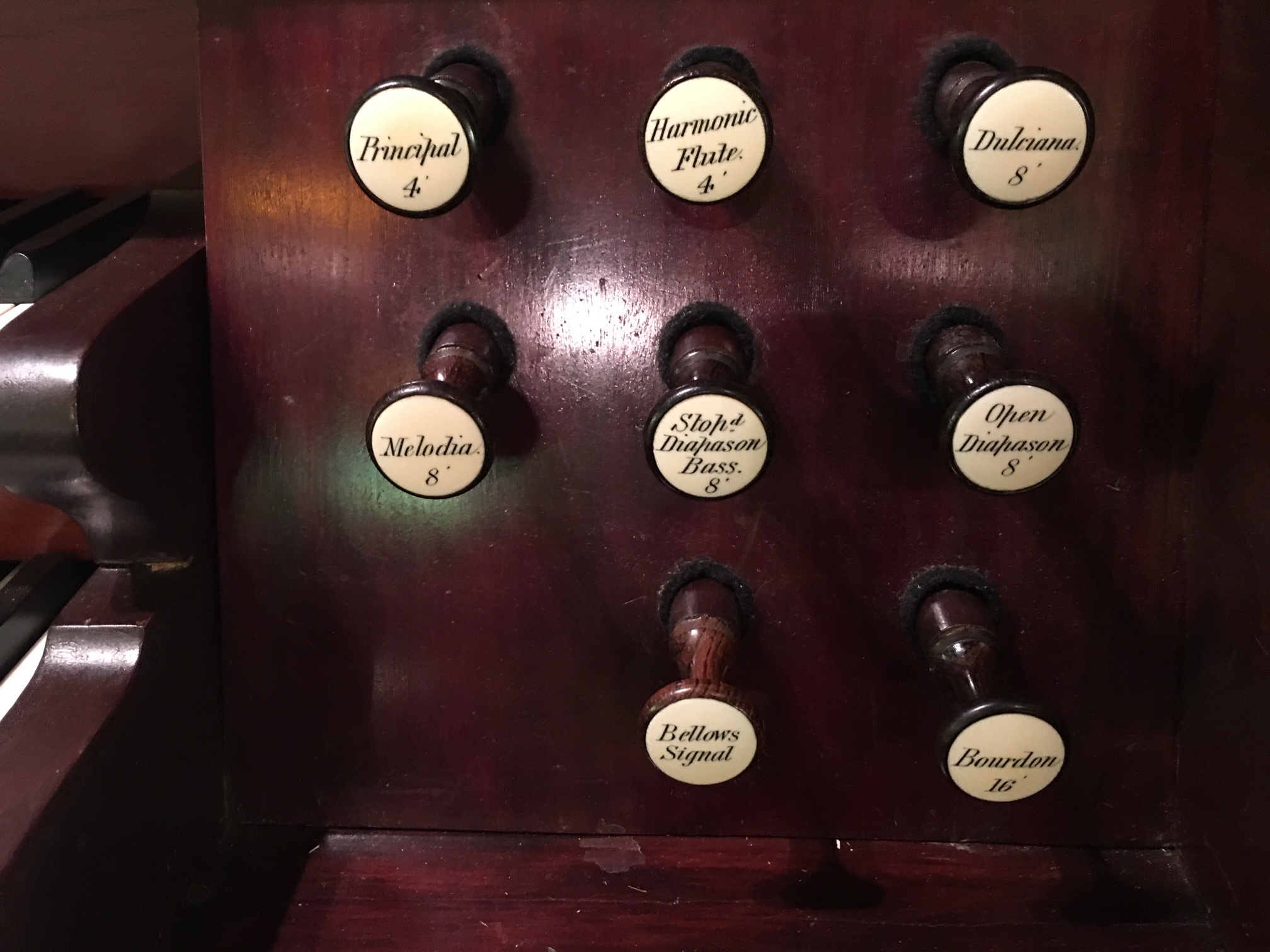

2020-06-21 - Left stop jamb (Photograph by David Rankine, submitted by Andrew Henderson/Andrew Henderson)

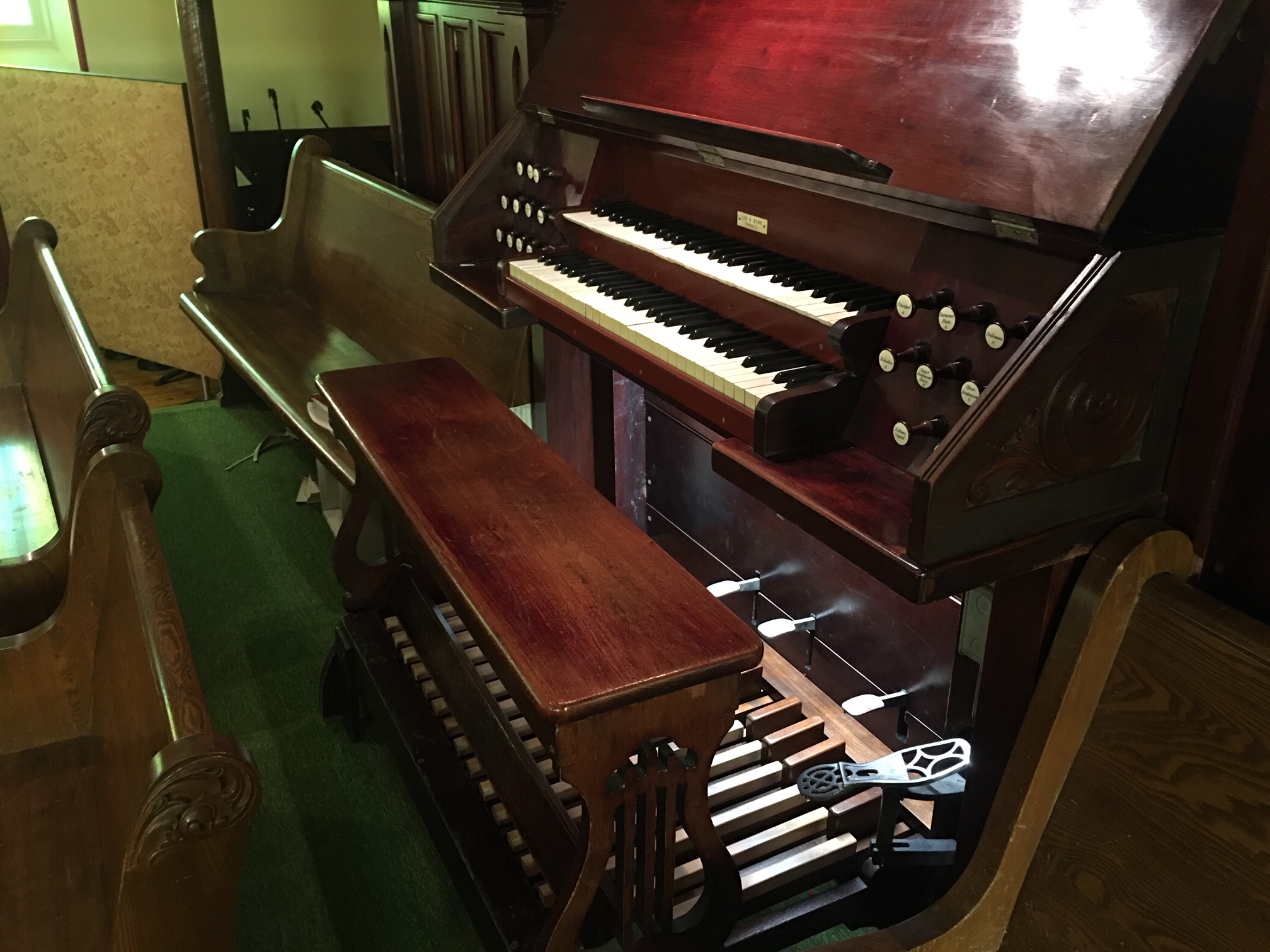

2020-06-21 - Console (Photograph by David Rankine, submitted by Andrew Henderson/Andrew Henderson)

2020-06-21 - Organ Case and Choir loft (Photograph by David Rankine, submitted by Andrew Henderson/Andrew Henderson)

Consoles

Main

Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Console position: Keydesk Attached
2 manuals
13 stops
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Rows on Flat Jambs
Manual compass: 58 notes
Pedal compass: 27 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Fixed Mechanical

Notes

2004-10-30 - Status Note: There 1996 -Database Manager

2004-10-30 - Beautiful mahogany casework. -Database Manager

2020-07-03 - Organ restored by Fred Knapton, Jr., in 2014. -Andrew Henderson

Stoplist

Typed stoplist from the OHS PC Database. Source: Source not recorded Date not recorded

Newburgh, Ontario
Newburgh United Church, Newburgh, ON

Lye & Sons, 1899


GREAT: (Unenclosed = Manual I)
   8'  Open Diapason
   8'  Melodia.
   8'  Dulciana.
   8'  Stopd Diapason Bass.
   4'  Principal
   4'  Harmonic Flute.


SWELL: (Expressive - Manual II)
   8'  Stopd Diapason Treble.
   8'  Salicional
   8'  Viola.
   8'  Stopped Diapason Bass.
   4'  Octave.
   2'  Piccolo.
   8'  Oboe. [TC]

PEDAL: (27 notes, flat, unenclosed)
   16' Bourdon

COUPLERS:
   Swell to Pedal.
   Great to Pedal.

   Swell to Great.
   Sw. to Gr. Coupler Super 8va

FOOT TRUNDLES (Unlabeled)
   1. Piano or Forte
   2. Piano or Forte
   3. Gr. to Ped.  (hitch-down)


PEDAL MOVEMENTS
   Swell Expression  (balanced)


(Stoplist: Gordon Angus 1996)
(Stoplist corrected and augmented by James R. Stettner, July 3, 2020)
