Better Pipe Organ Database

John Brombaugh & Associates (1988)

St. Paul's Episcopal Church: Chapel
1444 Liberty St. SE
Salem, OR

Images

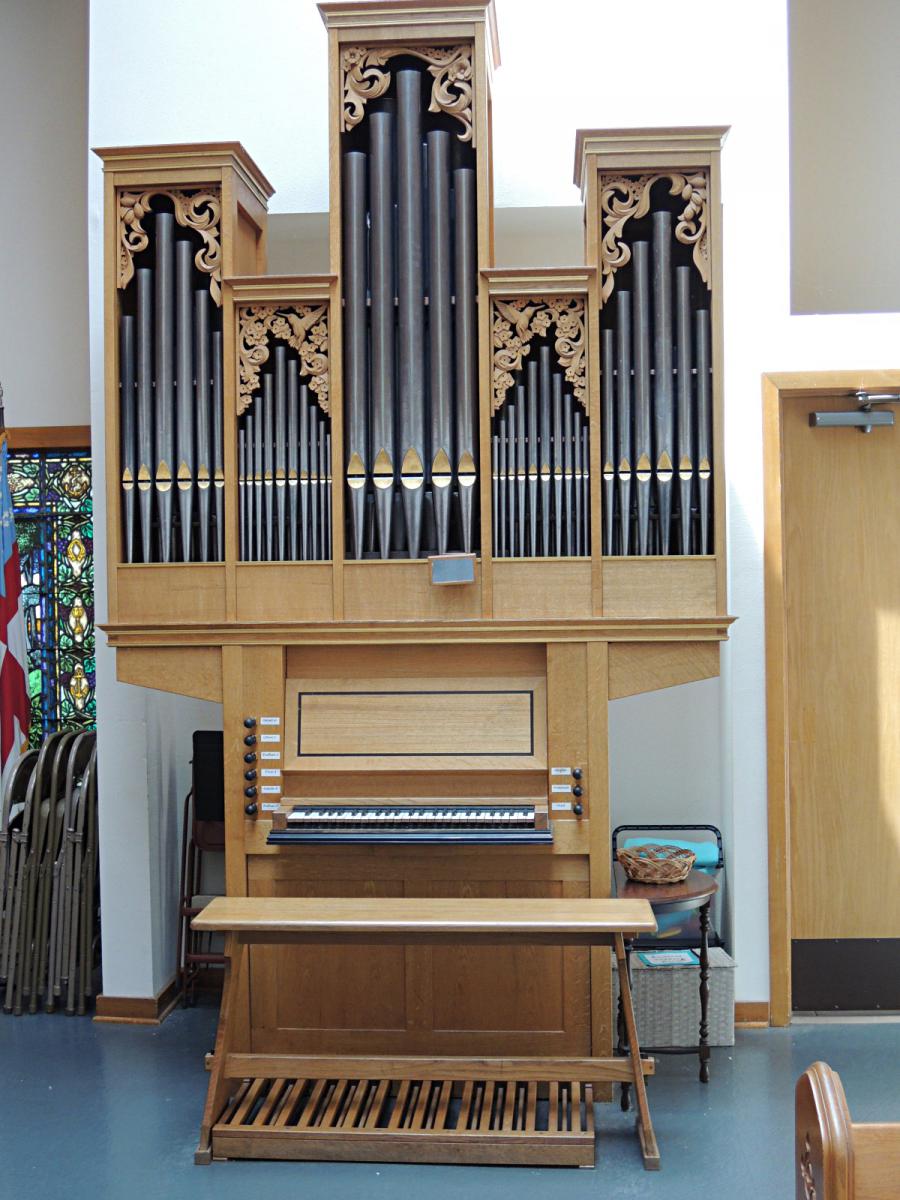

Unknown - Organ Case (Photograph by Lanny Hochhalter/Database Manager)

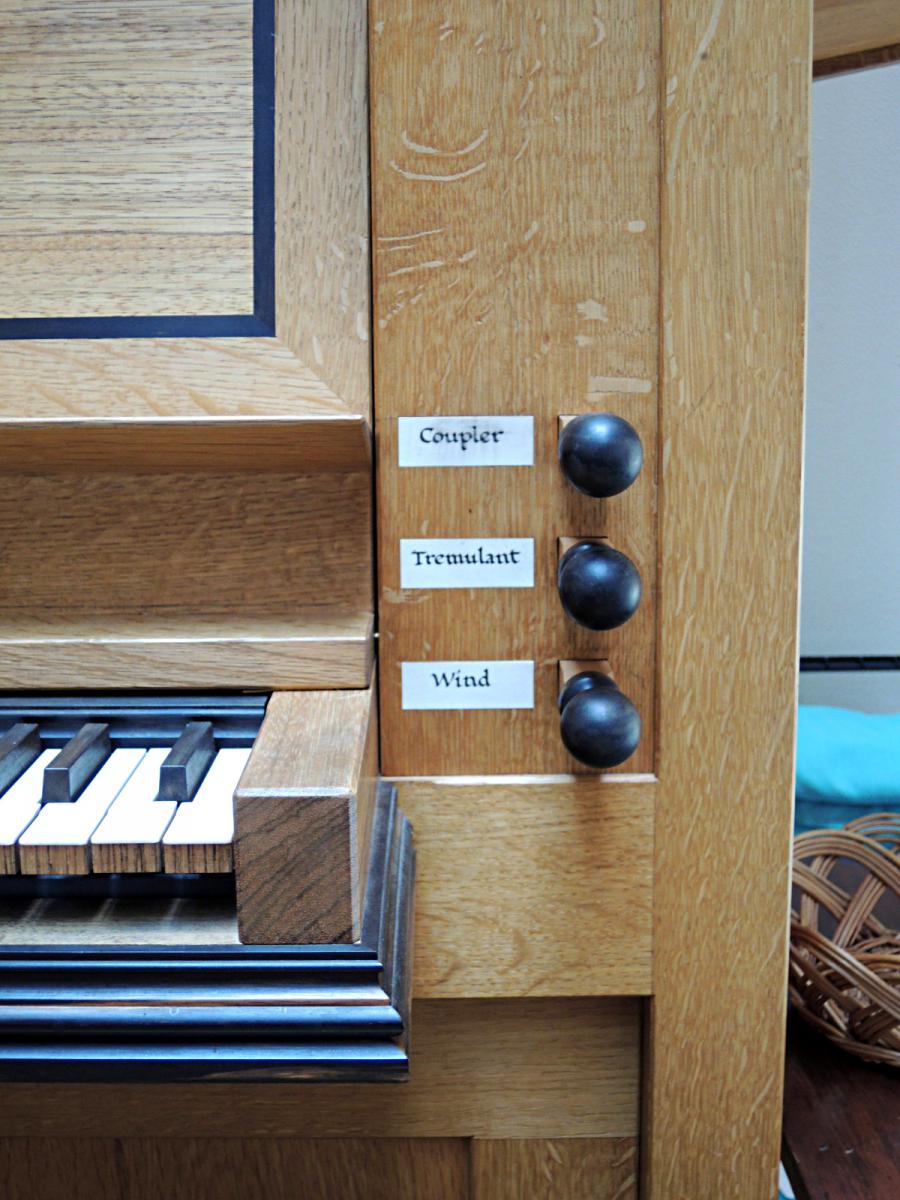

Unknown - Right Drawknobs (Photograph by Lanny Hochhalter/Database Manager)

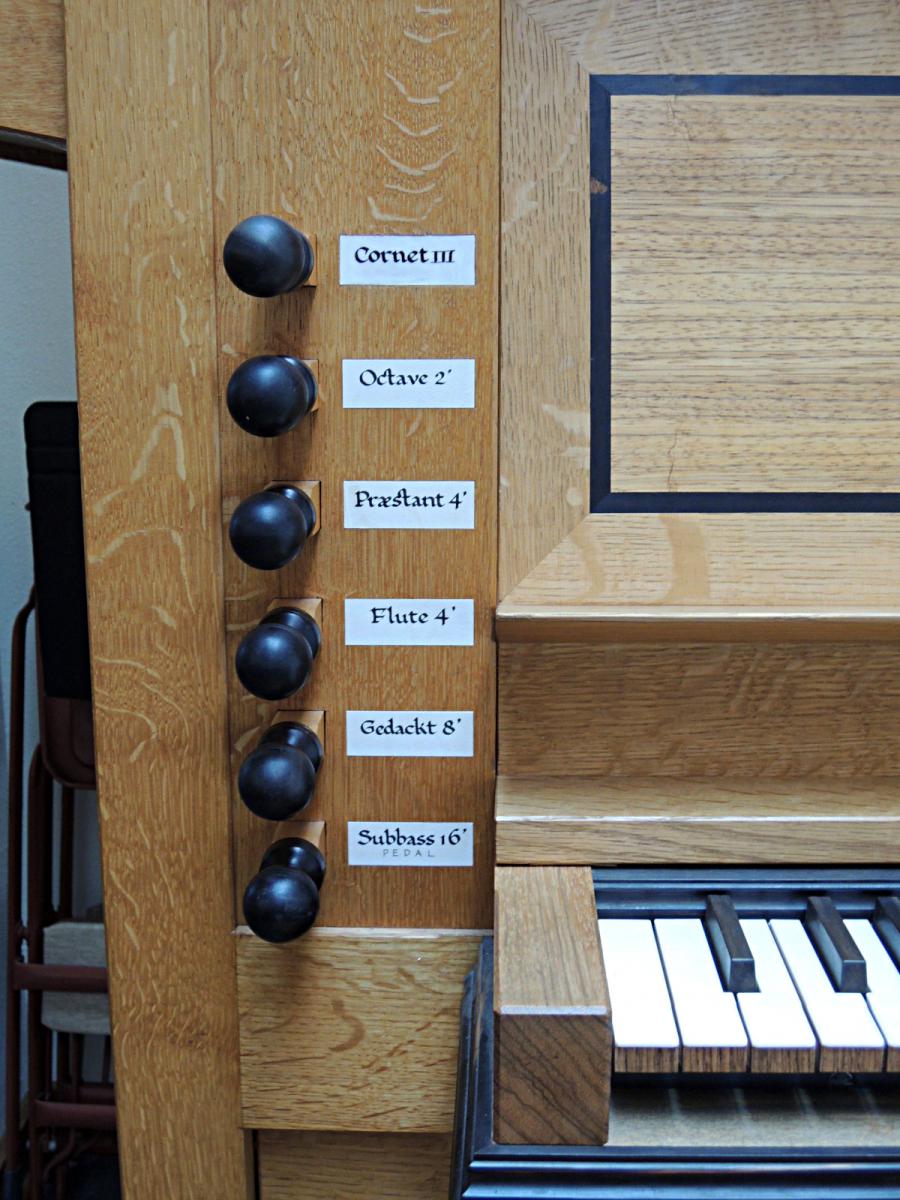

Unknown - Left Drawknobs (Photograph by Lanny Hochhalter/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
1 manuals
5 stops
6 registers
1 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 50 notes
Pedal compass: 26 notes
Pedal Type: Flat Straight
Expression Type: No Enclosed Divisions
Combination action: None

Notes

2007-10-24 - Updated through online information from James R. Stettner. -- Manual compass: Cc, DD - d3. Pedal compass: CC, DD - d. The 4' Prestant, 2' Octave, and III Mixture are divided between middle c and c#. The position of the drawknob determines what is playing. The pedal 16' Subbass is a 12-pipe extension of the Manual 8' Gedackt. These 12 pipes are outside the box at the rear. Documented August 7, 1990. -Database Manager

2015-02-16 - Updated through online information from Zachary A Duell. -Database Manager

Stoplist

Typed stoplist from James R. Stettner Source: Stoplist copied from the console August 7, 1990 Date not recorded

Salem, Oregon
St. Paul's Episcopal Church - Chapel

JOHN BROMBAUGH & ASSOCIATES, Opus __, 1988 - Original Specifications


MANUAL (CC, DD – d3; 50 notes)               COUPLERS (Drawknob)
   8   Gedackt                      50          Coupler             [Man. to Pedal]
   4   Prestant                (*)  50
   4   Flute                        50
   2   Octave                  (*)  50
   III Mixture  [22-26-29]     (*) 150
       Tremulant                             ACTION: Mechanical Key & Stop

                                             VOICES: 5           STOPS: 6
PEDAL (CCC, DDD – d; 26 notes)
   16  Subbass                      12       RANKS: 7            PIPES: 362


NOTES
The organ is free-standing in a case of white oak with an attached and projecting keydesk. The
5-sectional façade has 37 pipes arranged: 6-10-5-10-6.

Stops marked with an asterisk (*) indicate stops whose compass is divided between middle c and
middle c# (24 notes/36 notes). The position of the drawknob determines what is playing.  The
Pedal 16' Subbass is a mechanical extension of the Manual 8' Gedackt. These 12 pipes are outside
the case at the rear.

According to undated photos on the OHS Database, the original III Mixture has been replaced with
a III Cornet.

Sources: JRS; extant organ; OHS Database photos


St. Paul's Episcopal Church – Chapel
1444 Liberty St. SE
Salem, OR. 97302
(503) 362-3661                               Documented: August 7, 1990

Websites

1988 Brombaugh Chapel Organ Lead Principal Sound - Demonstration of Principal sounds alone and combined, and with Trem. (Check Internet Archive, archive.is)
