Better Pipe Organ Database

Andover Organ Co. Opus R200 (1978)

Grace Episcopal Church
7 Phelps Street
Lyons, NY

OHS convention: 2018

Images

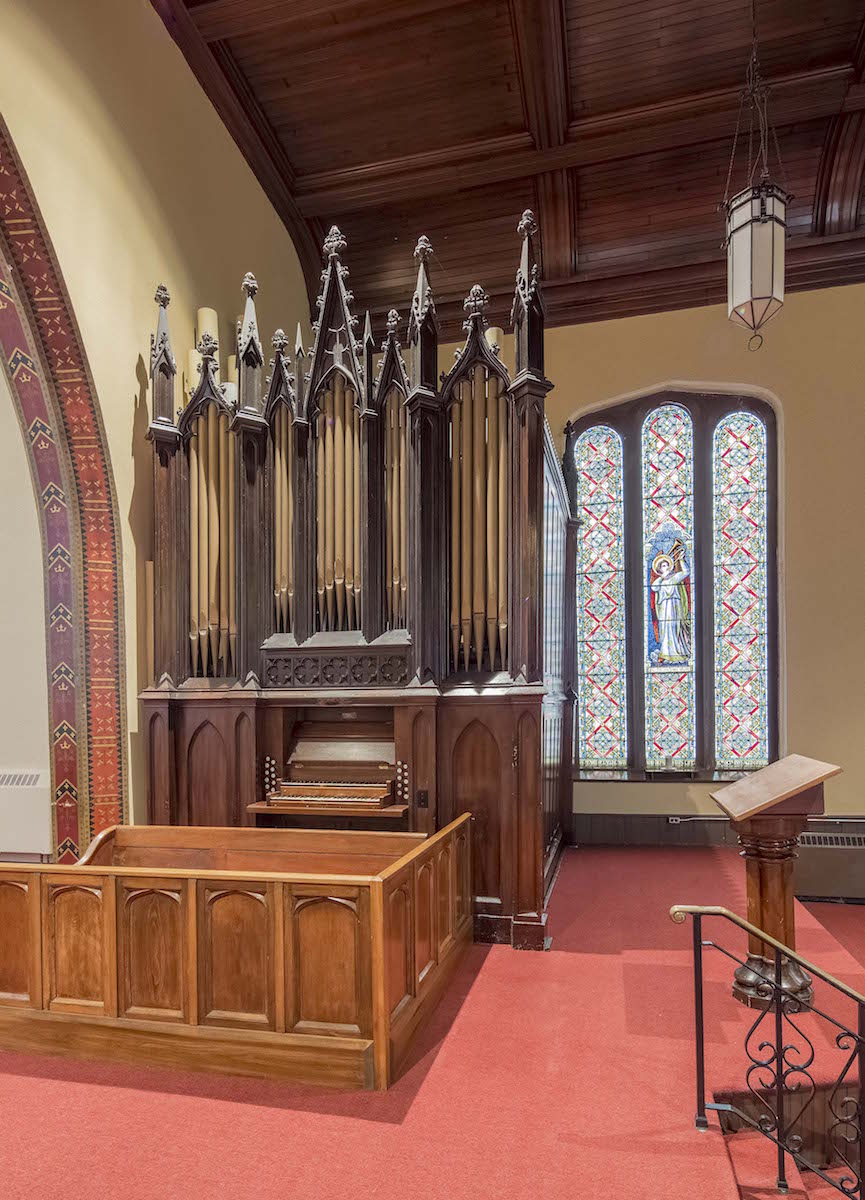

2017-04-05 - Organ Case (Photograph by Len Levasseur/Database Manager)

2017-04-05 - Console (Photograph by Len Levasseur/Database Manager)

2017-04-05 - Builder's Nameplate (Photograph by Len Levasseur/Database Manager)

2016-11-15 - Pedalboard (Photograph by Matthew M. Bellocchio/Database Manager)

2016-11-15 - Console (Photograph by Matthew M. Bellocchio/Database Manager)

2016-11-15 - Case Front (Photograph by Matthew M. Bellocchio/Database Manager)

2016-11-15 - Case Side (Photograph by Matthew M. Bellocchio/Database Manager)

Consoles

Main

Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Console position: Keydesk Attached, Manuals Set Into Case
2 manuals
16 stops
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 54 notes
Pedal compass: 27 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: None

Notes

2004-10-30 - The original builder was Henry Erben (1845). -Database Manager

2004-10-30 - Status Note: There 1981. -Database Manager

2004-10-30 - Partially rebuilt 1962 by Andover. Further rebuilding done in 1978 after water damage. C. E. Morey mechanisms and additions are to be improved. -Database Manager

2017-05-29 - Updated by James R. Stettner, listing this web site as a source of information: http://database.organsociety.org/OrganDetails.php?OrganID=8298.<br> The 1966 Andover work was done as their number R-91. -Database Manager

2018-06-25 - The church had its last service in December 2016. Presently, the church is a mission of the Episcopal Diocese of Rochester and hosts Rural & Migrant Ministry. The organ is still being used for occasional services held throughout the year. -Database Manager

Stoplist

Original document from Matthew M Bellocchio. Source: Stoplise take from the console. 2017-02-24

Lyons, New York
Grace Episcopal Church

Built 1840 Henry Erben (I/9)
Rebuilt ca. 1900 C. E. Morey (II/14)
Rebuilt 1978 Andover Organ Co. (II/17)

Manuals - CC-f3 (54 notes); Pedals CC-d1 (27 notes)

GREAT
[8’] Open Diapason
[8’] Stop’d Diapason Bass
[8’] Stop’d Diapason Treble
[8’] Dulciana
[4’] Principal
[4’] Flute
[2 2/3’] Twelfth
[2’] Fifteenth
[III] Mixture

SWELL
[8’] Sw. Stop’d Diapason
[4’] Sw. Flute
[2’] Sw. Flageolet
[1 1/3’] Sw. Quint
[II] Sw. Sesquialtera Bass
[II] Sw. Sesquialtera Treble
Tremolo

PEDAL
[16’Bourdon]

COUPLERS
Coupler Sw. to Gr.
Coupler Sw. to Ped.
Coupler Gr. to Ped.

Related Pipe Organ Database Entries

#2287 - Henry Erben (1840)
