Steiner Organs, Inc. (1981)

All Saints' Episcopal Church
601 West Main Street
Morristown, TN

Images

2023-04-17 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Builder nameplate (Photograph by Jeff Scofield/Jeff Scofield)

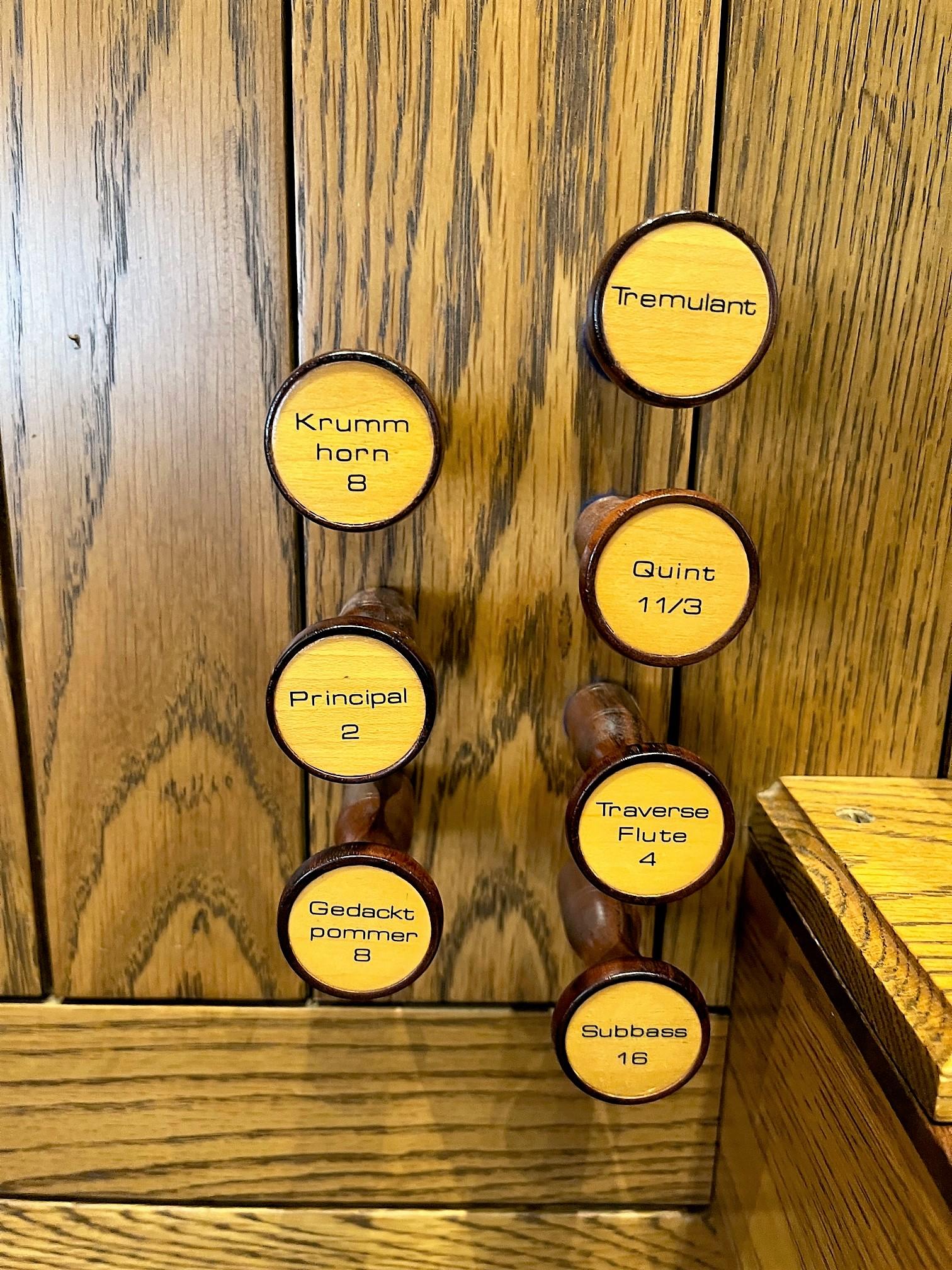

2023-04-17 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Console (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Organ and case (Photograph by Jeff Scofield/Jeff Scofield)

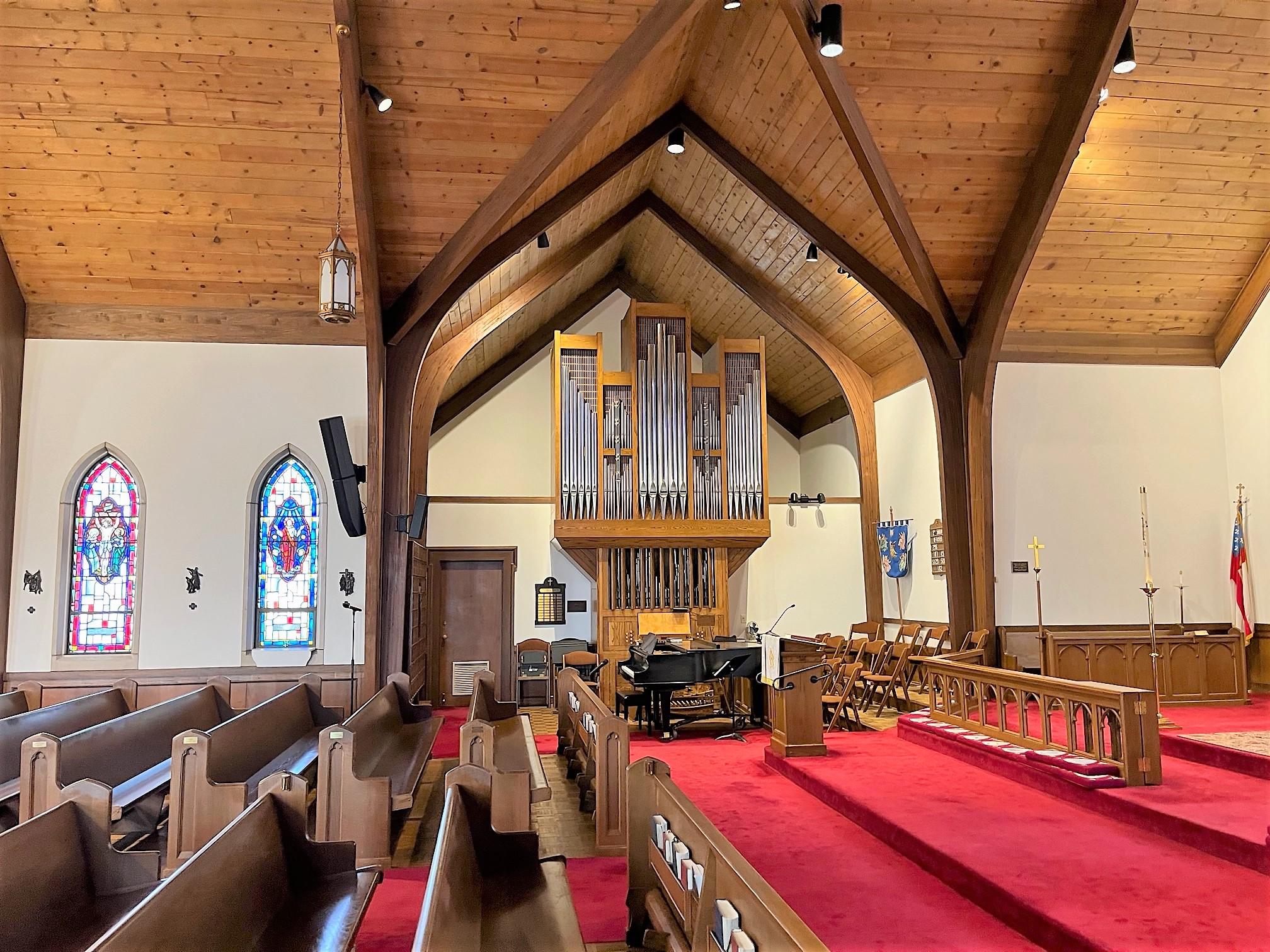

2023-04-17 - Church interior, transept and organ (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)

2020-05-03 - Pipework closeup (Photograph by Ryan Garber/Ryan Garber)

2020-05-03 - Facade (Photograph by Ryan Garber/Ryan Garber)

Unknown - Organ case (Builder's promotional photo in the collection of James R. Stettner/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
2 manuals
11 stops
12 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: None
Has hitchdown couplers

Notes

2004-10-30 - Stoplist in Richmond. -Database Manager

2007-10-29 - Updated through online information from James R. Stettner. -- Organ in a shallow transept to left of chancel area. Case of white oak. Reverse-color keys of grenadil and elm. Swell in Brustwerk position. 5-sectional case with 49 pipes arranged: 5-17-5-17-5. The middle flats of 17 are divided into upper (8) and lower (8) sections with one large, embossed pipe spanning both sections. Winding via schwimmer regulators. 70 mm w.p. -Database Manager

Stoplist

Source: From the console and informational brochure

       Morristown, Tennessee
       All Saints' Episcopal Church

       Steiner   1981   2/15
       ___________________________________________

       GREAT                     SWELL
    8' Principal     56       8' Gedacktpommer  56
    8' Rohrfloete    56       4' Traverse Flute 56
    4' Octave        56       2' Principal      56
    2' Flute         56   1 1/2' Quint          56
   II  Sesquialtera 112       8' Krummhorn      56
II-IV  Mixture      152          Tremulant

       PEDAL
   16' Subbass   GT  12

       [Received from Jeff Scofield April 18, 2023]

Documents

(2022-08-17) All Saints' Episcopal Church (Morristown, TN) Specifications and Build History All Saints' Episcopal Church (Morristown, TN) Specifications and Build History -Ryan Garber
