Cathedral of the Madeleine, Roman Catholic: rear gallery
331 East South Temple
Salt Lake City, UT
Images

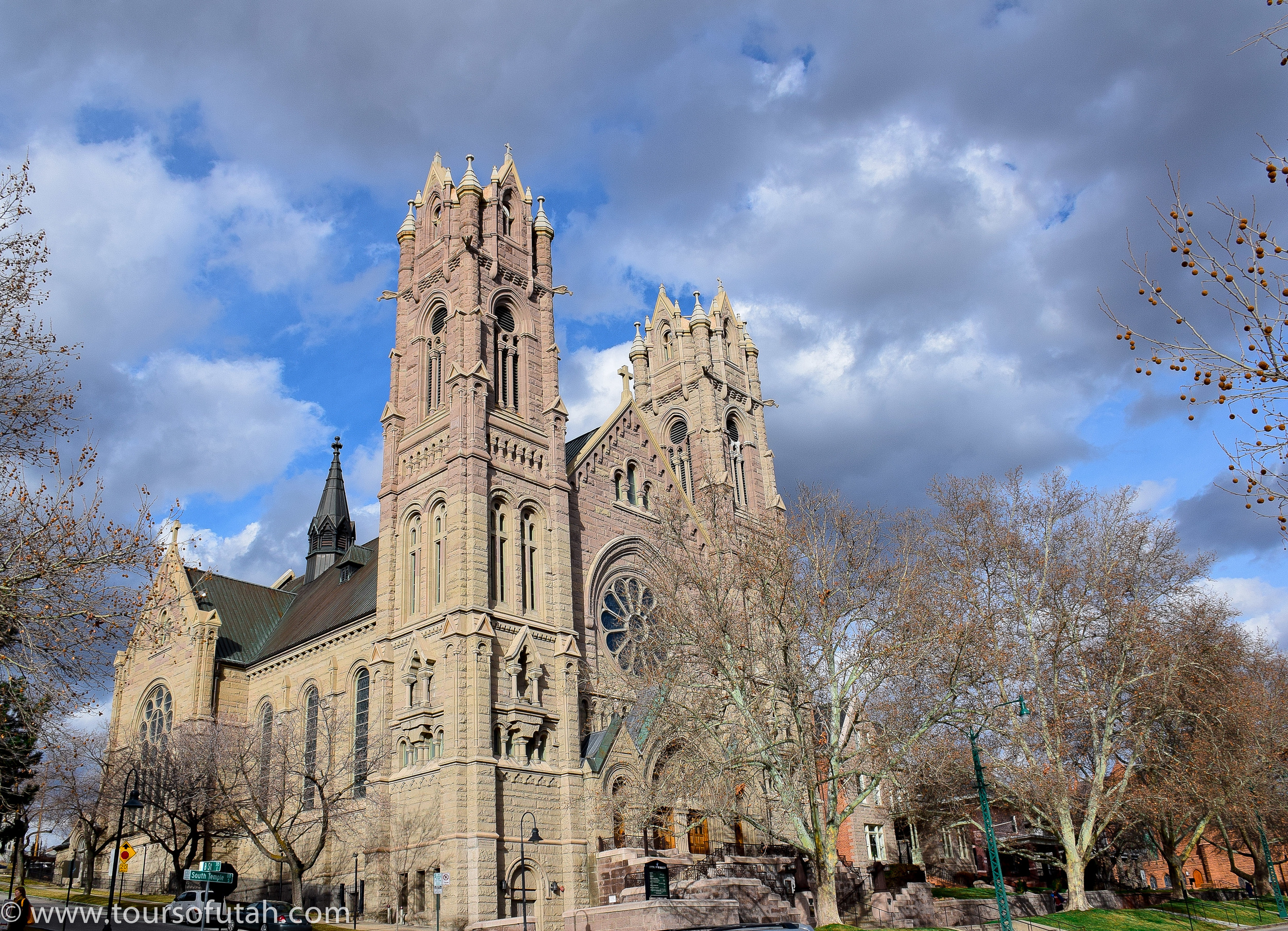

2014-03-03 - Cathedral exterior (Photograph by toursofutah.com, submitted by Jeff Scofield/Jeff Scofield)

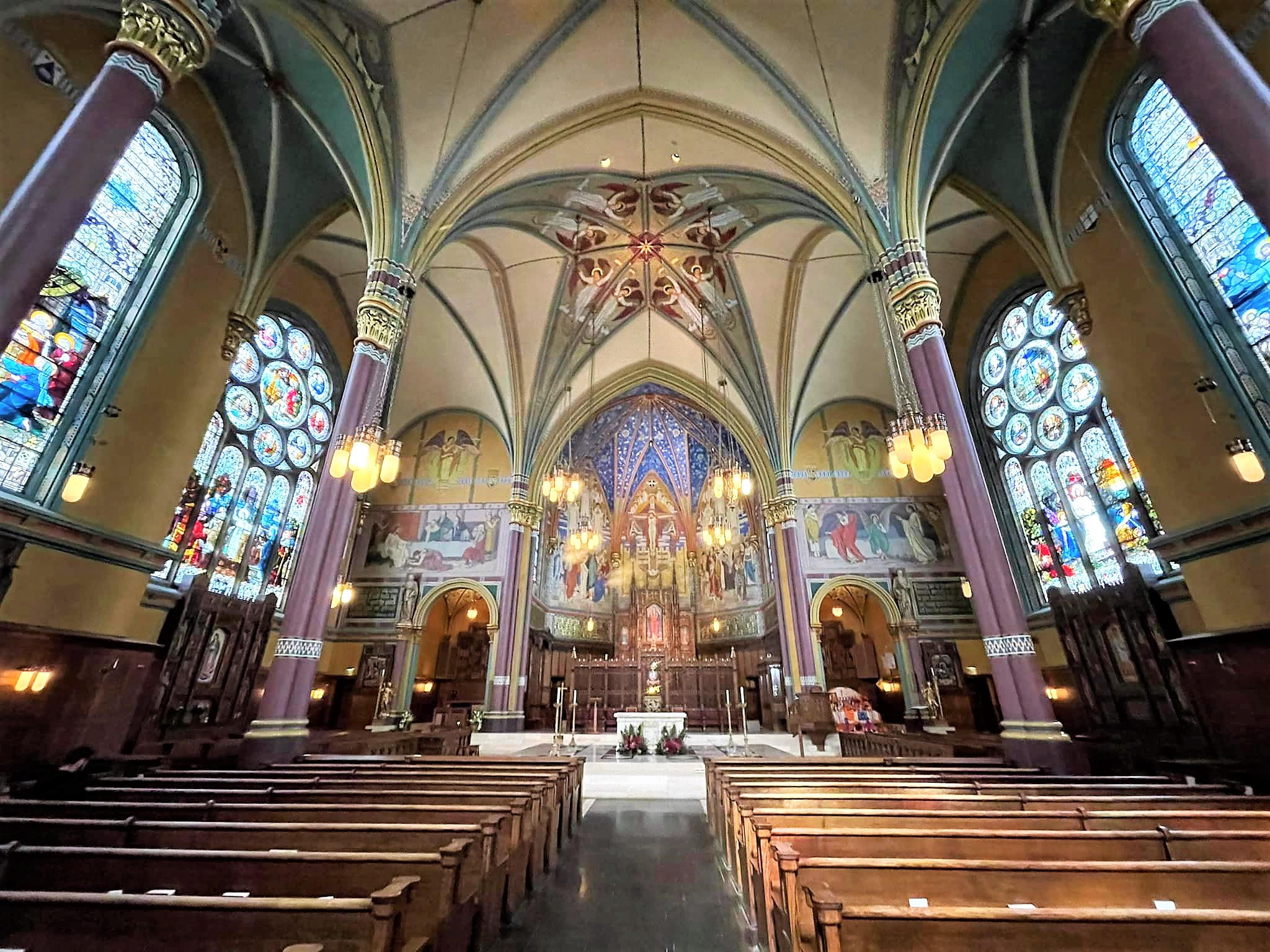

2022-11-14 - Cathedral interior to front (Photograph by Josh Stafford, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

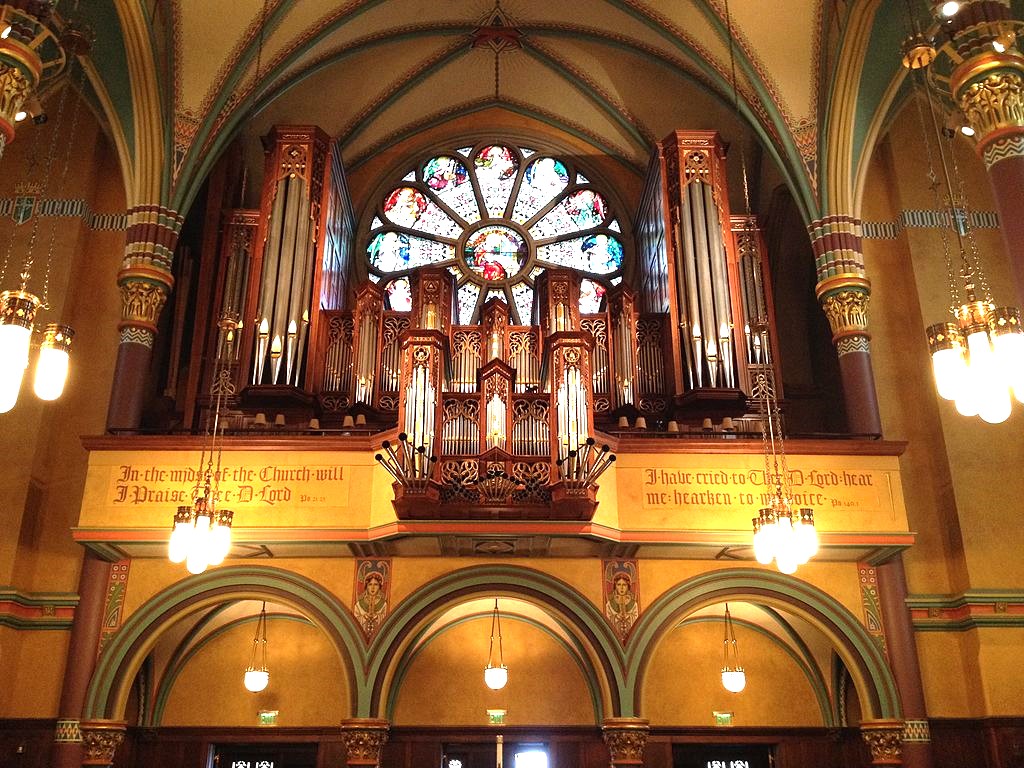

2014-02-16 - Organ case in rear gallery (Photograph by ItsJosh801 (Wikipedia), submitted by Jim Stettner/Jim Stettner)

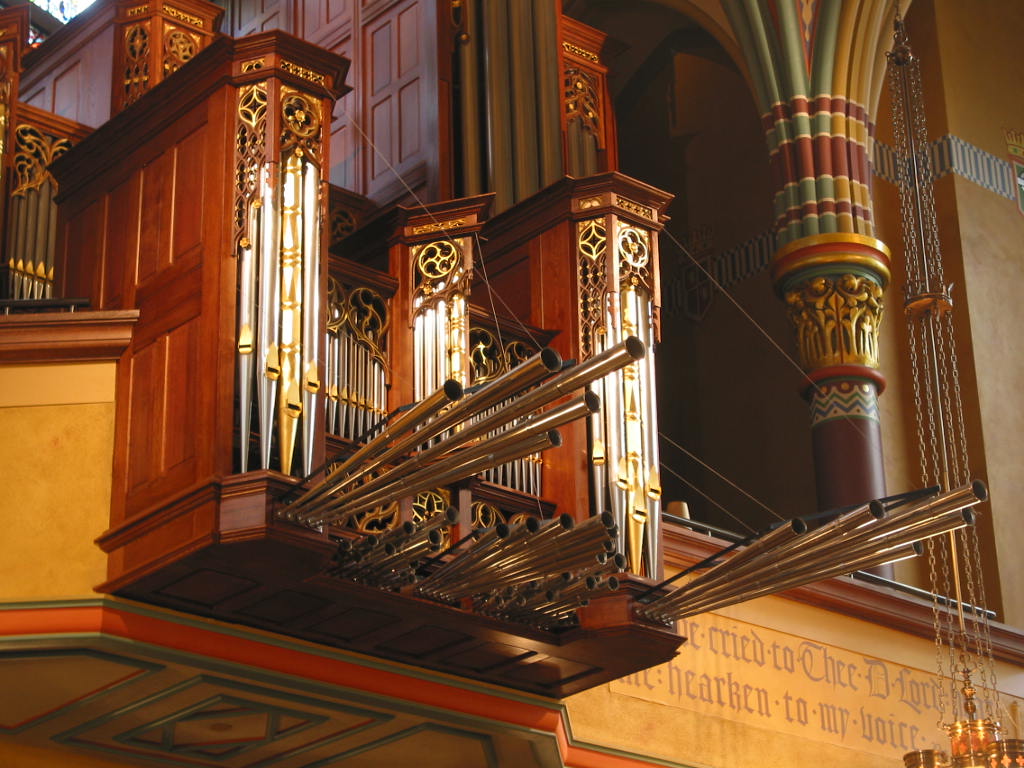

2008-05-14 - Ruckpositiv division on gallery rail (Photograph by Joseph Routon/Joseph Routon)

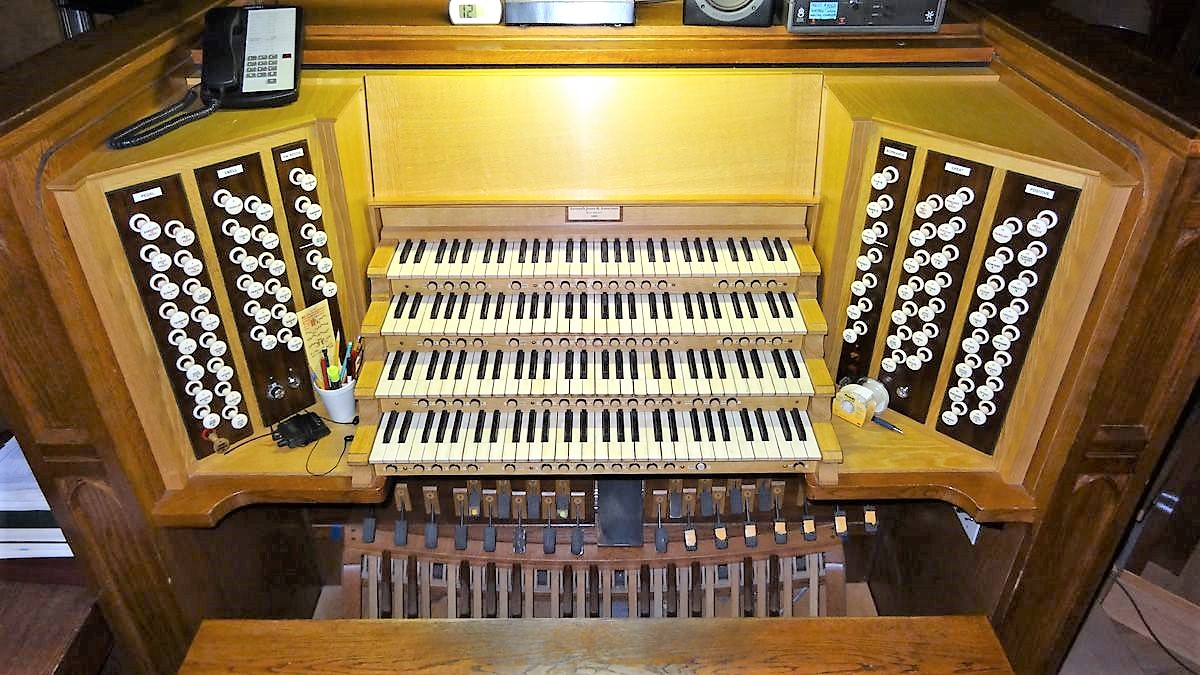

2014-08-14 - Console (Photograph by Richard Elliott/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Detached, Reversed Keydesk (Mechanical Action)
- 4 manuals
- 60 stops
- 5 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 58 notes
- Pedal compass: 30 notes
- Pedal Type: Concave Radiating (Details Unknown)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
Notes
2004-10-30 - Status Note: There 1997 -Database Manager
2004-10-30 - Several ranks retained from previous Kimball/Schoenstein. Original contract of 67-ranks, 50-stops, 3393 pipes enlarged before installation -Database Manager
2010-03-15 - Updated through online information from Paul Marchesano. -Database Manager
2015-09-27 - Updated through online information from Scott Rowley. -- New 32' Contra Bombarde (wood) and 32' Open Bass added to Pedal division after 2007. -Database Manager
Stoplist
Swell reeds are grouped in their own vertical row separate from Swell flues; 32' Contre Bombarde stopknob is located below all other pedal stops and given special dark coloring Source: 2024 AIO Convention Program Book August 2024
GREAT Principal 16, Octave 8, Gamba 8, Rohrflute 8, Octave 4, Spitzflute 4, Quint 2 2/3, Octave 2, Mixture 2' IV, Cymbal 1/2' III, Trumpet 8
POSITIVE Principal 8, Hohlflute 8, Octave 4, Quintadena 8 (Restored Kimball rank), Nazard 2 2/3, Coppelflute 4, Nachthorn 2, Tierce 1 3/5, Octave 2, Larigot 1 1/3, Scharf 1 1/3' V-VI, Rankett 16, Tremulant, Cromhorne 8, Fanfare Trumpet 8
SWELL Gedeckt 8, Open Diapason 8 (Restored Kimball rank), Bourdon 16 (Restored Kimball rank), Celeste 8 (Restored Kimball rank), Salicional 8 (Restored Kimball rank), Principal 4, Harmonic Flute 4, Nazard 2 2/3, Tierce 1 3/5, Gemshorn 2, Mixture 2' V, Cornopean 8, Double Trumpet 16, Oboe 8, Vox Humana 8 (Restored Kimball rank), Clarion 4, Tremulant
BOMBARDE Open Flute 8 (Restored Kimball rank), Cornet V (TG, mounted), Dulciana 8 (Restored Kimball rank), Bombarde 16, Trompette 8, Clarinet 8 (Restored Kimball rank), Clairon 4
PEDAL Open Bass 32 (Open Wood from 32' FFFF, notes 1-5 resultant), Open Wood 16 (Restored Kimball rank), Principal 16 (Restored Kimball rank), Bass Flute 8 (Restored Kimball rank), Octave 8 (Restored Kimball rank), Bourdon 16 (Restored Kimball rank), Flute 4 (Restored Kimball rank), Choral Bass 4, Mixture 2 2/3' IV, Contra Bombarde 32, Trombone 16, Schalmey 4, Bass Trumpet 8
GREAT to PEDAL 8, POSITIVE to PEDAL 8, SWELL to PEDAL 8, SWELL to PEDAL 8, POSITIVE to GREAT 8, SWELL to GREAT 8, BOMBARDE to GREAT 8, SWELL to POSITIVE 8
