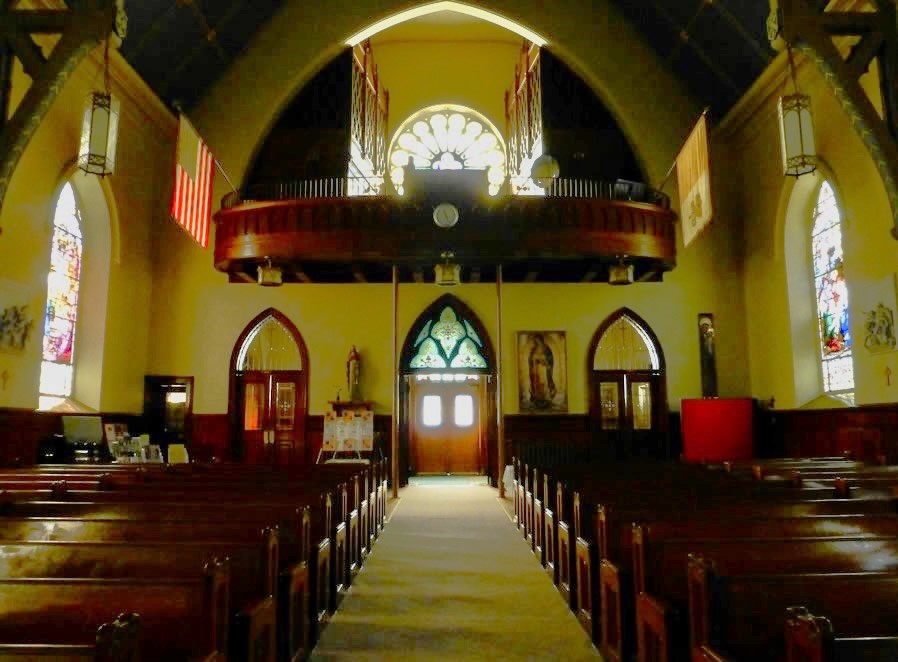

2000s - Organ chambers and console in rear gallery (Diocese of Rochester Churches website/Mark A. Smith)

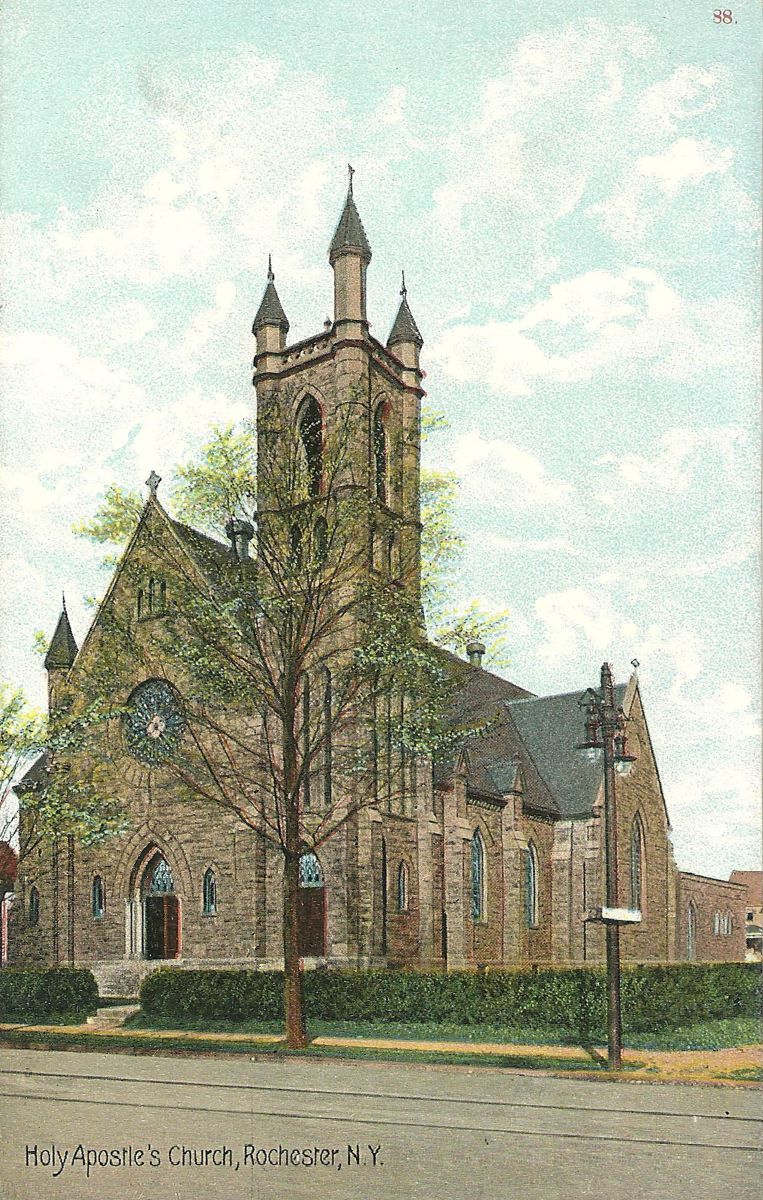

ca. 1910's - Church exterior (Vintage postcard/Jim Stettner)
2004-10-30 - Wurlitzer "Style Sp 3m"<br> Factory date: February 25, 1930<br> Cost: $10,650 -Database Manager
There are 3 Tremulant tabs on the nameboard. MAIN, which shakes the 33" x 32" regulator in the MAIN chamber. SOLO, which shakes the 35" x 32" regulator in the SOLO chamber. VOX HUMANA, which shakes the 30 x 20 vox regulator (also in the SOLO chamber.) This stoplist is nearly identical to opus 2032 (located in Blessed Sacrament Roman Catholic Church, Rochester NY) with the following exceptions: 2032 lacks a 32' resultant. 2032 lacks the Choir to Swell coupler. 2032 places the 2 2/3 Twelfth in the SWELL, rather than in the CHOIR. Source: Taken from console in 1988
Great (The GREAT division is unified from pipes contained in the MAIN and SOLO chambers flanking the rear rose window.) Open Diapason 8 (located in MAIN chamber. CC pipe is 6 1/8" diameter. Mouth 4 3/4 wide by 2" high.), Tibia Clausa 8 (located in SOLO chamber. Large scale wood stop.), Flute 8 (located in MAIN chamber), Aeoline 8 (Located in MAIN chamber. CC pipe is 2 7/8 diameter. Mouth 1 3/4" wide by 5/8" high. ), Piccolo 4, Octave 4, Flute 4, Octave Aeoline 4, Tuba 8, Cathedral Chimes [18] (18 notes), Harp Chrysoglott (49 bars)
Pedal (The PEDAL division is unified from pipes contained in the MAIN and SOLO chambers flanking the rear rose window.) Resultant Bass 32, Double Diapason 16, Tibia Clausa 16, Bourdon 16 (CCC pipe is 6 5/8" by 7 7/8".), Diapason 8, Cello 8, Flute 8, Tuba 8
Swell (The SWELL division is unified from pipes contained in the MAIN and SOLO chambers flanking the rear rose window.) Tibia Clausa 16, Contra Viol (tc) 16, Horn Diapason 8 (Located in SOLO chamber. CC pipe is 5" diameter. Mouth is 3 1/2" wide by 1 1/2" high. ), Tibia Clausa 8, Salicional 8 (Located in MAIN chamber. CC pipe is 2 3/8 diameter. Mouth 1 1/2" wide by 1/2" high), Voix Celeste (tc) 8 (Located in MAIN chamber.), Flute 8, Octave 4, Salicet 4, Octave Celeste 4, Flute 4, Tuba 8, Vox Humana 8 (Located in SOLO chamber.), Cathedral Chimes, Harp Chrysoglott
Choir (The CHOIR division is unified from pipes contained in the MAIN and SOLO chambers flanking the rear rose window.) Open Diapason 8, Salicional 8, Voix Celeste (tc) 8, Flute 8, Aeoline 8, Flute 4, Twelfth 2 2/3, Piccolo 2, Harp Chrysoglott, Cathedral Chimes
Swell to Great 16, Swell to Great 8, Swell to Great 4, Choir to Great 8, Swell to Swell 16, Swell to Swell 8, Swell to Swell 4, Choir to Swell 8, Choir to Choir 16, Choir to Choir 8, Choir to Choir 4, Swell to Choir 8, Great to Pedal 8, Swell to Pedal 8, Choir to Pedal 8, Swell to Great 8 (Swell to Great Second Touch), Choir to Great 8 (Choir to Great Scond Touch)
GREAT SECOND TOUCH Cathedral Chimes
