Moline Organ Co. (1884)

Presbyterian Church
Lycoming County
Muncy, PA

Images

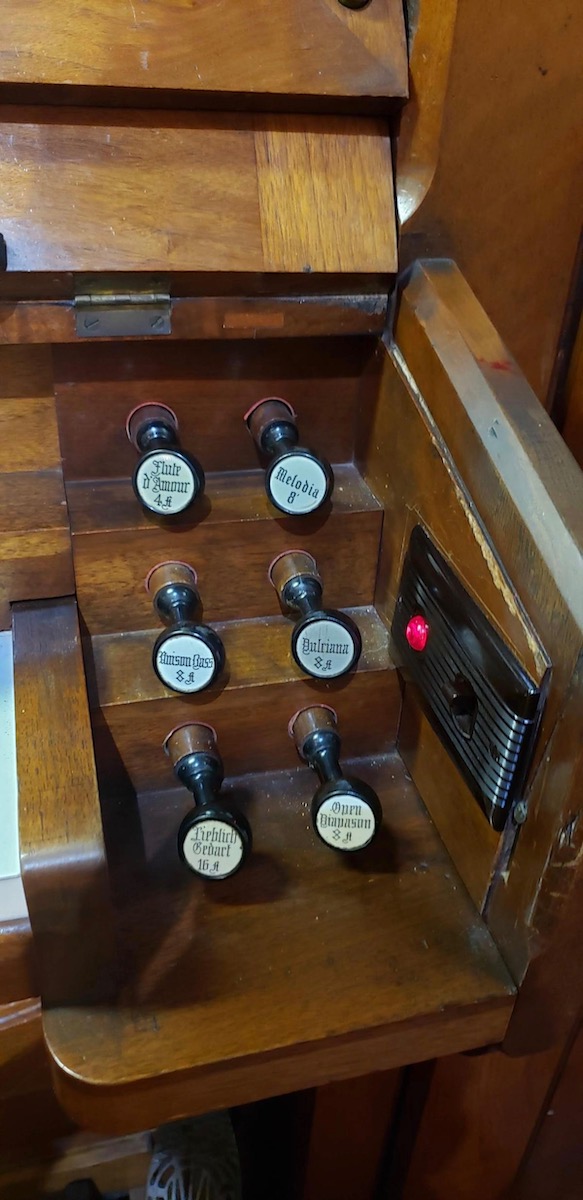

2019-12-04 - Left Stop Jamb (Photograph by Larry Pruett/Database Manager)

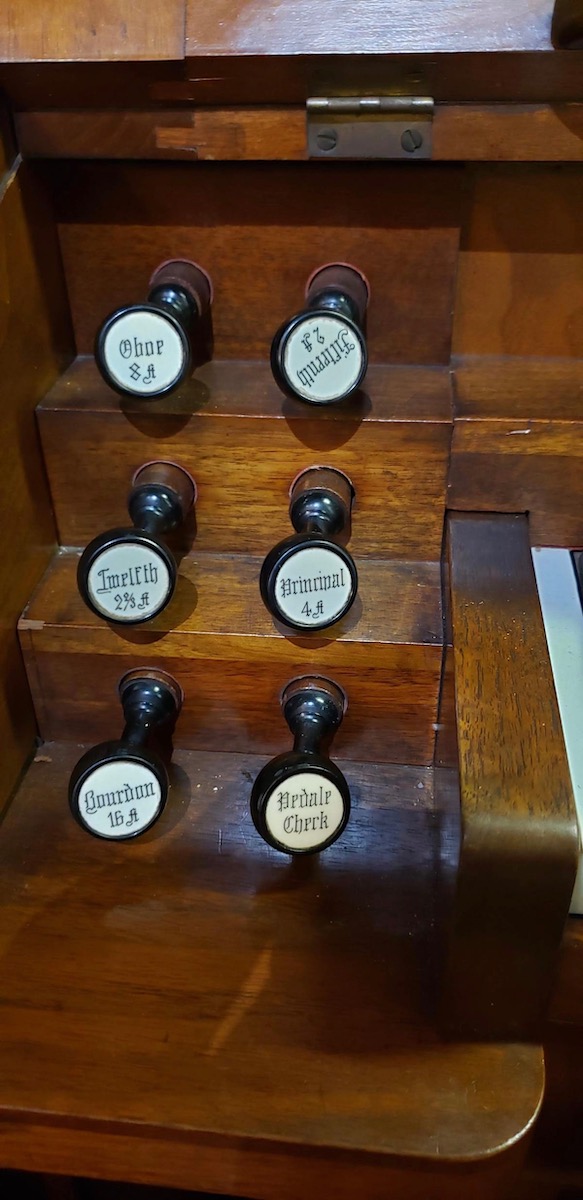

2019-12-04 - Right Stop Jamb (Photograph by Larry Pruett/Database Manager)

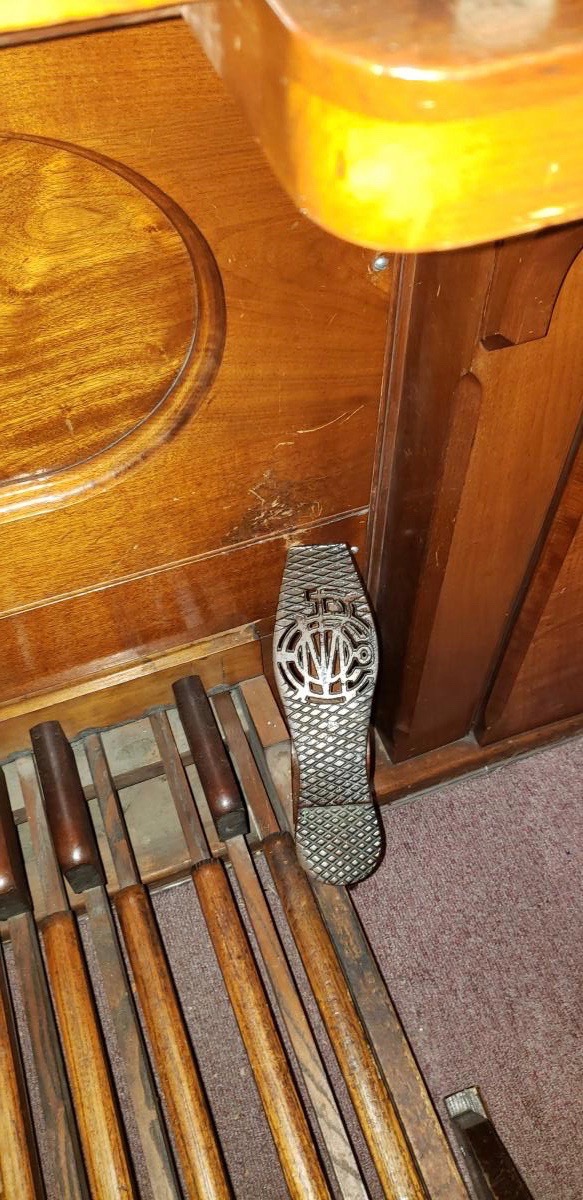

2019-12-04 - Swell Shoe with Company Logo (Photograph by Larry Pruett/Database Manager)

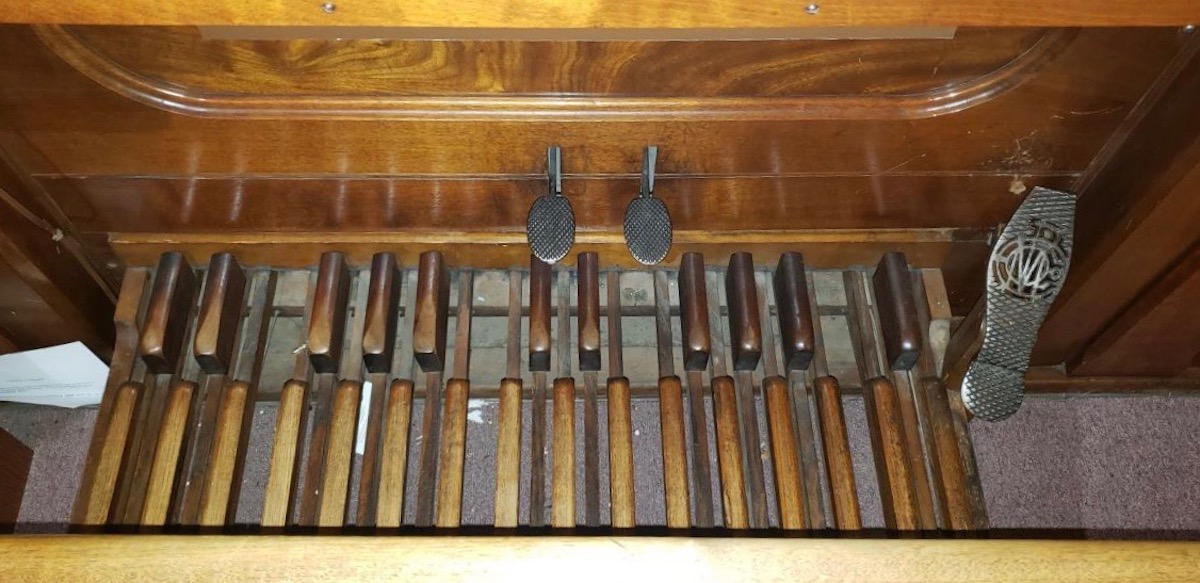

2019-12-04 - Pedalboard (Photograph by Larry Pruett/Database Manager)

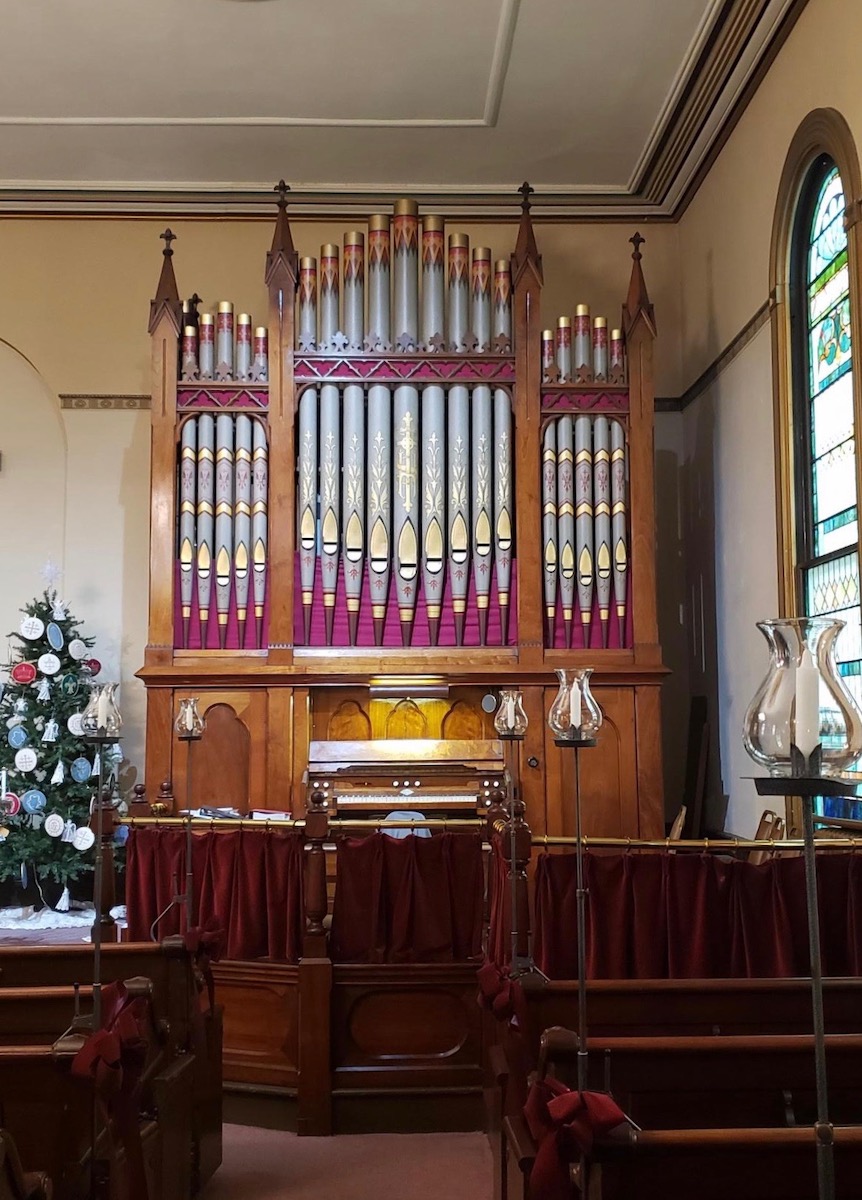

2019-12-04 - Organ Case (Photograph by Larry Pruett/Database Manager)

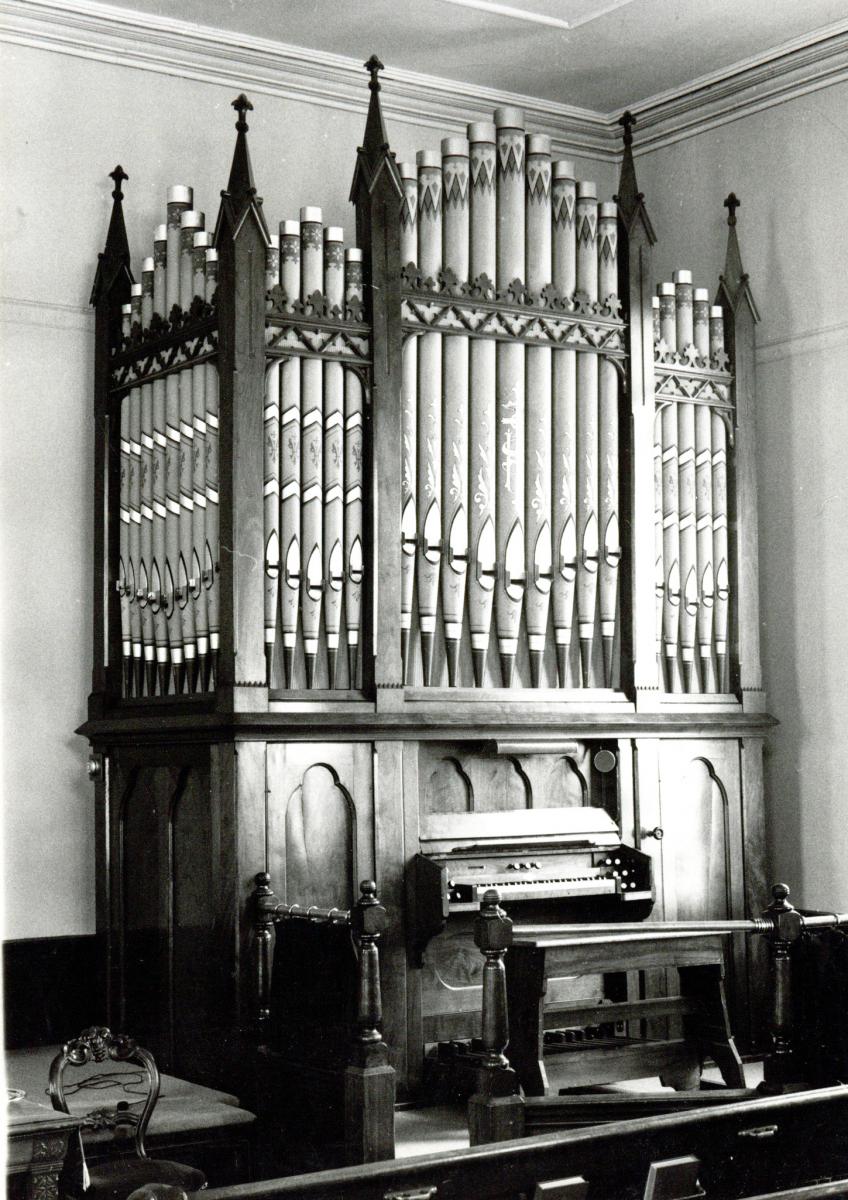

Unknown - Organ Case (Photograph by James R. McFarland (ca 1960)/Database Manager)

Consoles

Main

Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Console position: Keydesk Attached
1 manuals
10 stops
11 registers
2 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 58 notes
Pedal compass: 27 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Fixed Mechanical

Notes

2004-10-30 - Status Note: There 1996 -Database Manager

2004-10-30 - Restored by Gerald Lavall?e 1970, including replacement reservoirs. Restorative repairs 1990 by Columbia Organ Works. -Database Manager

Stoplist

Taken from console and pipework while restoring the organ in 1989 Source: Source not recorded Date not recorded

Muncy, Pennsylvania
Presbyterian Church

MOLINE ORGAN CO., 1884

<u>MANUALE: C-a3, 58 notes - Expressive</u>
16    ft Lieblich Gedact  <i>[sic]</i> TC  46     stopped wood
8     ft Open Diapason		    58     Non-expressive. 1-15 in facade
8     ft Melodia                TC  46     wood, open f0 up
8     ft Dulciana               TC  46     zinc bass, common metal f#0 up
8     ft Unison Bass		    12     stopped wood
4     ft Principal	            58     1-4 in facade
4     ft Flute d’ Amour             58     1-12 stopped wood, 13-58 open common metal
2 2/3 ft Twelfth                    58     common metal
2     ft Fifteenth                  58     common metal
8     ft Oboe                   TC  46     bottom octave prepared for, zinc with spotted metal bells
         Tremolo

<u>PEDALE: C-d1, 27 notes</u>
16    ft Bourdon                    27     stopped wood
         Pedale Check

<u>COUPLERS (Drawknob)</u>
Manuale to Pedale

<u>FOOT TRUNDLES (Unlabeled)</u>
Forte  -  Full Manuale without Oboe
Piano  -  Melodia, Dulciana and Unison Bass

<u>PEDAL MOVEMENTS</u>
Expression                     (bal.)


[Received from John Speller 2012-07-06.]
