Casavant (1975)

Wilfrid Laurier University: Martin Luther University College - Keffer Memorial Chapel
75 University Ave. W.
Waterloo, ON, CA

Images

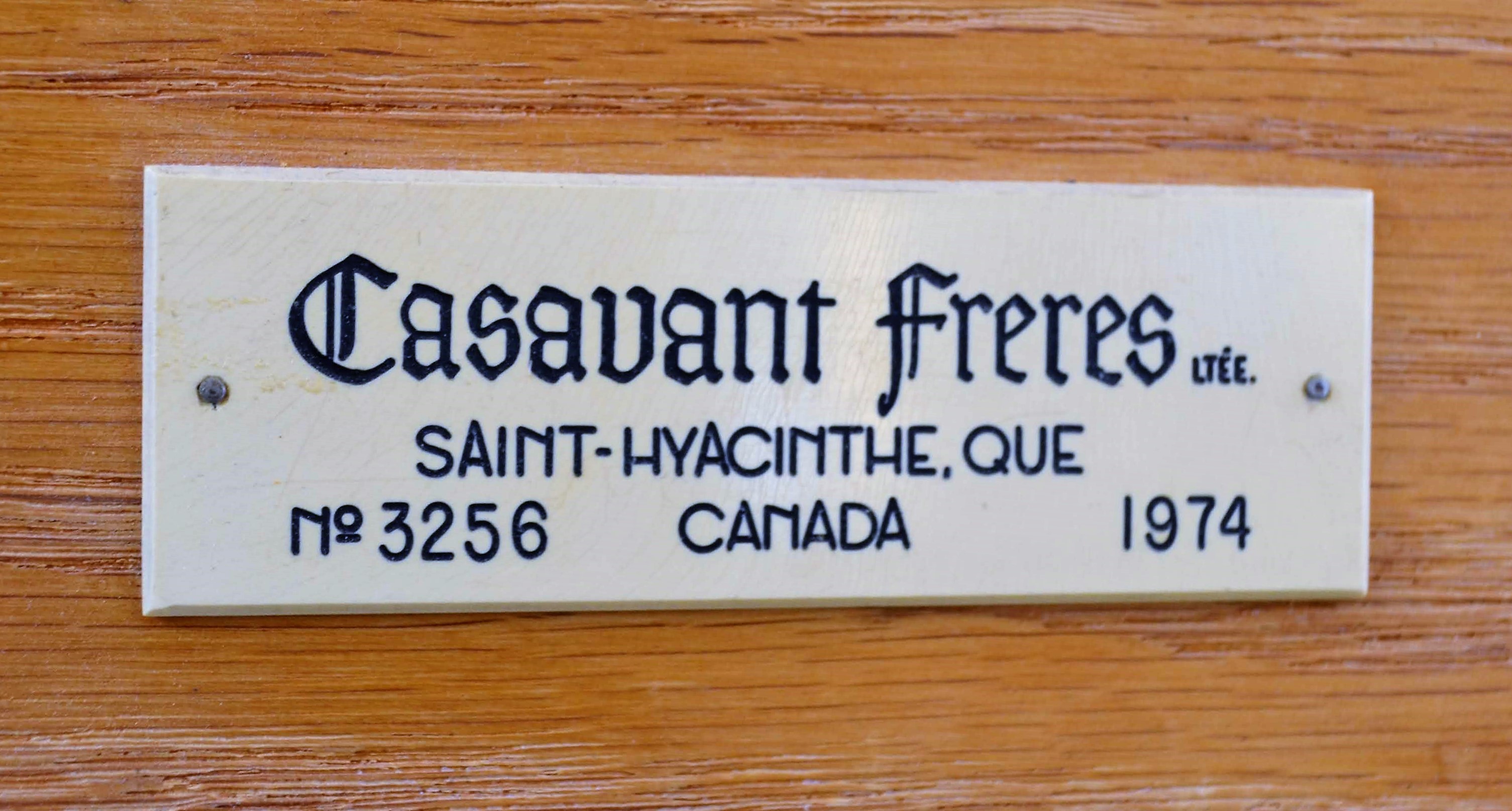

2018-09-15 - Builder's nameplate (Photograph by Paul A. Walrath/Paul A. Walrath)

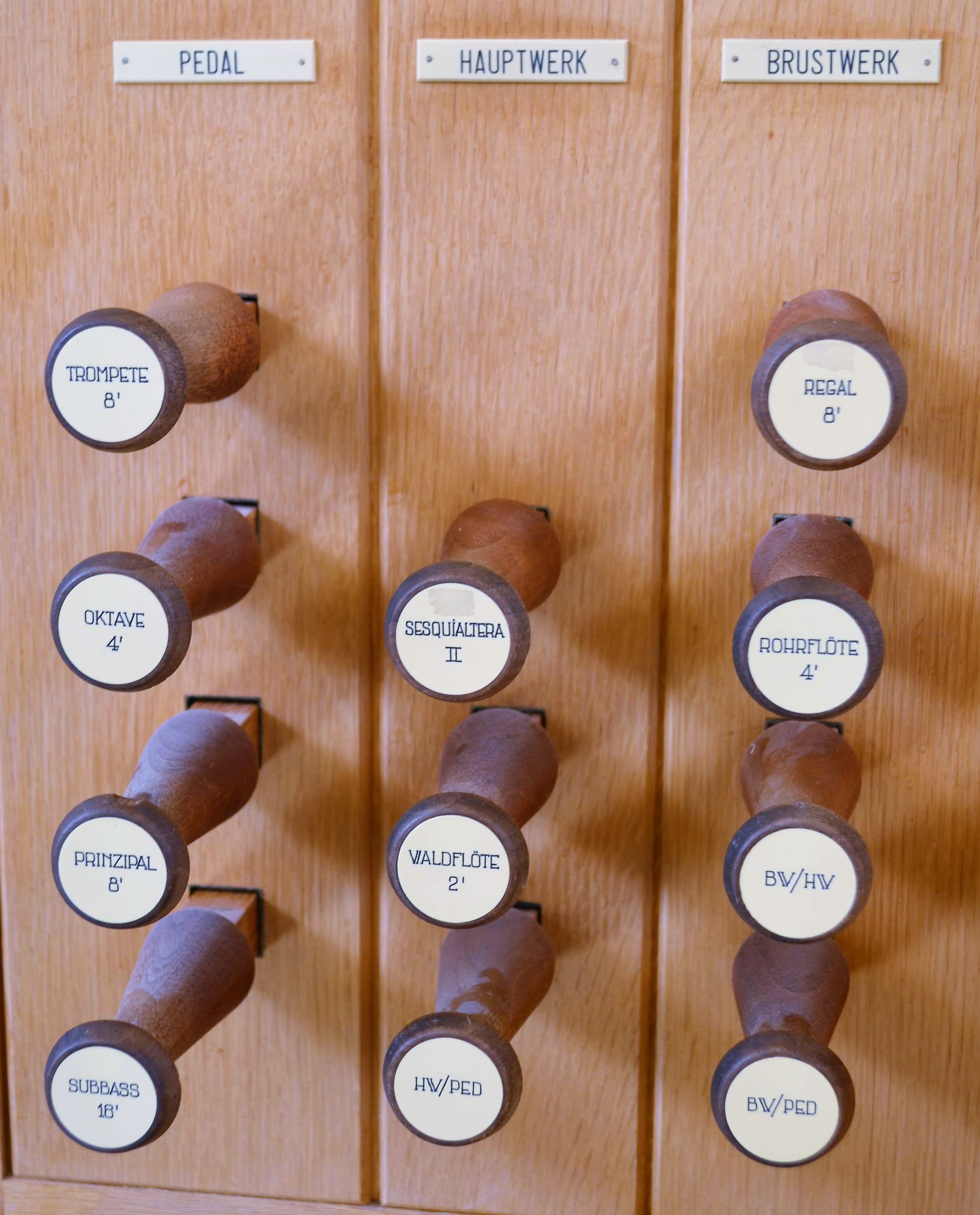

2018-09-15 - Right stop jamb (Photograph by Paul A. Walrath/Paul A. Walrath)

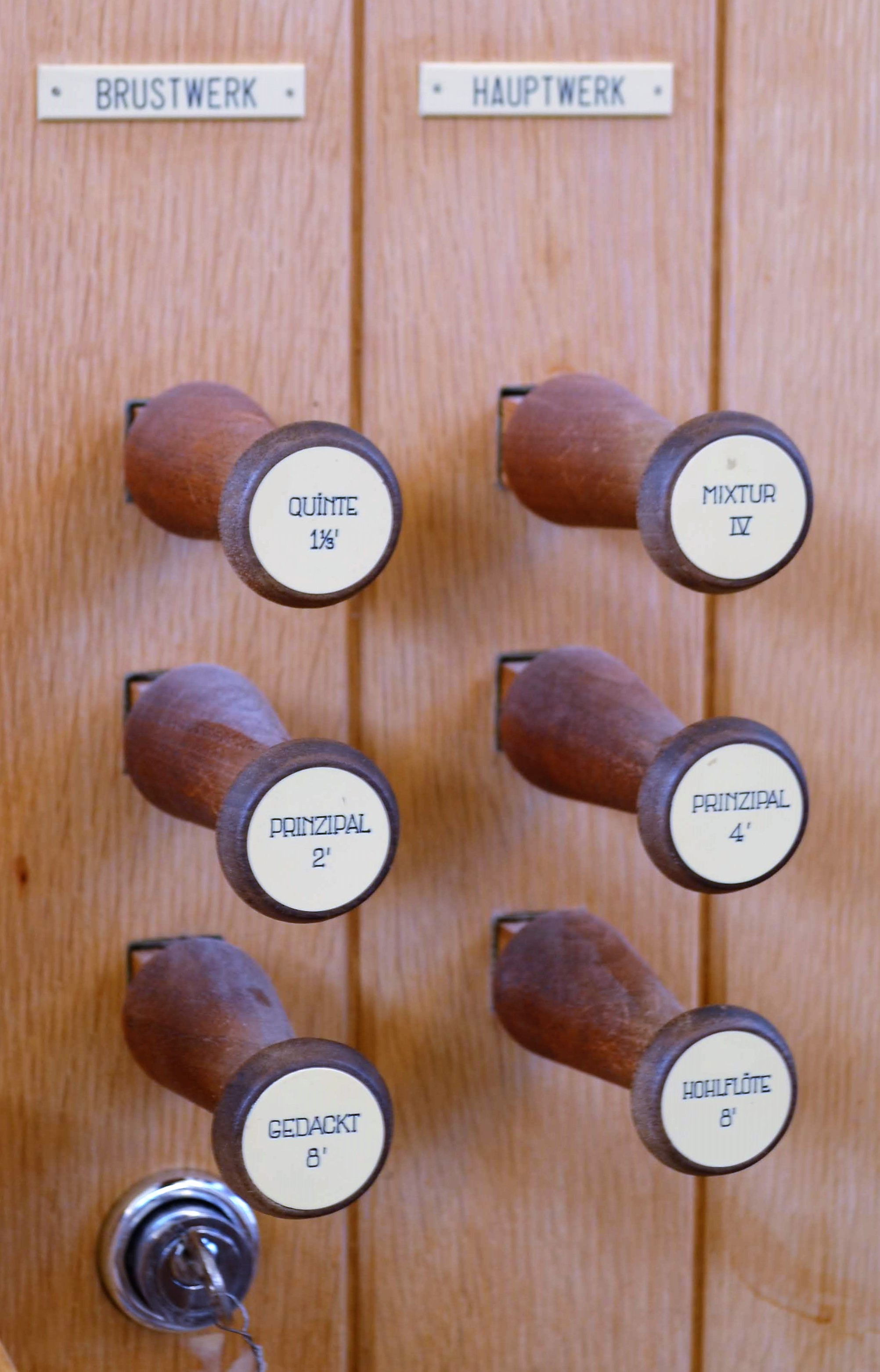

2018-09-15 - Left stop jamb (Photograph by Paul A. Walrath/Paul A. Walrath)

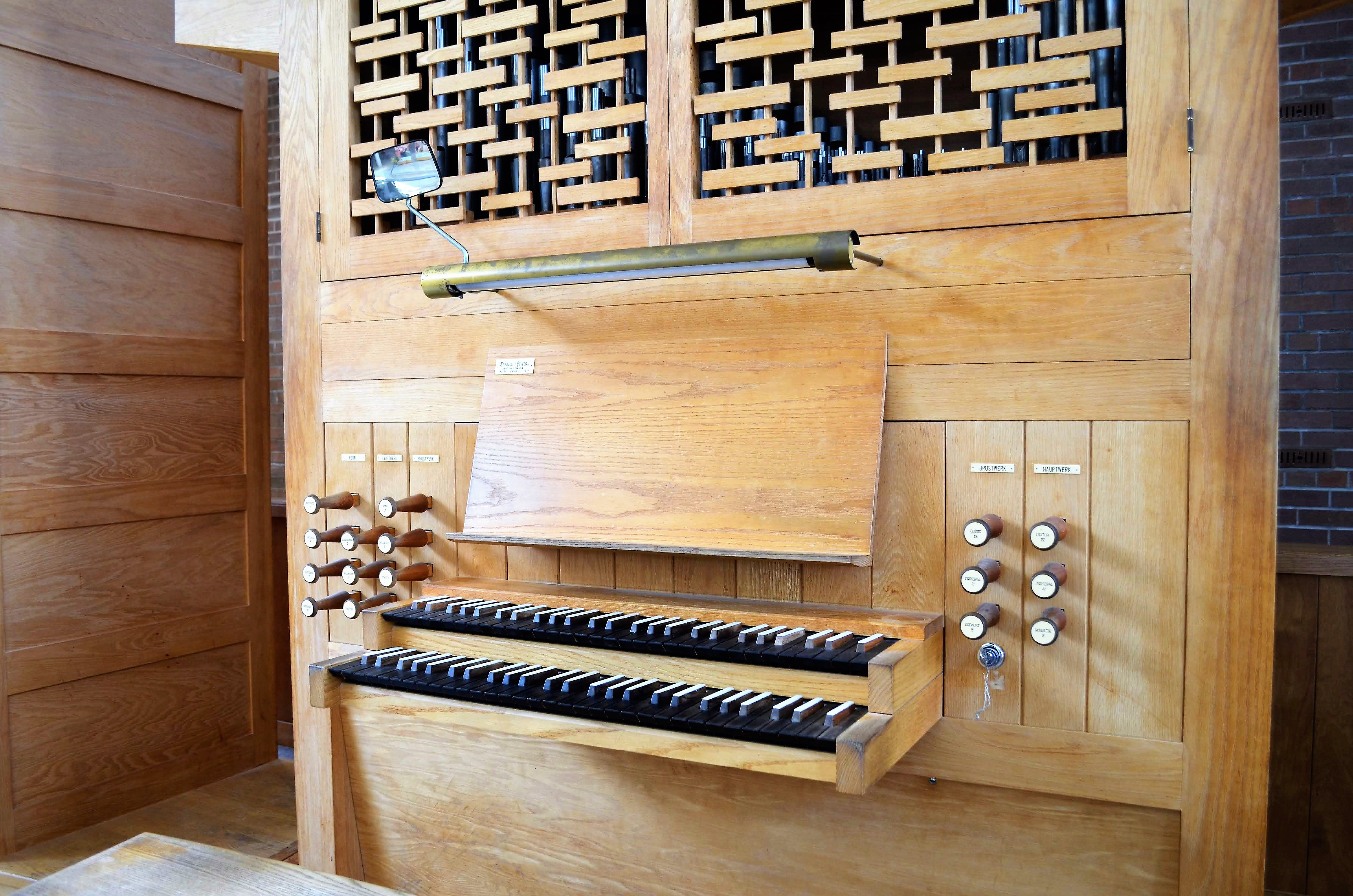

2018-09-15 - Keydesk (Photograph by Paul A. Walrath/Paul A. Walrath)

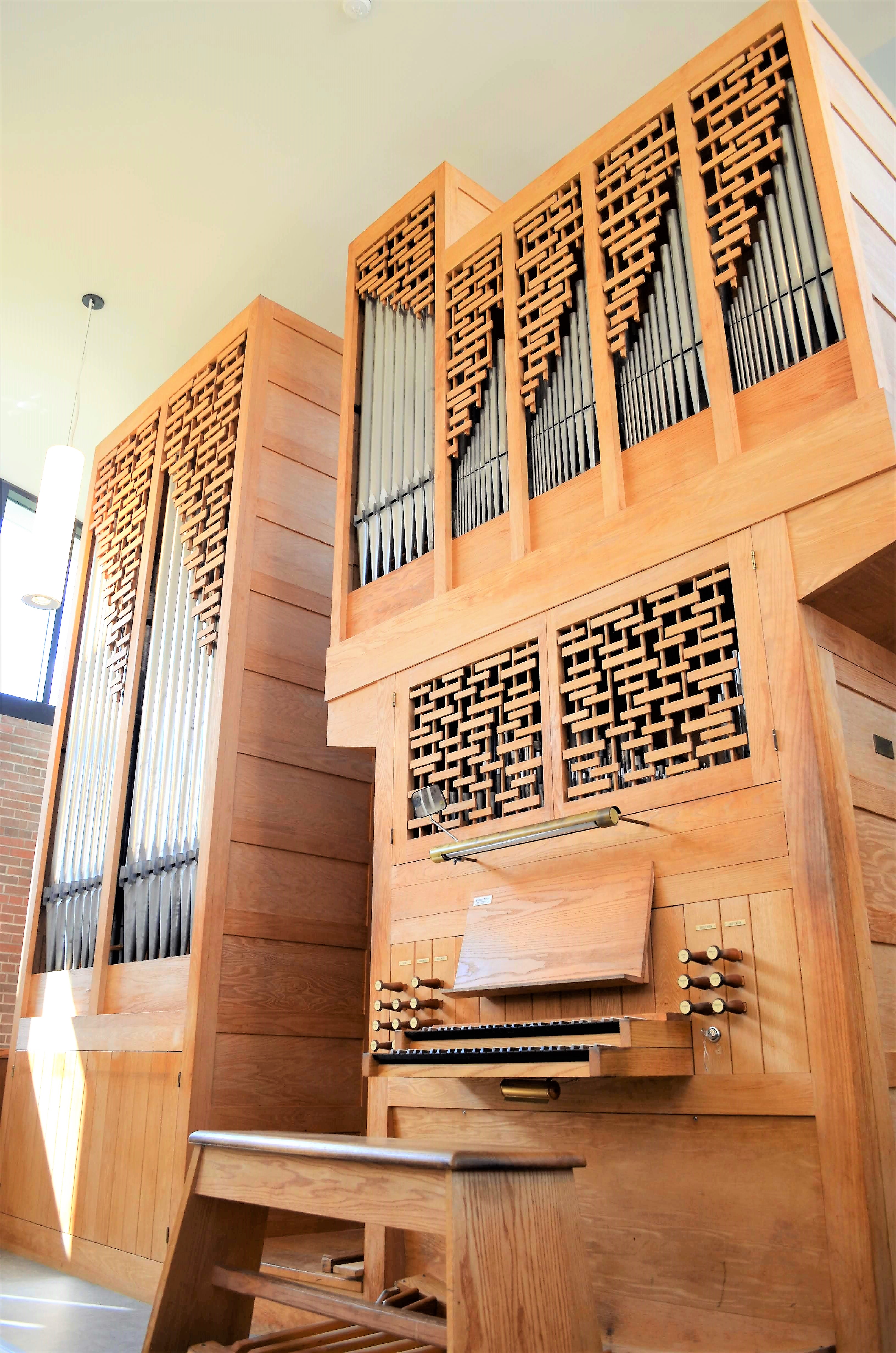

2018-09-15 - Organ cases and keydesk (Photograph by Paul A. Walrath/Paul A. Walrath)

Consoles

Main

Console position: Keydesk Attached
2 manuals
14 stops
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: No Enclosed Divisions
Combination action: None

Notes

2004-10-30 - Compass 56/32. -Database Manager

2015-07-19 - Updated through information in Casavant documents, courtesy of Simon Couture and Denis Blaine. The tonal director was Gerhard Brunzema. -Database Manager

2018-11-20 - Updated by Paul A. Walrath, who has heard or played the organ. <br> <br> -Database Manager

2019-02-26 - Updated by Paul A. Walrath, who has heard or played the organ. <br> <br> -Database Manager

Stoplist

Original document from Paul A. Walrath. Source: Courtesy of the Casavant Frères Archives 2019-03-02

Waterloo, ON
Wilfrid Laurier University

Casavant Frères, Opus 3256   1975


HAUPTWERK

 8'  Hohlflöte     56
 4'  Prinzipal     56
 2'  Waldflöte     56
 II  Sesquialtera 112
 IV  Mixtur       224


BRUSTWERK

 8'  Gedackt       56
 4'  Rohrflöte     56
 2'  Prinzipal     56
 1⅓' Quinte        56
 8'  Regal         56


PEDAL
16'  Subbass       32
 8'  Prinzipal     32
 4'  Oktave        32
 8'  Trompete      32

 BW/HW
 HW/PED
 BW/PED
