Better Pipe Organ Database

Rieger Orgelbau (1987)

Holy Trinity Episcopal Church
316 East 88th Street
New York City: Manhattan, NY

Images

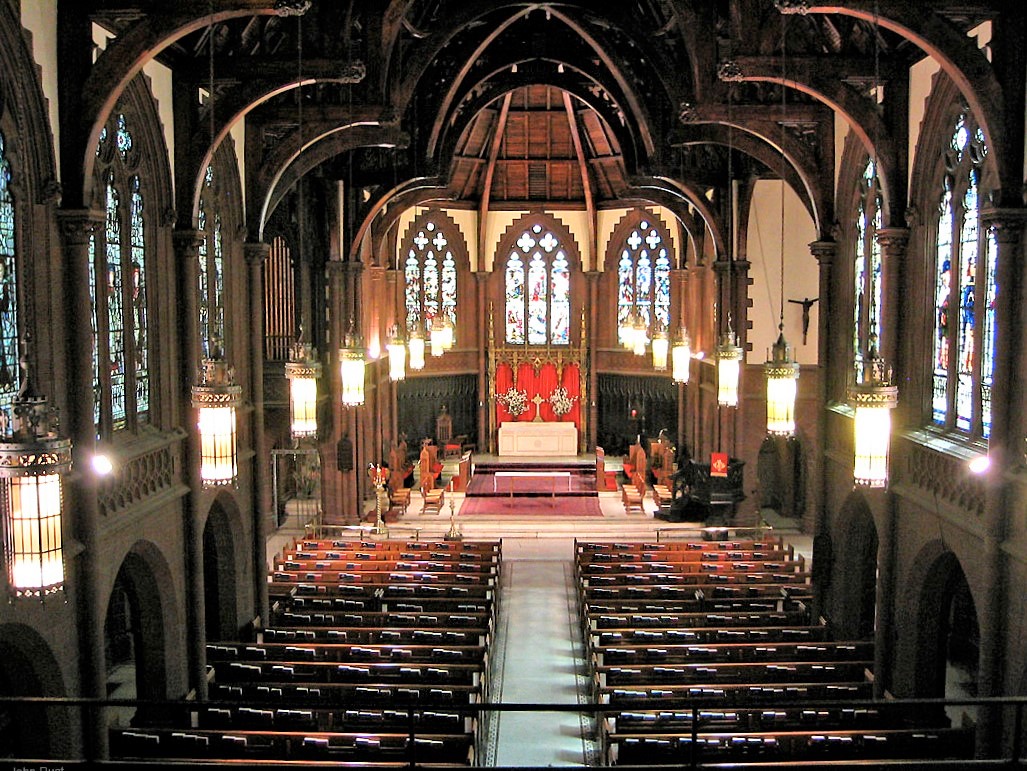

2002-09-09 - Church interior (Photograph by John Rust via Steven E. Lawson/Database Manager)

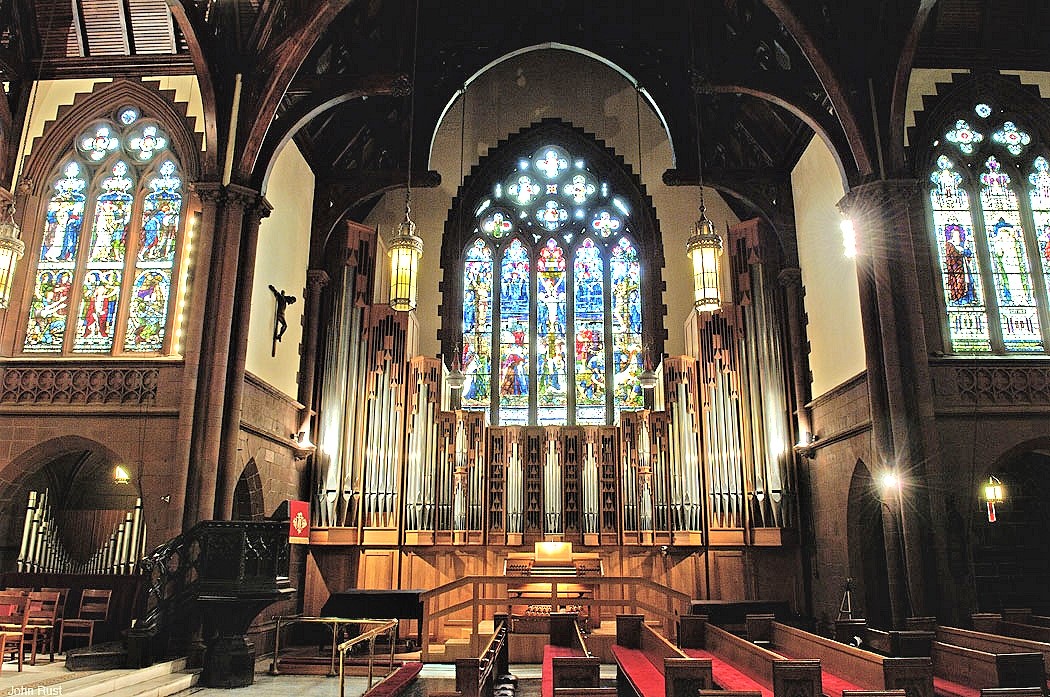

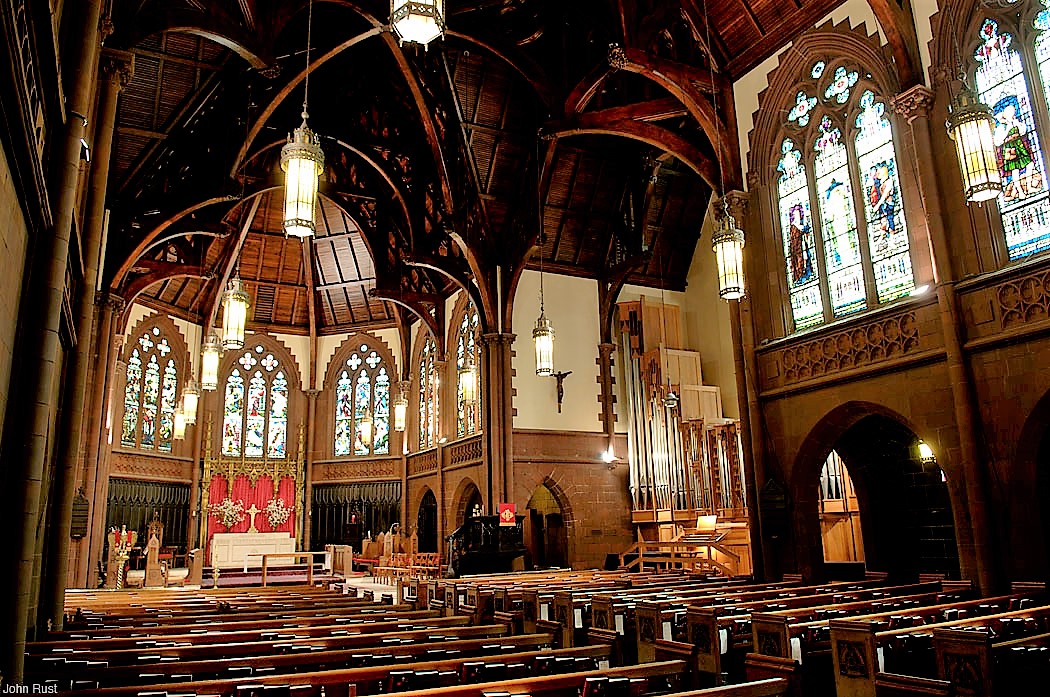

2002-09-09 - Transept and organ case (Photograph by John Rust via Steven E. Lawson/Database Manager)

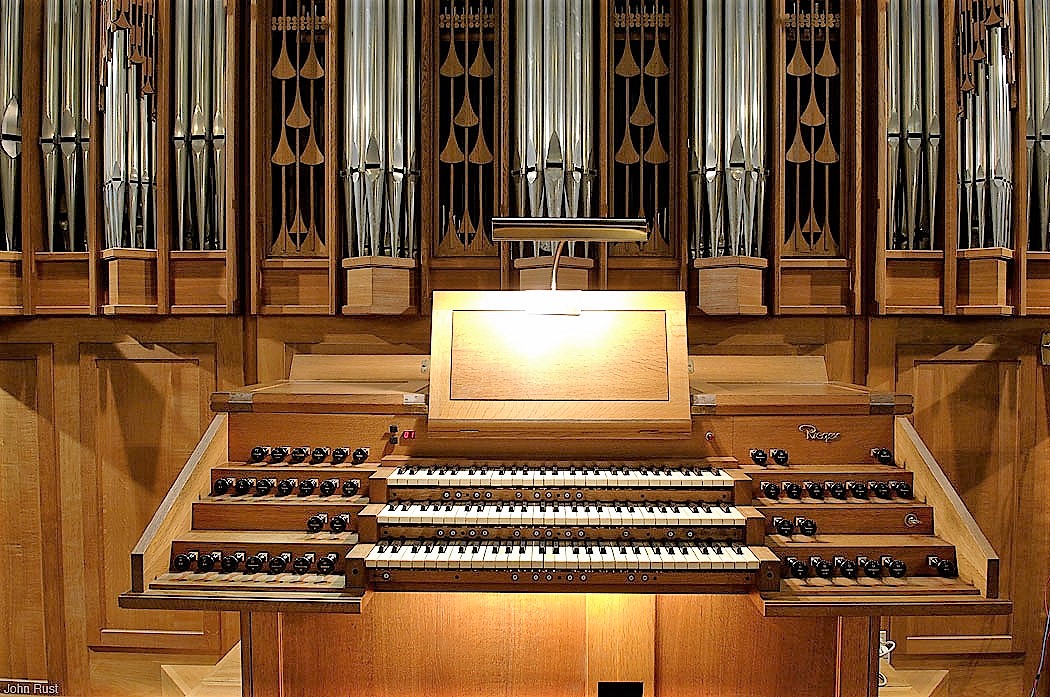

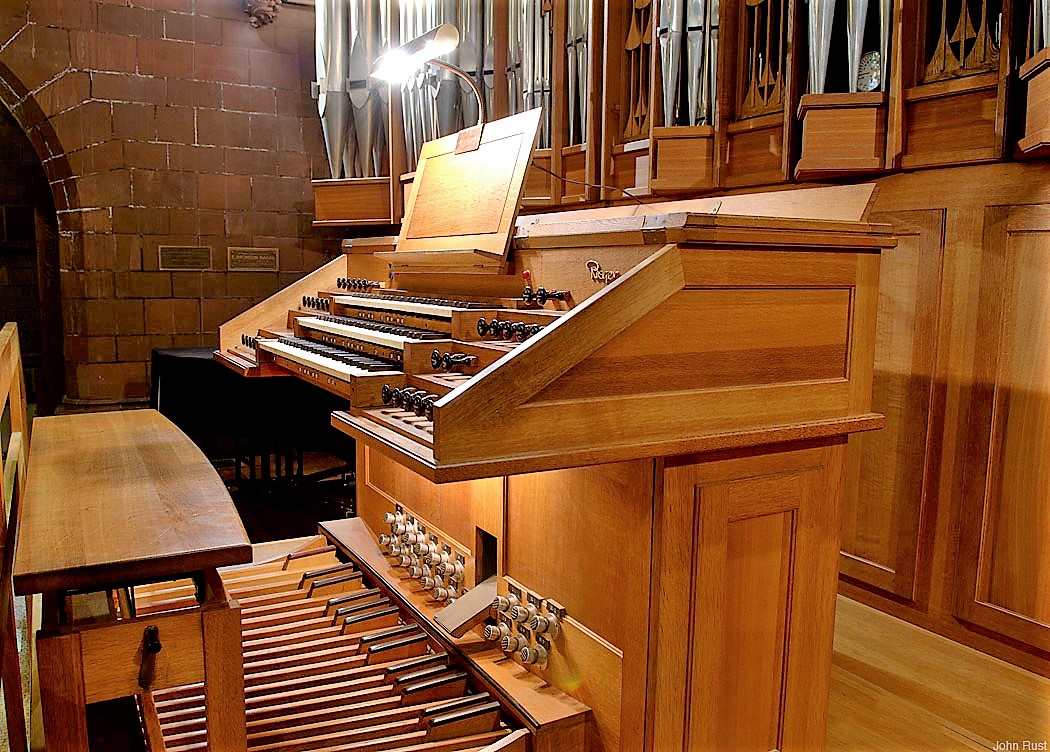

2002-09-09 - Console (Photograph by John Rust via Steven E. Lawson/Database Manager)

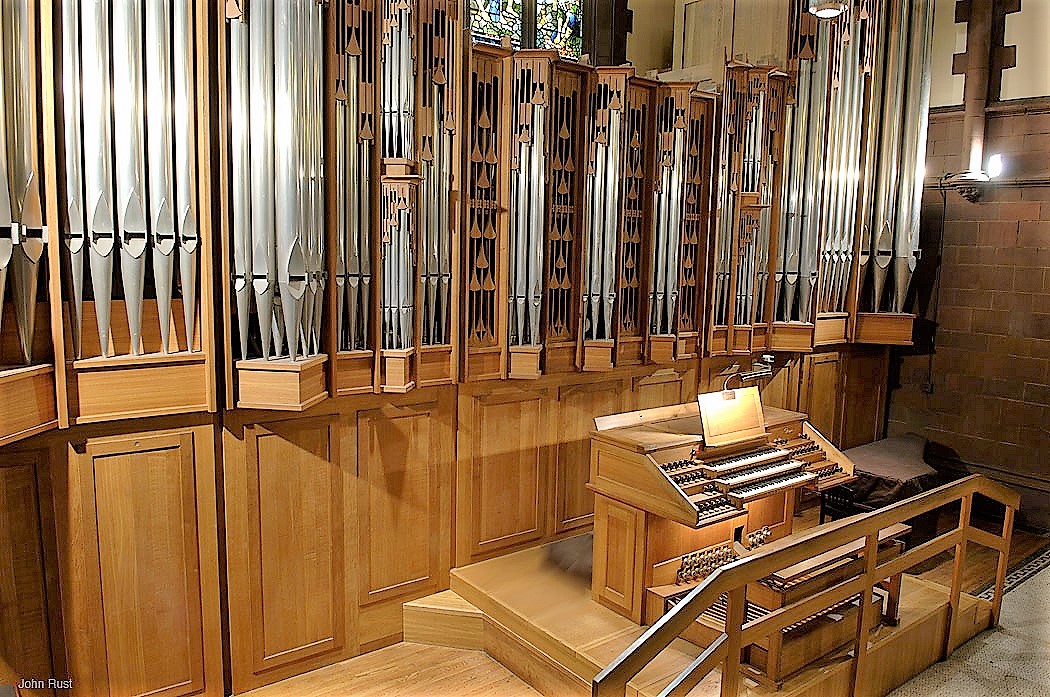

2002-09-09 - Console and organ case (Photograph by John Rust via Steven E. Lawson/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
3 manuals
33 stops
4 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Manual compass: 58 notes
Pedal compass: 35 notes
Pedal Type: Concave Radiating (Details Unknown)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Computerized/Digital
Has combination thumb pistons

Notes

2004-10-30 - Designed by Anthony Newman; built by Christoph Glatter-Götz of Rieger Orgelbau -Database Manager

2006-11-06 - Updated through online information from James R. Stettner. -- 11-sectional case with 77 pipes arranged: 5-5-5-(3-10-3)-5-5-5-(3-10-3)-5-5-5. The "10" portion of the 3-10-3 section is divided into upper and lower sections with 5 pipes in each. The Pedal has a grand ravalement that extends the otherwise 30-note compass down to AAAA: 33 notes. -Database Manager

2011-02-21 - Updated through online information from Connor Annable. -Database Manager

Stoplist

Specification from builder's web site Source: Source not recorded Date not recorded

New York City, New York
Church of the Holy Trinity, Episcopal (Yorkville)

Rieger Orgelbau   1987                              3 manuals, 33 stops, 55 ranks
_________________________________________________________________________________

         GRAND ORGUE (I)                          RÉCIT ESPRESSIF (III)
     16' Bourdon                 56            8' Flûte                   56
      8' Montre                  56            8' Salicional              56
      8' Flûte                   56            8' Céleste                 56
      4' Prestant                56            4' Flûte                   56
      2' Doublette               56            1' Sifflet                 56
      4' Grosse Fourniture VII  392           16' Basson                  56
  1 1/3' Fourniture IV          280            8' Hautbois                56
      1' Cymbale V              280            8' Trompette harmonique    56
      8' Cromorne                56            4' Clairon harmonique      56
      8' Trompette               56               Trémolo
      4' Clairon                 56

         POSITIF (II)                             PÉDALE [AAA-f1]
      8' Flûte                   56           16' Montre                  33
      4' Principal               56           16' Bourdon                 33
  1 1/3' Larigot                 56            8' Principal               33
      1' Mixture IV             224           32' Kontrabombarde          33
      8' Cornet V [f2-g5]       195           16' Bombarde                33
      8' Trompette               56            8' Trompette               33
      8' Chamade                 56

         COUPLERS                                 COMBINATIONS (16 levels)
         III/I, II/I, III/II,                     G.O.     4
         I/P, II/P, III/P                         Positif  4
                                                  Récit    4
         EXPRESSION                               Pédale   4  (thumb & toe)
         Récit Expression Pedal                   General  8  (thumb & toe)


[Received from Steven E. Lawson  2014-12-03]

Websites

Holy Trinity Episcopal Church (Yorkville) - (NYC Organ Project via NYC AGO web site) Specifications, photos, etc. (Check Internet Archive, archive.is)
