Calvary Church: Sanctuary
5801 Pineville-Matthews Road
Charlotte, NC
Images
2012-01-23 - Organ case (Photograph by Cameron Triggs, via Friends of the Calvary Grand Organ, Facebook, submitted by Jeff Scofield/Jeff Scofield)
2012-01-23 - Church interior and organ cases (Photograph by Friends of the Calvary Grand Organ, via Facebook/Jeff Scofield)
1990 - Left stopjamb layout (Photograph by https://www.danmillermusic.com/calvary-organ.html, submitted by YouFoundSharpe/YouFoundSharpe)
1990 - Right stopjamb layout (Photograph by https://www.danmillermusic.com/calvary-organ.html, submitted by YouFoundSharpe/YouFoundSharpe)
1988-02-16 - Console (Photograph by Jeff Scofield/Database Manager)

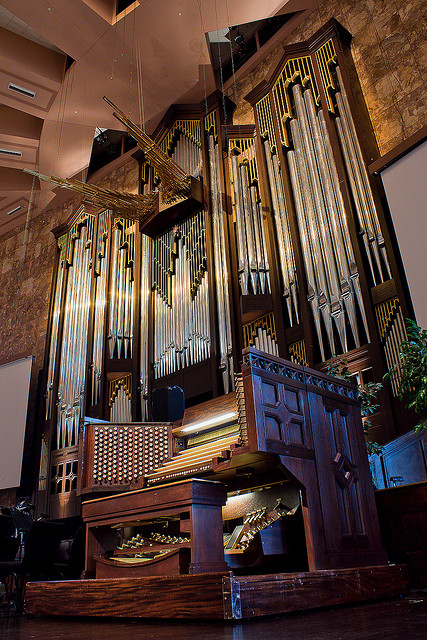

2008-12-07 - Console, case, and Facade (Photograph by David Ritch/Database Manager)
2008-11-07 - Console (Photograph by David Ritch/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 5 manuals
- 135 stops
- 208 registers
- 13 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2004-10-30 - Status Note: There 1990. -Database Manager
2004-10-30 - Ded. 26 Aug 1990 by Dan Miller. -Database Manager
2006-12-16 - Updated through online information from David Ritch. -Database Manager
2008-10-27 - Updated through online information from Monty Bennett. -Database Manager
2011-10-24 - Updated through online information from David Ritch. -Database Manager
2012-03-12 - Updated through online information from Jeff Scofield. -Database Manager
2017-02-20 - Updated by David Nelms, who maintains the organ. <br> -Database Manager
2018-07-01 - Updated by David Nelms, who maintains the organ.<br> -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Charlotte, North Carolina
Calvary Church
Möller Op. 11739 1990 5/207
________________________________________________________
GREAT (II) GOSPEL
16’ Montre 61 16’ Tibia (tc) --
16’ Pommer 61 8’ Tibia 85
8’ Open Diapason 61 4’ Tibia --
8’ Principal 61 2 2/3’ Tibia --
8’ Montre 12 2’ Tibia --
8’ Flute Harmonique 61 1 3/5’ Tibia --
8’ Bourdon 12 16’ Kinura (tc) --
8’ Spitzflöte 61 8’ Kinura 85
5 1/3’ Grossquint 19 4’ Kinura --
4’ Octave 61 2’ Kinura --
4’ Prestant 61 Tremulant
4’ Flute Ouverte 61 8’ Harp (tc) --
4’ Rohrflöte 61 4’ Celesta (present) 49
3 1/5’ Gross Terz 61 Gospel expr to SW
2’ Super Octave 61 Gospel expr to CH
2’ Waldflöte 61 Gospel expr to SO/BO
II Sesquialtera 122 Gospel on I
IV Grande Fourniture 244 Gospel on II
IV-VI Fourniture 299 Gospel on III
IV-V Scharf 249 Gospel on IV
16’ Posaune 61 Gospel on V
8’ Trompete 68 Gospel to Pedal
4’ Klarine 80
16’ Millennial Trumpet 61 TROMPETERIA I
8’ Millennial Trumpet 68 16’ Cor de Gabriel L/2 85
4’ Millennial Trumpet 68 8’ Cor de Gabriel --
Tremulant (flutes) 8’ Cor de Gabriel --
Unison Off 16’ Millennial Trumpet GT
Chimes SO 8’ Millennial Trumpet GT
8’ Harp 4’ Millennial Trumpet GT
4’ Celesta Trompeteria I on I
Great to Choir Trompeteria I on II
Trompeteria I on III
SWELL (III) Trompeteria I on IV
16’ Gambe 61 Trompeteria I on V
16’ Bourdon Doux 61 Trompeteria I to Pedal
8’ Montre 61
8’ Flute a Cheminee 61 ANCILLARY I
8’ Viole de Gambe 12 16’ Principal (Pedal) 12
8’ Viole Celeste 61 8’ Principal 61
8’ Salicional 61 8’ Spitzflöte 61
8’ Voix Celeste 61 8’ Spitzflöte Celeste 61
8’ Flute Douce 61 4’ Octave 61
8’ Flute Celeste (tc) 49 2’ Super Octave 61
4’ Prestant 61 IV-V Mixture 250
4’ Flute Octaviante 61 Ancillary I on I
4’ Unda Maris II 122 Ancillary I on II
2 2/3’ Nazard 61 Ancillary I on III
2’ Doublette 61 Ancillary I on IV
2’ Quarte de Nazard 61 Ancillary I on V
1 3/5’ Tierce 61 Ancillary to Pedal
III-V Plein Jeu 244 Crescendo 2
III-V Cymbale 237
16’ Contre Trompette 61 TROMPETERIA II
16’ Bassoon L/2 61 16’ Herald Trumpet L/2 12
8’ Trompette 68 8’ Herald Trumpet 68
8’ Hautbois 61 4’ Herald Trumpet 24
8’ Cor d’Amour 61 16’ Buccina BO
8’ Voix Humaine 80 8’ Trompette Harmonique BO
4’ Clairon 61 4’ Clairon Harmonique BO
Tremulant Trompeteria II on I
Sub Trompeteria II on II
Unison Off Trompeteria II on III
Super Trompeteria II on IV
Symphonic Carillon Trompeteria II on V
Major Bells Trompeteria II to Pedal
Minor Bells
ANCILLARY II
CHOIR (I) 16’ Montre (Pedal) 12
16’ Gemshorn 61 8’ Montre 61
8’ Viola Pomposa 61 8’ Bourdon 61
8’ Viola Celeste 61 4’ Prestant 61
8’ Gemshorn 12 4’ Gedackt 61
8’ Gemshorn Celeste 61 2’ Doublette 61
8’ Zauberflöte 61 IV-V Fourniture 231
8’ Klein Erzähler II 110 Ancillary II on I
4’ Fugara 61 Ancillary II on II
4’ Spillflöte 61 Ancillary II on III
2 2/3’ Rohr Nazard 61 Ancillary II on IV
2’ Blockflöte 61 Ancillary II on V
1 3/5’ Terzflöte 61 Ancillary II to Pedal
1 1/3’ Larigot 61 Crescendo 3
1’ Sifflöte 61
IV-V Mixture 271 CELESTIAL (electronic)
16’ Fagotto 68 8’ Fern Flute
8’ Petite Trompette 68 8’ Voix Seraphique II
8’ Clarinet 61 8’ Vox Amarosa II
4’ Fagotto 36 4’ Divinare
Tremulant 8’ Vox Humana
Sub Tremulant
Unison Off Sub
Super Super
16’ Cor de Gabriel T1 Celestial on I
8’ Cor de Gabriel T1 Celestial on II
4’ Cor de Gabriel T1 Celestial on III
8’ Tuba Mirabilis SO Celestial on IV
8’ Harp Celestial on V
4’ Celesta Celestial to Pedal
Choir/Positiv Transfer Celestial expr to SW
Celestial expr to CH
POSITIV (IV) Celestial expr to SO/BO
16’ Quintaten 61
8’ Prinzipal 61 PEDAL
8’ Schwebung 61 32’ Contre Principal 32
8’ Singendgedeckt 61 32’ Flute Ouverte el
8’ Quintadena 12 32’ Contra Violone 32
4’ Oktav 61 32’ Contre Bourdon el
4’ Koppelflöte 61 21 1/3’ Grave Diapente 32
2’ Super Oktav 61 16’ Principal 12
2’ Schweitzerflöte 61 16’ Flute Ouverte 32
1 1/3’ Quint 61 16’ Violone 12
1’ Oktavlein 61 16’ Bourdon 32
8/9’ None 61 16’ Montre GT
II Jeu de Tierce 122 16’ Pommer GT
IV-V Mixtur 283 16’ Gemshorn CH
III-V Zimbel 243 16’ Quintaten PO
III Jeu de Clochette 168 16’ Bourdon Doux SW
16’ Dulzian 61 16’ Gambe SW
8’ Kleintrompete 61 16’ Cello II SO
8’ Krummhorn 61 10 2/3’ Grossquinte 12
4’ Trichterregal 61 8’ Octave 32
Tremulant 8’ Hohlflöte 32
Sub 8’ Spitzflöte 32 t
Unison Off 8’ Bourdon 12
Zimbelstern (star) 6 5 1/3’ Quinte 12
Choir/Positiv Transfer 4’ Choral Bass 32
4’ Spillflöte 32 t
SOLO (IV) 4’ Spitzflöte 12 t
16’ Violoncello 61 2’ Spillflöte 12 t
16’ Cello Celeste 61 V Rauschpfeife 160
8’ Doppelflöte 61 VII Mixture 224
8’ Violoncello 12 V Fagotto Cornet (64) --
8’ Cello Celeste 12 IV Grand Cornet (32) --
8’ Gamba 61 32’ Contre Bombarde 32
8’ Gamba Celeste 61 32’ Contra Fagotto L/2 12
4’ Violoncello 12 16’ Bombarde 12
4’ Cello Celeste 12 16’ Posaune GT
4’ Orchestral Flute 61 16’ Contre Trompette SW
2 2/3’ Quinte Flute 61 16’ Bassoon SW
16’ Corno di Bassett 61 16’ Fagotto CH
8’ Tuba Mirabilis 61 16’ Dulzian PO
8’ English Horn 61 16’ Buccina BO
8’ Orchestral Oboe 61 8’ Trompette 12
8’ French Horn 61 8’ Trompete GT
Tremulant 8’ Bassoon SW
Sub 8’ Krummhorn PO
Unison Off 8’ Trompette Harmonique BO
Super 4’ Clairon 12
Chimes 25 4’ Clairon Harmonique BO
Positiv Unison Off 4’ Rohr Schalmei 32 t
2’ Zink 12 t
BOMBARDE (V)(encl w/Solo) Tremulant (t)
8’ Grand Diapason 61 Chimes SO
4’ Major Octave 61 Gospel Harp GO
V Mounted Cornet 185 16’ Bourdon Bells
IV-VI Plein Jeu 270 8’ Bourdon Bells
V-VIII Eclat 368 8’ Flemish Bells
16’ Buccina 61 Pedal FF
8’ Trompette Harm. 68
4’ Clairon Harmonique 68 Console lights
Unison Off Main blower
Symphonic Carillon Tromp I/Anc I blower
Flemish Bells Tromp II/Anc II blower
Minor Bells All Swells to Swell
Transposer
[Received online from Jeff Scofield March 10, 2012]
