Better Pipe Organ Database

Schantz Organ Co. Opus 2149 (1999)

Kirk of the Hills Presbyterian: Sanctuary
12928 Ladue Rd.
Creve Coeur (St. Louis), MO

Images

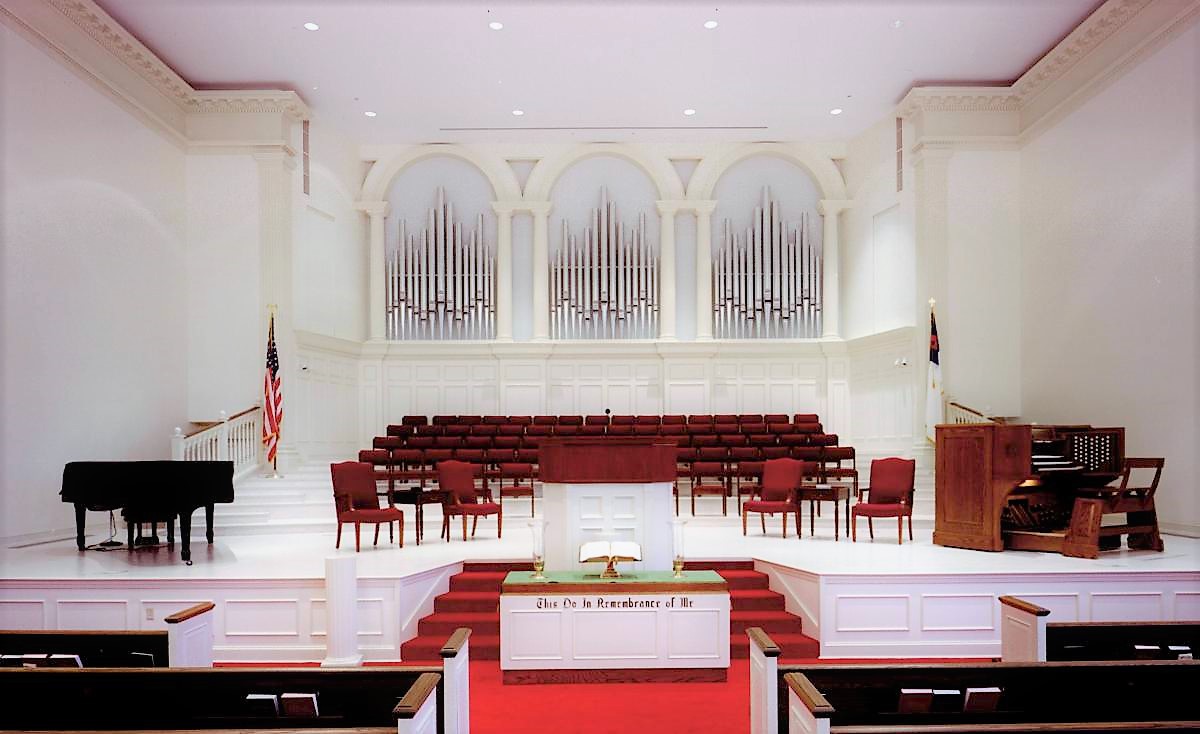

2002 - Console and pipe facade (Photograph by Schantz Organ Company archives; image courtesy of Eric J. Gastier. , submitted by Jeff Scofield/Jeff Scofield)

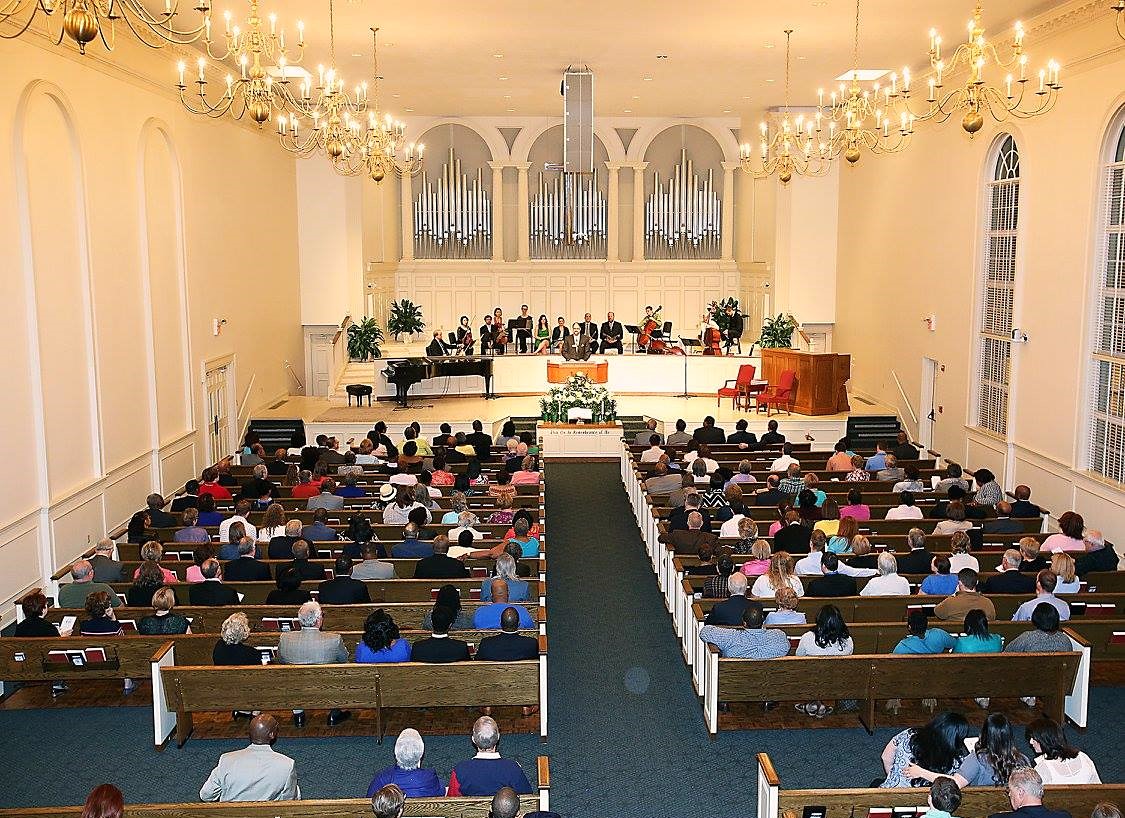

2002 - Chancel, console and pipe facade (Photograph by Schantz Organ Company archives; image courtesy of Eric J. Gastier. , submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
57 stops
37 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2004-10-30 - Status Note: There 2003. -Database Manager

2004-10-30 - Replaced an electronic. -Database Manager

2010-03-18 - Updated through on-line information from Eric J. Gastier. -Database Manager

2011-08-08 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist courtesy of the Schantz Organ Co. Source: Source not recorded Date not recorded

       St. Louis, Missouri
       Kirk of the Hills Presbyterian Church

       Schantz   Op. 2149   1999   3/46
       _________________________________________________

       GREAT                         CHOIR
   16' Violone          61        8' Diapason         61
    8' Principal        61        8' Gedackt          61
    8' Violone          12        8' Flauto Dolce     61
    8' Spitzflöte       61        8' Flute Celeste    49
    8' Traversflöte     49        4' Principal        61
    4' Octave           61        4' Koppelflöte      61
    4' Hohlflöte        61        2' Octave           61
    2' Super Octave     61    1 1/3' Larigot          61
   IV  Mixture         244       IV  Scharf          244
  III  Cymbale          pf        8' Cromorne         61
    8' Trumpet          61           Tremulant
       Tremulant                  8' Festival Trumpet 61
    8' Festival Trumpet CH           MIDI
       Chimes
       MIDI                          PEDAL
                                 32' Untersatz        pf
       SWELL                     32' Resultant        --
   16' Rohrbourdon      61       16' Principal        32
    8' Geigen Principal 61       16' Violone          GT
    8' Rohrflöte        12       16' Subbass          32
    8' Salicional       61       16' Rohrbourdon      SW
    8' Voix Celeste     54        8' Octave           12
    4' Prestant         61        8' Violone          GT
    4' Flûte Harmonique 61        8' Subbass          12
2 2/3' Nasard           61        8' Rohrbourdon      SW
    2' Octavin          61        4' Choral Bass      32
1 3/5' Tierce           61        4' Flute            12
   IV  Plein Jeu       244        V  Grand Cornet     --
   16' Basson           61      III  Mixture          pf
    8' Trompette        61       32' Contre Bombarde  pf
    8' Hautbois         12       16' Bombarde         32
    4' Clairon          61       16' Basson           SW
       Tremulant                  8' Bombarde         12
    8' Festival Trumpet CH        4' Bombarde Clarion 12
       MIDI                       4' Hautbois         SW
                                  8' Festival Trumpet CH
                                     MIDI

   [Received online from Jeff Scofield  August 7, 2011]
