William King (1888before)

Grace Lutheran Church
Logansport, IN

Images

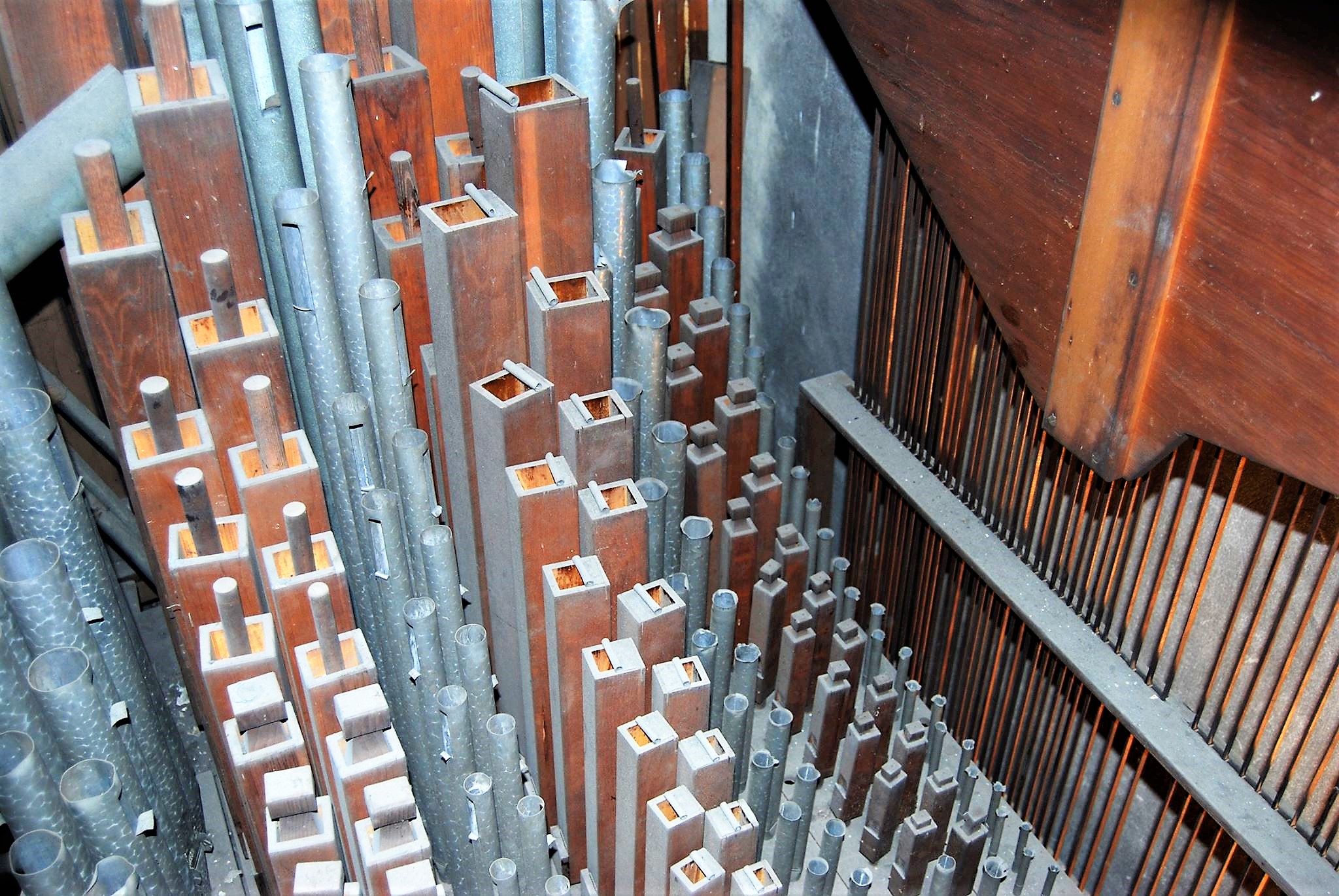

April, 2019 - Great pipework (l-r): 8' Open Diapason, 16' Bourdon, 8' Dulciana, 8' Melodia, 4' Octave, 4' Flute d'mour, 2' Fifteenth (Photograph by Joe Granger, submitted by Jim Stettner/Jim Stettner)

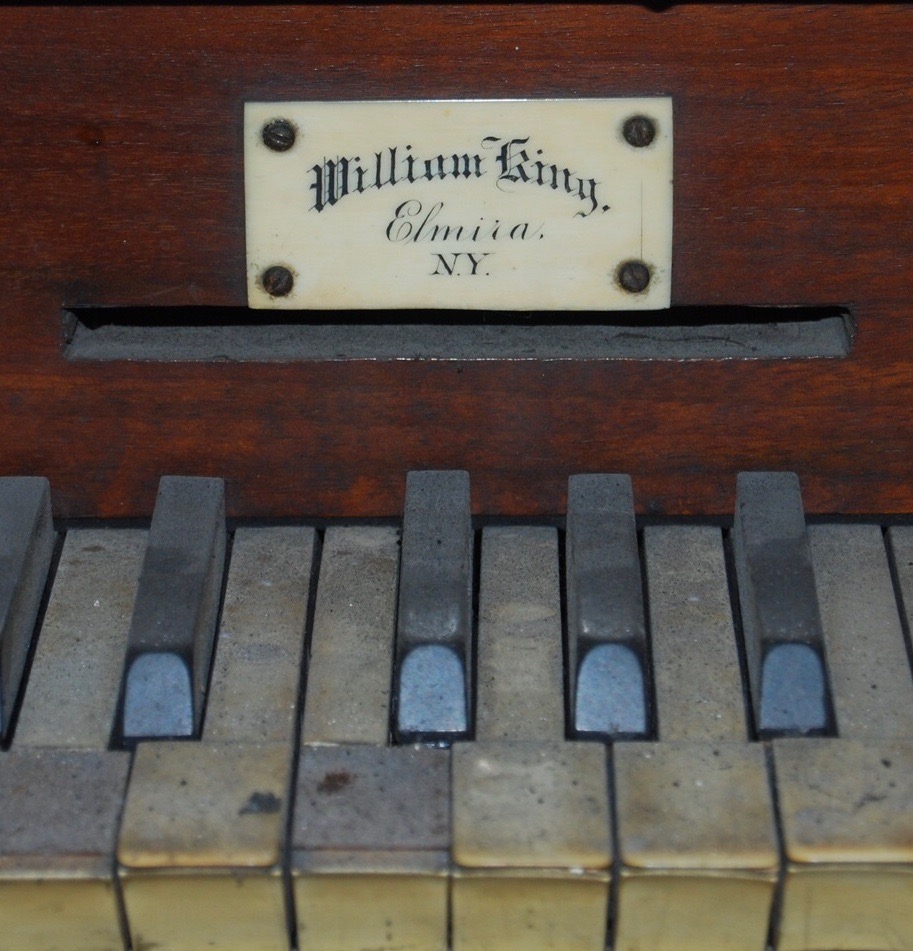

April, 2019 - Builder's nameplate (Photograph by Joe Granger, submitted by Jim Stettner/Jim Stettner)

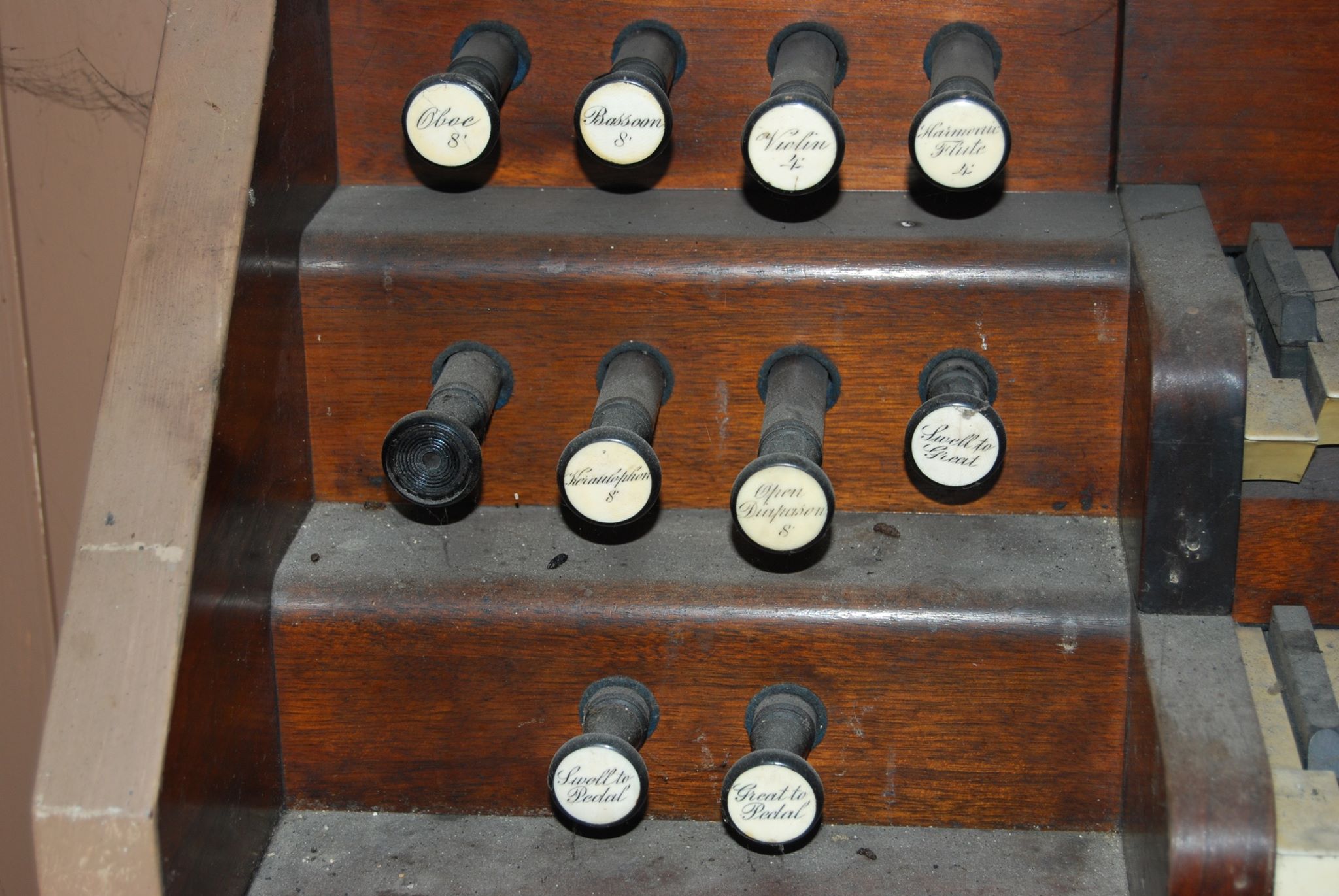

April, 2019 - Keydesk: Swell stopjamb (Photograph by Joe Ganger, submitted by Jim Stettner/Jim Stettner)

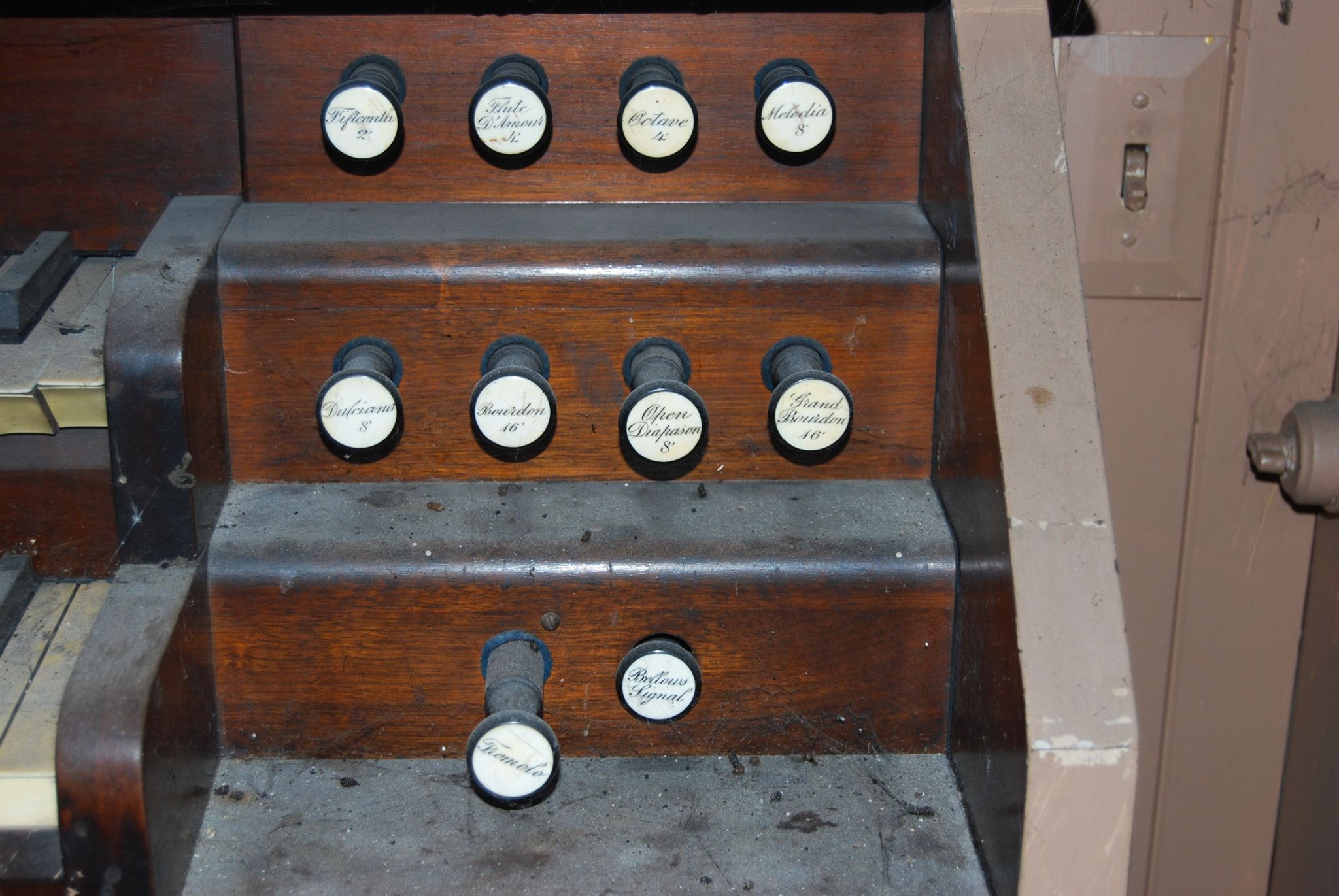

April, 2019 - Keydesk: Great stopjamb (Photograph by Joe Granger, submitted by Jim Stettner/Jim Stettner)

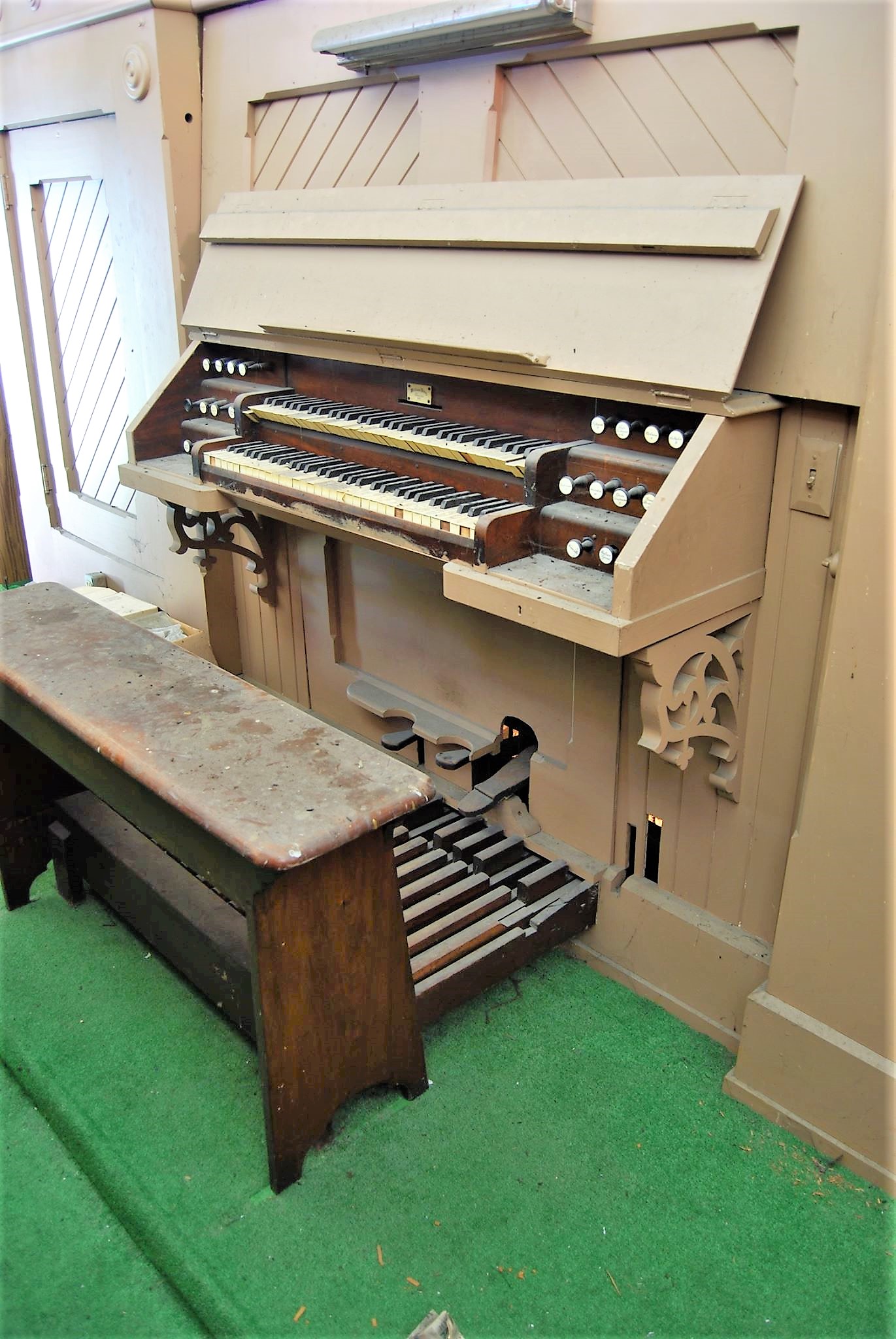

April, 2019 - Keydesk (Photograph by Joe Granger, submitted by Jim Stettner/Jim Stettner)

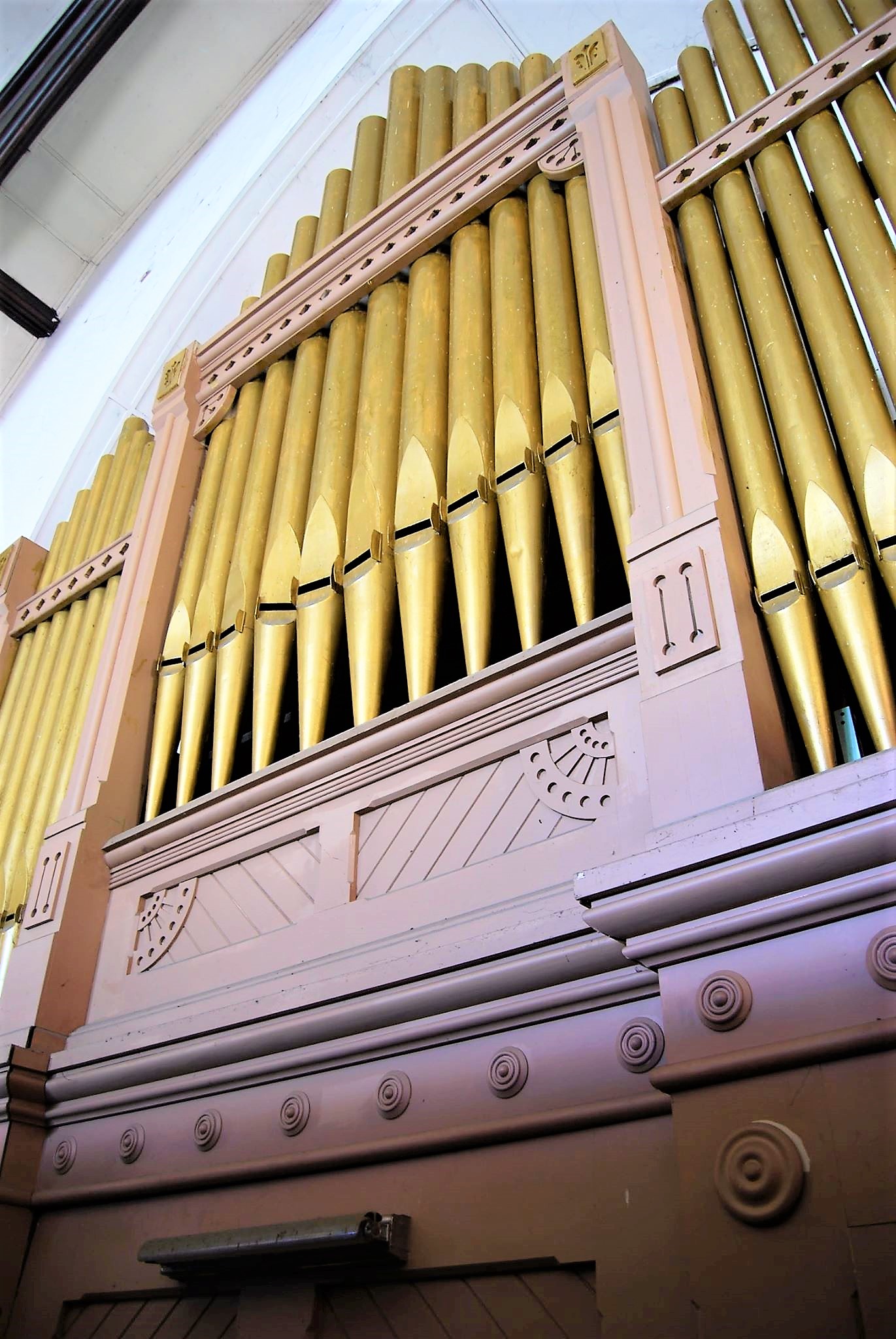

April, 2019 - Facade (Photograph by Joe Granger, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Console position: Keydesk Attached
2 manuals
14 stops
15 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 27 notes
Pedal Type: Flat Straight
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Fixed Mechanical

Notes

2004-10-30 - Status Note: There 1996. -Database Manager

2004-10-30 - Building was Grace Lutheran Church (never Church of Christ). -Database Manager

2019-04-29 - The church had been acquired as the office for Dr. Robert A. Brewer, who has since passed-away. The building is still privately owned by a new private party. -Database Manager

Stoplist

Source: Stoplist copied from detailed console photos August 19, 2020

Logansport, Indiana
Grace Lutheran Church

WILLIAM KING, before 1888 - Original Specifications


GREAT                                        COUPLERS (Drawknob)
  16'  Bourdon                     61          Swell to Pedal
  8'   Open Diapason               61          Great to Pedal
  8'   Melodia                     61
  8'   Dulciana                    61          Swell to Great
  4'   Octave                      61
  4'   Flute d'Amour               61
  2'   Fifteenth                   61        FOOT TRUNDLES (Unlabeled)
                                               Piano -

SWELL (Expressive)                             Forte -
  8'   Open Diapason               __
  8'   Keraulophon                 __          2 additional slots with mechanism
  8'   Stop'd Diapason             61          removed at the right end of the
  4'   Harmonic Flute              61          pedalboard.
  4'   Violin                      61
  8'   Oboe                        49
  8'   Bassoon                     12        PEDAL MOVEMENTS
       Tremolo                                 Swell Expression             (bal.)


PEDAL
  16'  Grand Bourdon               27


ACTION: Mech. Key & Stop     VOICES: 15     STOPS: 15     RANKS: 14     PIPES: ___


NOTES
The organ is free-standing and encased at the front of the room. The 3-sectional
façade has 29 gold-painted pipes arranged: 7 – 11 – 7. The keydesk is attached and
projecting with a lid that lifts to form a music rack. Stops are as drawknobs in
terraced jambs. The pedalboard is flat and parallel. The case has been painted a
'hot cocoa' brown since originally built.

Sources: Joe Granger, photos by Joe Granger

Grace Lutheran Church
Logansport, IN.
