St. Mark's Episcopal Cathedral
1245 10th Avenue East
Seattle, WA
OHS convention: 1982
Images

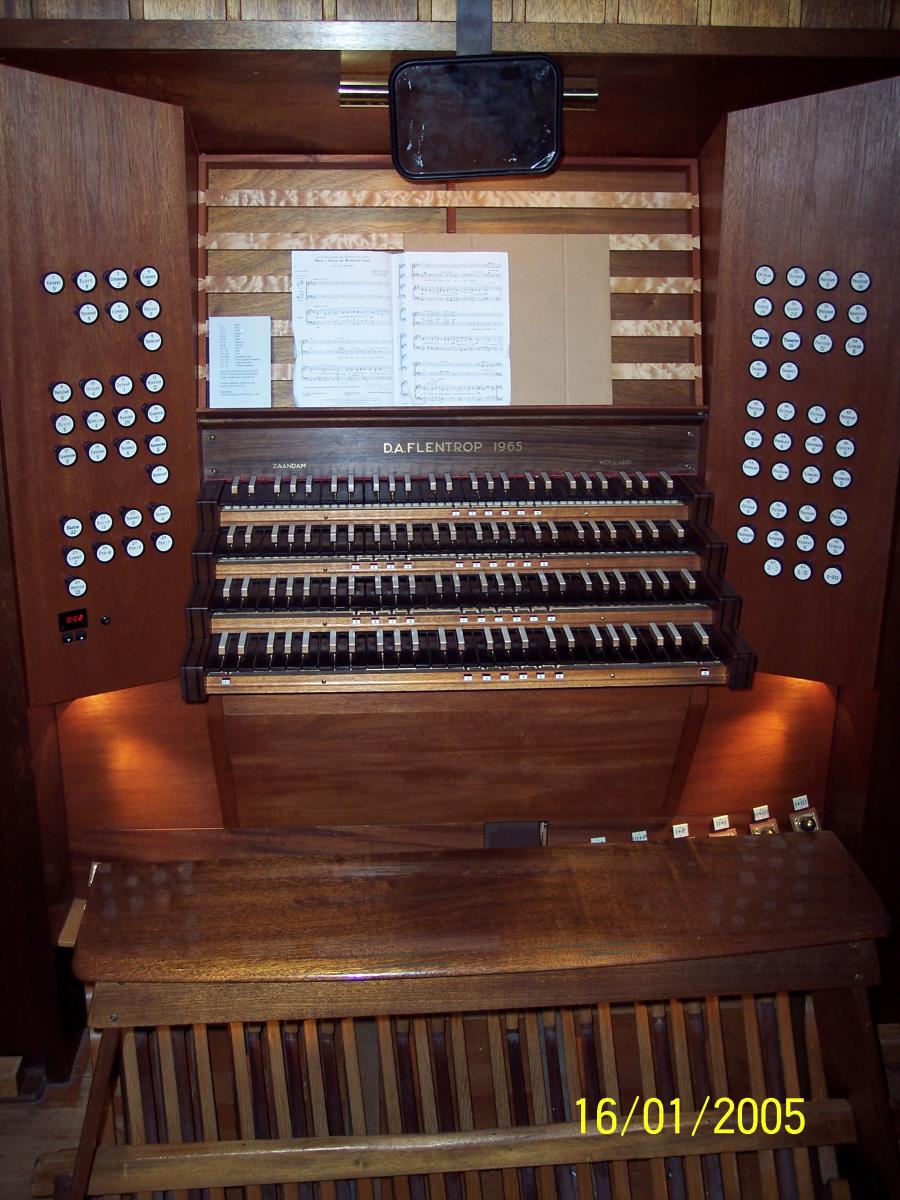

2005-01-16 - Keydesk (Photograph by Ryan D. Hulshizer/Database Manager)
1964-11-01 - Organ erected in the factory (Builder's promotional photograph/Database Manager)
2009-07-26 - Cathedral viewed from the West (Photograph by Michael A. Way/Database Manager)
2009-07-26 - Organ in rear gallery from the front (Photograph by Michael A. Way/Database Manager)
2009-07-26 - Organ (Photograph by Michael A. Way/Database Manager)
2009-07-26 - Side of Rugwerk case, Borstwerk, and Hoovdwerk en chamade & facade (Photograph by Michael A. Way/Database Manager)
2009-07-26 - Rugwerk case with main case behind (Photograph by Michael A. Way/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Keydesk Attached, Manuals Set Into Case
- 4 manuals
- 54 stops
- 55 registers
- 5 divisions
- Key action Type: Mechanical (Balanced Tracker)
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 56 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Details Unknown)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler toe pistons
Notes
2004-10-30 - Updated through information on the builder's web site. -Database Manager
2004-10-30 - 6 gen., 6 div. combinations. Compass 56/32. Renovated c. 1992 by Paul Fritts. [Replaced a 3-33 Kimball tubular pneumatic, built in 1902, and moved to the present building in 1931, which was broken up for parts.] -Database Manager
2005-09-04 - On-line update from Michael J. Timinski -- Except for prestant rank, Bovenwerk is under expression. Paul Fritts renovated 1992/1995 and added a couple of stops--16' and 8' trompet on hoofdwerk and 32' bazuin in pedal. -Database Manager
2007-04-30 - Updated through online information from James R. Stettner. -- The Registers/Stops/Ranks/Pipes given above represent the specs of the organ as ORIGINALLY installed. For the enlarged specs, see the Paul Fritts listing. The Flentrop was dedicated by E. Power Biggs. -Database Manager
2008-02-23 - Updated through online information from Zachary Alvernaz. -Database Manager
2008-05-30 - Updated through online information from James R. Stettner. -Database Manager
Stoplist
Typed stoplist (Source: Organbuilder website, 2012-04-24) Source: Source not recorded Date not recorded
St. Mark Cathedral (Episcopal)
Seattle, Washington
Flentrop Orgelbouw, 1965
OHS ID 969
HOOFDWERK BORSTWERK BOVENWERK
_______________________________________________________________________
16 Prestant 8 Gedekt 8 Prestant
8 Prestant 4 Prestant 8 Fluit
8 Roerfluit 4 Fluit 8 Gemshoorn
4 Octaaf 2 Gemshoorn 8 Zweving
4 Speelfluit 1-1/3 Larigot 4 Octaaf
2-2/3 Quint Cymbel II 4 Koppelfluit
2 Octaaf 8 Regaal 2-2/3 Nasard
1-3/5 Terts Tremulant 2 Flageolet
Mixtuur IV 1 Octaaf
Scherp III Mixtuur IV
16 Trompet (hor.) 8 Trompet
8 Trompet (hor.) 8 Kromhoorn
Tremulant
RUGWERK PEDAAL KOPPELS
_______________________________________________________________________
8 Prestant 32 Prestant Pedaal-Rugwerk
8 Gedekt 16 Prestant Pedaal-Hoofdw.
8 Quintadeen 16 Subbas Pedaal-Bovenw.
4 Octaaf 8 Octaaf Hoofdw.-Rugw.
4 Roerfluit 8 Gedekt Hoofdw.-Bovenw.
2 Octaaf 4 Octaaf
Mixtuur III 4 Spitsgedekt
Scherp III 2+1 Nachthoorn
Sesquialter II Mixtuur VII
16 Dulciaan 16 Bazuin
8 Schalmei 8 Trompet
Tremulant 4 Trompet Manuaalomvang C - g'''
2 Cornet Pedaalomvang C - g'
[Received online from T. Daniel Hancock, 2012-04-24]
