Better Pipe Organ Database

Werner Bosch Opus 484 (1967)

Grace Lutheran Church
1408 Washington St.
Wenatchee, WA

Images

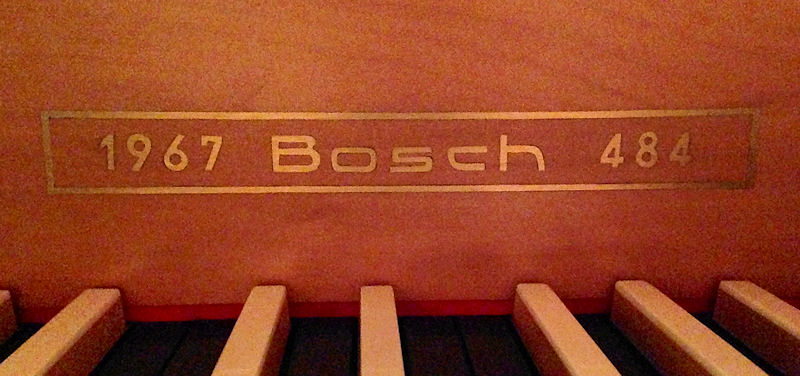

2015-11-17 - Builder's Name Stencil (Photograph by James R. Stettner/Database Manager)

2015-11-17 - U.S. Representatives Nameplate (Photograph by James R. Stettner/Database Manager)

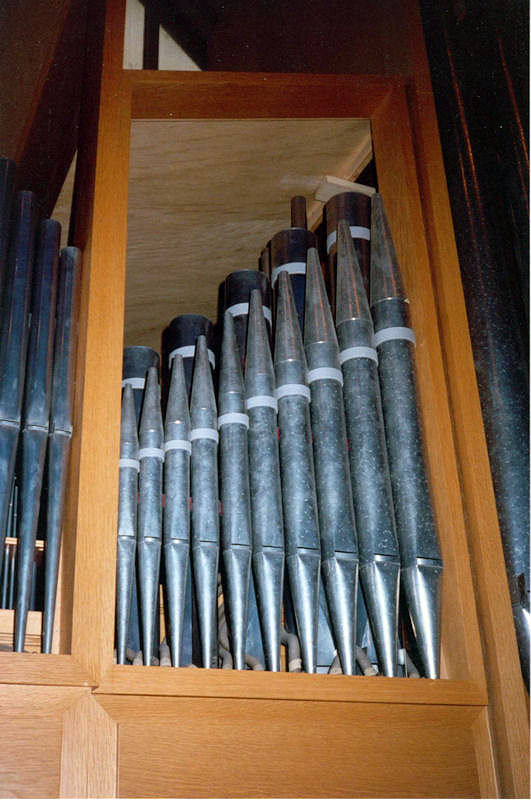

1991-11-15 - Pedal Pipework (left side tower) (Photograph by James R. Stettner/Database Manager)

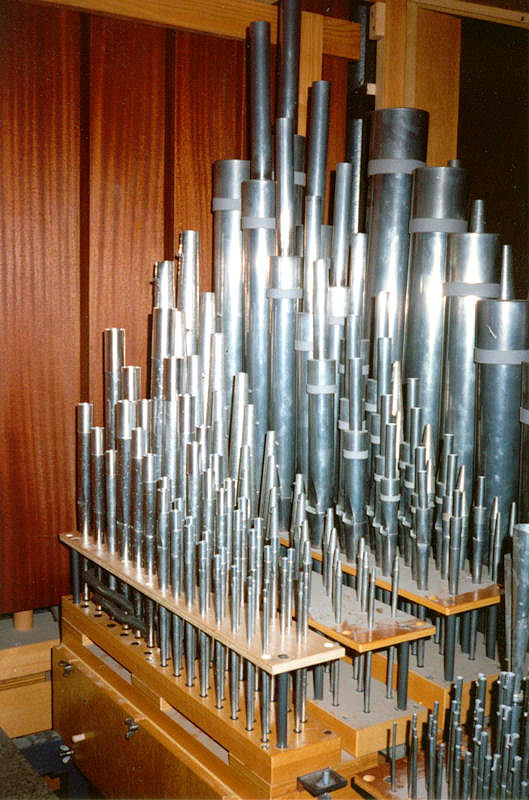

1991-11-15 - Pipework (Manual I) (Photograph by James R. Stettner/Database Manager)

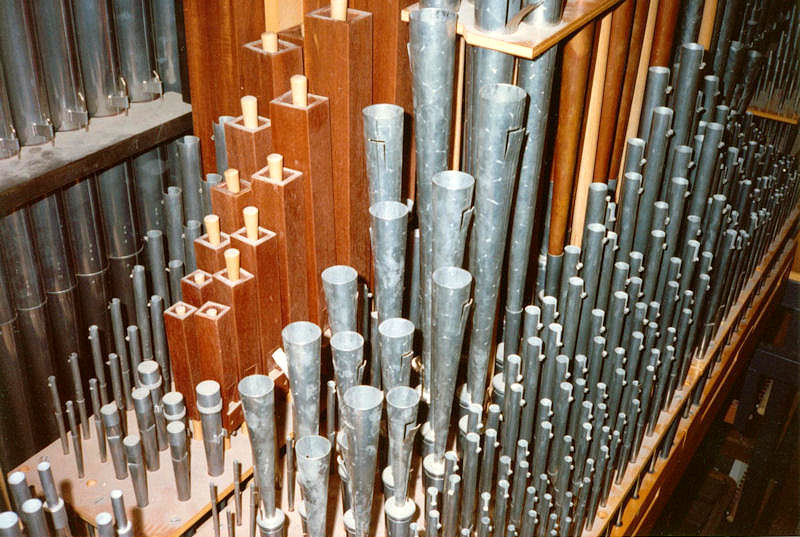

1991-11-15 - Pipework (Manual II) (Photograph by James R. Stettner/Database Manager)

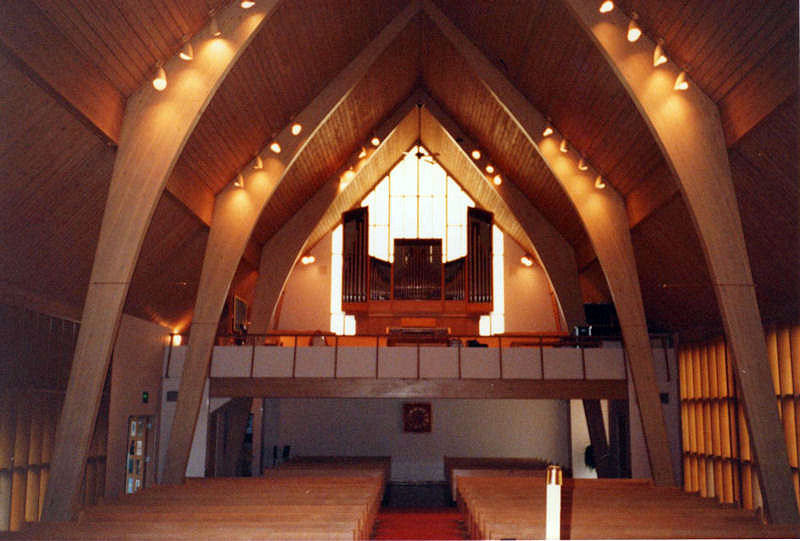

1991-11-15 - Sanctuary interior with organ in rear gallery (Photograph by James R. Stettner/Database Manager)

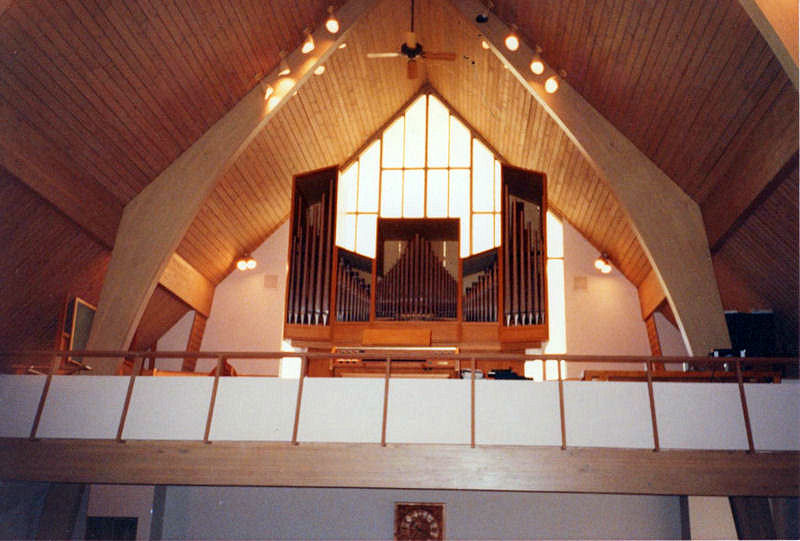

1991-11-15 - Organ in rear gallery (Photograph by James R. Stettner/Database Manager)

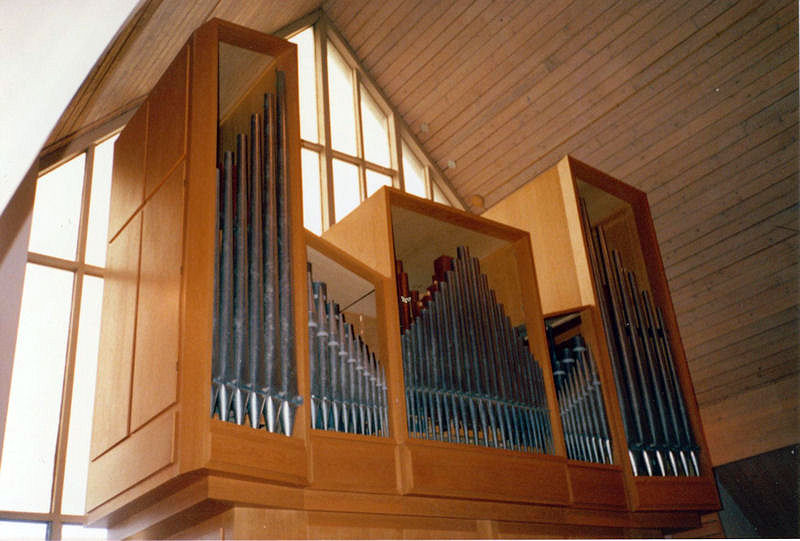

1991-11-15 - Organ case (Photograph by James R. Stettner/Database Manager)

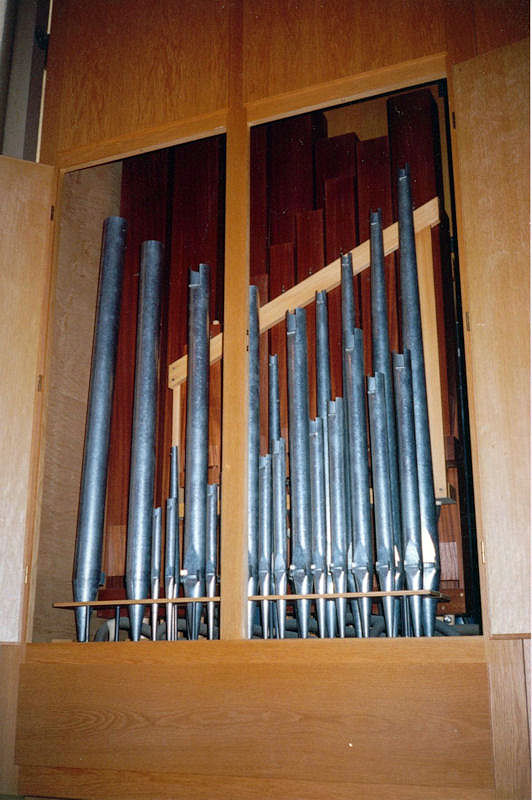

1991-11-15 - Manual II 4' Spillpfeife en facade (Photograph by James R. Stettner/Database Manager)

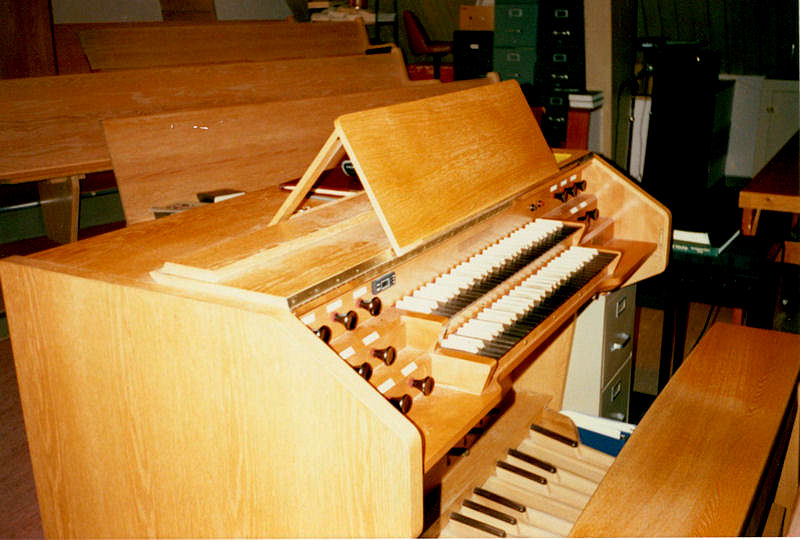

1991-11-15 - Detached console (Photograph by James R. Stettner/Database Manager)

Consoles

Main

Console position: Detached Keydesk (Mechanical Action)
2 manuals
12 stops
12 registers
3 divisions
Key action Type: Mechanical (Balanced Tracker)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Details Unknown)
Expression Type: No Enclosed Divisions
Combination action: None

Notes

2006-12-13 - Updated through online information from James R. Stettner. -- The organ is free-standing and encased in the rear gallery. The keydesk is detached but not reversed. The 5-sectional facade contains 55 pipes arranged: 6-10-23-10-6. The two end towers contain notes 1-12 of the Ped. 8' Gemshorn. The two middle flats contain pipes 1-20 of the Man. II 4' Spillpfeife. And the middle section is pipes 1-23 of the Man. I 4' Prinzipal. -Database Manager

Stoplist

Stoplist copied from the console November 15, 1991 Source: Source not recorded Date not recorded

Wenatchee, Washington
Grace Lutheran Church

WERNER BOSCH, Opus 484, 1967 - Original Specifications
Tonal Design & Voicing by, Olympic Organ Builders, Seattle, WA.


MANUAL I                                     COUPLERS (Drawknob)
   8     Holzgedackt                56          II – P
   4     Principal                  56          I – P
   2     Oktave                     56
   4 f.  Mixtur  1-1/3             224          II – I
   8     Trompete                   56


MANUAL II
   8     Rohrpfeife                 56
   4     Spillpfeife                56
   2     Blockflöte                 56
   1-3/5                                     ACTION: Mech. key & stop
   + 8/9 Terznone                  112
         Tremulant                           VOICES: 12

                                             STOPS:  12
PEDAL
   16    Subbaß                     32       RANKS:  16
   8     Gemshorn                   32
   4     Choralbaß                  32       PIPES:  824


NOTES
The first 23 pipes of the Manual I  4' Prinzipal are in the center case façade.
On either side of that are the first 20 pipes of the Manual II 4' Spillpfeife.
The end towers hold the divided Pedal division and display the first 12 pipes
of the 8' Gemshorn.

In 1993, Balcom and Vaughan of Seattle revised the Manual II Terznone by re-
scaling the existing pipes and adding some new pipes to make a tenor C, II
Sesquialtera [12-17].

Sources: The Diapason, (10/694), Sept. 67, p. 44; extant organ

 [Received from James R. Stettner 2012-06-24.]

Related Pipe Organ Database Entries

#24901 - Balcom and Vaughan Pipe Organs, Inc. Opus SC864 (1993)
