2005-12-29 - Identified through online information from James R. Stettner. -- The organ is installed on cantilevered chests projecting high off of the back wall. There is a Trompette-en-Chamade. -Database Manager
2006-01-05 - Updated through online information from James R. Stettner. -Database Manager
Stoplist copied from the console February 223, 1993 Source: Source not recorded Date not recorded
Kenmore, Washington
Episcopal Church of the Redeemer
BALCOM & VAUGHAN PIPE ORGANS, Opus 739, 1965 - Original Specifications
HAUPTWERK PEDAL
8 Prestant 49 16 Subbass (OW) 12
8 Rohr Floete 61 16 Zart Bass --
8 Spitz Gamba (OW) -- 8 Kupfer Prinzipal 32
4 Oktav 61 8 Gedackt (OW) --
4 Spill Pfeife 61 8 Spitz Gamba (OW) --
2-2/3 Quint (OW) 12 4 Koral Bass 12
2 Flach Floete 61 4 Spill Floete (HW) --
1-3/5 Terz (OW) -- 2 Hell Pfeife (HW) --
IV Fourniture 19-22-26-29 244 II Quint Mixtur 22-26 64
8 Spanische Trompete 61 16 Fagott Bass 12
8 Cromorne 61 8 Fagott (OW) --
Chimes (prep) -- 4 Fagott (OW) --
4 Cromorne (HW) --
Haupt. to Haupt. 16'
Haupt. Unison Off 8' 1 blank, black stoptablet
Haupt. to Haupt. 4'
1 blank, black stoptablet COUPLERS
Ober. to Ped. Wrk. 8,4
Haupt. to Ped. Wrk. 8,4
OBERWERK
8 Gedackt Floete 61 Ober. to Haupt. 16,8,4
8 Spitz Gamba 61
8 Schwebung (tc) 49
4 Weit Prinzipal 61 FINGER PISTONS
4 Quintade 61 General 1 - 6
2 Gemshorn 61 Ober to Ped (rev)
1-1/3 Nasat 61 Haup to Ped (rev)
8 Fagott 61 Cancel
Tremulant
Zimbelstern
8 Spanische Trompete (HW) -- TOE STUDS
General 1 - 6
Ober. to Ober. 16' HW —— Ped (rev)
Ober. Unison Off 8' OB —— Ped (rev)
Ober. to Ober. 4'
1 blank, black stoptablet PEDAL MOVEMENTS
Crescendo (bal.)
ACTION: E-P unit VOICES: 18 STOPS: 34 RANKS: 22 PIPES: 1,279
(inc. Zmblstrn)
NOTES

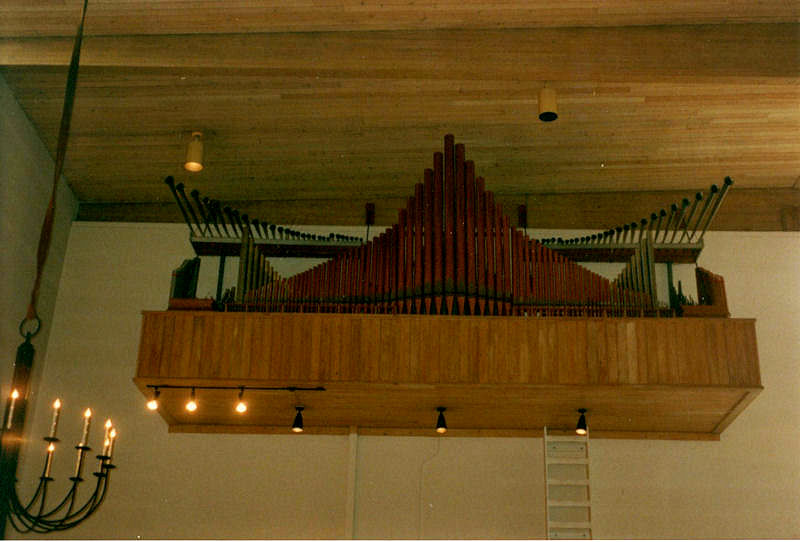

This totally unenclosed organ is located at the rear of the church, and is cantilevered
high off of the back wall.
On the Hauptwerk, notes 1-12 of the 8' Prestant are borrowed from the Pedal 8' Kupfer
Prinzipal which forms the primary portion of the façade. The 8' Spanische Trompete is
mounted en-chamade off of the back wall above the other pipework. The 2-2/3' Quint is
a 12-pipe bass extension of the Oberwerk 1-1/3' Nasat. The 1-3/5' Terz is derived from
the Oberwerk 2' Gemshorn. The Terz plays for 57 notes before breaking back to 3-1/5'
pitch on note a 58.
On the Pedal, the Pedal 16' Subbass is an extension of the Oberwerk 8' Gedackt Floete.
The pipes are made of mahogany, and were built in the Balcom & Vaughan shop. The 16'
Zart Bass is the same as the 16' Subbass, but with notes 1-12 on soft wind. The 2' Hell
Pfeife is a borrow of the Hauptwerk 2' Flach Floete.
The Zimbelstern of 4 bells has a speed control with a toggle switch. In the center
position, the zimbelstern is off even when the stoptablet is registered. In the left
position, it plays on fast, and in the right position it plays on slow.
The console manuals are reverse-color with ebony naturals, and sharps of rosewood with
ivory caps.
Sources: Balcom & Vaughan opus list and files; JRS; extant organ
