Better Pipe Organ Database

Casavant Frères Opus 3824 (2003)

Appleby College
540 Lakeshore Road West
Oakville, ON, CA

Images

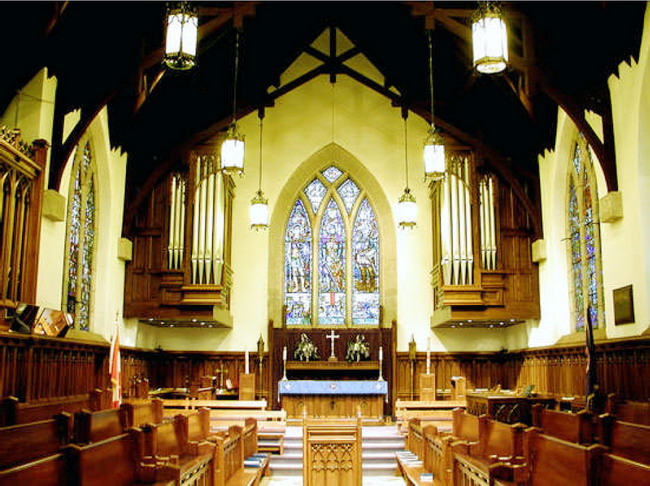

2009-06-19 - Chapel interior (Appleby College/Jeff Scofield)

Unknown - Chapel interior and cases (Appleby College/Jeff Scofield)

2011-07-19 - Console (Appleby College/Jeff Scofield)

2011-07-19 - Festival Trumpet (Appleby College/Jeff Scofield)

2011-07-19 - Organ case (Appleby College/Jeff Scofield)

2011-07-19 - Façade pipes (Appleby College/Jeff Scofield)

2011-07-19 - Chapel exterior (Appleby College/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
24 stops
38 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2006-02-21 - Listed in "Recent Installations," <i>The American Organist</i> Vol. 38, No. 2 [February, 2004] -Database Manager

2006-11-15 - Updated through on-line information from Stan Scheer. -- In the list above, "Registers" refers to the total number of speaking stops including duplexed and extended stops but excluding couplers, tremulants and controls. "Stops" refers to the total number of independent or straight stops excluding duplexed and extended stops as well as couplers and controls. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Oakville, Ontario
       Appleby College

       Casavant   Op. 3824   2003   3/29

       Stoplist courtesy of Casavant Frères

       GREAT                          SWELL
    8' Open Diapason 61            8' Stopped Diapason 61
    8' Chimney Flute 61            8' Viola da Gamba 61
    4' Octave 61                   8' Vox Coelestis 49 tc
2 2/3' Twelfth 61                  4' Spindle Flute 61
    2' Fifteenth 61                2' Principal 61
   IV  Mixture 244             1 1/3' Quint 61
    8' Trumpet 61                 16' Bassoon 12 (L/2)
       Tremulant                   8' Oboe 61
       Unison Off                     Tremulant
    8' Oboe SW                        Sub
    8' Festival Trumpet 61            Unison Off
       (located in gallery)           Super
       Chimes (encl in CH)         8' Festival Trumpet GAL
       Zimbelstern 10 bells           MIDI
       MIDI
                                      CHOIR
       PEDAL                       8' Bourdon 61 (stopped wood)
   32' Contra Subbass -- (res)     8' Dulciana 61
   16' Subbass 12 GT (wood)        8' Unda Maris 49 tc
   16' Bourdon 12 CH               4' Spire Flute 61
    8' Octavebass 32               2' Gemshorn 61
    8' Chimney Flute GT           II  Cornet 122
    4' Choralbas 12               II  Mixture 122
    4' Chimney Flute GT            8' Clarinet 61
   16' Bassoon SW                     Tremulant
    8' Oboe SW                        Sub
    4' Oboe SW                        Unison Off
    8' Festival Trumpet GAL           Super
       MIDI                        8' Festival Trumpet GAL
                                      MIDI

[Received on line from Jeff Scofield July 05, 2009.]

Documents

(2004-01-01) Recital series program, via Jeff Scofield -Jeff Scofield
