Schantz Organ Co. Opus 2220 (2003)

Clairemont Lutheran Church: Sanctuary
4271 Clairemont Mesa Blvd.
San Diego, CA

Images

2003 - Console and exposed pipes (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

2018-07-16 - Chancel and exposed pipe display (Photograph by Jeff Scofield/Database Manager)

2018-07-16 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)

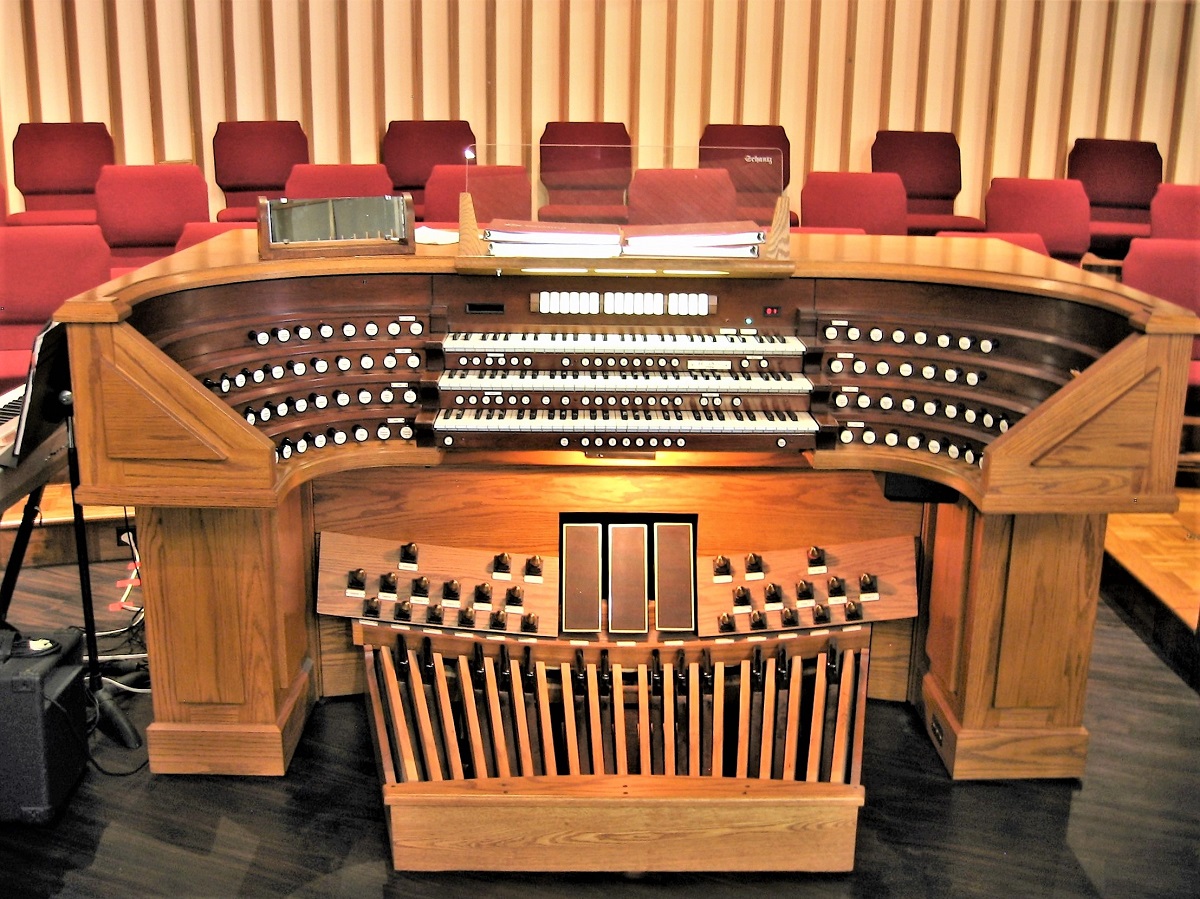

2018-07-16 - Console (Photograph by Jeff Scofield/Database Manager)

2018-07-16 - Windows (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Console position: Movable Console
3 manuals
37 stops
57 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Curved Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2006-02-21 - Listed in "Recent Installations," <i>The American Organist</i> Vol. 38, No. 3 [March, 2004] -Database Manager

2010-04-08 - Updated through on-line information from Chad Boorsma. -- This instrument replaced an electronic one that was used at the church. The facade has a Zimblestar, and the French-terraced console is constructed of oak. -Database Manager

Stoplist

Stoplist taken from Schantz factory specifications Source: Source not recorded Date not recorded

San Diego, California
CLAIREMONT LUTHERAN CHURCH

Schantz Organ Company    Opus 2220    48 ranks    2003
______________________________________________________________

GREAT:                           SWELL:
   16' Lieblich Gedeckt [CH]        16' Contra Salicional 73
    8' Principal 61                  8' English Diapason 61
    8' Bourdon 61                    8' Salicional
    8' Harmonic Flute 49             8' Voix Celeste [GG] 54
    4' Octave 61                     8' Rohrflöte 61
    4' Traversflöte 61               4' Principal 61
    2' Super Octave 61               4' Hohlflöte 61
   IV  Mixture 244               2 2/3' Nazard 61
       Tremulant                     2' Octavin 61
    8' Festival Trumpet [CH]     1 3/5' Tierce 61
       Chimes 25 bells              IV  Plein Jeu 244
       Zimbelstar 5 bells           16' Bassoon 73
                                     8' Trumpet 61
PEDAL:                               8' Oboe
   32' Resultant                        Tremulant
   16' Principal 44
   16' Salcional [SW]            CHOIR:
   16' Subbass 56                   16' Lieblich Gedeckt 73
   16' Lieblich Gedeckt [CH]         8' Principal 61
    8' Octavebass                    8' Voce Umana [GG] 56
    8' Salicional [SW]               8' Holzgedeckt
    8' Subbass                       8' Flauto Dolce 61
    8' Gedeckt [CH]                  8' Flute Celeste [GG] 54
    4' Choralbass 32                 4' Octave 61
    4' Open Flute                    4' Koppelflöte 61
  III  Mixture 96                    2' Gemshorn 61
   16' Posaune 56                1 1/3' Larigot 61
   16' Bassoon [SW]                 IV  Cymbal 244
    8' Oboe [SW]                     8' Clarinet 61
    8' Trumpet                       8' English Horn 61
    4' Clarion                          Tremulant
    4' Oboe [SW]                     8' Festival Trumpet 61
    8' Festival Trumpet [CH]
    4' Festival Clarion [CH]

[Received on line from Chad Boorsma April 17, 2010.]

Websites

The Schantz Organ Company [Clairemont Lutheran page] - Photograph, link to stoplist (Check Internet Archive, archive.is)
