Casavant Frères Opus 3828 (2003)

First United Methodist Church
1928 Ross Avenue
Dallas, TX

Images

2016-11-28 - Chancel, Chamber Grillework, and Organ Case (Photograph by T. Bradford Willis/Database Manager)

2016-11-28 - Balcony and Stained Glass Window (Photograph by T. Bradford Willis/Database Manager)

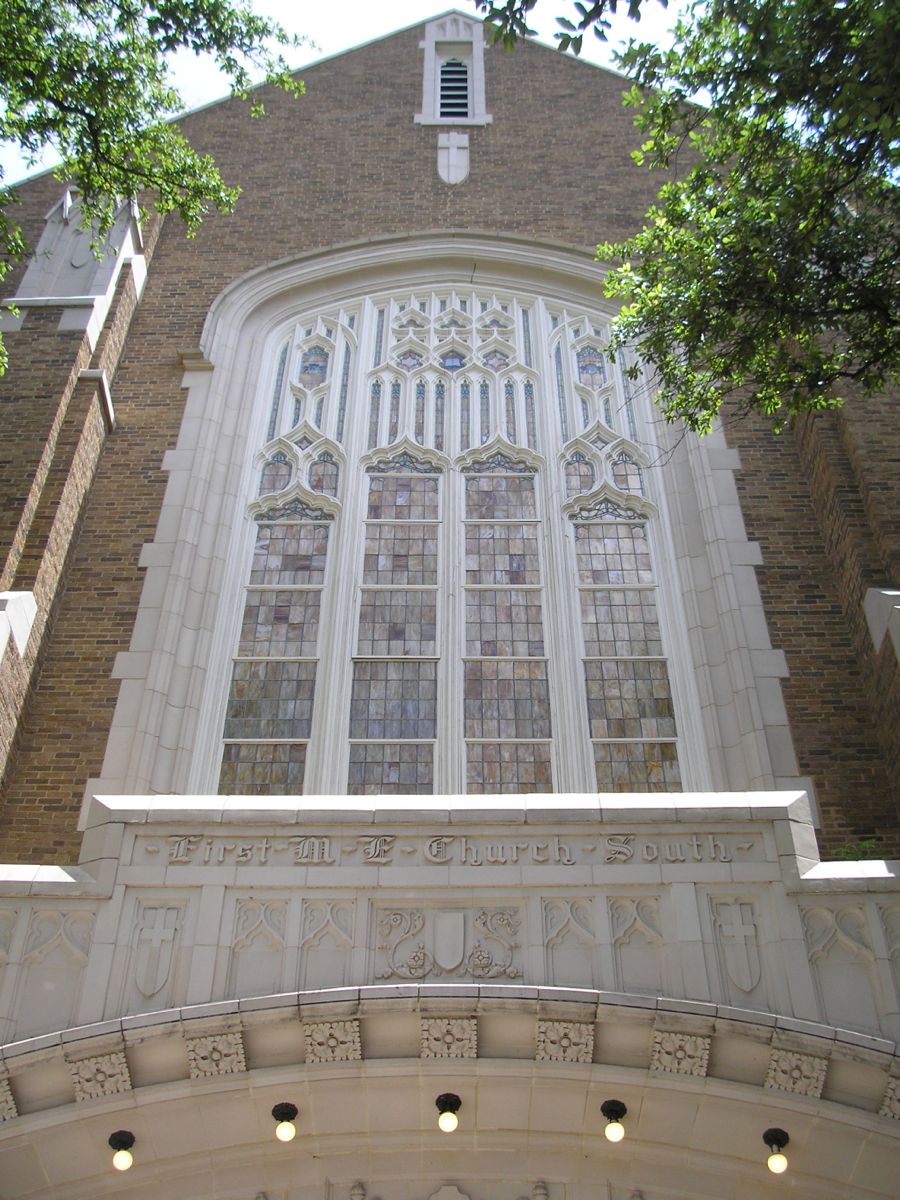

2015-11-01 - Church Exterior (Photograph by T. Bradford Willis/Database Manager)

2015-06-28 - Church Exterior (Photograph by T. Bradford Willis/Database Manager)

2006-12-18 - Facade (Photograph by Dr. Scott Lyn McCune/Database Manager)

2003 - Console (Dedication Booklet/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
4 manuals
47 stops
94 registers
6 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2006-02-21 - Listed in "Recent Installations," <i>The American Organist</i> Vol. 38, No. 3 [March, 2004] -Database Manager

2006-11-15 - Updated through online information from Stan Scheer. -- In the list above, "Registers" refers to the total number of speaking stops including duplexed and extended stops but excluding couplers, tremulants and controls. "Stops" refers to the total number of independent or straight stops excluding duplexed and extended stops as well as couplers and controls. -Database Manager

2016-12-06 - Updated through online information from T. Bradford Willis, DDS. -Database Manager

2016-12-07 - Updated through online information from T. Bradford Willis, DDS. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Dallas, Texas
       First United Methodist Church

       Casavant   Op. 3828   2003   4/66

       Stoplist courtesy of Casavant Frères

       GREAT                         CHOIR
   16' Double Open Diapason 12   16' Lieblich Gedeckt 12 (stopped wood)
    8' First Open Diapason 61     8' Stopped Diapason 61
    8' Second Open Diapason 61    8' Salicional 61
    8' Chimney Flute 61           8' Flauto Dolce 61
    4' Octave 61                  8' Flauto Celeste 49 tc
    4' Open Flute 61              4' Principal 61
2 2/3' Twelfth 61                 4' Spindle Flute 61
    2' Fifteenth 61           2 2/3' Nazard 61
1 3/5' Seventeenth 61             2' Super Octave 61
 IV-V  Mixture 269                2' Recorder 61
  III  Sharp Mixture 183      1 3/5' Tierce 61
   16' Double Trumpet 12      1 1/3' Larigot 61
    8' Trumpet 61                IV  Mixture 244
       Tremulant                 16' Bass Crumhorn 12
       Unison Off                 8' Cornopean 61
       Chimes SO                  8' Crumhorn 61
   16' Tuba Magna SO                 Tremulant
    8' Tuba Mirabilis SO             Sub
    4' Tuba Clarion SO               Unison Off
       MIDI                          Super
                                     Cymbelstern 10 bells
       SWELL                     16' Tuba Magna SO
   16' Contra Gamba 12            8' Tuba Mirabilis SO
   16' Contra Gamba Celeste tc    4' Tuba Clarion SO
    8' Diapason 61                   Harp dg
    8' Major Flute 61                Celesta dg
    8' Viola da Gamba 61             MIDI
    8' Vox Coelestis 61
    4' Octave 61                     CHAMADE
    4' Harmonic Flute 61         16' Festival Trumpet (1-12 PED Trombone)
    4' Violina 12                 8' Festival Trumpet 61
    4' Violina Celeste 12         4' Festival Trumpet 12
    2' Octavin 61                    Chamade to Pedal
  III  Plein Jeu 183                 Chamade to Great
    V  Fourniture 305                Chamade to Swell
   16' Bassoon 61                    Chamade to Choir
    8' Harmonic Trumpet 61           Chamade to Solo
    8' Oboe 61                       Chamade OFF
    8' Vox Humana 61
    4' Harmonic Clarion 61           PEDAL
       Tremulant                 32' Contrabass dg
       Sub                       32' Sub Bass dg
       Unison Off                16' Open Flute 32 (existing, revoiced)
       Super                     16' Contrabass 32
    8' Tuba Mirabilis SO         16' Double Open Diapason GT
       MIDI                      16' Sub Bass 32
       Sostenuto                 16' Contra Gamba SW
                                 16' Lieblich Gedeckt CH
       SOLO (pf except for *)     8' Octave Bass 12
    8' Diapason                   8' Second Open Diapason GT
    8' Voce Umana GG              8' Bourdon 12
    8' Harmonic Flute             8' Stopped Diapason CH
    8' Vox Angelica II            4' Super Octave 32
    4' Octave                     4' Open Flute GT
    8' Clarinet                   4' Stopped Diapason CH
    8' English Horn             III  Théorbe --
    8' Crumhorn CH               IV  Mixture 128
       Tremulant                 32' Ophicleide dg
    8' French Horn               16' Trombone 32
       Sub                       16' Double Trumpet GT
       Unison Off                16' Bassoon SW
       Super                     16' Bass Crumhorn CH
 * 16' Tuba Magna tc              8' Trombone 12
 *  8' Tuba Mirabilis 61          8' Trumpet GT
 *  4' Tuba Clarion 12            8' Tuba Mirabilis SO
   16' Contra Gamba SW            8' Bassoon SW
   16' Contra Gamba Celeste SW    4' Clarion 12
    8' Viola da Gamba SW          4' Tuba Clarion SO
    8' Vox Coelestis SW           4' Bassoon SW
    4' Violina SW                 4' Crumhorn CH
    4' Violina Celeste SW            Chimes SO
       Chimes dg                     Pedal Divide
       MIDI
       Sostenuto

[Received on line from Jeff Scofield July 05, 2009.]

Documents

(2003-01-01) Dedication Booklet Part I, pages 1-7, via Jeff Scofield -Jeff Scofield
(2003-01-01) Dedication Booklet Part II, pages 8-14 -Jeff Scofield
