All Saints Episcopal Church
634 W. Peachtree St. NW
Atlanta, GA
Images
Unknown - Organ and console (Organ Dedication Program/Database Manager)
Unknown - Sanctuary interior (Photograph from dedication program/Database Manager)
Unknown - Console (Photograph from dedication program/Database Manager)
Unknown - Chapel case (Photograph by Robert Tucker via Atlanta AGO/Database Manager)
Unknown - Church exterior (Photograph by Robert Tucker via Atlanta AGO/Database Manager)
Unknown - North Antiphonal Case (Photograph from dedication program/Database Manager)

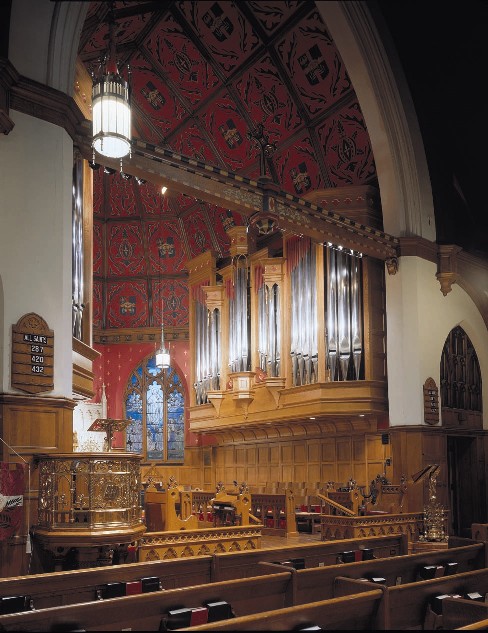

Unknown - Chancel, 2003. (Photograph by John-Paul Buzard/Database Manager)
Unknown - Chapel Organ, 2003. (Photograph by John-Paul Buzard/Database Manager)
Unknown - Antiphonal Organs, 2003. (Photograph by John-Paul Buzard/Database Manager)
Unknown - Antiphonal Left, 2003. (Photograph by John-Paul Buzard/Database Manager)
Unknown - Right Chancel Case, 2003. (Photograph by John-Paul Buzard/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 4 manuals
- 63 stops
- 63 registers
- 6 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2006-02-21 - Listed in "Recent Installations," <i>The American Organist</i> Vol. 38, No. 3 [March, 2004] -Database Manager
2006-10-29 - Updated through on-line information from James R. Stettner. -- The organ is located in chambers on both sides of the chancel - fronted by mirror-image cases. The Antiphonal Solo is housed in mirror-image cases on the back wall on either side of the center window. And the 4-rank Chapel organ is house in a single case atop a steel platform cantilevered off the rear wall of the chapel. Organs cases are of white oak with red Honduras mahogany accents. The console is also of white oak with the interior or red Honduras mahogany. The console is moveable, though usually resides on the left side of the chancel. The harp and celesta are digital, as are the three Pedal 32' flue stops. The organ was dedicated by All Saints' Co-organists Raymond and Elizabeth Chenault on the 16th and 17th of February, 2003 at 7:30 p.m. -Database Manager
2007-10-13 - Updated through on-line information from Stephen Hall. -Database Manager
2013-08-31 - Updated through online information from Dennis Northway. -Database Manager
Stoplist
Stoplist from builder's website Source: Source not recorded Date not recorded
Atlanta, Georgia
All Saints Episcopal Church
Buzard Organs Opus 29, installed 2003
IV/87
GREAT Manual II—Exposed Pipework 4\" Wind
19 rks, 1212 pipes
16' Double Open Diapason 61
8' First Open Diapason 61
8' Second Open Diapason 12 (ext. 16' Double)
8' Viola da Gamba 61
8' Harmonic Flute 61
8' Bourdon 61
4' Principal 61
4' Spire Flute 61
2 2/3 Twelfth 61
2' Fifteenth 61
1 1/3 Fourniture IV 244
2' Harmonic Mixture IV 244
16' Double Trumpet 61
8' Tromba 29 (ext of Pedal 16 Trombone)
4' Clarion 12 (ext of Pedal 16 Trombone)
Tremulant
8' Major Tuba 61 (15\" wind)
8' Tuba Solo -- Great Melody Coupler
8' Fanfare Trumpets -- Antiphonal
Chimes
SWELL Manual III—Enclosed & Expressive 4\" Wind
17 rks, 1049 pipes
8' Open Diapason 61
8' Stopped Diapason 61 (stoppered wood)
8' Salicional 61
8' Voix Celeste 49 (Tenor C)
4' Principal 61
4' Harmonic Flute 61
2 2/3' Nazard 61 (tapered)
2' Flageolet 61 (harmonic)
2 2/3'Full Mixture V 305
16' Bassoon 61
8' Trompette 61 (modified French style)
8' Oboe 61 (English style)
8' Vox Humana 61 (English style)
4' Clarion 24 (ext. 16')
Tremulant
8' Major Tuba -- Great
8' Fanfare Trumpets -- Antiphonal
CHOIR Manual I—Enclosed & Expressive, 4\" Wind
17 rks, 1049 pipes
16' Leiblich Gedeckt 61 (stoppered wood)
8' English Diapason 61
8' Flûte à Bibéron 61 (stoppered wood)
8' Gedeckt Flute 12 (ext. 16' Lieblich)
8' Dulciana 61
8' Unda Maris 49 (Tenor C)
4' Principal 61
4' Koppel Flute 61
2' Recorder 61
2' Mixture III-IV 232
1 1/3' Fourniture IV 244
2 2/3' Sesquialtera 122 2 2/3' & 1 3/5'
16' English Horn 61 (double bells)
8' Cornopean 61
8' Clarinet 61
Tremulant
8' Major Tuba -- Great
8' Fanfare Trumpets -- Antiphonal
Cymbalstern 14 Bells
Harp Walker Unison percussion
Celesta Walker Octave percussion
ANTIPHONAL SOLO
Manual IV — Enclosed in two Free-Standing Cases (Expressive)
15 rks, 915 pipes
8' Open Diapason 61
8' Viola da Gamba 61
8' Gamba Celeste 61 (CC)
8' Melodia 61
8' Flute Coelestis II 61 Ludwigtone (one pipe with two mouths, internally divided)
4' Principal 61
4' Flûute d' Amour 61
2' Doublette 61
1 1/3' Mixture IV 244
8' Fanfare Trumpets 61 (7\" wind)
8' Flügal Horn 61
8' Corno di Bassetto 61
Tremulant
8' Major Tuba -- Great
Cymbalstern
Harp Walker Unison percussion
Celesta Walker Octave percussion
Chimes (Gt)
CHAPEL Organ
Floating - Encased, 4\" Pressure
4 rks, 232 pipes
8' Open Diapason 61
8' Aeoline 61
8' Vox Angelica 49 (TC)
4' Principal 61
PEDAL Various Pressures
11 rks, 412 pipes
32' Double Open Diapason 32
32' Subbass 32
32' Lieblich Gedeckt 12
16' First Open Diapason 32
16' Second Open Diapason -- Great
16' Bourdon 32 (stoppered wood)
16' Lieblich Gedeckt -- Choir
8' Principal 32 (tin façade)
8' Bass Flute 12 (ext. 16' Bourdon)
8' Gedeckt Flute -- Choir
4' Choral Bass 32
4' Open Flute 12 (ext. 16' Bourdon)
2 2/3'Mixture IV 128
32' Contra Trombone 12
16' Trombone 32
16' Double Trumpet -- Great
16' Bassoon -- Swell
8' Trumpet 12 (ext. 16' Trombone)
4' Clarion -- Swell
8' Major Tuba -- Great
8' Fanfare Trumpets -- Antiphonal
[Received from Stephen Hall 2012-01-07.]
