Schantz Organ Co. Opus 2233 (2003)

First Church, UCC: Sanctuary
1 Arbor Street
Wenham, MA

Images

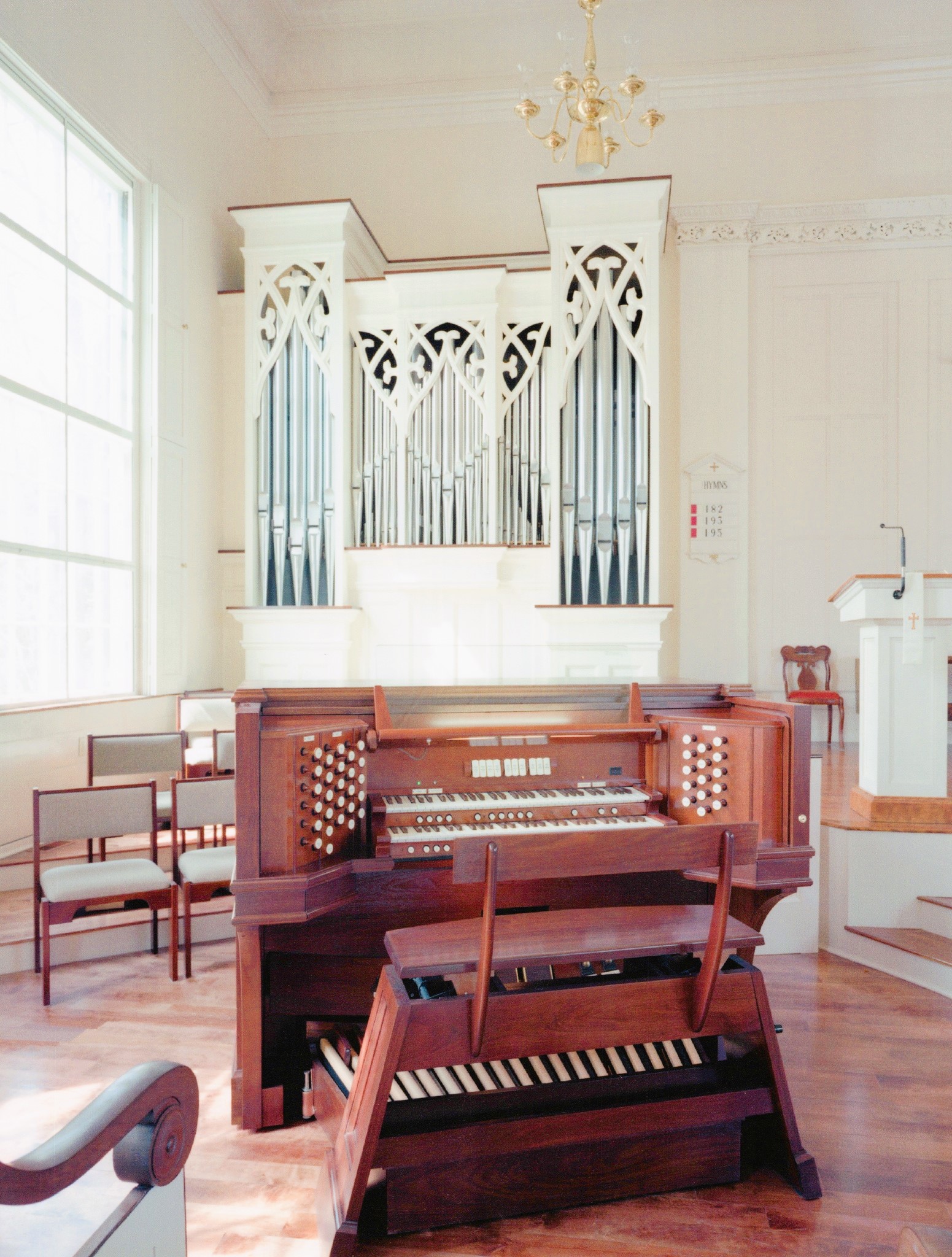

2003 - Console and organ case (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

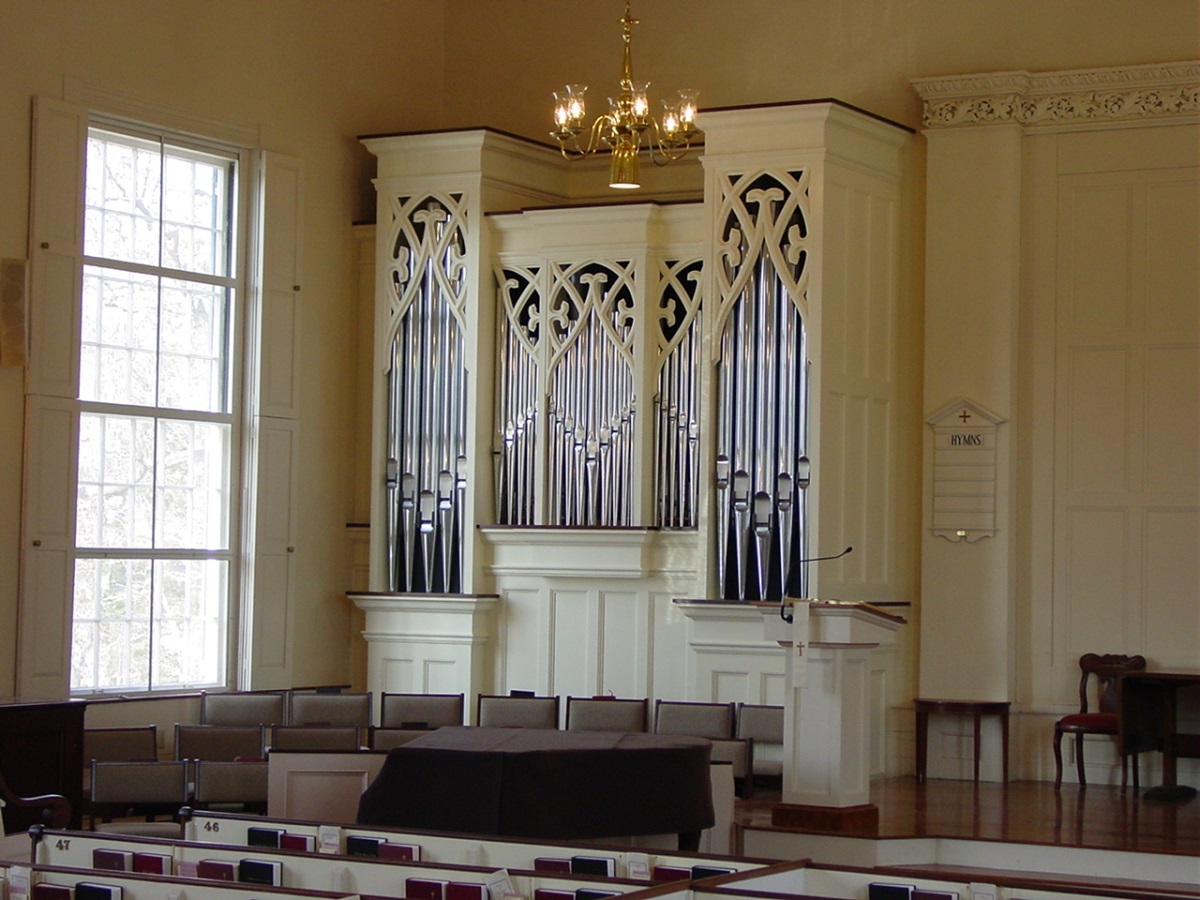

2004-02-14 - Organ Case (Photograph by Joe Stroup/Database Manager)

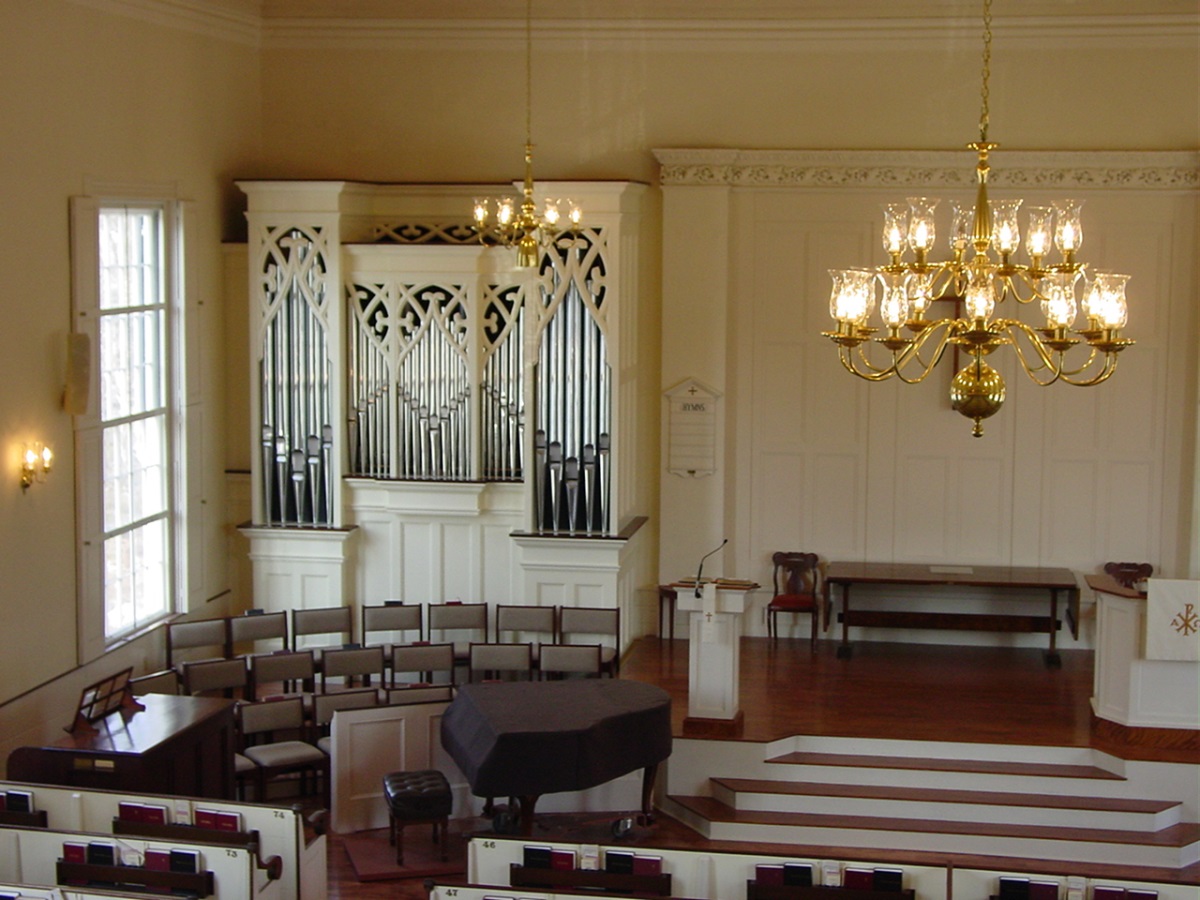

2004-02-14 - Chancel and Organ Case (Photograph by Joe Stroup/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
34 stops
3 divisions
Key action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2006-02-21 - Listed in "Recent Installations," <i>The American Organist</i> Vol. 38, No. 4 [April, 2004] -Database Manager

2009-12-10 - Updated through on-line information from Chad Boorsma. -- The organ case was designed by Eric Gastier. The instrument was dedicated in February, 2004. -Database Manager

2010-11-23 - Updated through on-line information from Bob Judd. -Database Manager

Stoplist

Stoplist from factory specifications Source: Source not recorded Date not recorded

Wenham, Massachusetts
FIRST CHURCH (UCC)

Schantz Organ Company    Opus 2233    2003     25 ranks
____________________________________________________________________________

GREAT:                   SWELL:                     PEDAL:
   16' Bourdon [SW] 12    8' Bourdon 61             32' Resultant
    8' Principal 61       8' Viole de Gambe 61      16' Subbass 56
    8' Rohrflöte 61       8' Viole Celeste [GG] 54  16' Bourdon [SW]
    4' Octave 61          4' Principal 61            8' Principal 44
    4' Traversflöte 61    4' Koppelflöte 61          8' Subbass
2 2/3' Nazard 61          2' Blockflöte 61           8' Bourdon [SW]
    2' Gemshorn 61       IV  Plein Jeu 244           4' Choralbass
1 3/5' Tierce 61         16' Bassoon 73              4' Open Flute
   IV  Mixture 244        8' Trompette 73           16' Contre Trompette [SW]
    8' Trompette [SW]     8' Hautbois               16' Bassoon [SW]
       Tremulant          4' Clarion                 8' Trompette [SW]
       Chimes 25 bells       Tremulant               4' Clarion [SW]


[Received on line from Chad Boorsma December 10, 2009.]
