Casavant Frères Ltée. Opus 3826 (2003)

University of the South, School of Theology: Chapel of the Apostles
335 Tennessee Avenue
Sewanee, TN

Images

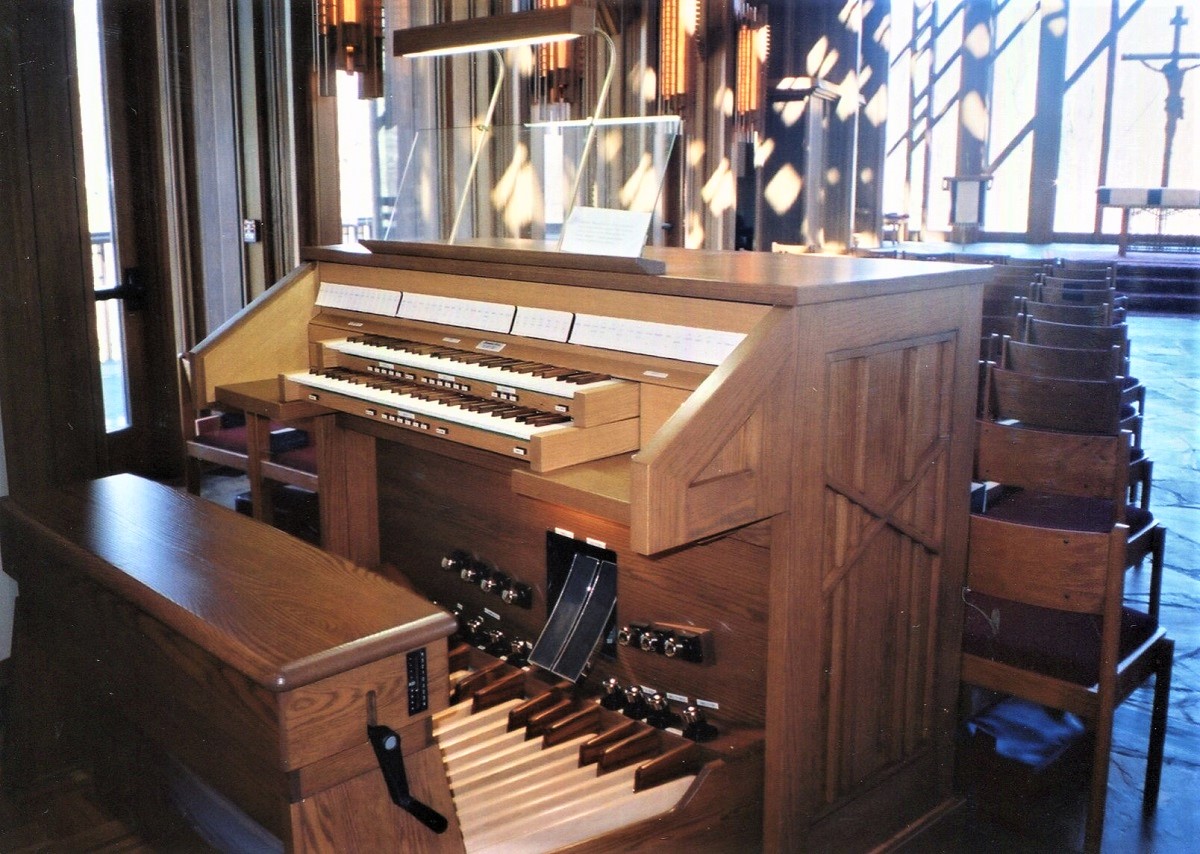

2004-08-04 - Console (Photograph by Jeff Scofield/Database Manager)

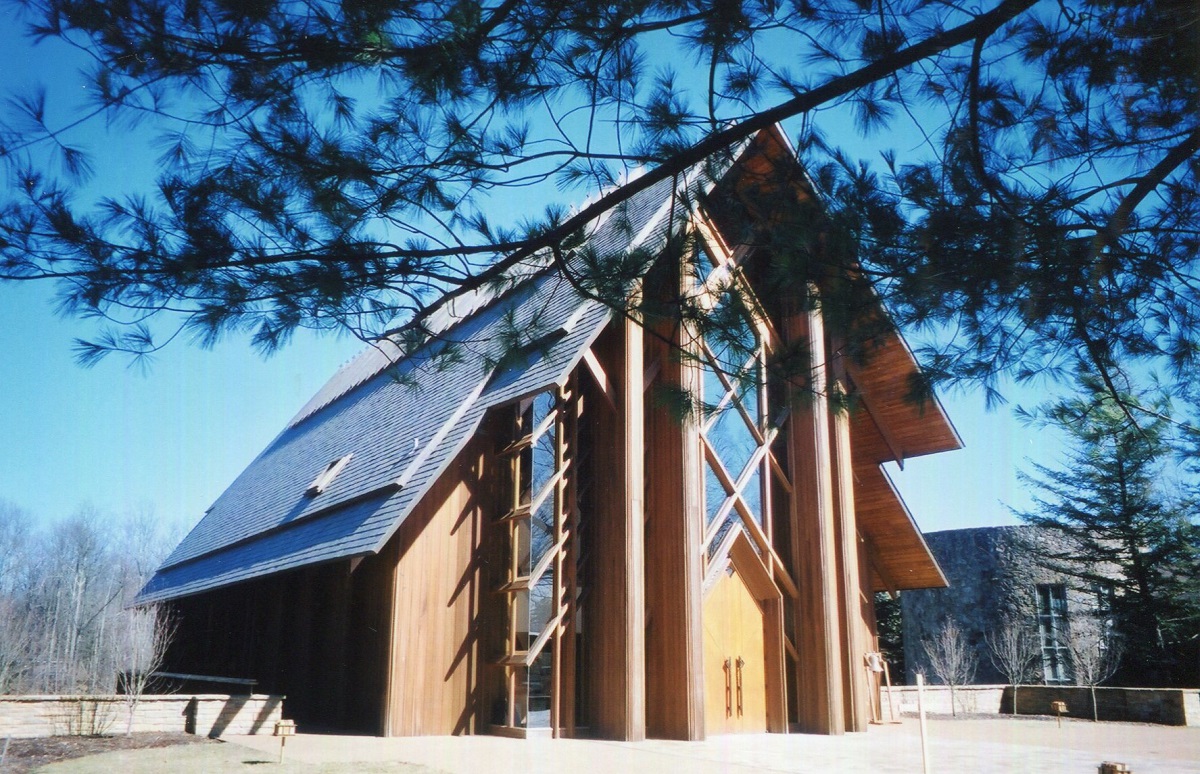

2004-08-04 - Chapel exterior (Photograph by Jeff Scofield/Database Manager)

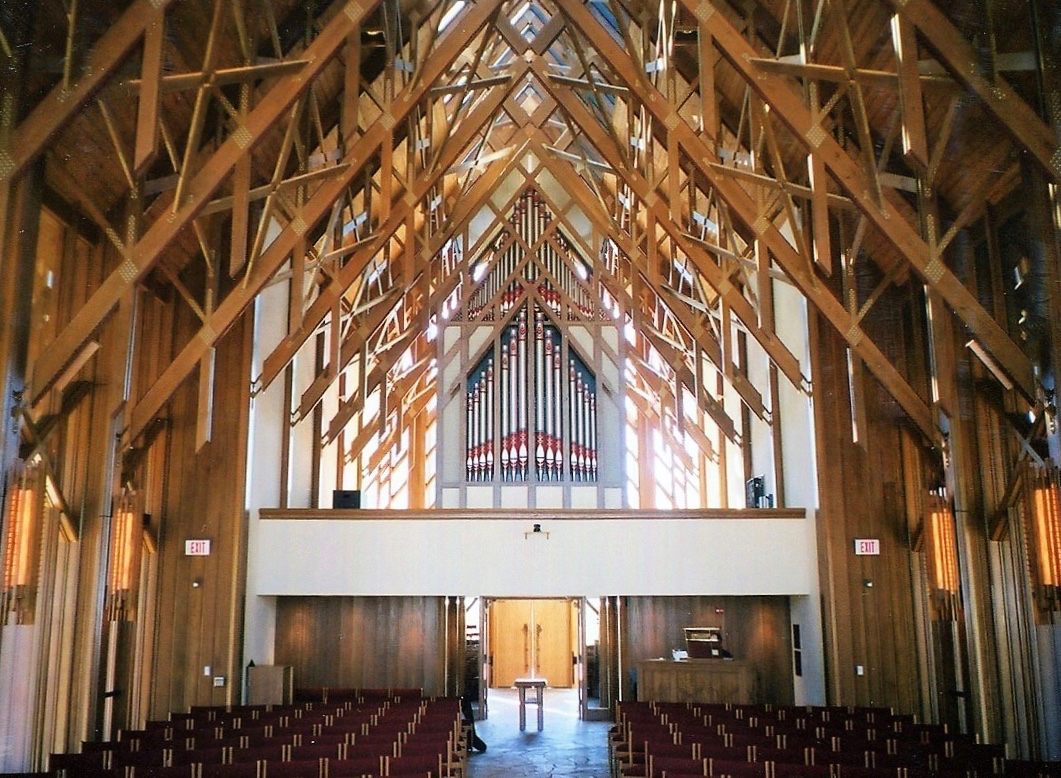

2004-08-04 - Nave and Pipe Facades (Photograph by Jeff Scofield/Database Manager)

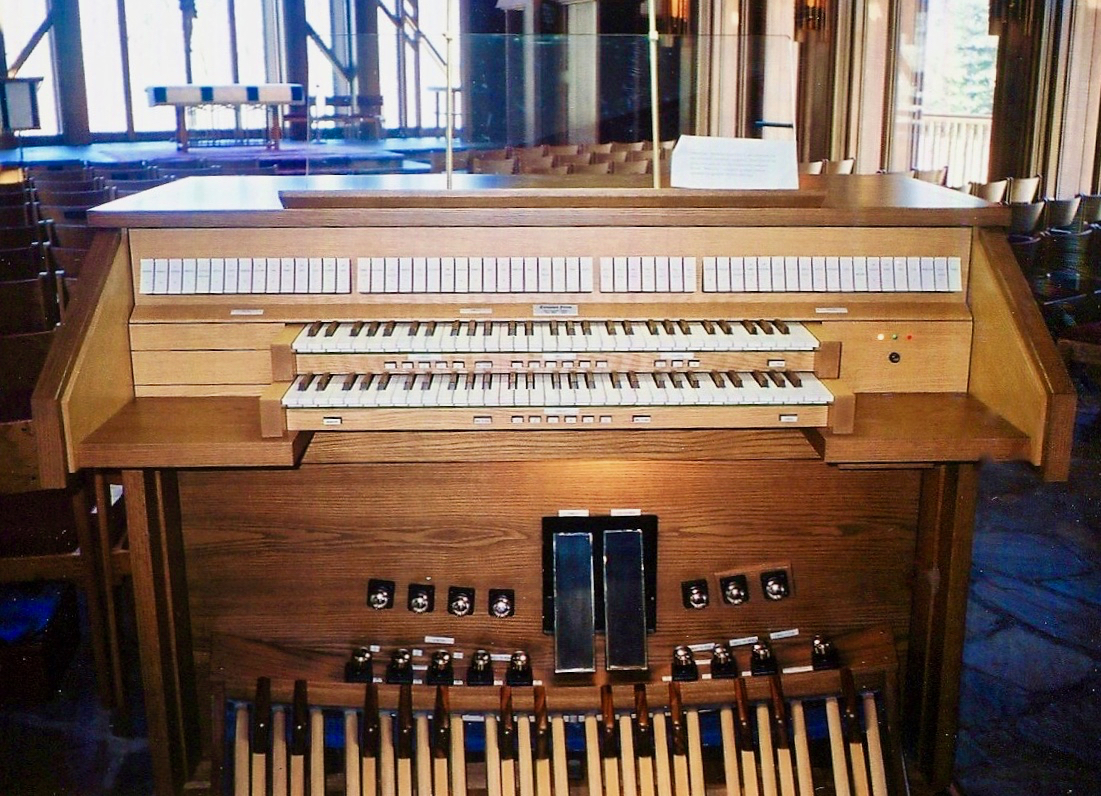

2004-08-04 - Console (Photograph by Jeff Scofield/Database Manager)

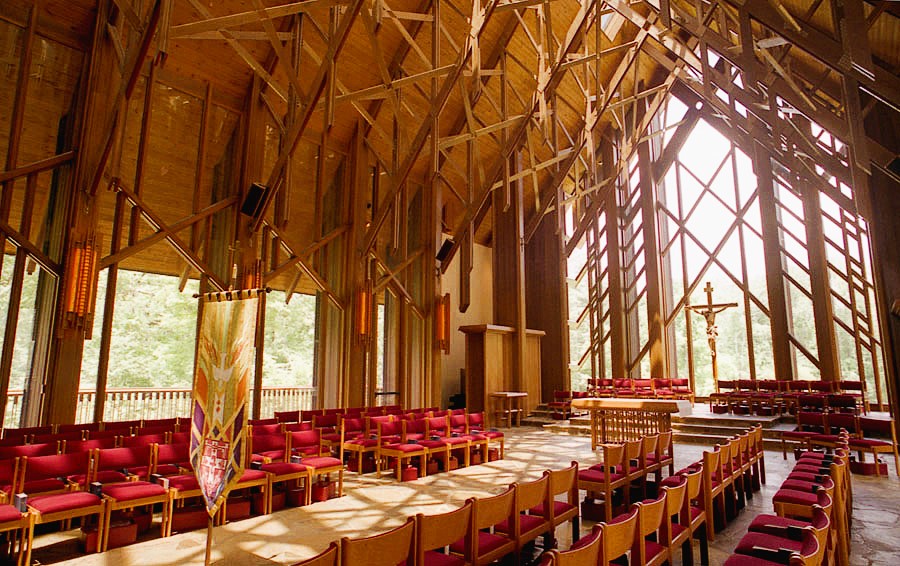

2013-07-22 - Chapel interior (photographybystein.com, via Jeff Scofield/Jeff Scofield)

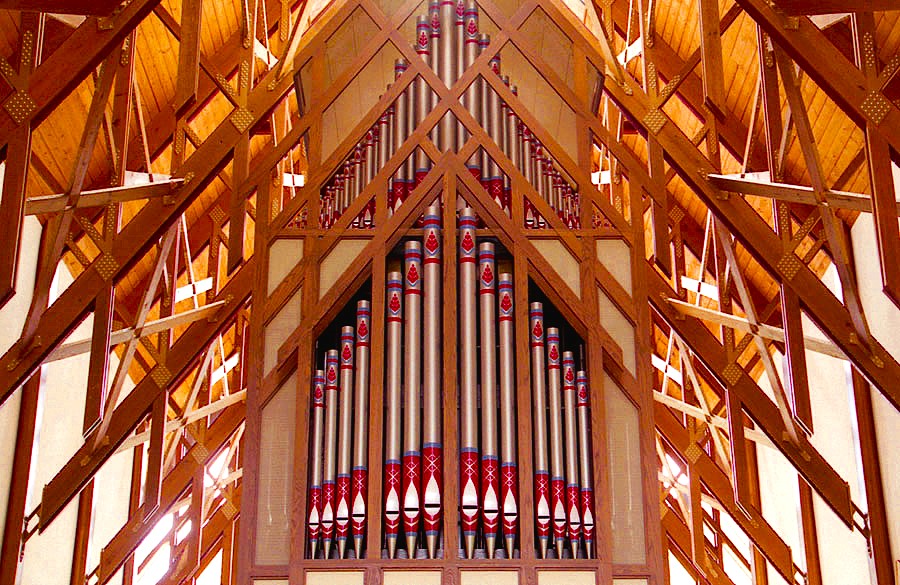

2013-07-22 - Pipework (photographybystein.com, via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
2 manuals
20 stops
42 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2006-02-21 - Listed in "Recent Installations," <i>The American Organist</i> Vol. 38, No. 4 [April, 2004] -Database Manager

2006-11-15 - Updated through online information from James R. Stettner. -- Stencilled facade pipes. Chimes and harp/celesta are electronic. -Database Manager

2006-11-15 - Updated through online information from Stan Scheer. -- In the list above, "Registers" refers to the total number of speaking stops including duplexed and extended stops but excluding couplers, tremulants and controls. "Stops" refers to the total number of independent or straight stops excluding duplexed and extended stops as well as couplers and controls. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Sewanee, Tennessee
       University of the South, School of Theology
       Chapel of the Apostles

       Casavant   Op. 3826   2003   2/23

       Stoplist courtesy of Casavant Frères

       GREAT                    SWELL                 PEDAL
   16' Bourdon 12 (wood)     8' Chimney Flute 61  32' Bourdon dg
    8' Diapason 61           8' Salicional 61     16' Subbass 32
    8' Stopped Diapason 61   8' Voix céleste 54   16' Bourdon GT
    8' Chimney Flute SW      4' Principal 61       8' Principal 32
    8' Salicional SW         4' Spire Flute 61     8' Stopped Diapason GT
    8' Voix céleste SW       2' Fifteenth 61       4' Octave 12
    4' Octave 61         1 1/3' Nineteenth 61      4' Stopped Flute GT
    4' Spindle Flute 61     16' Bassoon 12 (L/2)  16' Trombone 12 GT
2 2/3' Nazard 61             8' Trumpet 61        16' Bassoon SW
    2' Recorder 61           8' Oboe 61            8' Tuba GT
1 3/5' Tierce 61                Tremulant          8' Trumpet SW
II-IV  Mixture 208              Sub                8' Oboe SW
   16' Bassoon SW               Unison Off         4' Tuba GT
    8' Trumpet SW               Super              4' Clarion SW
    8' Oboe SW               8' Tuba GT            4' Oboe SW
       Tremulant                Harp dg
       Unison Off               Celesta dg
    8' Tuba 61
       Chimes dg

[Received on line from Jeff Scofield July 05, 2009.]
