Lebanon Valley College-Miller Chapel: Miller Chapel
Annville, PA
Images

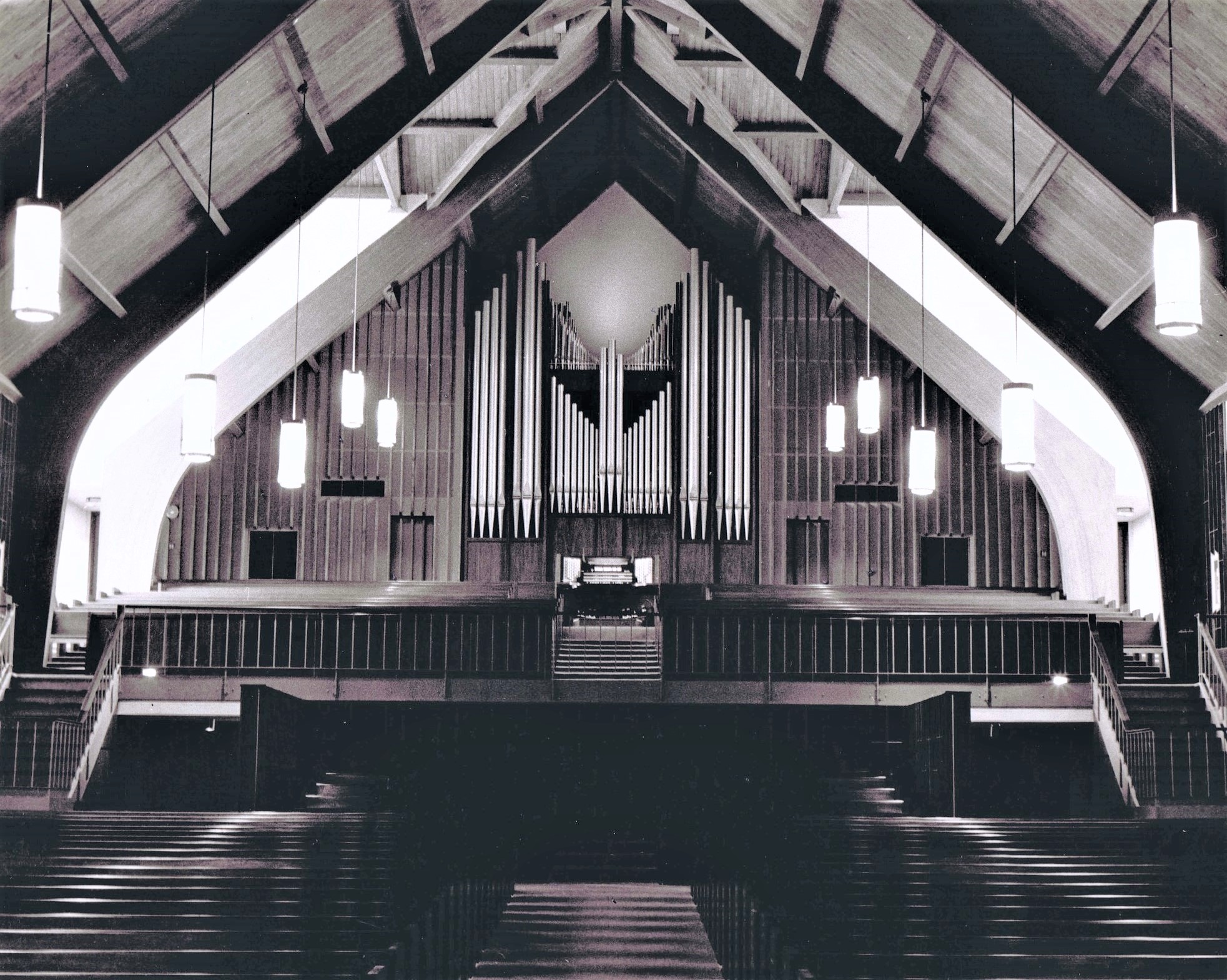

1968 - Chapel interior to rear and organ (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

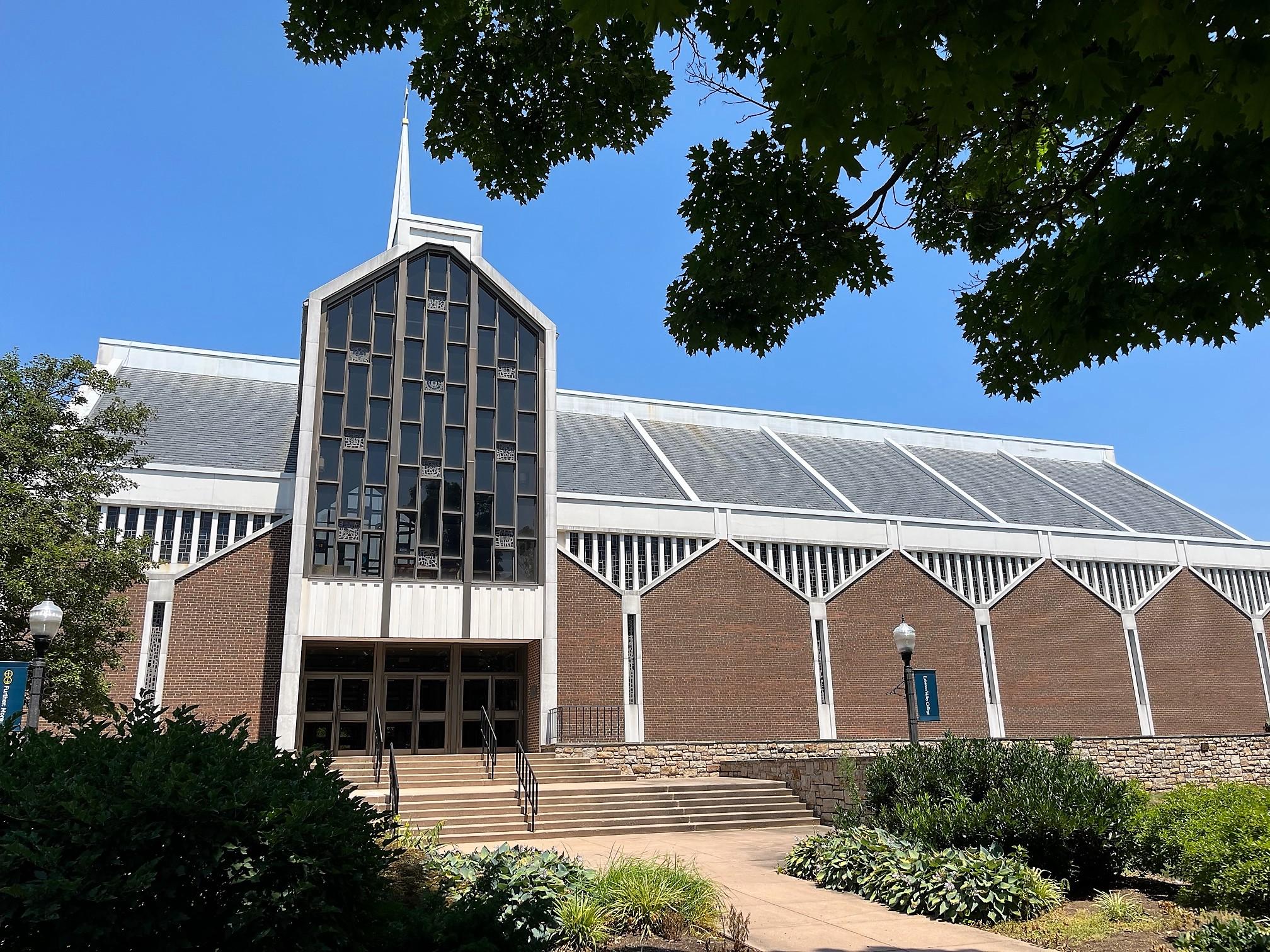

2022-07-19 - Chapel exterior (Photograph by Jeff Scofield/Jeff Scofield)

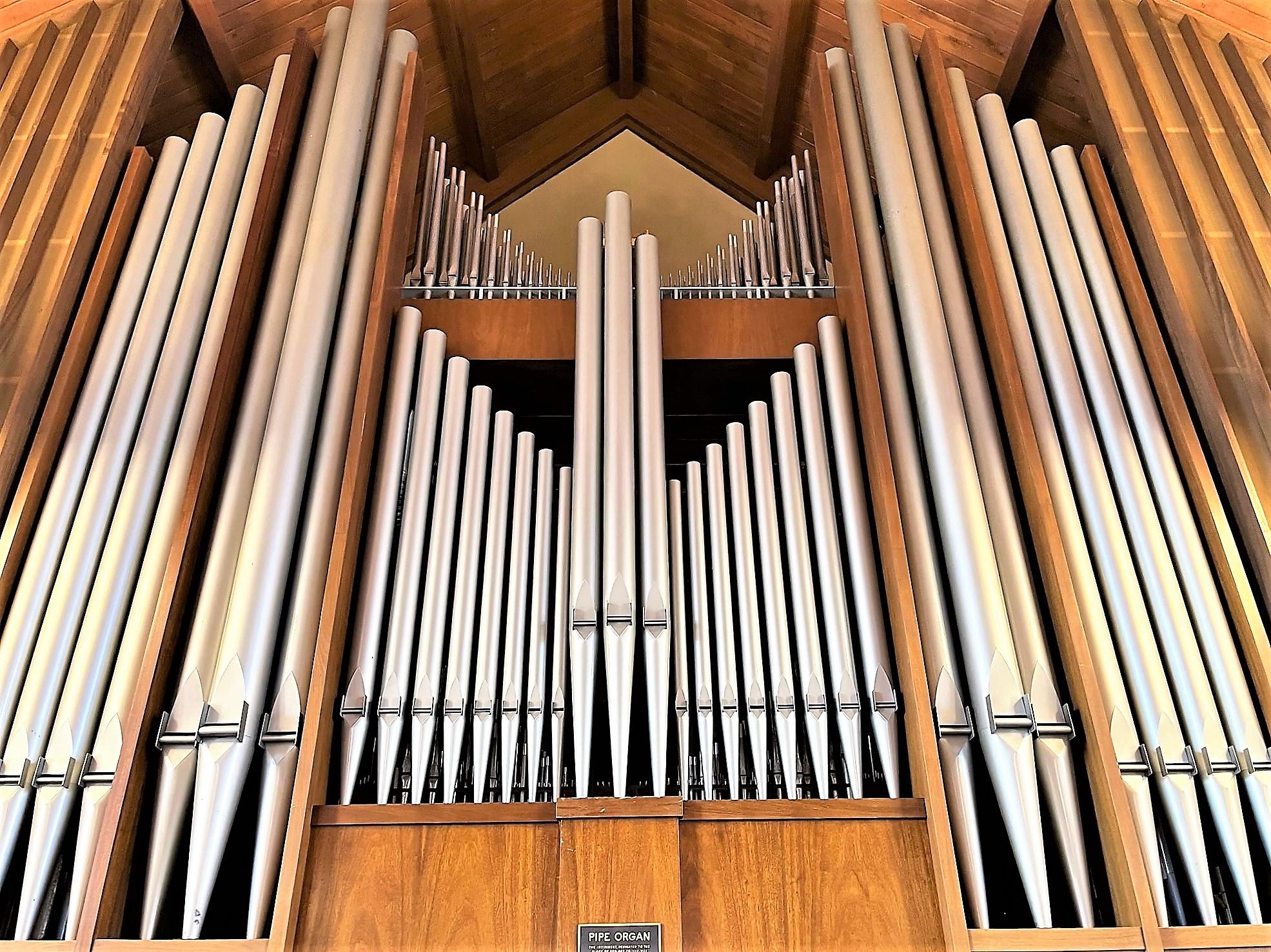

2022-07-19 - Organ case (Photograph by Jeff Scofield/Jeff Scofield)

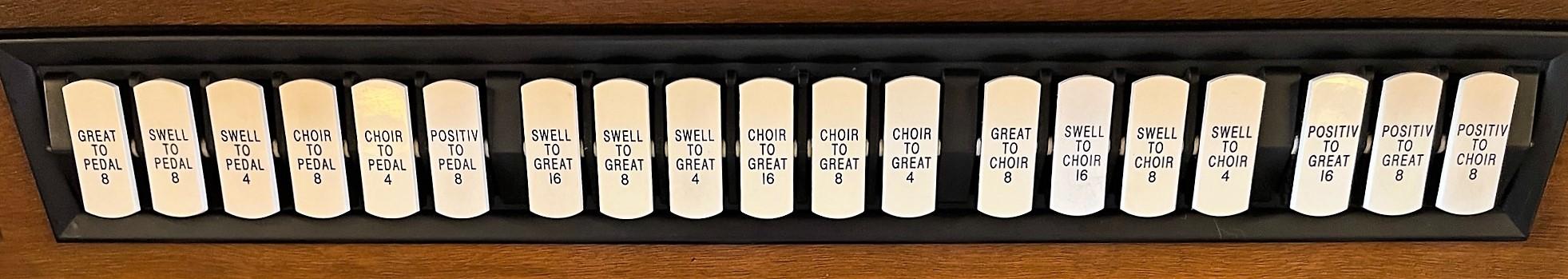

2022-07-19 - Couplers (Photograph by Jeff Scofield/Jeff Scofield)
2022-07-19 - Right stopjammb (Photograph by Jeff Scofield/Jeff Scofield)

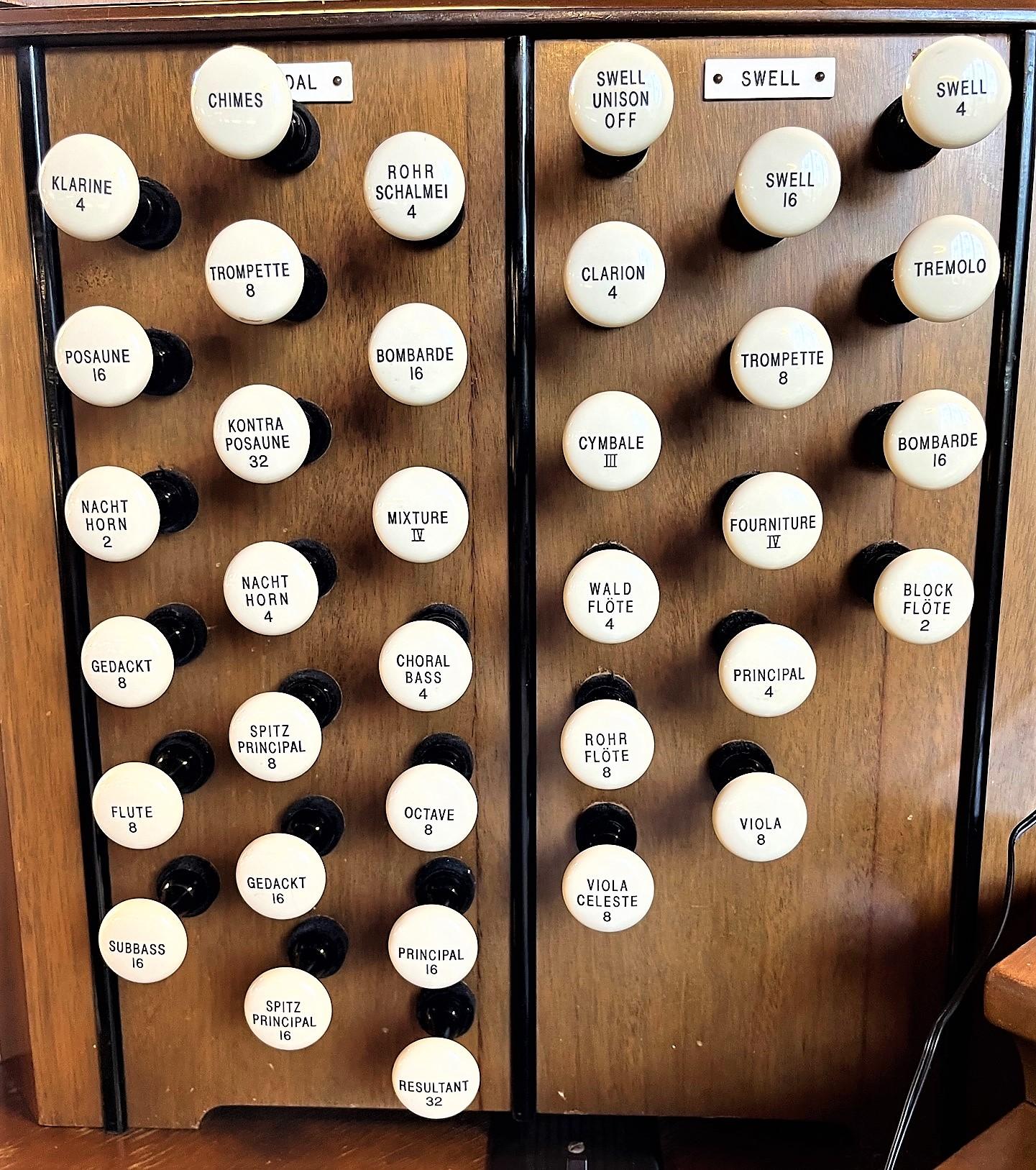

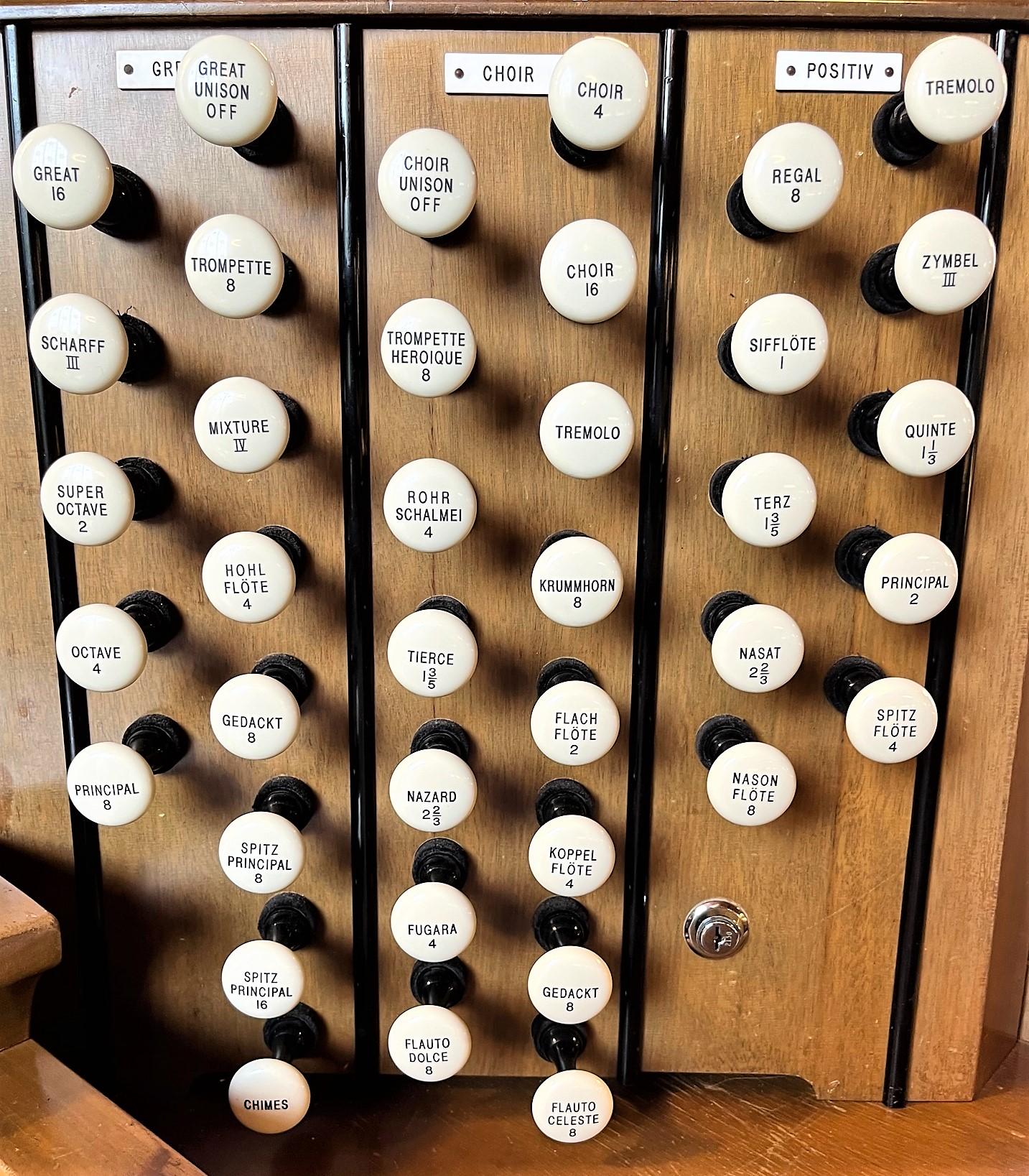

2022-07-19 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

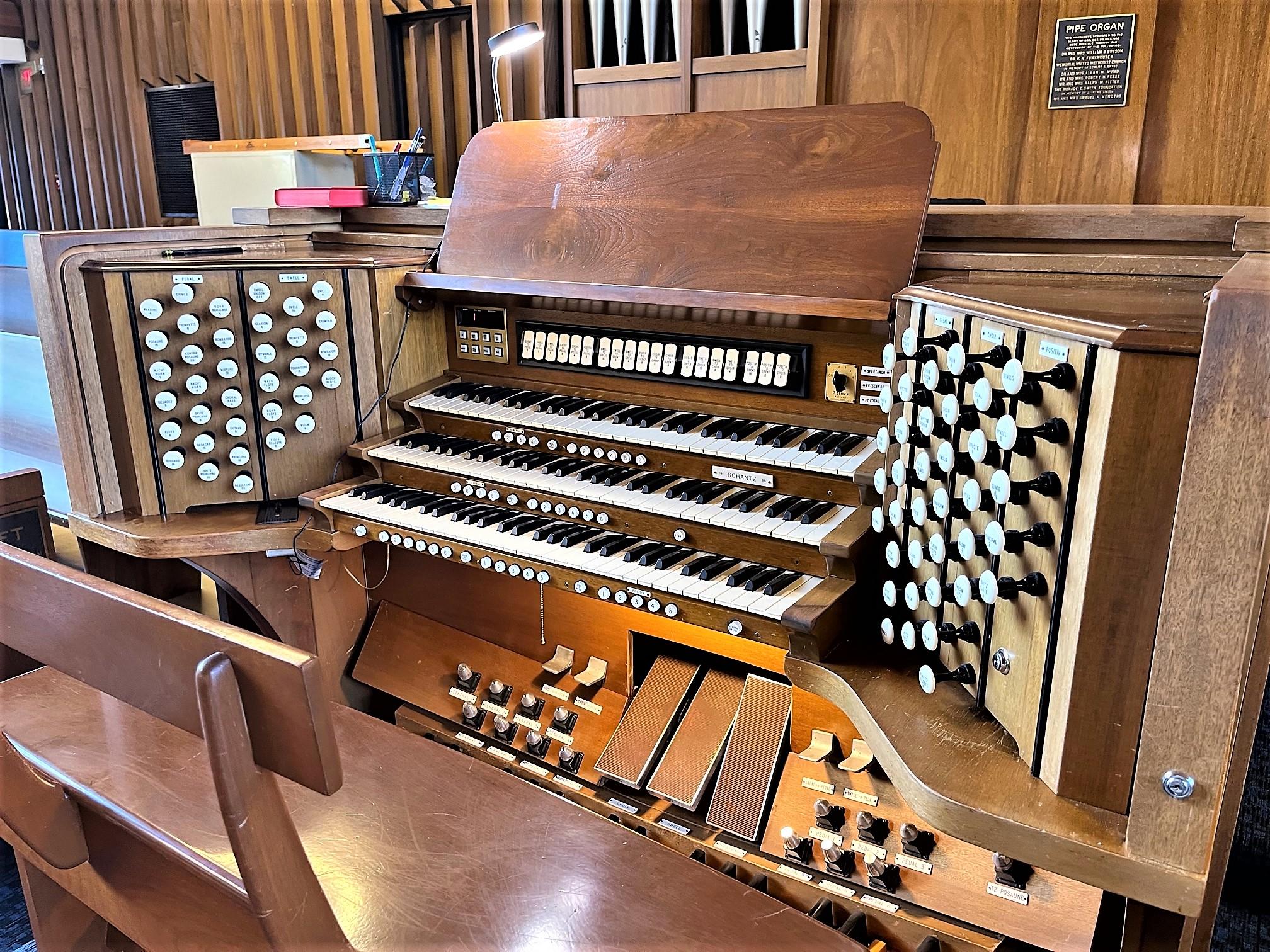

2022-07-19 - Console (Photograph by Jeff Scofield/Jeff Scofield)
2022-07-19 - Sideview of balcony (Photograph by Jeff Scofield/Jeff Scofield)

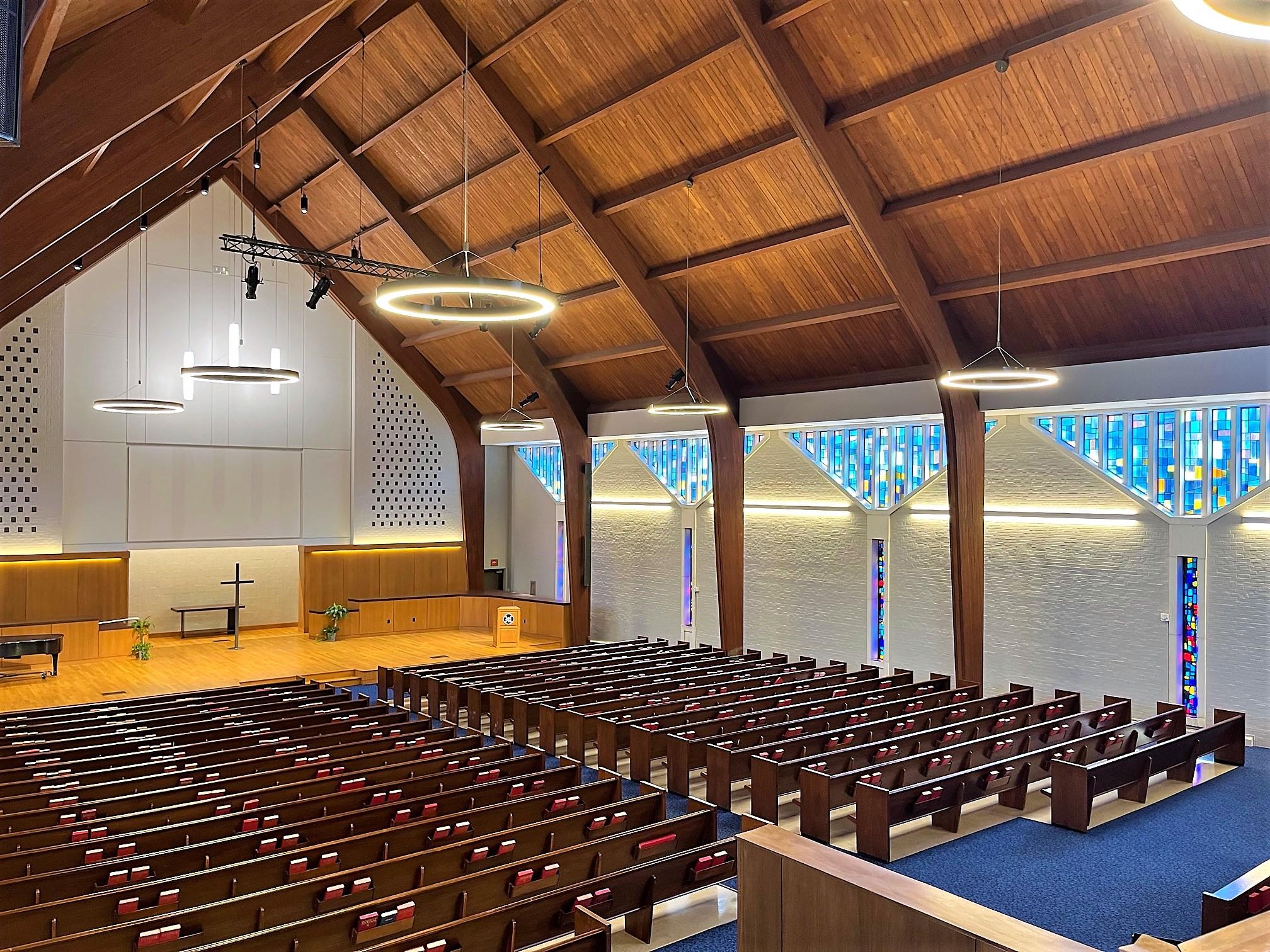

2022-07-19 - Chapel interior to front (Photograph by Jeff Scofield/Jeff Scofield)

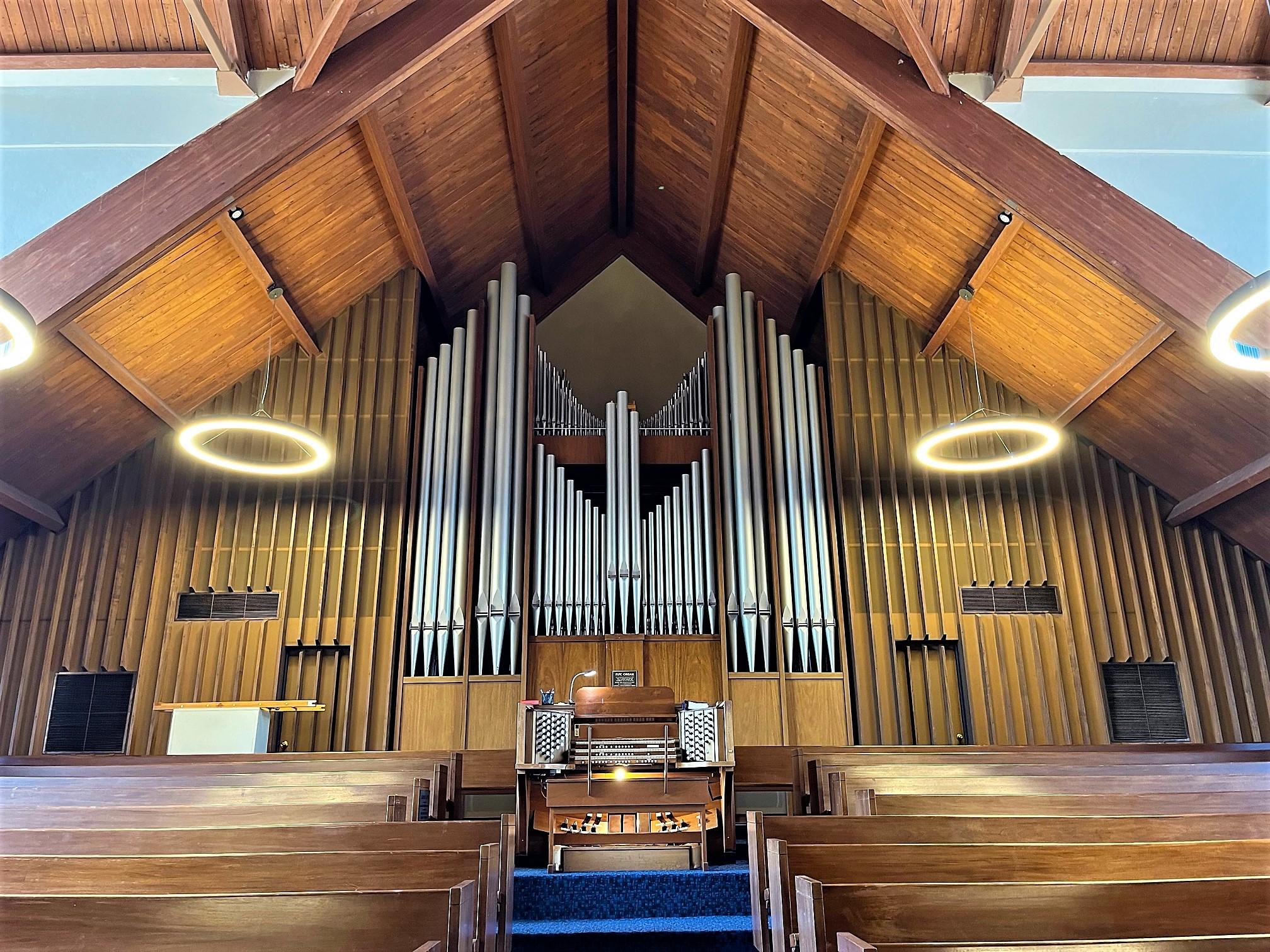

2022-07-19 - Balcony and organ (Photograph by Jeff Scofield/Jeff Scofield)

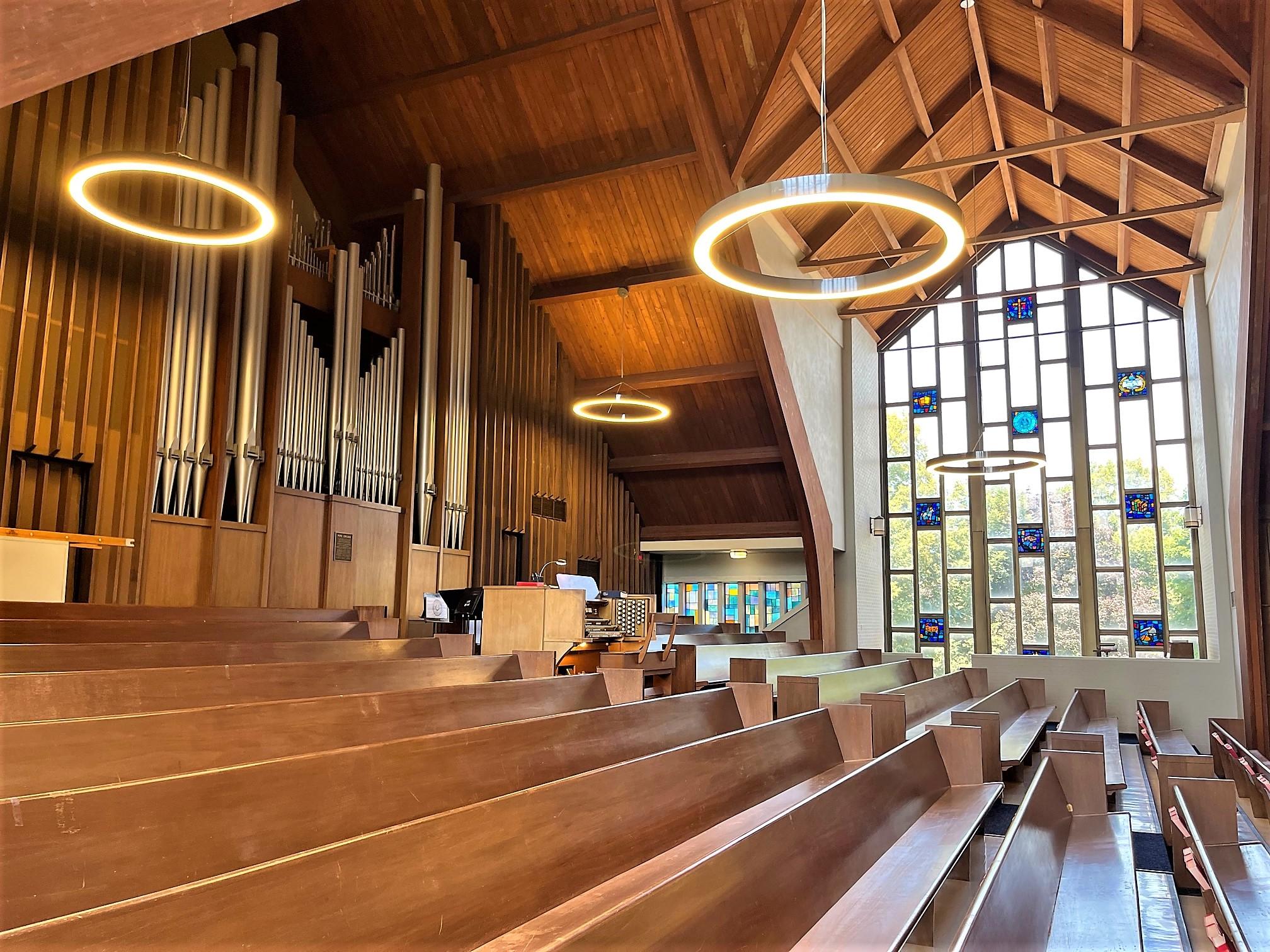

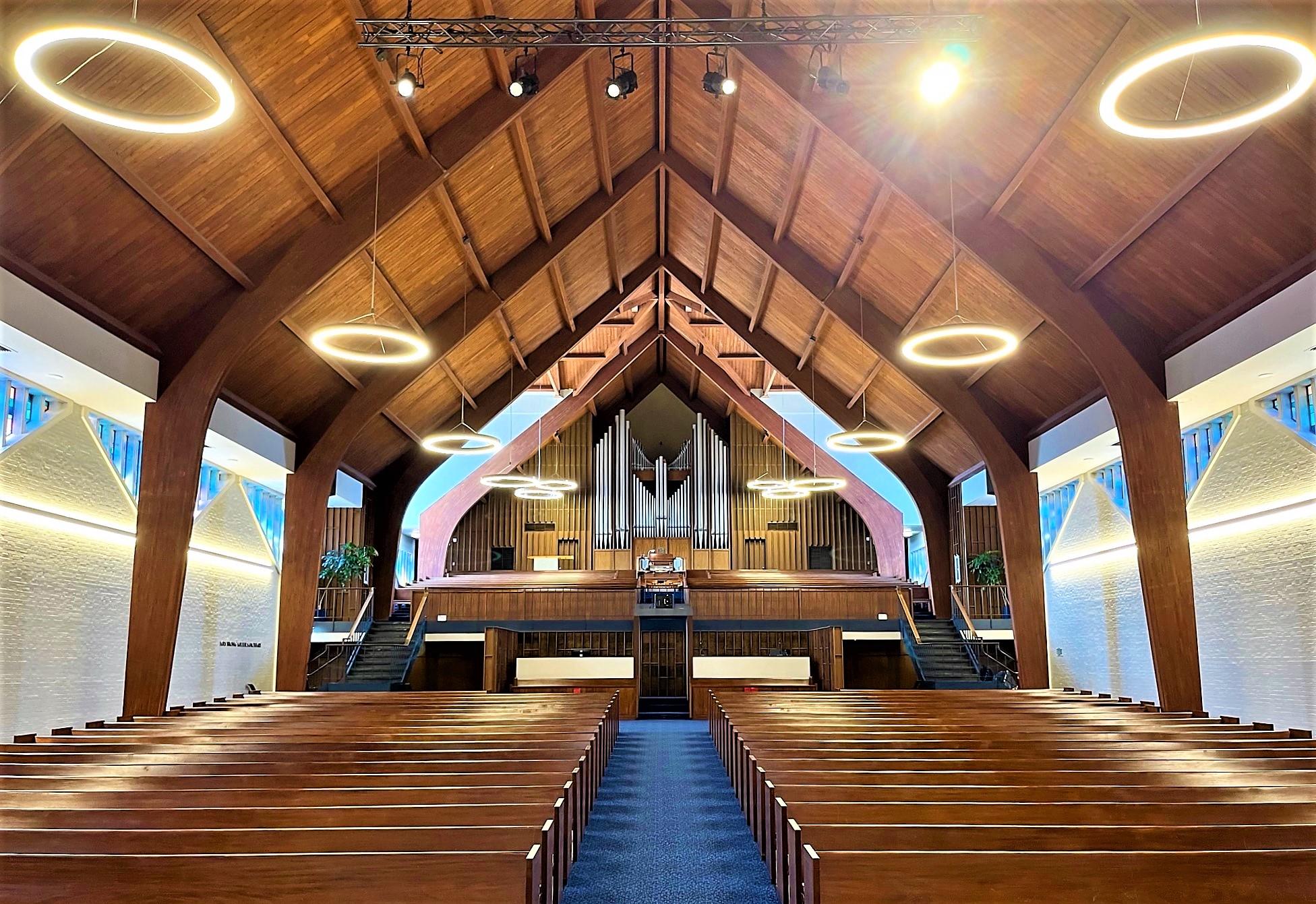

2022-07-19 - Chapel interior to rear and organ (Photograph by Jeff Scofield/Jeff Scofield)

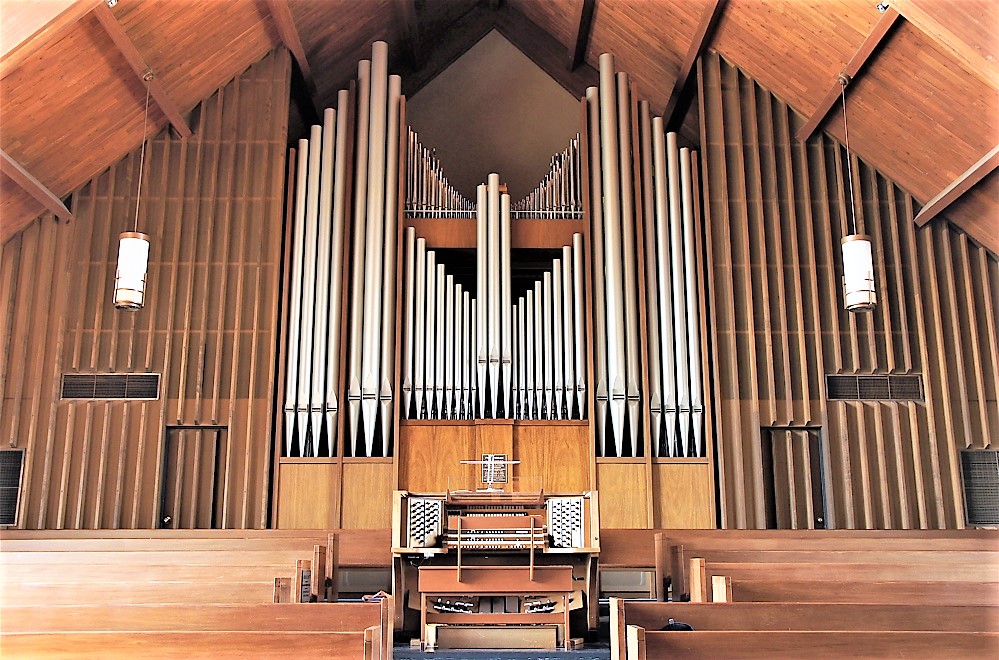

2010-10-11 - Gallery, Console, and Pipe Facade (Photograph by Rick Zentmeyer/Database Manager)

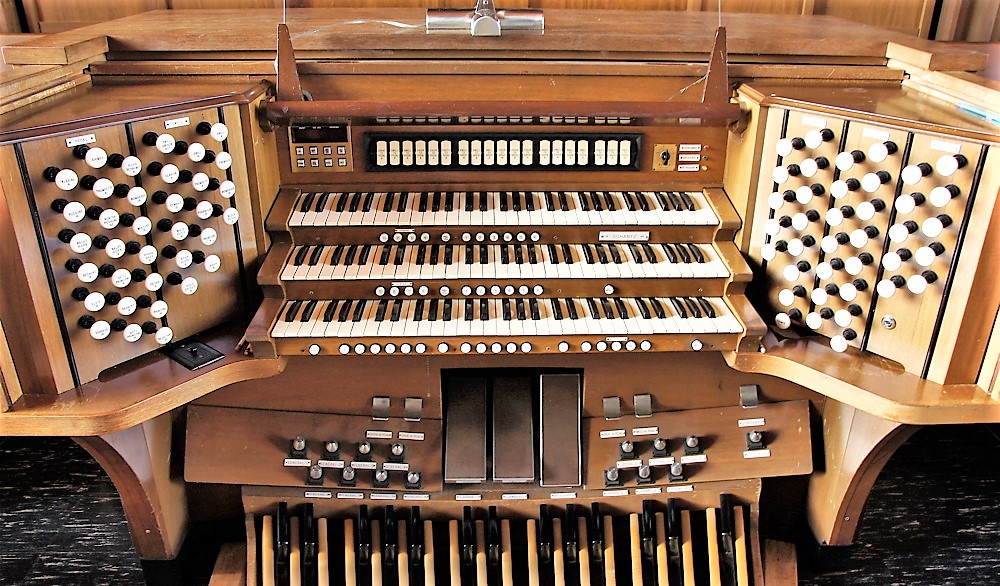

2010-10-11 - Console (Photograph by Rick Zentmeyer/Database Manager)

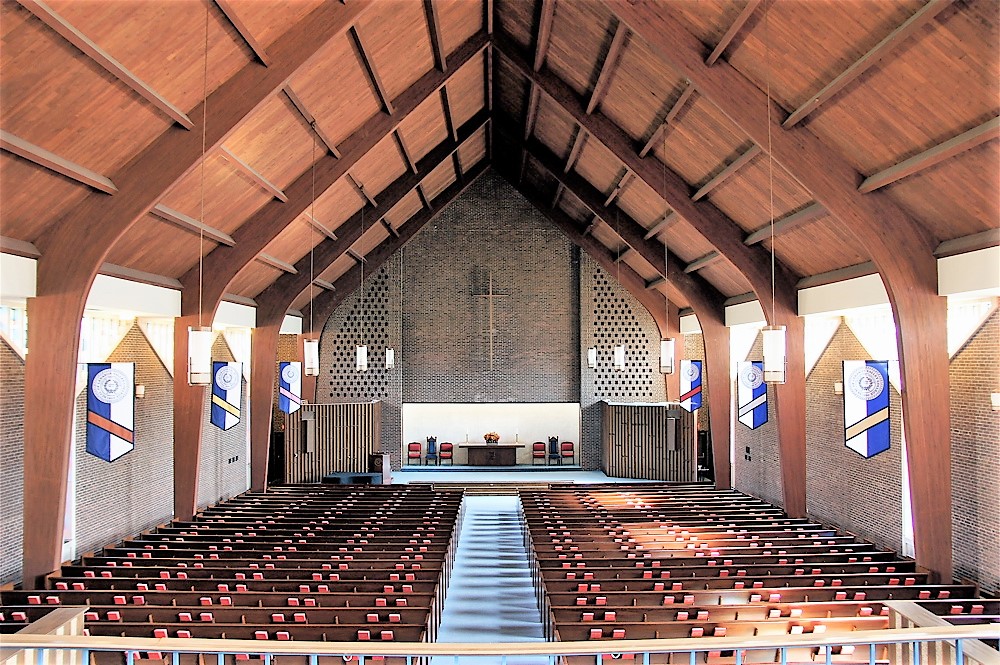

2010-10-11 - Chapel Interior and Chancel (Photograph by Rick Zentmeyer/Database Manager)

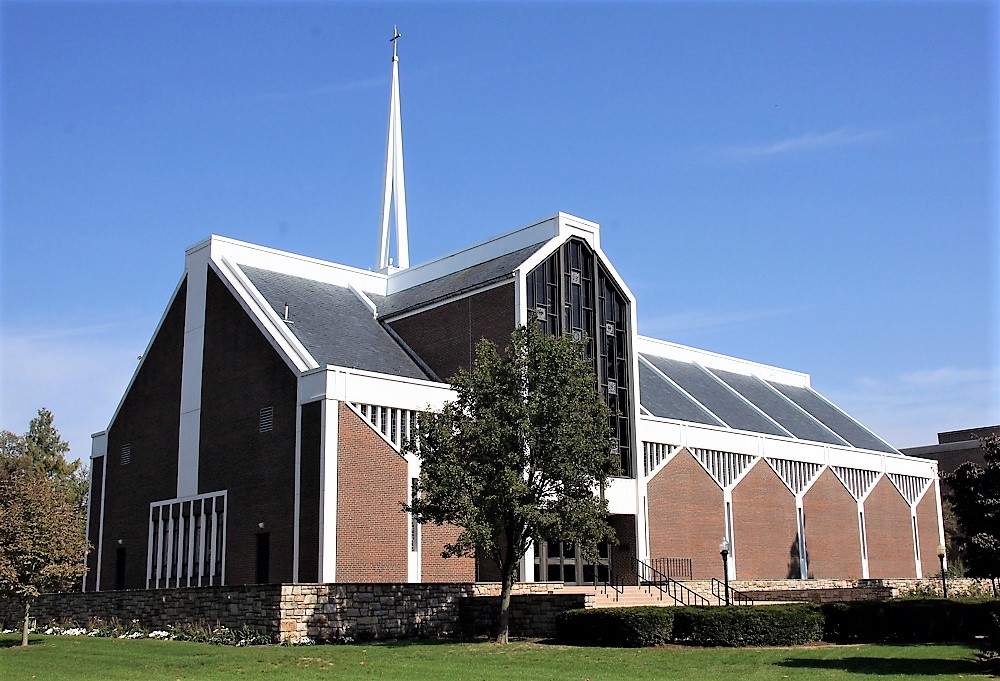

2010-10-11 - Chapel Exterior (Photograph by Rick Zentmeyer/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 3 manuals
- 60 stops
- 46 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: 'Hold and Set' Pneumatic/Mechanical
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2006-03-19 - Identified through on-line information from Scott Crowell. -- Organ has a Positiv division that can be played on either the Choir or Great manual. A Midi sequencer has been installed -Database Manager
2006-04-02 - Updated through on-line information from Scott Crowell. -Database Manager
2011-04-24 - Updated through on-line information from Jeff Scofield. -Database Manager
Stoplist
Stoplist from Schantz promotional flyer Source: Source not recorded Date not recorded
Annville, Pennsylvania
Lebanon Valley College, Miller Chapel
Schantz Op. 855 1968 3/61
___________________________________________________
GREAT CHOIR
16' Spitzprincipal 61 8' Gedackt 61
8' Principal 61 8' Flauto Dolce 61
8' Gedackt 61 8' Flute Celeste 49
8' Spitzprincipal 12 4' Fugara 61
4' Octave 61 4' Koppelflöte 61
4' Hohlflöte 61 2 2/3' Nazard 61
2' Super Octave 61 2' Flachflöte 61
IV Mixture 244 1 3/5' Tierce 49
III Scharf 183 8' Krummhorn 61
8' Trompette 61 4' Rohrschalmei 61
Unison Off Tremolo
Super 8' Trompette Heroïque 61
Chimes Sub
Unison Off
SWELL Super
8' Rohrflöte 61
8' Viola 61 PEDAL
8' Viola Celeste 49 32' Resultant --
4' Principal 61 16' Principal 32
4' Waldflöte 61 16' Subbass 32
2' Blockflöte 61 16' Spitzprincipal GT
IV Fourniture 244 16' Gedackt CH
III Cymbale 183 8' Octave 32
16' Bombarde 61 8' Spitzprincipal GT
8' Trompette 61 8' Flute 12
4' Clairon 61 8' Gedackt CH
Tremolo 4' Choralbass 32
Sub 4' Nachthorn 32
Unison Off 2' Nachthorn 12
Super IV Mixture 128
32' Kontraposaune 32
POSITIV 16' Posaune 12
8' Nasonflöte 61 16' Bombarde SW
4' Spitzflöte 61 8' Trompete 12
2 2/3' Nasat 61 4' Klarine 12
2' Principal 61 4' Rohrschalmei CH
1 3/5' Terz 61 Chimes GT
1 1/3' Quinte 61
1' Sifflöte 61
III Zymbel 183
8' Regal 61
Tremolo
[Received online from Jeff Scofield April 25, 2011]
