Casavant Frères Ltée. Opus 3814 (2004)

Falmouth Congregational Church
267 Falmouth Road
Falmouth, ME

Images

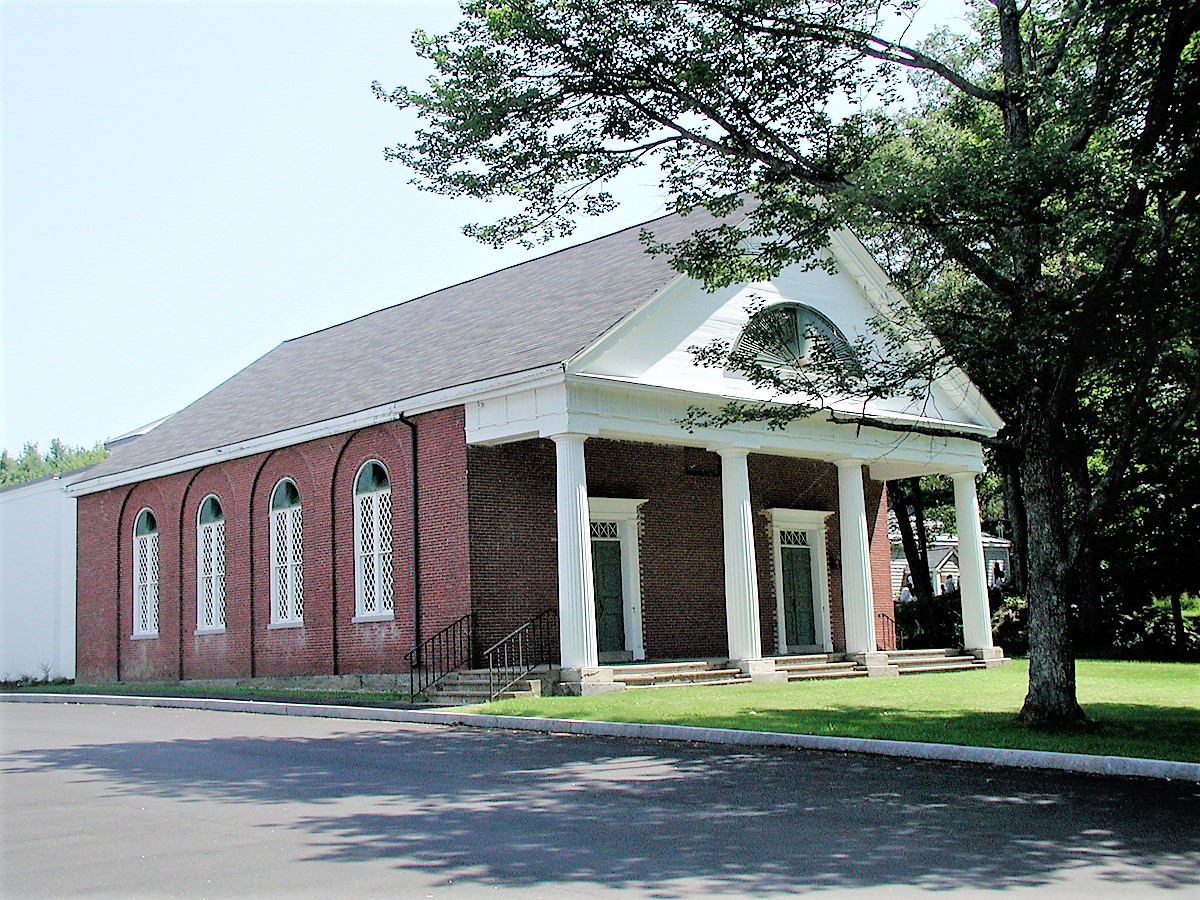

2004-08-06 - Church exterior (Photograph by Andrew Barss/Jeff Scofield)

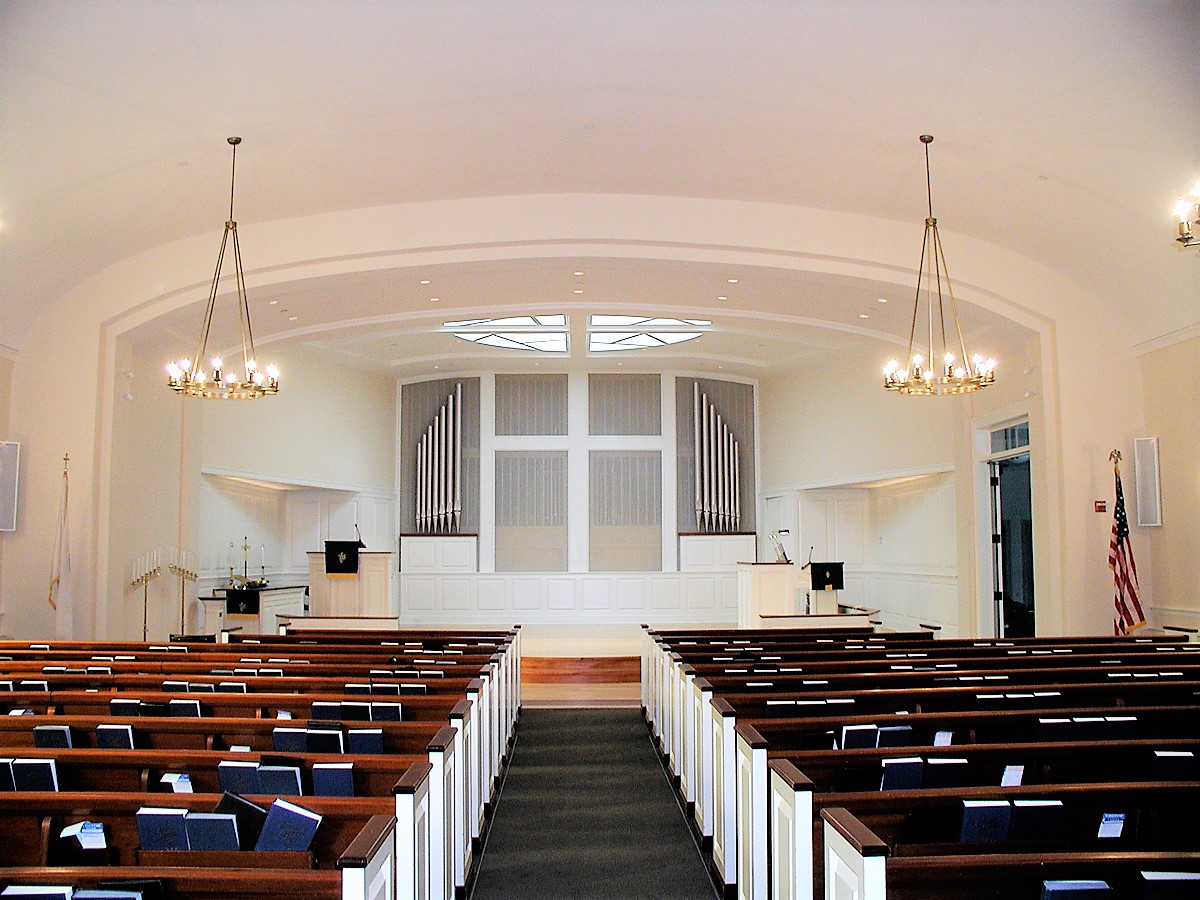

2004-08-06 - Sanctuary Interior, Chancel, Chamber Grillework, and Facade Pipes (Photograph by Andrew Barss/Jeff Scofield)

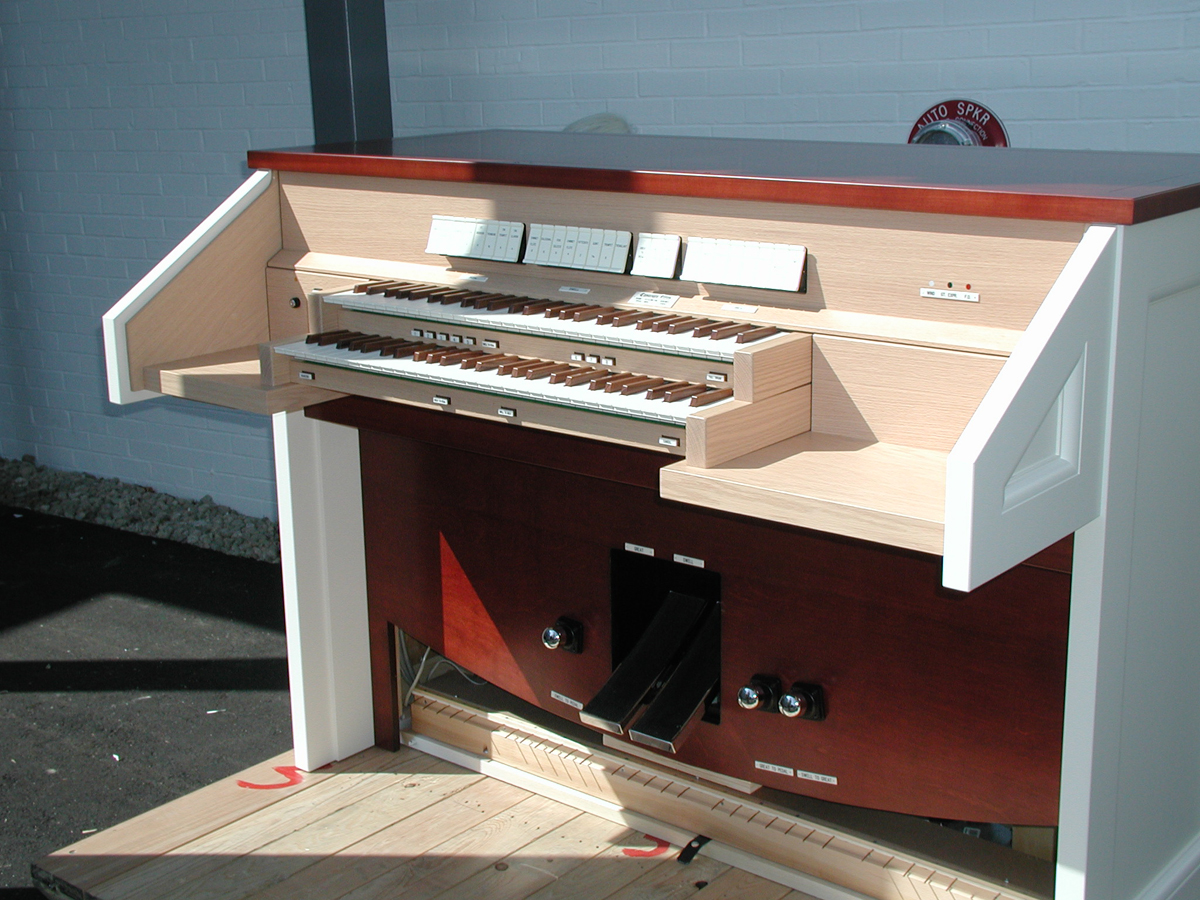

2004-08-02 - Console (ready to move into the church) (Photograph by Andrew Barss/Database Manager)

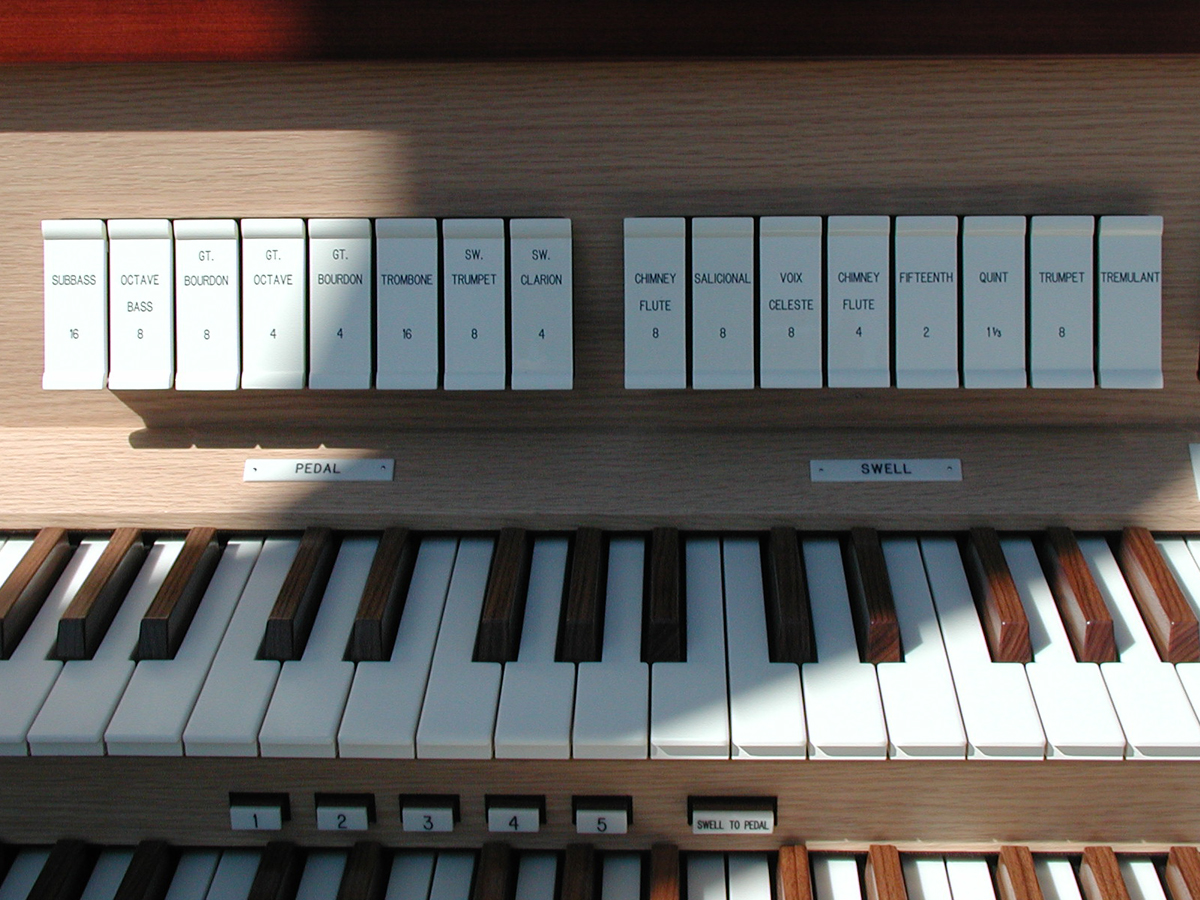

2004-08-02 - Pedal and Swell Rocking Tablets (Photograph by Andrew Barss/Database Manager)

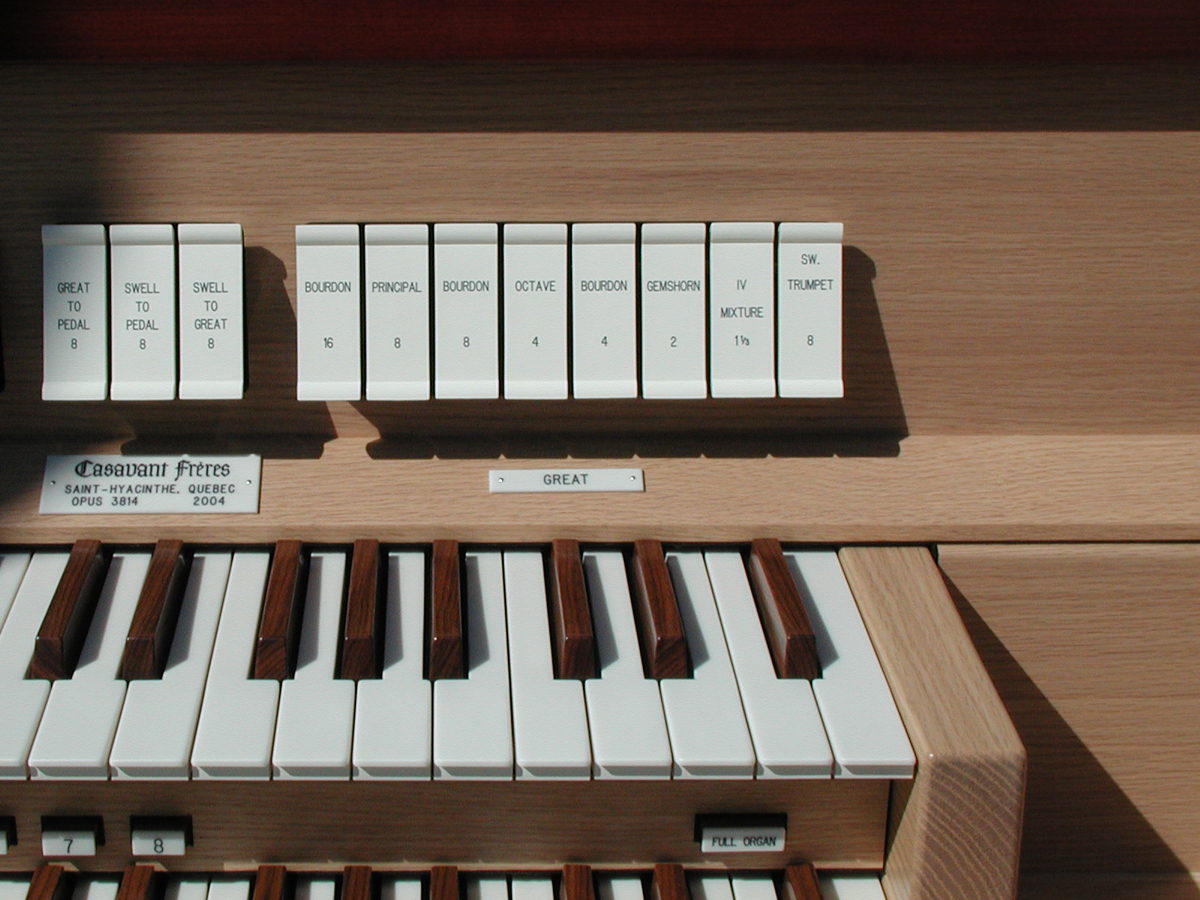

2004-08-02 - Great Rocking Tablets and Builder's Nameplate (Photograph by Andrew Barss/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
2 manuals
23 stops
11 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Not Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons

Notes

2006-03-22 - Identified through online information from Robert Faucher. -- Both Great and Swell under expression. No independent pedal division - all duplexed and extended from manual divisions. -Database Manager

2009-07-04 - Updated through online information from Jeff Scofield. -Database Manager

2014-08-25 - Updated through online information from Andrew Barss. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Falmouth, Maine
       Falmouth Congregational Church

       Casavant   Op. 3814   2004   2/14

       Stoplist courtesy of Casavant Frères

       GREAT (expressive)
   16' Bourdon -- (from GT Bourdon and PED Subbass)
    8' Principal 56
    8' Bourdon 56 (1-12 stopped wood)
    4' Octave 56
    4' Bourdon 12
    2' Gemshorn 56 (broad scale)
   IV  Mixture 224
    8' Trumpet SW

       SWELL
    8' Chimney Flute 56
    8' Salicional 56 (broad scale)
    8' Voix céleste 44 tc
    4' Chimney Flute 12
    2' Fifteenth 56
1 1/3' Quint 56
    8' Trumpet 56
       Tremulant

       PEDAL
   16' Subbass 12 GT (encl with GT)
    8' Octave Bass -- (1-12 from GT Principal; 13-32 from GT Octave)
    8' Bourdon GT
    4' Octave GT
    4' Bourdon GT
   16' Trombone 12 SW (L/2)
    8' Trumpet SW
    4' Clarion SW

[Received on line from Jeff Scofield July 04, 2009.]
