Note: Not extant. Not playable. (in this location)

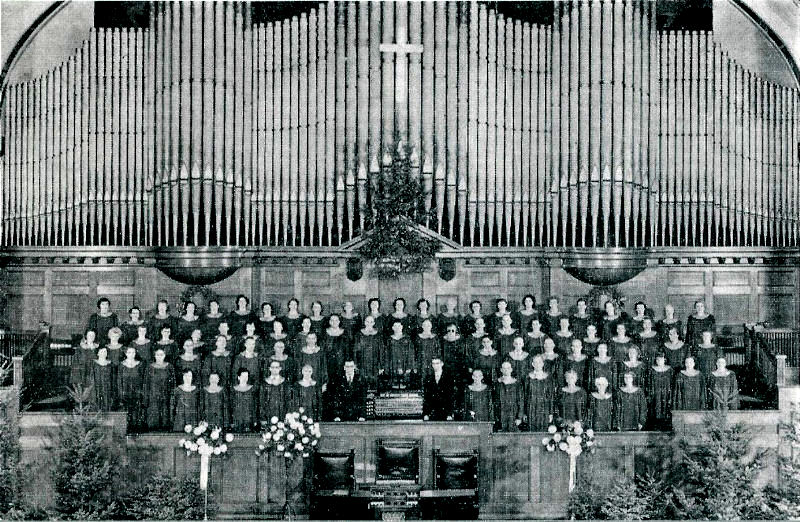

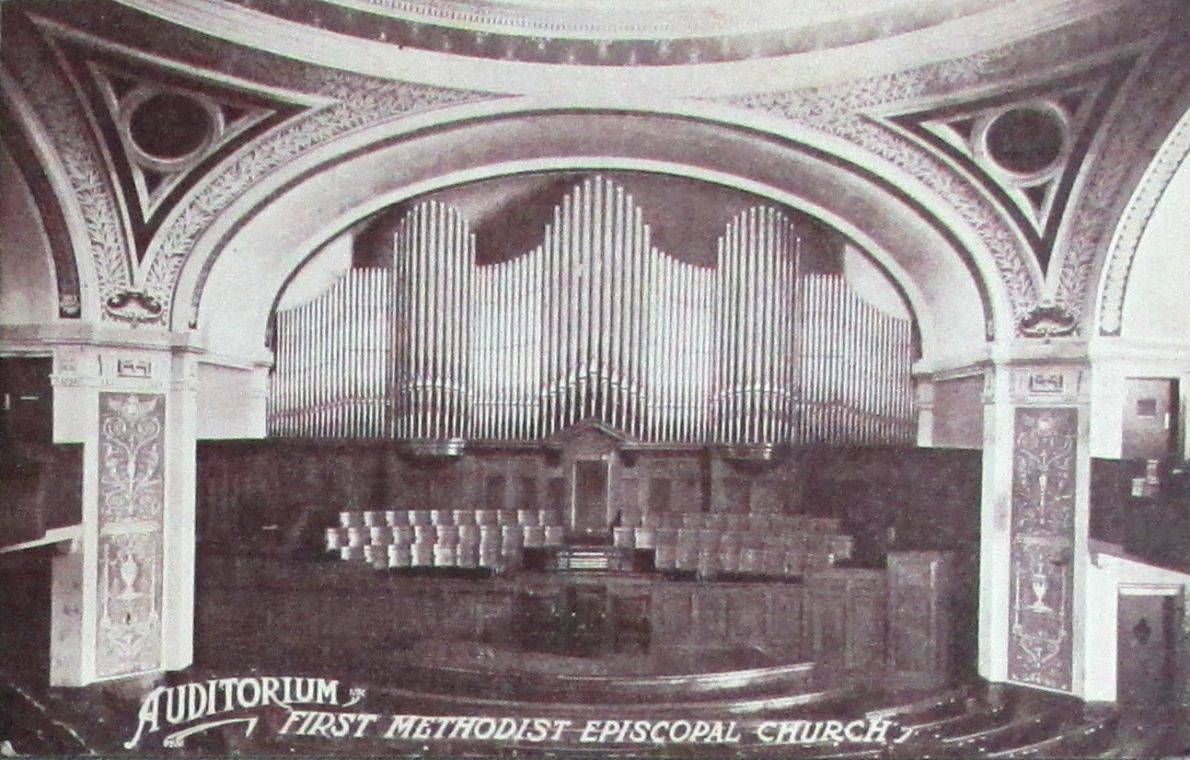

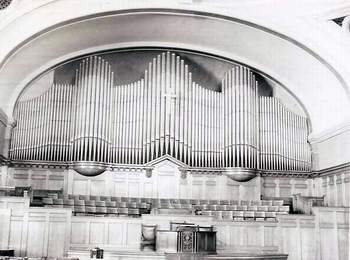

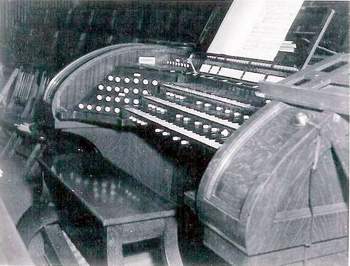

2006-10-17 - Identified through online information from James R. Stettner. -- This was the congregations' third building, and their third pipe organ. The date of the Kimball is sometimes given as 1909, but this is incorrect - or may be the contract date. The organ was built in 1910, and wasn't installed until 1911. A sad yet interesting note is that one of the members of the famous New York organ building Jardine family was working on this organ when he shot himself on April 1, 1911. This was likely either Edward D. or Charles Jardine - great nephews of the firm's founder, George Jardine. The façade was immense - spanning the full width of the chancel and containing 99 pipes. It is not know how many - if any - of these pipes were speaking pipes. The organ cost $20,000.00 and is described in the February 1910 and June 1911 issues of Diapason. The expression shoes to the Swell and the Great/Choir were mechanically linked, but the Echo was electrically operated. An extant photo of the console shows that toe studs and foot levers were labeled on round discs set face-up into a board between the Swell keys and the coupler rail. The actual order from left-to-right is unknown. The exact nomenclature of stops and controls is not verifiable. -Database Manager
Source: 2008 OHS Atlas
GREAT ORGAN (Unenclosed) Open Diapason 16, First Open Diapason 8 ("large"), Second Open Diapason 8 ("small"), French Horn 8 ("wood"), Gamba 8 ("f"), Melodia 8, Dulciana 8, Octave 4, Trumpet 8
SWELL ORGAN Bourdon 16, Open Diapason 8, Violin Diapason 8, Gedackt 8, Salicional 8, Vox Celeste 8, Viol d’Orchestra 8, Clarabella 8, Octave 4, Harmonic Flute 4, Cornopean 8, Oboe & Bassoon 8, Tremolo
CHOIR ORGAN Contra Gamba 16, Open Diapason 8, Geigen Principal 8, Concert Flute 8 ("f"), Dulciana 8, Wald Flute 4, Piccolo Harmonique 2, Orchestral Clarinet 8, Tremolo
ECHO ORGAN Echo Diapason 8, Hohl Flute 8, Aeoline 8, Vox Celeste 8, Philomela 4, Vox Humana 8, Chimes (32 tubes (played from Choir)), Tremolo
PEDAL ORGAN Sub Bourdon 32, Open Diapason wood 16, Open Diapason metal 16, Violone 16, Bourdon 16, Dulciana 16, Octave 8 (metal), Flute 8, Cello 8, Dolce 8, Trombone 16
COUPLERS Great 4ʹ , Swell to Great 16ʹ,8ʹ,4ʹ, Choir to Great 16ʹ,8ʹ,4ʹ, Swell 16ʹ, 4ʹ, Choir 16ʹ, 4ʹ, Swell to Choir 16ʹ, 8ʹ, 4ʹ, Echo 16ʹ, 4ʹ, Great, Swell Choir, Echo to Pedal 8ʹ,4ʹ, Compound Coupler Release, Swell Separation, Echo On/Off, Chimes, Great, Swell Unisons Off
TOE STUDS Chimes Dampers, Great Mezzo, Swell Mezzo, Full Organ Piano, Sforzando, All Couplers, Swell Tremolo, Echo On-Off, Great to Pedal Reversible, Expression Pedals: Echo, Choir, Swell, Crescendo
