Better Pipe Organ Database

Casavant Frères Ltée. Opus 3083 (1971)

Martin Luther College: Wittenberg Collegiate Center Auditorium
1995 Luther Court
New Ulm, MN

Images

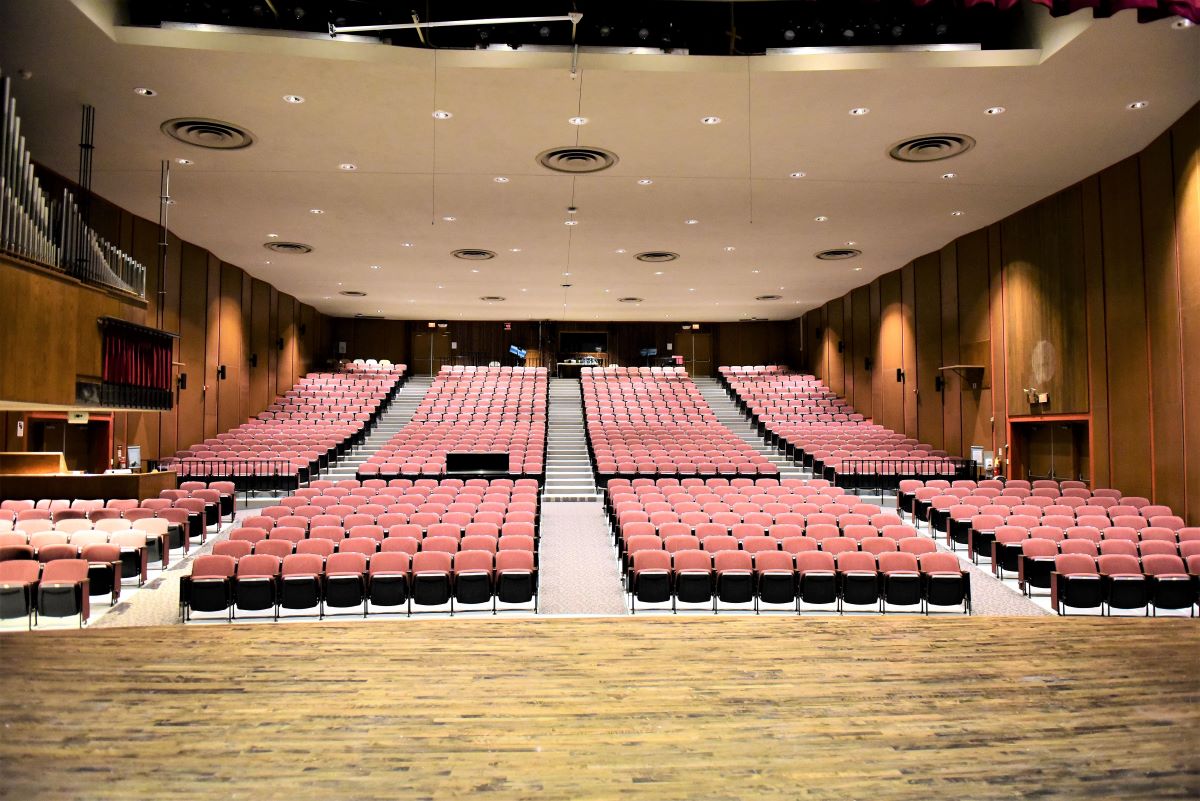

2016-11-11 - Hall interior to rear (Photograph by mlc-wels.edu, submitted by Jeff Scofield/Jeff Scofield)

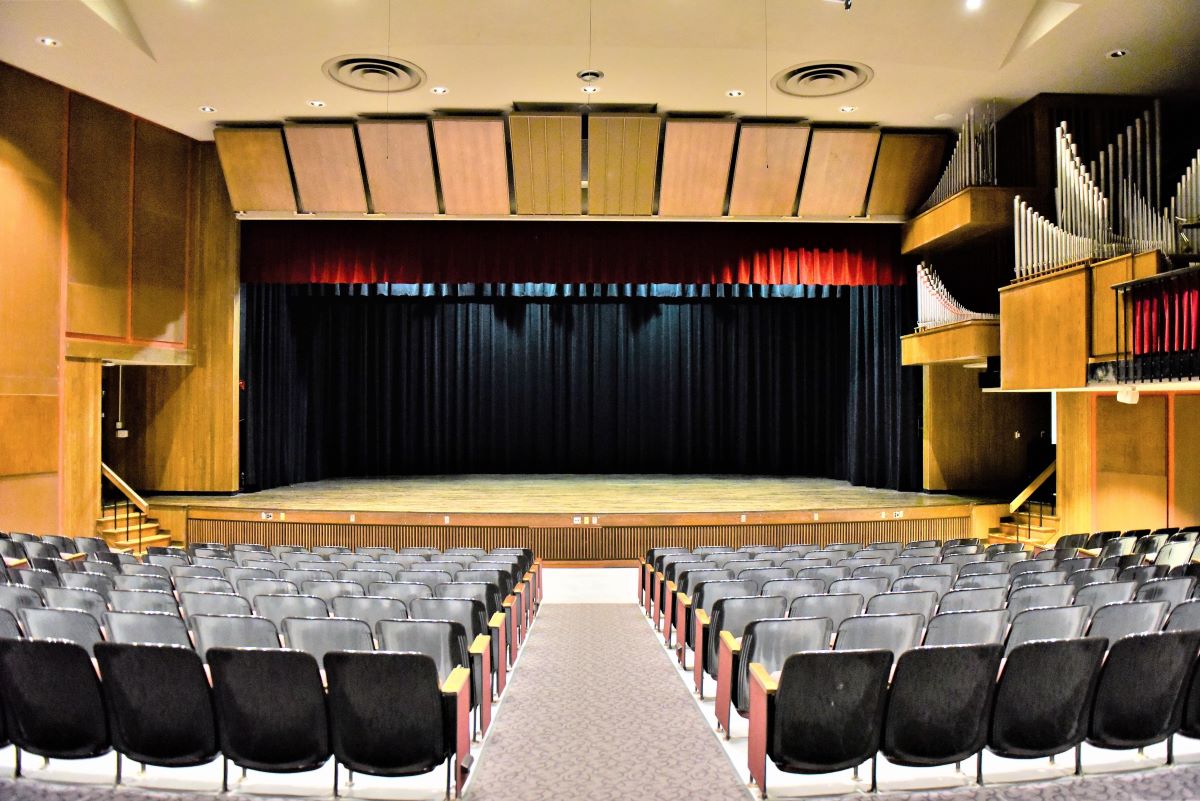

2016-11-11 - Stage, organ and exposed pipes (Photograph by mlc-wels.edu, submitted by Jeff Scofield/Jeff Scofield)

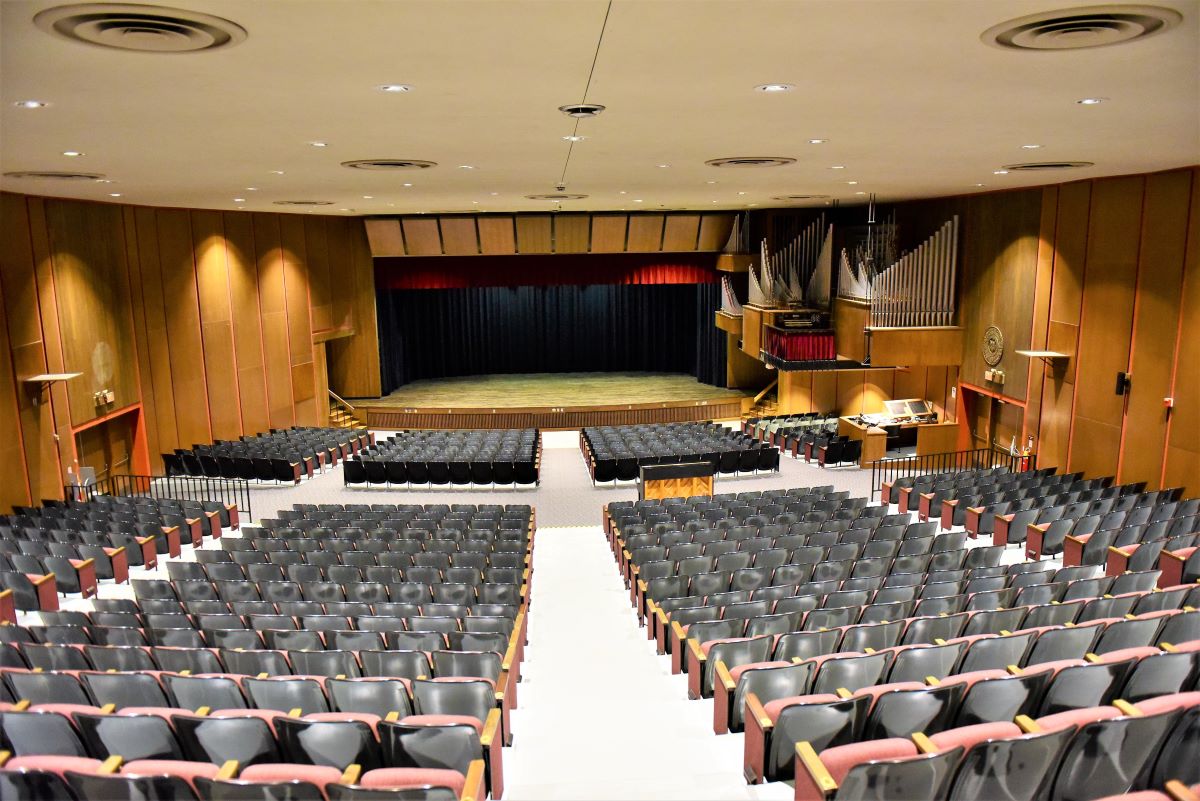

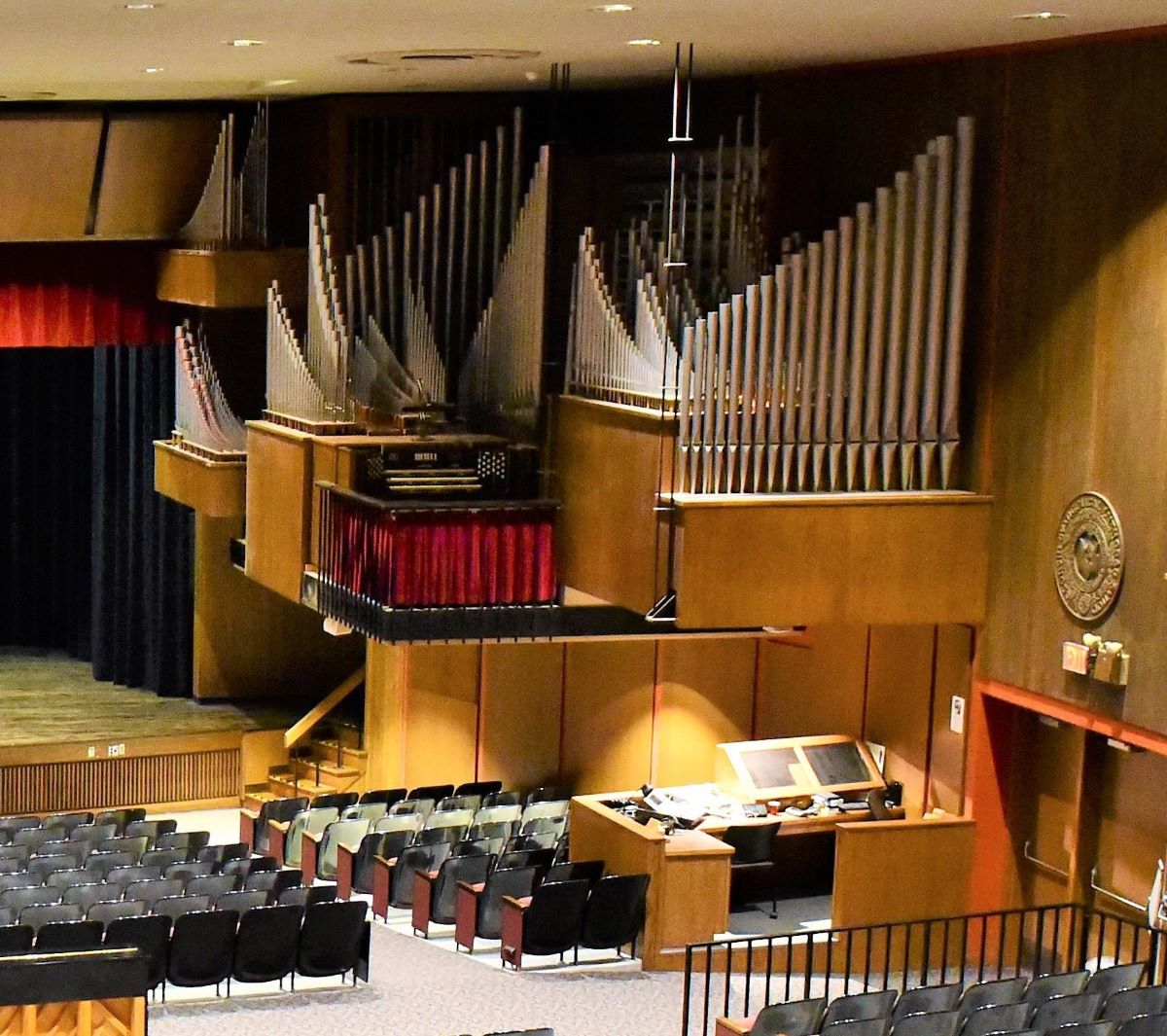

2016-11-11 - Hall interior, organ and exposed pipes (Photograph by mlc-wels.edu, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
3 manuals
33 stops
31 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2006-11-20 - Identified through on-line information from James R. Stettner. -Database Manager

2009-08-15 - Updated through on-line information from Wyatt Smith. -Database Manager

2009-08-17 - Updated through on-line information from Wyatt Smith. -Database Manager

2010-04-05 - Updated through on-line information from Jeff Scofield. -- Paul Bunjes was consultant - the contract required a nameplate to that effect. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       New Ulm, Minnesota
       Martin Luther College, Auditorium

       Casavant   Op. 3083   1971   3/42

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Florida

       GREAT                          CHOR
   16' Pommer          61          8' Rohrgedackt   61  A
    8' Principal       61          4' Spitzflöte    61  A
    8' Konishgedackt   61          4' Schwegel      61  B
    4' Octave          61      2 2/3' Nasat         61  A
2 2/3' Quinte          61          2' Principal     61  B
    2' Octave          61      1 3/5' Terz   tc     49  A
   IV  Mixture        244        III  Rauschzimbel 183  B
    8' Trompete        61          8' Krummhorn     61  B
      (1-12 L/2)                      Tremulant         B

       SWELL                      A - A chest (lower chest)
    8' Salicional      61         B - B chest (upper chest)
    8' Céleste         49 tc
    8' Holzgedackt     61             PEDAL
    4' Harfenprincipal 61         16' Principal     12 (ext. 8' Octave)
    2' Blockflöte      61         16' Gedacktbass   32
   II  Quintenona     120          8' Octave        32
      (1 1/3' & 8/9')              8' Gemshorn      32
  III  Scharf         183          4' Choralbass    32
    8' Schalmey        61         II  Aufzug        --
       Tremulant                  IV  Mixture      128
                                  16' Bombarde      32  3/4-length
                                   4' Chalumeau     32
                                      Bells         pf

[Received on line from Jeff Scofield April 05, 2010.]
