First United Methodist Church
941 Washington St.
Wenatchee, WA
Images

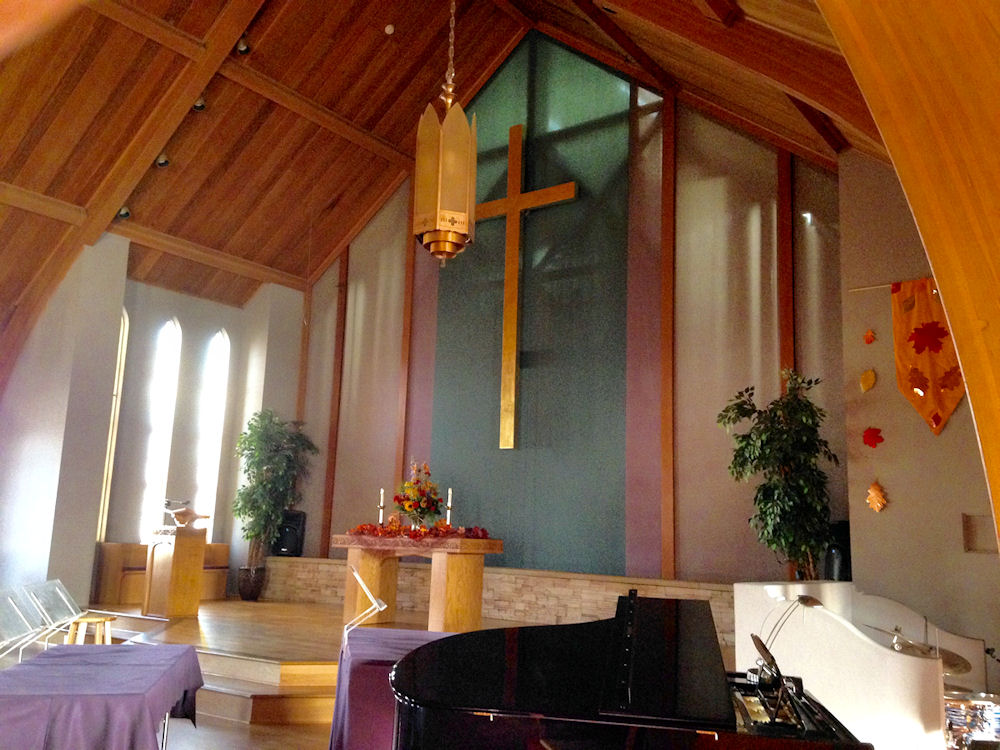

2015-11-18 - Chancel and Chamber Screens (Photograph by James R. Stettner/Database Manager)

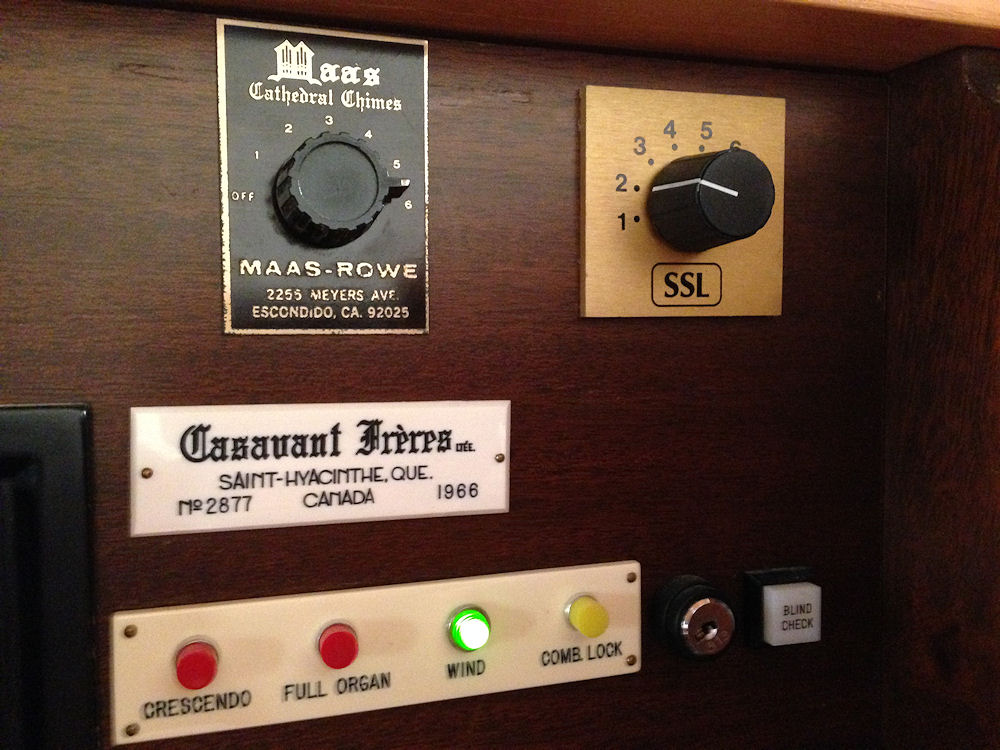

2015-11-18 - Builder's Nameplate and Controls (Photograph by James R. Stettner/Database Manager)

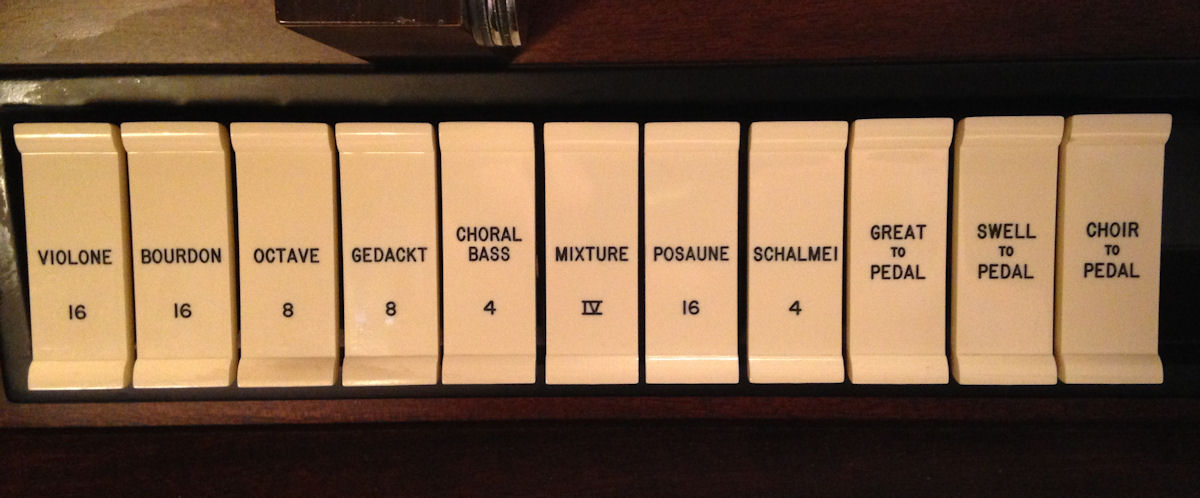

2015-11-18 - Pedal Rocking Tablets (Photograph by James R. Stettner/Database Manager)

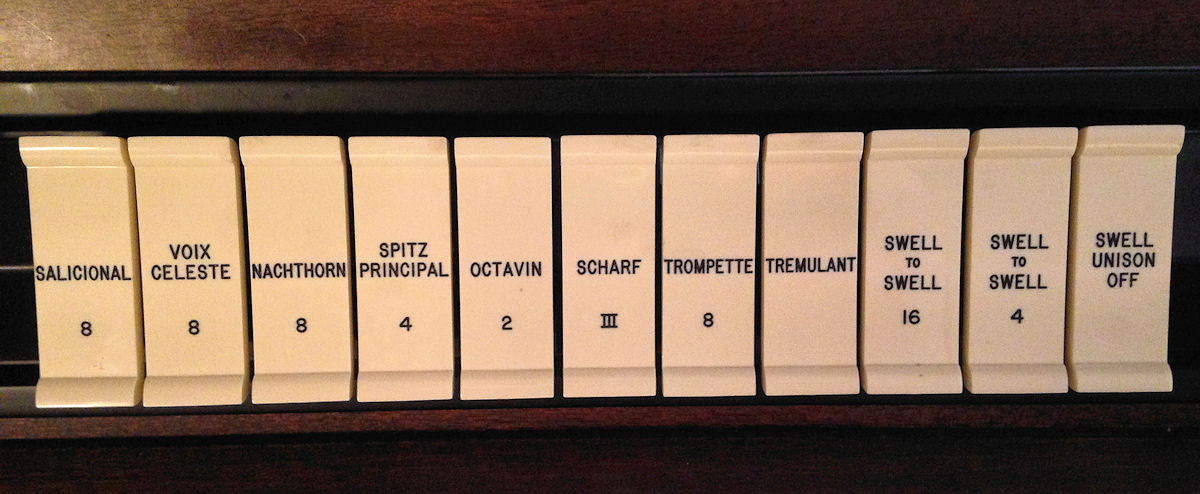

2015-11-18 - Swell Rocking Tablets (Photograph by James R. Stettner/Database Manager)

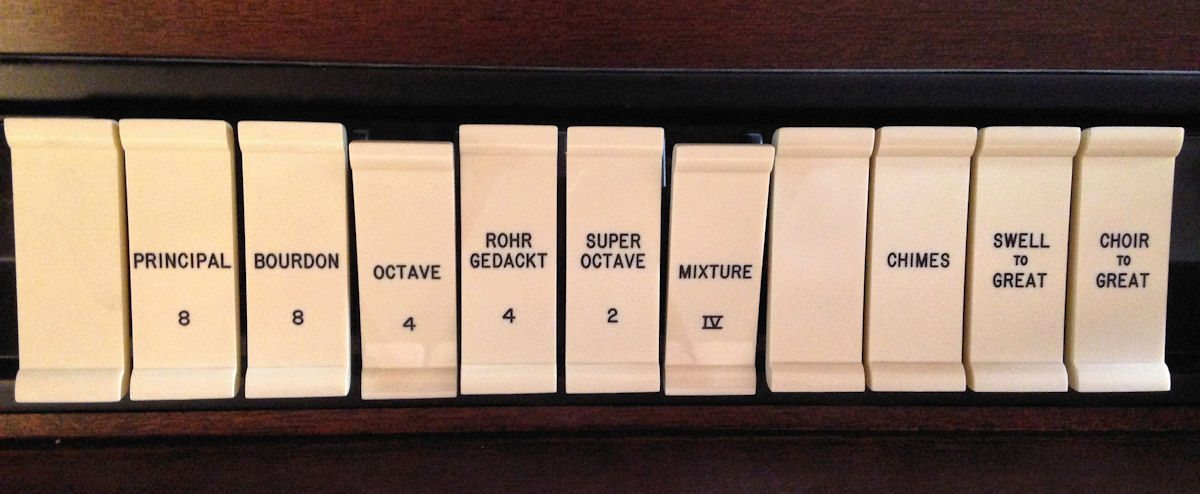

2015-11-18 - Great Rocking Tablets (Photograph by James R. Stettner/Database Manager)

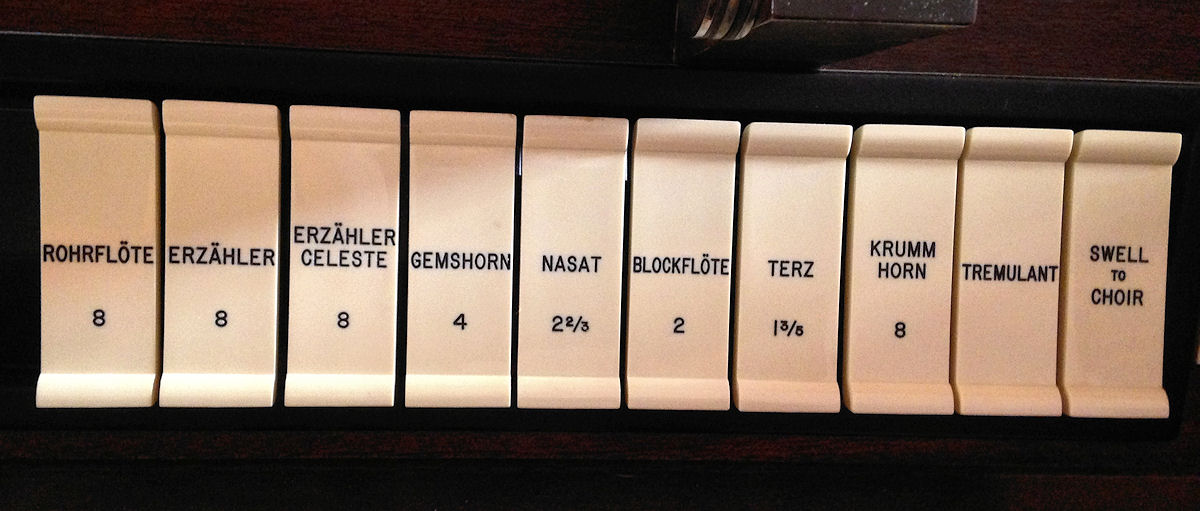

2015-11-18 - Choir Rocking Tablets (Photograph by James R. Stettner/Database Manager)

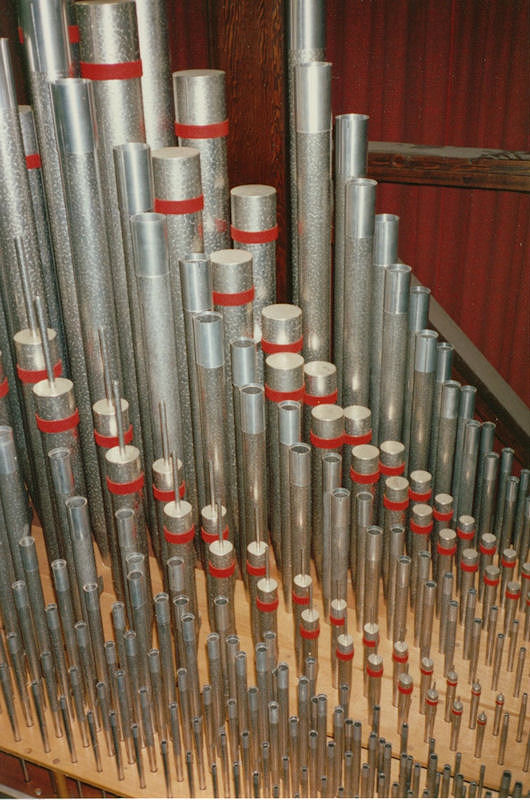

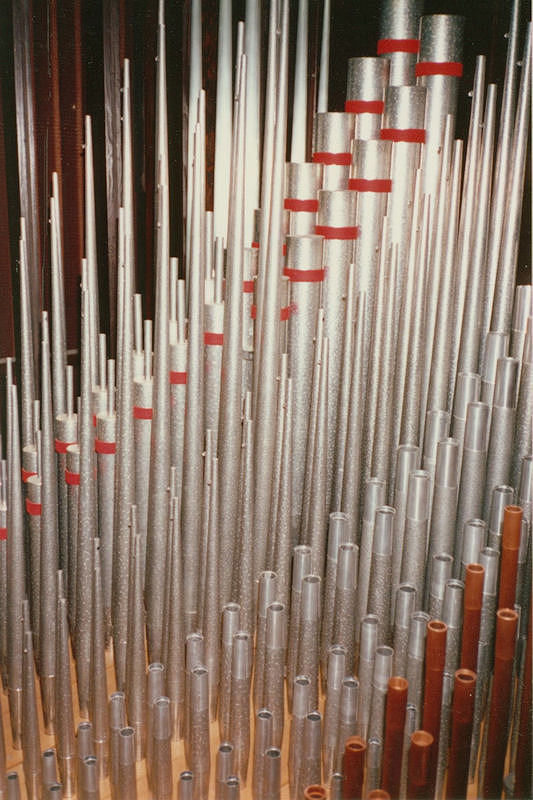

1991-11-14 - Swell Pipework (Photograph by James R. Stettner/Database Manager)

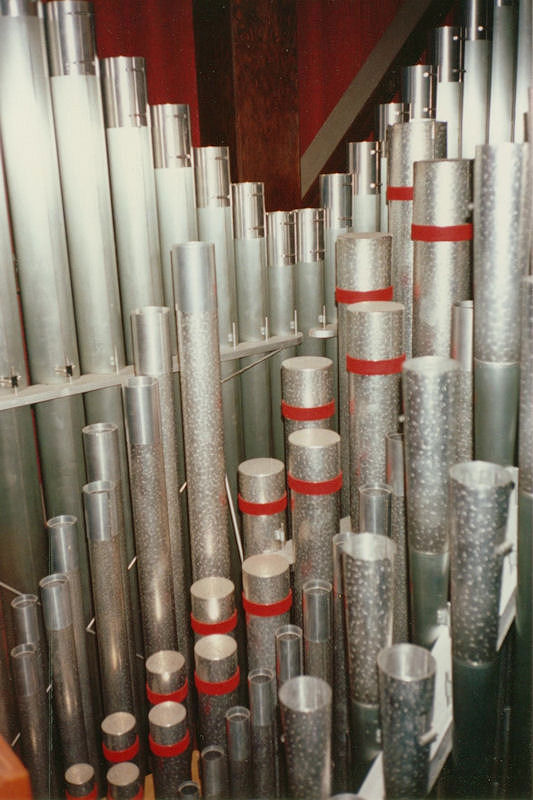

1991-11-14 - Choir Pipework (Photograph by James R. Stettner/Database Manager)
1991-11-14 - Pedal Pipework (Photograph by James R. Stettner/Database Manager)

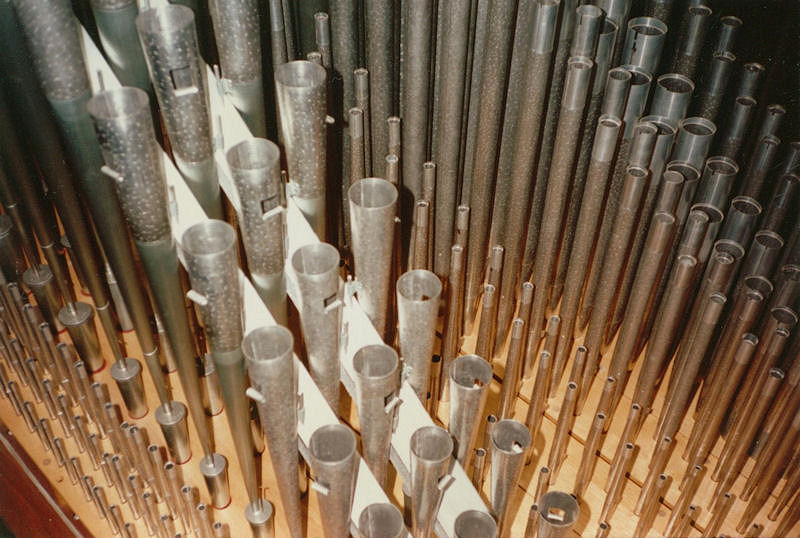

1991-11-14 - Great Pipework (Photograph by James R. Stettner/Database Manager)

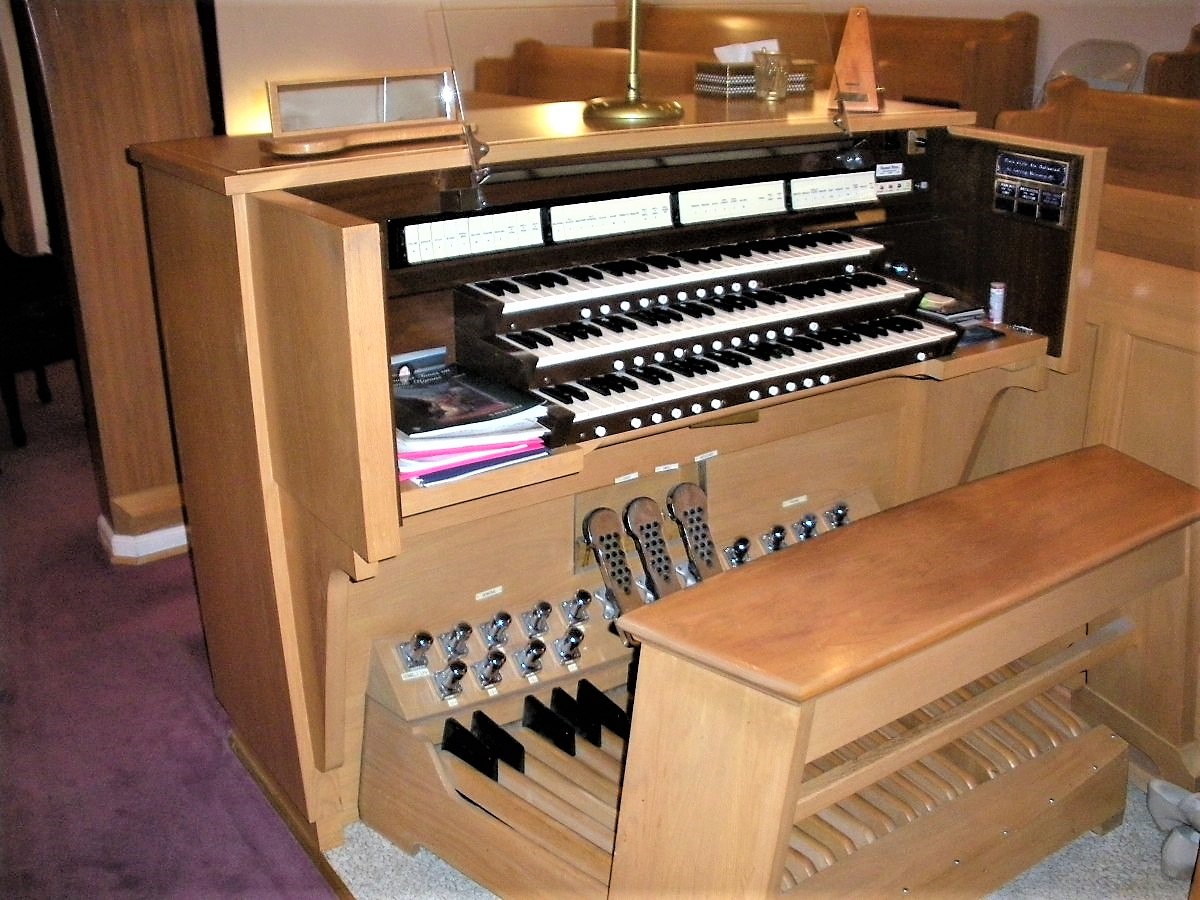

2012-04-04 - Console (Photograph by Jesse Zylstra/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 3 manuals
- 29 stops
- 29 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler toe pistons
- Has tutti toe pistons
Notes
2006-12-27 - Identified through online information from James R. Stettner. -- The Casavant replaced a used, 2/11 1908 Estey that was installed second hand. The Casavant is installed in large chambers across the front which are covered by thick, red, velvet drapes which seriously dampen tonal egress and room acoustics. -Database Manager
2012-03-08 - Updated through online information from Jesse Zylstra. -- Multi-level combination action (a later upgrade to the organ, according to a plaque). A zimbelstern was also added to the instrument. The instrument is also equipped with Maas Cathedral Chimes. Instrument is well maintained and used on a regular basis. The red drapes which were previously installed in the sanctuary that caused the sound to be dampened have been removed. -Database Manager
Stoplist
Stoplist copied from the console November 14, 1991 Source: Source not recorded Date not recorded
Wenatchee, Washington
First United Methodist Church
CASAVANT-FRERES, Ltée., Nº 2877, 1966 - Original Specifications
GREAT COUPLERS
8 Principal 61 Swell to Pedal [8]
8 Bordun 61 Great to Pedal [8]
4 Octave 61 Choir to Pedal [8]
4 Rohr Gedackt 61
2 Super Octave 61 Swell to Great [8]
IV Mixture 1⅓' 244 Choir to Great [8]
Swell to Choir [8]
SWELL (Expressive)
8 Nachthorn 61
8 Salicional 61 FINGER PISTONS
8 Voix Celeste (GG) 54 General 1 – 3
4 Spitz Principal 61 Swell 1 – 3
2 Octavin 61 Swell to Pedal (rev)
III Scharf 2/3' [26-29-33] 183 Swell to Great (rev)
8 Trompete 61 Great 1 – 3
Tremulant Great to Pedal (rev)
Choir 1 – 3
Swell to Swell 16' Pedal 1 – 3
Swell Unison Off Cancel
Swell to Swell 4'
TOE STUDS
CHOIR (Expressive) General 1 – 3
8 Rohr Flöte 61 Swell to Pedal (rev)
8 Erzähler 61 Great to Pedal (rev)
8 Erzähler Celeste (tc) 49 Full Organ (rev)
4 Gemshorn 61 Zimbelstern [199_] (rev)
2-2/3 Nasat 61
2 Block Flöte 61
1-3/5 Terz 61 PEDAL MOVEMENTS
8 Krummhorn 61 Swell Expression (bal.)
Tremulant Choir Expression (bal.)
Crescendo (bal.)
PEDAL
16 Violone 32
16 Bourdon 32
8 Octave 32
8 Gedackt 32 ACTION: E-P primary
4 Choral Bass 32
IV Mixture 2' [15-19-22-26] 128 VOICES: 29 STOPS: 29
16 Posaune 32
4 Schalmei 32 RANKS: 37 PIPES: 1,919
NOTES
The organ is installed at the front of the church, and is entirely hidden from view
behind heavy red drapes. The console and choir are located in a front, right transept.
The divisions are arranged with the Swell at the lower right and the Choir at the
lower left. The Pedal is over the Choir, and the Great is over the Swell.
The only wooden pipes in the entire organ are those belonging to the Pedal 16' Bourdon.
All other pipework is of spotted metal or zinc. Reed blocks are of lead.
The zimbelstern toestud was added by Balcom and Vaughan in 199_.
The organ cost $35,000.00.
Sources: Casavant-Freres, Ltée. opus list, extant organ
[Received from James R. Stettner 2012-06-24.]Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Wenatchee, Washington
First Methodist Church
Casavant Op. 2877 1966 3/37
Courtesy of the Casavant Frères Archives
St. Hyacinthe, Québec, Canada
GREAT CHOIR
8' Principal 61 8' Rohrflöte 61
8' Bordun 61 8' Erzähler 61
4' Octave 61 8' Erzähler Celeste 49 tc
4' Rohrgedackt 61 4' Gemshorn 61
2' Super Octave 61 2 2/3' Nasat 61
IV Mixture 244 2' Blockflöte 61
1 3/5' Terz 61
SWELL 8' Krummhorn 61
8' Salicional 61 Tremulant
8' Voix Céleste 54 GG
8' Nachthorn 61 PEDAL
4' Spitzprincipal 61 16' Violone 32
2' Octavin 61 16' Bourdon 32
III Scharf 183 8' Octave 32
8' Trompete 61 8' Gedackt 32
Tremulant 4' Choralbass 32
Sub IV Mixture 128
Unison Off 16' Posaune L/2 32
Super 4' Schalmei 32
[Received on line from Jeff Scofield April 01, 2010.]
