Better Pipe Organ Database

Casavant Frères Ltée. Opus 3756 (1997)

Central Michigan University: Music Building - Staples Family Concert Hall
Mount Pleasant, MI

Images

0222-05-13 - Exposed pipes (Photograph by J Granger & Associates, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

2022-05-13 - Auditorium interior (Photograph by J Granger & Associates, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

2021-10-28 - Console (Photograph by J. Granger & Associates, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

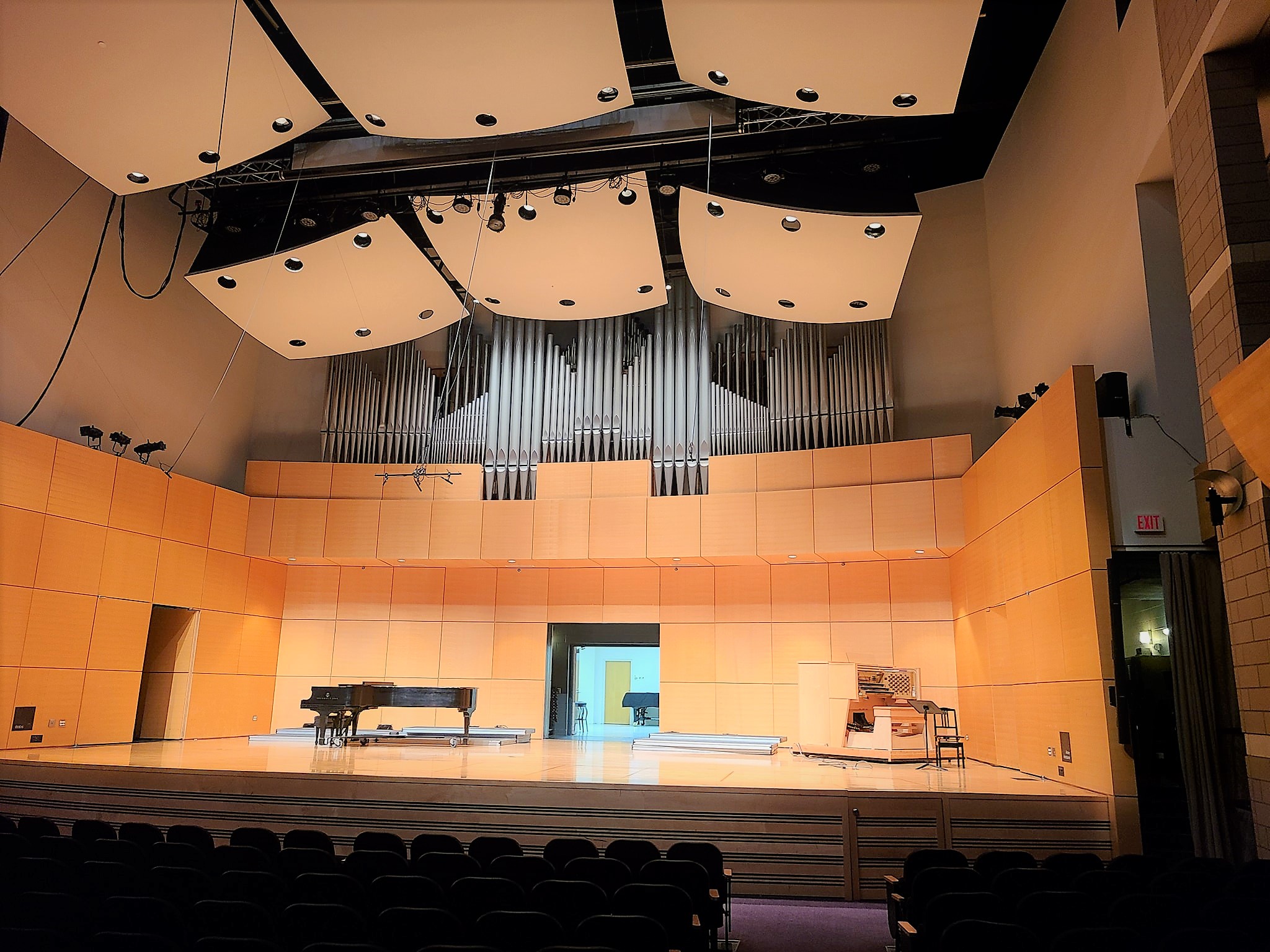

2021-10-28 - Auditorium interior (Photograph by J. Granger & Associates, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
41 stops
68 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-02-13 - Information from online data (source: Casavant Freres website). Pipe count calculated from annotated stoplist. -Database Manager

2010-07-21 - Updated through online information from Jeff Scofield. -Database Manager

2010-07-22 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Mount Pleasant, Michigan
       Central Michigan University

       Casavant   Op. 3756   1997   3/61

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada
       ________________________________________________________

       GRAND ORGUE                          POSITIV (exp)
   32' Bourdon              --          16' Bourdon  (wood)      12
      (tc from No. 33,                   8' Salicional           61
       1-12 resultant)                   8' Voce umana        GG 54
   16' Violon               12           8' Bourdon              61
   16' Bourdon              PO           4' Prestant             61
    8' Montre               61           4' Flûte à fuseau       61
    8' Violon               61           2' Doublette            61
    8' Flûte harmonique     49       1 1/3' Larigot              61
      (1-12 from Flûte à chem)          II  Sesquialtera        122
    8' Flûte à cheminée     61          IV  Cymbale             244
    4' Prestant             61           8' Cromorne             61
    4' Flûte                61              Tremblant
    2' Doublette            61              Sub
  III  Cornet              183              Unison Off
II-IV  Grande fourniture   223              Super
   IV  Fourniture          244          16' Bombarde royale      GO
   16' Contre Trompette     12           8' Trompette royale     GO
    8' Trompette            61              MIDI
       Sub
       Unison Off                           PÉDALE
   16' Bombarde royale      tc          32' Basse acoustique I   --
    8' Trompette royale     61          32' Basse acoustique II  --
      (high pressure, hooded)           16' Montre               12
       MIDI                                (ext. of Octavebasse 8')
                                        16' Soubasse             32
       RÉCIT                            16' Violon               GO
    8' Principal étroit     61          16' Bourdon              PO
    8' Viole de gambe       61           8' Octavebasse          32
    8' Voix céleste      GG 54           8' Flûte bouchée        12
    8' Flûte majeure        61           8' Violon               GO
    4' Octave               61           8' Bourdon              PO
    4' Flûte à cheminée     61           4' Octave               32
2 2/3' Nazard               61           4' Flûte                GO
    2' Quarte de nazard     61           V  Mixture             160
1 3/5' Tierce               61          32' Contre bombarde L/2  12
    V  Plein jeu           305          16' Bombarde             32
   16' Basson      L/2      12          16' Contre trompette    [pf]
    8' Trompette harmonique 61          16' Basson               RE
    8' Hautbois             61           8' Trompette            12
    8' Voix humaine         61           8' Basson               RE
    4' Clairon harmonique   61           4' Clairon              12
       Tremblant                         4' Hautbois             RE
       Sub                               4' Cromorne             PO
       Unison Off                        8' Trompette royale     GO
       Super                                MIDI
       MIDI
