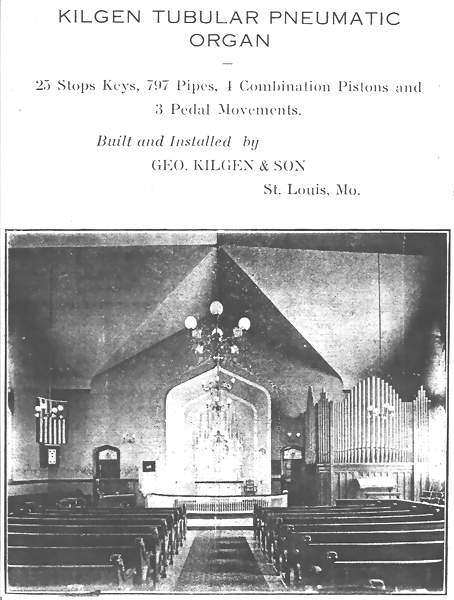

1918-01-01 - Chancel and organ (Cover, organ dedication program in church archives/Database Manager)
Note: Not extant. Not playable. (in this location)
2007-03-14 - Identified through online information from James R. Stettner. -- The organ was free-standing and encased in the front, right corner of the room. The keydesk was attached and projecting. The facade had 15 pipes along the left side; a short diagonal flat of 5 pipes at each front corner; and a front flat of 25 pipes. The organ was dedicated on June 21, 1918. Some discrepancies exist as to the exact stoplist for the organ. William Bunch's spec states that the organ has 12 ranks and 682 pipes. The dedicatory program cover says the organ has "25 stop keys, 797 pipes, 4 Combination Pistons, and 3 Pedal Movements." It is also not known if the Swell 8' Vox Celeste II was actually II ranks, or if it was one rank - also drawing either the 8' Muted Viol or 8' Orchestral Violin with it. Also uncertain is whether the Pedal 16' Lieblich Gedeckt was a complete independent rank, an extension of the Swell 8' Stopped Flute, or the Pedal 16' Bourdon on "soft wind." -Database Manager
Extrapolated from Balcom and Vaughan files Source: Source not recorded Date not recorded
Portland, Oregon
Immanuel Lutheran
Geo. Kilgen & Son, Opus ___, 1918
GREAT
8' Open Diapason 61
8' Melodia 61
8' Dulciana 61
4' Flute 61
SWELL (Expressive)
8' Open Diapason 61
8' Stopped Flute 61
8' Orchestral Violin 61
8' Muted Violin 61
8' Vox Celeste II ??
4' Flute Harmonic 61
8' Vox Humana 61
Tremolo
Swell to Swell 16'
Swell to Swell 8'
Swell to Swell 4'
PEDAL
16' Bourdon 30
16' Lieblich Gedeckt ??
8' Flute 12
COUPLERS
Swell 8 [to Pedal]
Swell 4 [to Pedal]
Great 8 [to Pedal]
Swell 16 [to Great]
Swell 8 [to Great]
Swell 4 [to Great]
FINGER PISTONS
Swell & Pedal 1 & 2
Great & Pedal 1 & 2
FOOT LEVERS
Gr. to Ped. (rev)
PEDAL MOVEMENTS
Swell Expression (bal.)
Crescendo (bal.)
ACTION: Tubular-Pneumatic
VOICES: 13 or 14
STOPS: 14
RANKS: 13 or 14
PIPES: 797 ?
NOTES
The organ was dedicated on June 21, 1918. It was free-standing and
encased in the front, right corner of the room. The keydesk was attached
and projecting. And the facade had 15 pipes along the left side; a short
diagonal flat of 5 pipes at each front corner; and a front flat of 25
pipes.
The preceding specification was assembled from a variety of sources:
1) Examination of photos of the organ in the church archives.
2) Existing pipework in the home organ of Portland Resident, Lou Paff.
3) A specification provided by William J. Bunch of Balcom and Vaughan
Pipe Organs of Seattle, WA; and
4) Comparison with documented examples of organs from the same period
by this builder.
Some discrepancies, however, still exist. William Bunch's spec states
that the organ has 12 ranks and 682 pipes. The dedicatory program cover
says the organ has "25 stop keys, 797 pipes, 4 Combination Pistons, and
3 Pedal Movements." It is also not known if the Swell 8' Vox Celeste II
was actually II ranks, or if it was one rank - also drawing either the 8'
Muted Viol or 8' Orchestral Violin with it. Also uncertain is whether the
Pedal 16' Lieblich Gedeckt was a complete independent rank, an extension
of the Swell 8' Stopped Flute, or the Pedal 16' Bourdon on "soft wind."
[Received on line from James R. Stettner April 19, 2009.]Regrettably, it is not possible to display the information about the sponsor of this pipeorgandatabase entry or if there is a sponsor. Please see About Sponsors on Pipe Organ Database.
