2007-03-14 - Identified through online information from James R. Stettner. -- This is a new organ - utilizing a very limited amount of the previous electrified 1918 Kilgen. The existing console shell and pedalboard from the 1955 electrification were reused. The Swell 4' Holz Flote is the original 4' Flute d'Amour and is the only complete old rank retained from the original Kilgen in the new organ. The bottom 12 pipes of the Swell 8' Bordun and the 16' Bordun extension are also retained from the original Kilgen. -Database Manager
2007-03-15 - Updated through online information from James R. Stettner. -Database Manager
2020-11-06 - Syndyne 8400 combination action and switching system installed in 2020 by Hochhalter, Inc. Includes new tilting-tablets (OSI). -Lanny Hochhalter
Stoplist taken from the console January 22, 1990 Source: Source not recorded Date not recorded
Portland, Oregon
First Immanuel Lutheran
Balcom and Vaughan Pipe Organs, Inc., Opus 832, 1978
GREAT
16 Bourdon (Sw) --
8 Prinzipal 61
8 Rohr Gedeckt 61
8 Bourdon (Sw) --
8 Spitz Gamba (Sw) --
4 Octave 61
4 Italian Principal (Sw) --
2 Flach Flote 61
III-IV Mixture 232 Beginning composition: 19-22-26
8 Hautbois (Sw) --
Great to Great 4'
SWELL (Expressive)
8 Bordun 61
8 Spitz Gamba 61
8 Spitz Gamba Celeste (tc) 49
4 Italian Principal 61
4 Holz Flote 61
2-2/3 Nasat 61
2 Bordun 12 Extension of the 4' Holz Flote.
1-1/3 Quint Flote 12 Extension of the 2-2/3' Nasat.
16 Basson 12 Extension of the 8' Hautbois.
8 Hautbois 61
Tremulant
one blank stop tablet
Swell to Swell 16'
Swell Unison Off
Swell to Swell 4'
PEDAL
16 Sub Bass 32
16 Bordun (Sw) 12 Extension of the Sw. 8' Bordun.
8 Octav Bass 32
8 Bordun (Sw) --
8 Spitz Gamba (Sw) --
4 Choral Bass 12 Extension of the 8' Octav Bass.
4 Rohr Flote (Gt) --
2 Octavin 12 Extension of the 8' Octav Bass.
III Mixtur 12 Extension of the 8' Octav Bass. Beginning composition: 15-19-22.
16 Basson (Sw) 12
4 Hautbois (Sw) --
COUPLERS
Swell to Pedal 8
Great to Pedal 8
Swell to Great 16,8,4
FINGER PISTONS
General 1 - 6
Swell 1 - 4
Great 1 - 4
Pedal 1 - 4
Gen Can
TOE STUDS
General 1 - 6
Pedal 1 - 4
Gt - Ped (rev)
PEDAL MOVEMENTS
Nave Expression (bal.)
Chancel Expression (bal.)
Crescendo (bal.)
ACTION: Electro-Pneumatic unit (Kilgen-style)
VOICES: 14
STOPS: 31
RANKS: 17
PIPES: 1,051
NOTES

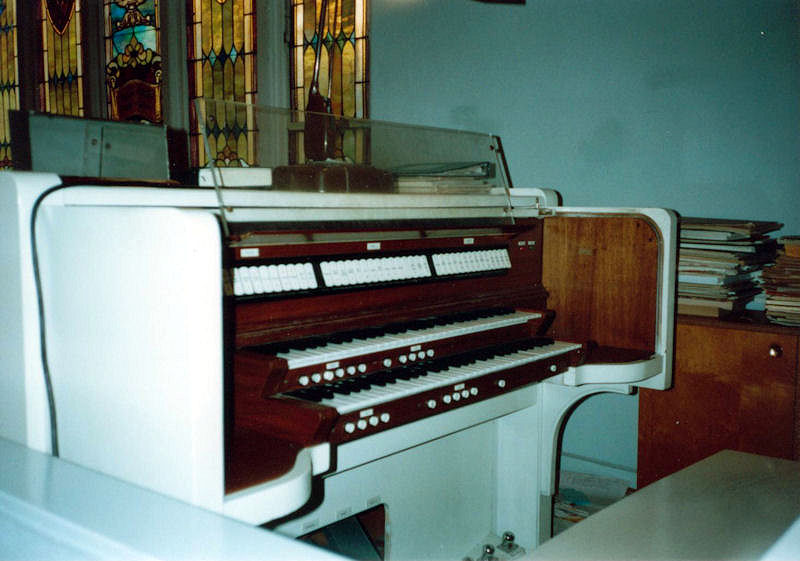

The existing console shell and pedalboard were reused. The Swell 4' Holz
Flote is the original 4' Flute d'Amour and is the only complete old rank
retained from the original Kilgen in the new organ. The bottom 12 pipes
of the Swell 8' Bordun and the 16' Bordun extension are also retained
from the original Kilgen.
The Swell 1 1/3' Quint Flote is a 12-pipe extension of the 2 2/3' Nasat.
The Swell 2' Bordun is an extension of the 4' Holz Flote. The Pedal III
Mixture is entirely derived/extended from the Pedal 8' Principal / 4'
Choral Bass / 2' Octavin unit.
SOURCES: Balcom and Vaughan opus list and archives; extant organ.
[Received on line from James R. Stettner March 02, 2009.]
[Received on line from James R. Stettner March 02, 2009.]Stoplist from PortlandORgans.com (now inoperative) Source: Source not recorded Date not recorded
