2007-03-14 - Identified through online information from James R. Stettner. -- Essentially a unit organ - but with an exposed Great and an independent Pedal 16' Soubasse. The Peterson chimes were added in 1989, and are located in the Swell enclosure, but playable from the Great. The organ has two prepared-for stops. -Database Manager
2007-03-15 - Updated through online information from James R. Stettner. -Database Manager
Stoplist taken from the keydesk January 24, 1990 Source: Source not recorded Date not recorded
Portland, Oregon
Good Shepherd Lutheran
Clele D'Autremont Pipe Organ Builder, 1969 - "Ensemble Classique"
GREAT SWELL (Expressive) PEDAL
16 Gemshorn Bass 8 Rohr Flote 16 Violone
8 Prinzipal 8 Gemshorn 16 Soubasse
8 Rohr Flote 8 Voix Celeste 8 Prinzipal
8 Gemshorn 4 Copula 8 Rohr Bordun
4 Octave 4 Flute a Cheminee 8 Gemshorn
4 Flute a Cheminee 4 Gemshorn Octave 5-1/3 Gemshorn Quinte
2 Super Octav 2 Octavin 4 Choral Bass
IV Fourniture 2 Flute d'Bois 4 Rohr Pommer
8 Trompete 1-1/3 Quint Flote 2 Nachthorn
4 Klarine 1 Sifflote IV Mixture
Carillon 8 Trompete 16 Posaune
8 Trompete
4 Kornett
STOP / RANK / PIPE ANALYSIS
16 Violone (Ped) -- Prepared for.
16 Soubasse (Ped) 32
16 Gemshorn Bass (Gt) -- Tenor C. From the 8' Gemshorn.
8 Prinzipal (Gt/Ped) 61 Unenclosed.
8 Gemshorn (Gt/Sw/Ped) 61
8 Voix Celeste (Sw) -- Prepared for.
8 Rohr Flote (Gt/Sw) 61
8 Rohr Bordun (Ped) -- Same as the 8' Rohr Flote.
5-1/3 Gemshorn Quinte (Ped) -- From the Gemshorn unit.
4 Octave (Gt) 61 Unenclosed.
4 Choral Bass (Ped) -- From the Great 4' Octave.
4 Copula (Sw) -- The Great 4' Octave borrowed to the Swell.
4 Gemshorn Octave (Sw) 12 Extension of the 8' Gemshorn.
4 Flute a Cheminee (Gt/Sw) 12 Extension of the 8' Rohr Flote.
4 Rohr Pommer (Ped) -- Same as the 4' Flute a Cheminee.
2 Super Octav (Gt) 12 Extension of the Great 4' Octave.
2 Octavin (Sw) -- Prepared for.
2 Flute d'Bois (Sw) 12 Extension of the 8' Rohr Flote.
2 Nachthorn (Ped) -- From the Gemshorn unit.
1-1/3 Quint Flote (Sw) -- Derived from the Rohr Flote unit.
1 Sifflote (Sw) -- From the Rohr Flote unit. Top octave repeats.
IV Fourniture (Gt) 244 Unenclosed. Starting pitches: 19-22-26-29.
IV Mixture (Ped) --- Same as the Great IV Fourniture.
16 Posaune (Ped) 12 Extension of the 8' Trompete.
8 Trompete (Gt/Sw/Ped) 61
4 Klarine (Gt) 12 Extension of the 8' Trompete.
4 Kornett (Ped) -- Same as the 4' Klarine.
Carillon (Gt) (21) Peterson. Added as a memorial gift in 1989.
PIPE SUMMARY
Soubasse...................32 pipes
Prinzipal..................61 pipes
Gemshorn...................73 pipes
Rohr Flote.................85 pipes
Octave.....................73 pipes
Fourniture................244 pipes
Trompette..................85 pipes
FINGER PISTONS
General 1 - 3
Swell 1 - 3
Great 1 - 3
G.C.
TOE STUDS
General 1 - 3
PEDAL MOVEMENTS
Swell Expression (bal.)
Crescendo (bal.)
ACTION: Electro-Pneumatic unit
VOICES: 7
STOPS: 35
RANKS: 10
PIPES: 653
NOTES

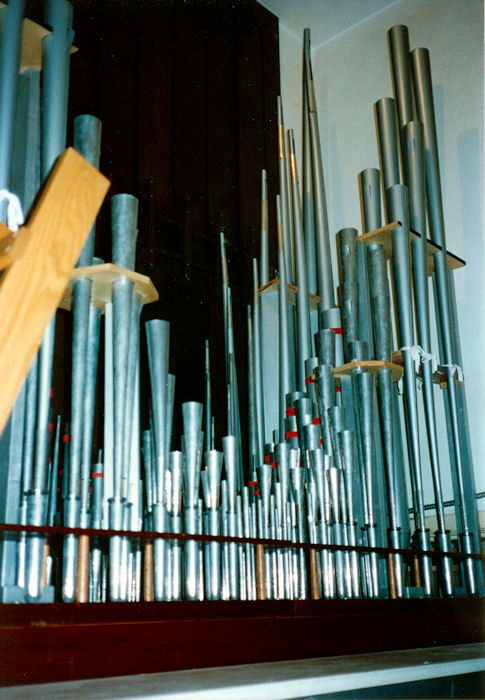

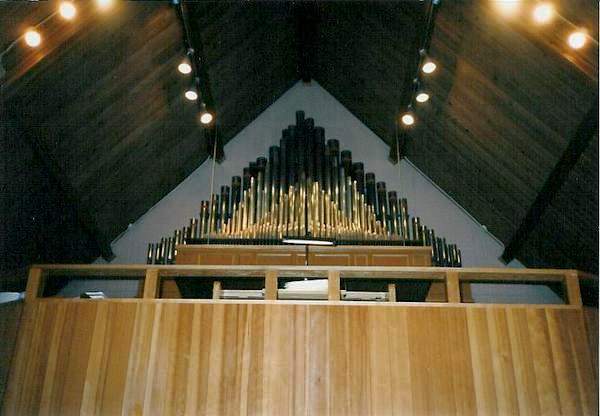

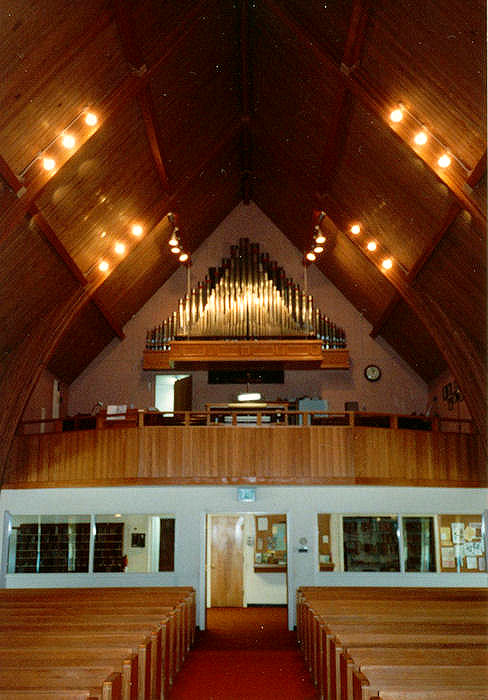

The organ is installed in the rear gallery with the Great Principal
chorus unenclosed, and the rest of the pipes in an expressive chamber.
The Carillon (chimes) were added as a memorial gift in 1989. They are by
Peterson, and while playable from the Great manual, are enclosed in the
chamber. Their compass is 21 notes from tenor A thru f 42.
SOURCES: Extant organ
[Received on line from James R. Stettner March 02, 2009.]
[Received on line from James R. Stettner March 02, 2009.]Stoplist from PortlandORgans.com (now inoperative) Source: Source not recorded Date not recorded
