Better Pipe Organ Database

W. Zimmer & Sons, Inc. Opus 111 (1973)

Central Baptist Church, Woodmore / New Monumental Baptist Church: Sanctuary
901 Woodmore Lane
Chattanooga, TN

Images

1989-11-01 - Sanctuary interior from balcony (Photograph by Jeff Scofield/Database Manager)

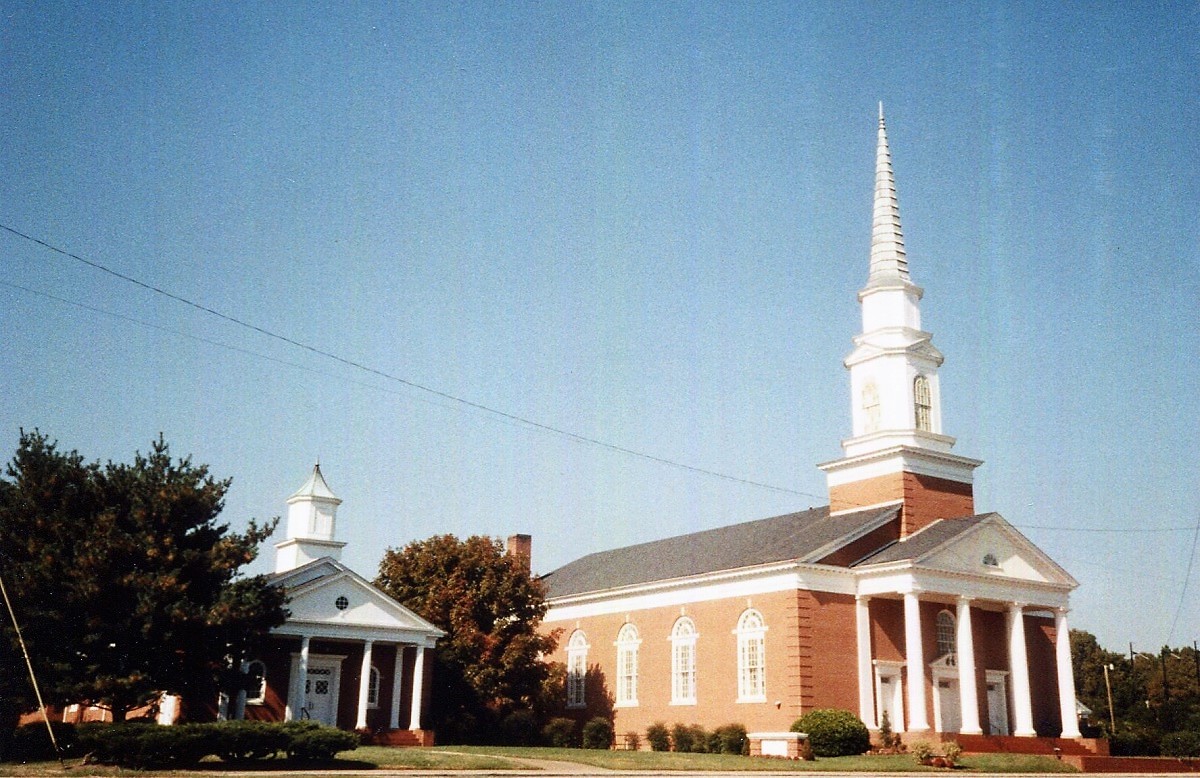

1989-11-01 - Church exterior (Photograph by Jeff Scofield/Database Manager)

1989-11-01 - Antiphonal and en-Chamade (Photograph by Jeff Scofield/Database Manager)

1989-11-01 - Console (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Left
3 manuals
38 stops
43 registers
6 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Setterboard
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons

Notes

2007-04-29 - Identified through online information from Jeff Scofield. -- The organ was installed as a 3/48; a half-length Trompette-en-Chamade was added by Zimmer to the Antiphonal c.1980. The church was sold in the late 1990s to New Monumental Baptist Church. -Database Manager

Stoplist

Stoplist from the console November 1, 1989 Source: Source not recorded Date not recorded

       Chattanooga, Tennessee
       Central Baptist Church, Woodmore

       Zimmer   1973   Op. 111   3/49
       ________________________________________

       GREAT                     SWELL
   16' Quintadena             8' Rohrflöte
    8' Principal              8' Salicional
    8' Gedackt                8' Celeste
    4' Octave                 4' Principal
    4' Spillflöte             4' Koppelflöte
    2' Super Octave           2' Blockflöte
III-V  Mixture               II  Sesquialtera
    8' Trompete             III  Scharf
       Unison Off             8' Fagott
                                 Tremolo
       POSITIV                   Sub
    8' Holzgedackt               Unison Off
    4' Spitzflöte                Super
    2' Principal
1 1/3' Nasat                     PEDAL
    1' Sifflet               16' Principal
  III  Zibel                 16' Subbass
    8' Schalmeiregal         16' Quintadena  GT
       Tremolo                8' Octave Bass
       Unison Off             8' Pommer
                              4' Choralbass
       ANTIPHONAL (encl)      4' Rohrflöte
    8' Principal            III  Mixture
    8' Bourdon               16' Posaune
    8' Gemshorn               4' Schalmei
    8' Gemshorn Celeste
    4' Octave      (ext)         ANTIPH PEDAL
    4' Rohrflöte   (ext)     16' Bourdon   (ext)
    2' Rohrflöte   (ext)
       Tremolo
    8' Trompette-en-Chamade (1980)
      (unenclosed, half-length)

   [Received online from Jeff Scofield  May 15, 2011]
