Schantz Organ Co. Opus 870 (1966)

Immanuel Presbyterian Church: Sanctuary
3445 Clifton Avenue
Cincinnati, OH

Images

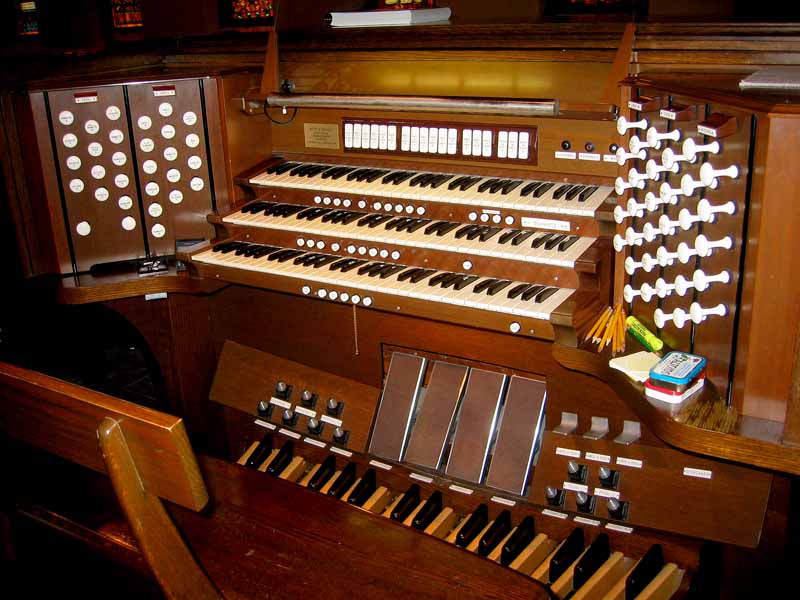

2007-07-18 - Console (Photograph by Jeff Scofield/Database Manager)

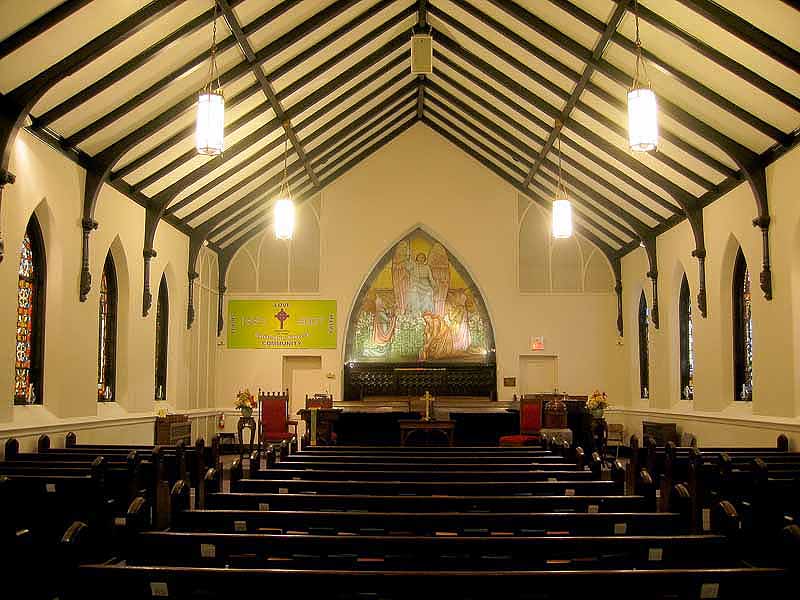

2007-07-18 - Chancel and nave (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
38 stops
25 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-07-26 - Identified through on-line information from Jeff Scofield. -- The organ is installed in small chambers on each side of the front wall, with plain screen in front of each. -Database Manager

2013-04-03 - Updated through online information from Don Hurd. -- Betty Hoensch was the organist for 49 years--a magnificent musician and recitalist. I play an annual recital on this instrument for the Clifton Music Club. The neighborhood is called Clifton. -Database Manager

Stoplist

Stoplist from <i>The Diapason</i> August 1968 and from the console Source: Source not recorded Date not recorded

     Cincinnati, Ohio
     Immanuel Presbyterian Church

     Schantz   Op. 870   1966   3/29
     __________________________________________

     GREAT                     CHOIR
  8' Principal              8' Gedeckt
  8' Bourdon                8' Erzähler
  4' Octave                 8' Erzähler Celeste
  4' Bourdon      12        4' Kleinflöte
  2' Super Octave       2 2/3' Nazard
 IV  Fourniture             2' Spitz Octav
     Tremolo            1 1/3' Nasat
     Sub                    8' Krummhorn
     Unison Off                Tremolo
     Super                     Sub
     Chimes                    Unison Off
                               Super
     SWELL
 16' Rohrflöte    12           ANTIPHONAL
  8' Rohrflöte              9  blank knobs
  8' Viole
  8' Viole Celeste             PEDAL
  4' Prestant              32' Resultant        --
  4' Waldflöte             16' Bourdon
  2' Flöte        12       16' Viole            12 SW
III  Plein Jeu             16' Rohrflöte        SW
  8' Trumpet                8' Octave
  8' Oboe                   8' Bourdon          12
  4' Rohrschalmei           8' Rohrflöte        SW
     Tremolo                4' Choralbass       12
     Sub                    4' Bourdon          12
     Unison Off             2' Doublette        12
     Super                 16' Contre Trompette 12 SW
                            8' Trompette        SW
                            4' Rohrschalmei     SW

                               ANTIPHONAL PEDAL
                            2  blank knobs

    [Received online from Jeff Scofield  April 27, 2011]
