Better Pipe Organ Database

Casavant Frères Ltée. Opus 3309 (1976)

Indian Hill Episcopal-Presbyterian Church: Sanctuary
6000 Drake Road
Cincinnati, OH

Note: Not extant. Not playable. (in this location)

Images

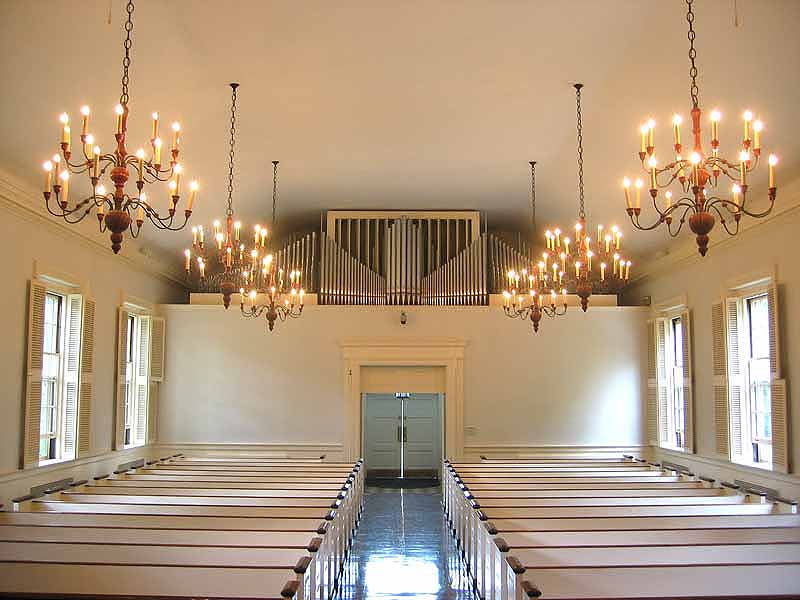

2007-07-19 - Organ gallery from chancel (Photograph by Jeff Scofield/Database Manager)

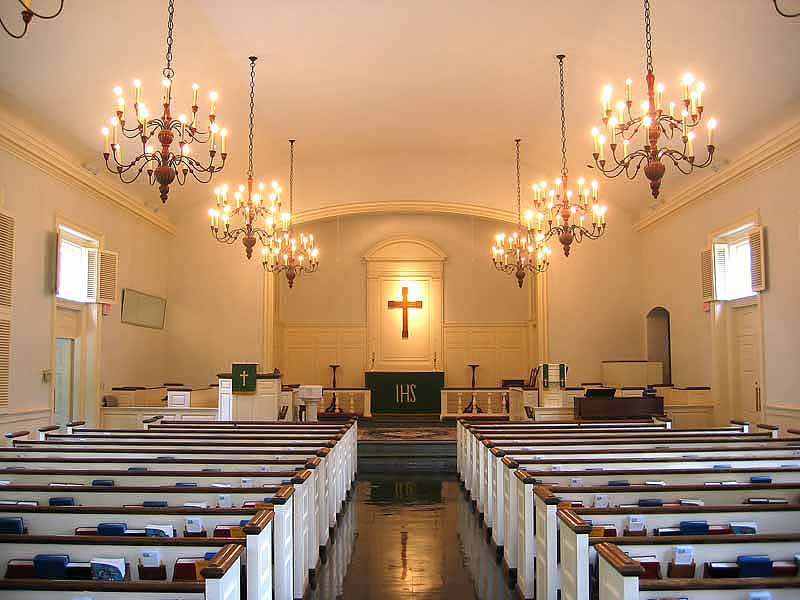

2007-07-19 - Chancel and nave (Photograph by Jeff Scofield/Database Manager)

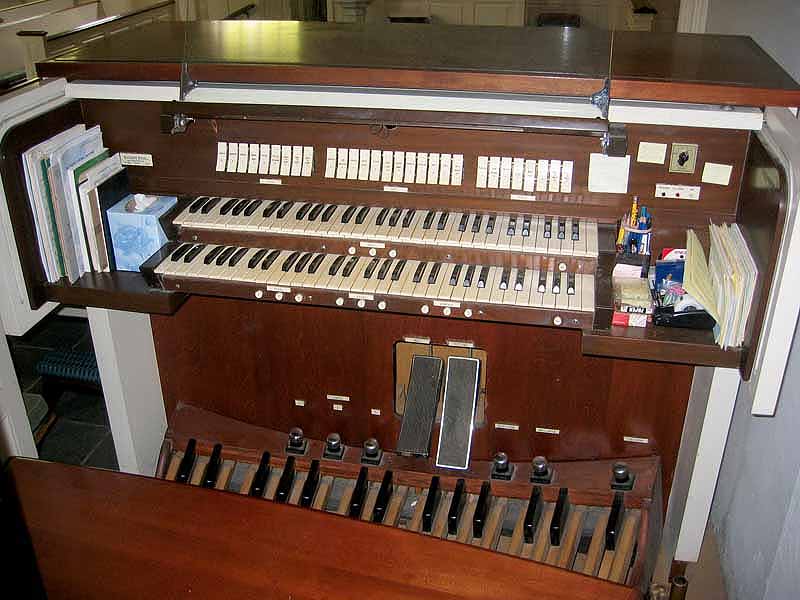

2007-07-19 - Console (Photograph by Jeff Scofield/Database Manager)

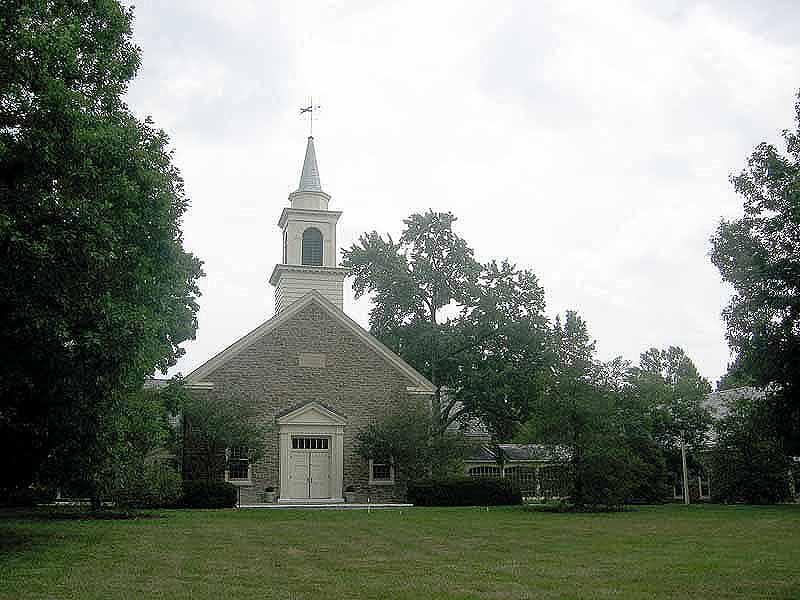

2007-07-19 - Church exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
20 stops
20 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2007-07-26 - Identified through on-line information from Jeff Scofield. -- The organ is installed on a shelf at the rear of the nave. The console is located in the front of the 225-seat nave with the choir. -Database Manager

2016-01-02 - Updated through online information from Don Hurd. <br>In excellent condition. -Database Manager

2023-06-09 - The organ was removed May 2023. -Jeff Scofield

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Cincinnati, Ohio
    Indian Hill Episcopal Presbyterian Church

    Casavant   Op. 3309   1976   2/24

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    ______________________________________________

    GREAT                        SWELL
 8' Prinzipal       61        8' Erzähler       61
 8' Rohrgedackt     61        8' Vox coelestis  49 tc
 4' Oktave          61        8' Gedackt        61
 4' Spitzflöte      61        4' Koppelflöte    61
 2' Waldflöte       61        2' Oktave         61
IV  Mixtur         244    1 1/3' Quintflöte     61
                             IV  Scharfzimbel  244
    PEDAL                     8' Trompette      61
16' Subbass         32           Tremulant
 8' Prinzipal       32           Sub
 8' Gedackt         32           Unison Off
 4' Choralbass      32           Super (with cut-off)
III Mixtur          96
16' Lieblichposaune 32
   (half-length)

[Received online from Jeff Scofield January 23, 2011]
