Better Pipe Organ Database

M. P. Möller Opus 11644 (1985)

St. Matthews Baptist Church: Sanctuary
3515 Grandview Avenue
Louisville, KY

Images

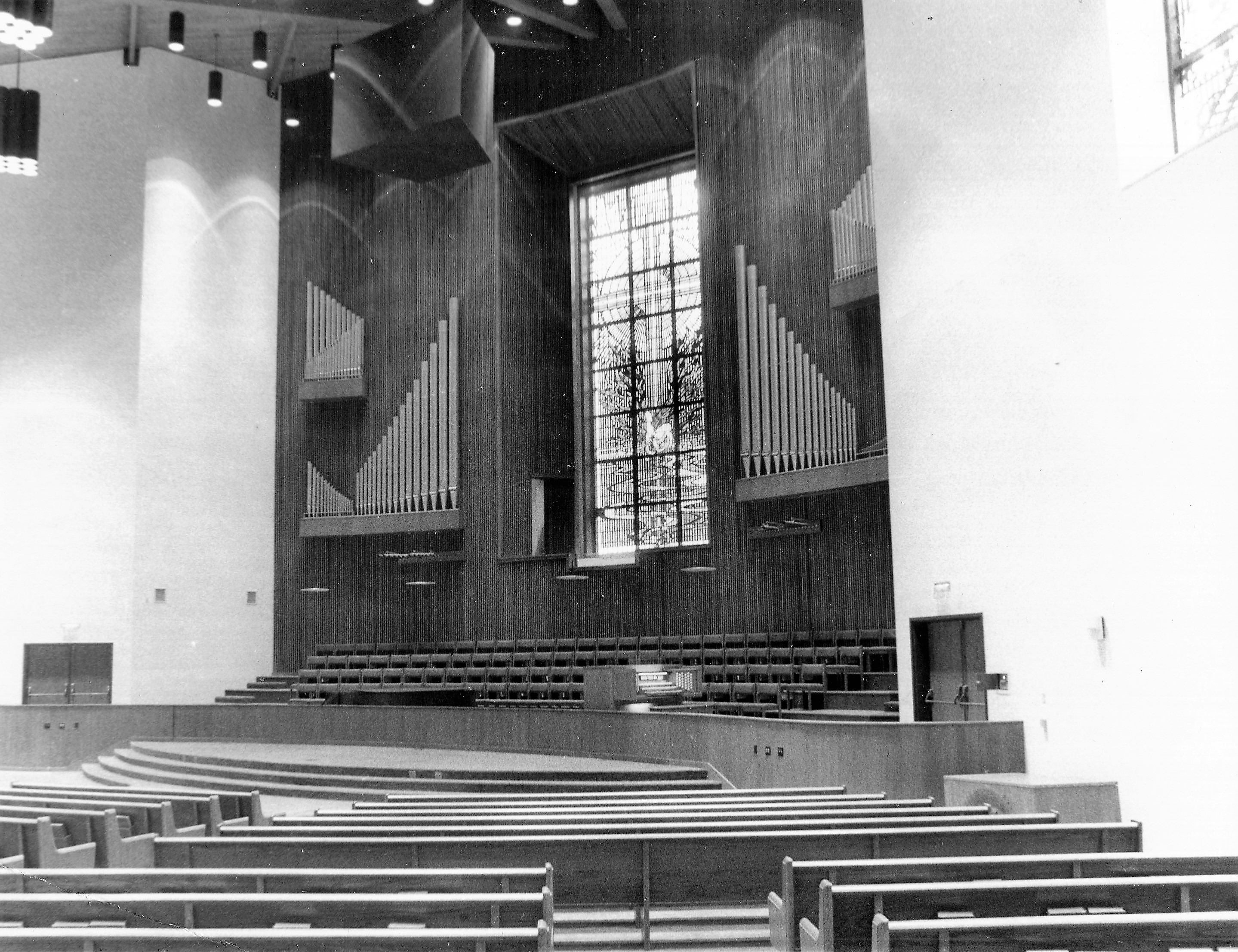

1985 - Interior to front and exposed pipes (Photograph by Moller promotional photo, collection of Jeff Scofield, submitted by Jeff Scofield/Jeff Scofield)

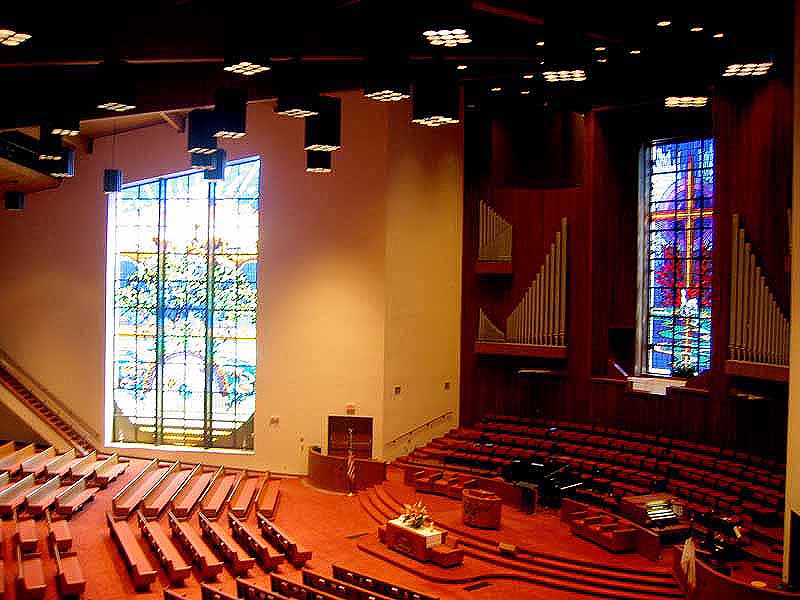

2007-07-07 - Chancel and organ from side gallery (Photograph by Jeff Scofield/Database Manager)

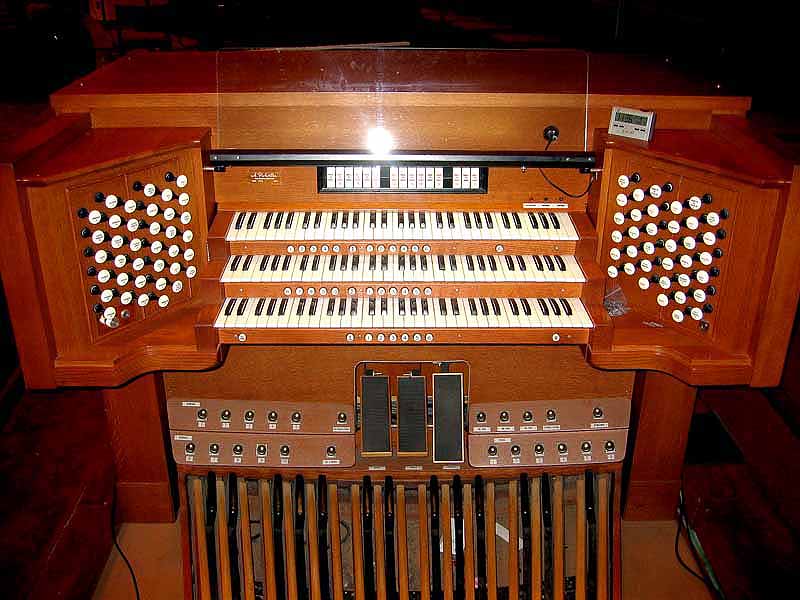

2007-07-07 - Console (Photograph by Jeff Scofield/Database Manager)

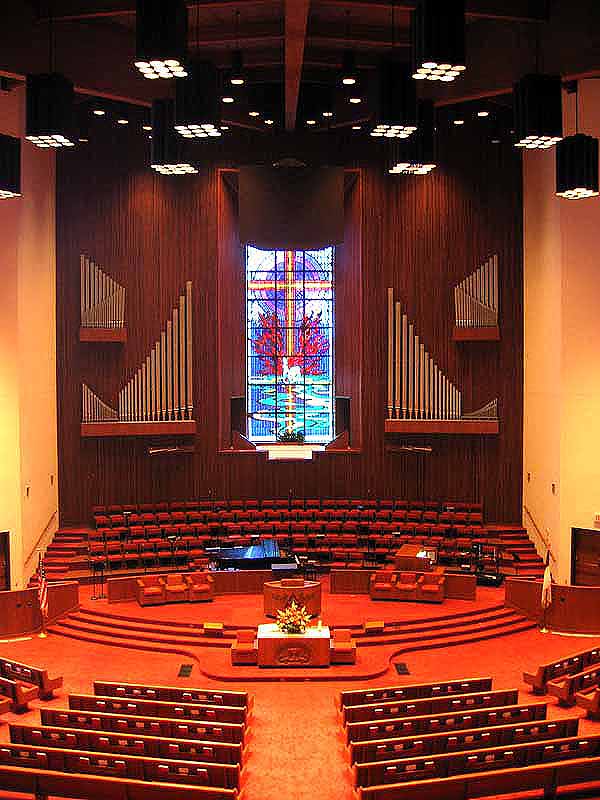

2007-07-07 - Chancel, choir and organ (Photograph by Jeff Scofield/Database Manager)

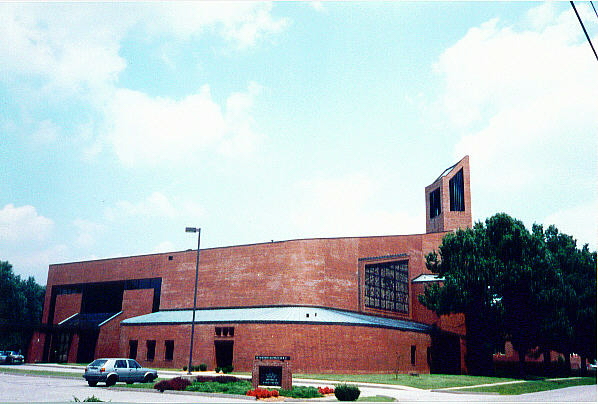

1992-07-29 - Church exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
3 manuals
40 stops
58 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-08-03 - Identified through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Louisville, Kentucky
        St. Matthews Baptist Church

        Möller   Op. 11644   1984   3/54
        _________________________________________________________

        GREAT                             CHOIR
    16' Quintaton            61        8' Spitz Principal      61
     8' Principal            61        8' Holzgedeckt          61
     8' Quintaton            12        8' Erzähler             61
     8' Flute Harmonic       61        8' Erzähler Celeste     49
     4' Octave               61        4' Klein Principal      61
     4' Quintaton            12        4' Nachthorn            61
     2' Fifteenth            61    2 2/3' Nasat                tc
     2' Flachflöte           61        2' Principal            61
III-IV  Fourniture          214    1 1/3' Quinte               61
III-IV  Scharf              213        1' Sifflöte             61
     8' Trumpet              61   III-IV  Zimbel              213
        Tremulant                      8' Krummhorn            61
        Sub                               Tremulant
        Unison Off                        Sub
        Super                             Unison Off
     8' Trompette en Chamade 49           Super
        Chimes               21        8' Trompette en Chamade GT
                                          Chimes               GT
        SWELL                             Zimbelstern           5
    16' Rohrflöte            61
     8' Rohrflöte            12           PEDAL
     8' Viola                61       32' Resultant            --
     8' Viola Celeste        49       16' Principal            32
     8' Flauto Dolce Cel II 110       16' Bourdon              32
     4' Principal            61       16' Quintaton            GT
     4' Koppelflöte          61       16' Rohrflöte            SW
 2 2/3' Nazard               61        8' Octave               32
     2' Blockflöte           61        8' Bourdon              12
 1 3/5' Tierce               61        8' Rohrflöte            SW
III-IV  Plein Jeu           214        4' Choral Bass          32
    16' Contra Fagotto       61 a      4' Flute                12
     8' Trompette            61       II  Rauschquinte         64
     8' Fagotto              12       II  Rauschpfeife         24
     4' Schalmei             61       32' Contre Bombarde      68 b
        Tremulant                     16' Bombarde             12
        Sub                           16' Contra Fagotto       SW
        Unison Off                     8' Bombarde             12
        Super                          8' Fagotto              SW
                                       4' Clairon              12
     a  1-18 half-length
     b  1-24 half-length

       [Received online from Jeff Scofield January 9, 2012]

Documents

(1984-02-22) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
