Schantz Organ Co. Opus 1552 (1979)

Highland Baptist Church: Sanctuary
1101 Cherokee Road
Louisville, KY

Images

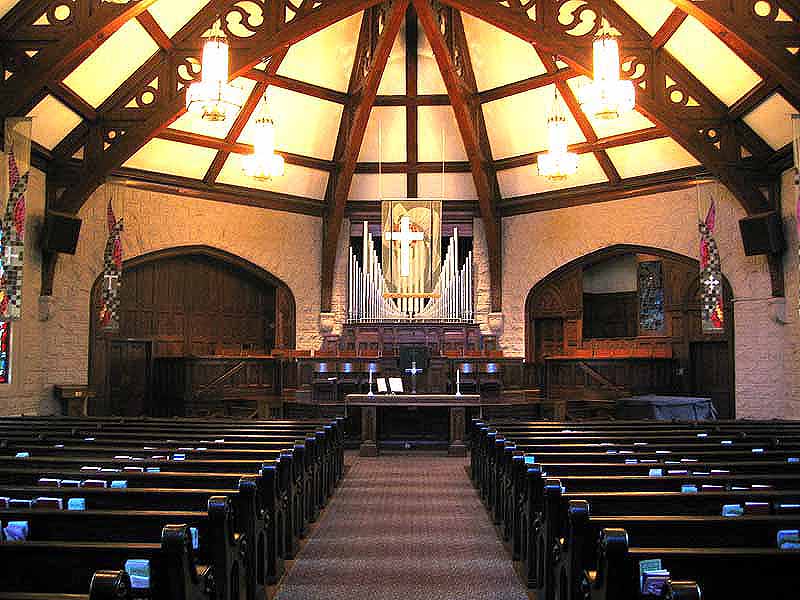

2007-07-09 - Chancel (Photograph by Jeff Scofield/Database Manager)

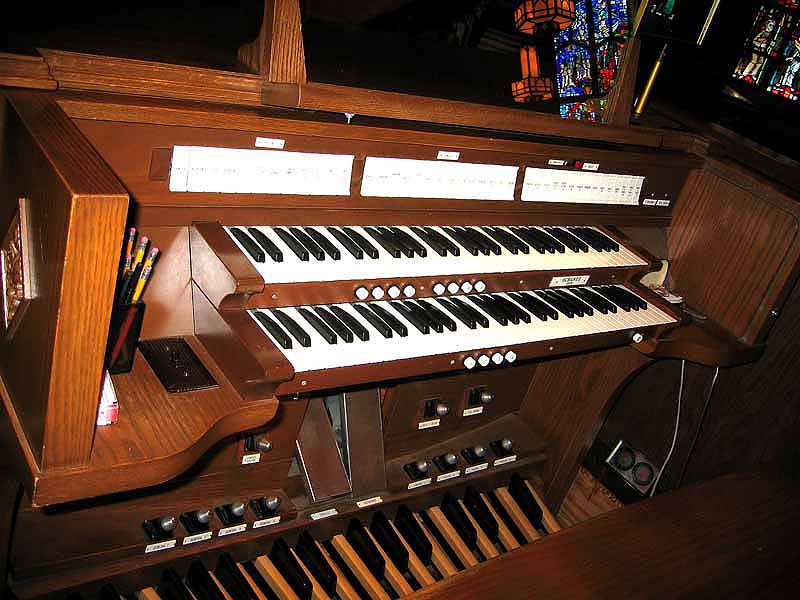

2007-07-09 - Console (Photograph by Jeff Scofield/Database Manager)

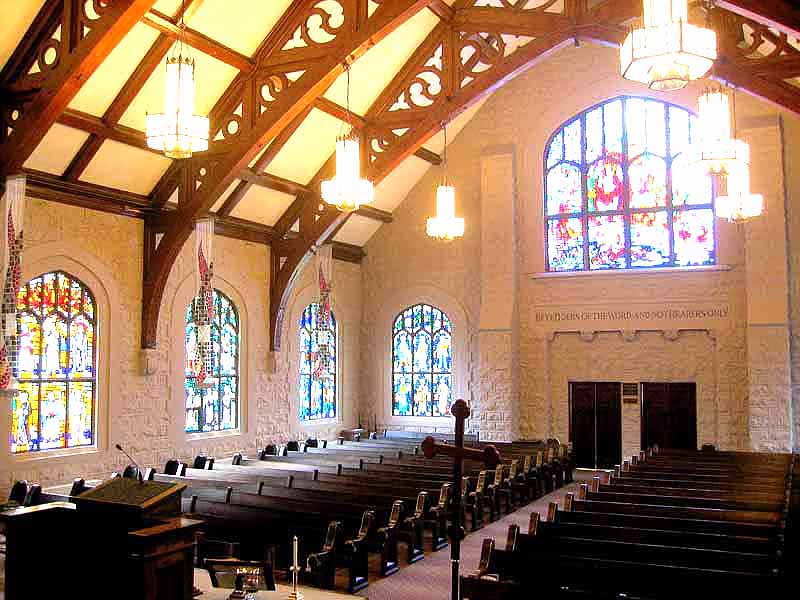

2007-07-09 - Nave from chancel (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
2 manuals
20 stops
25 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2007-08-03 - Identified through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist taken from church website Source: Source not recorded Date not recorded

Louisville, Kentucky
HIGHLAND BAPTIST CHURCH

Schantz Organ Company    Opus 1552    1979
__________________________________________________________________________

GREAT:                   SWELL:                     PEDAL:
  8' Principal               8' Rohrflöte            16' Principal
  8' Gedeckt                 8' Gemshorn             16' Bourdon
  4' Octave                  8' Gemshorn Celeste      8' Octave
  2' Blockflöte              4' Spitz Principal       8' Bourdon
 II  Sesquialtera [TC]       4' Koppelflöte           4' Super Octave
 IV  Mixture                 2' Principal            32' Grand Cornet
  8' Trompete            1 1/3' Larigot              32' Contre Posaune
     Tremulant             III  Scharf               16' Contre Trompete
     Chimes                 16' Dulzian
                             8' Hautbois
                                Tremulant

[Received on line from Chad Boorsma June 10, 2010.]
