Better Pipe Organ Database

M. P. Möller Opus 11683 (1985)

First Baptist Church / The Federated Church: Sanctuary
122 E. 2nd South St.
Carlinville, IL

Images

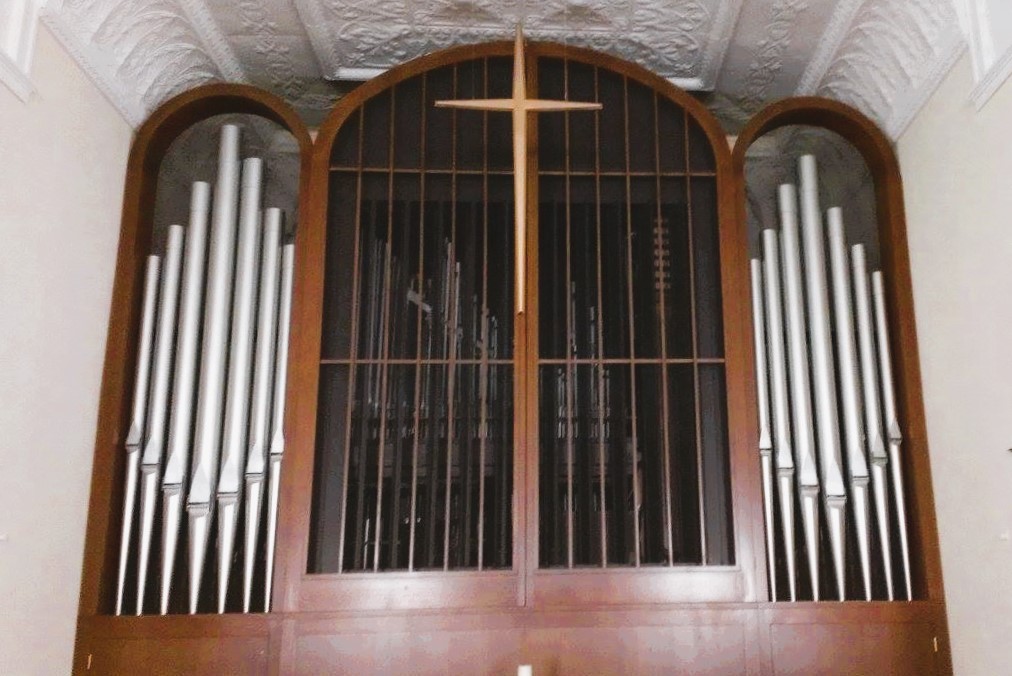

2016-12-08 - Pipework (Church Facebook via Jeff Scofield/Jeff Scofield)

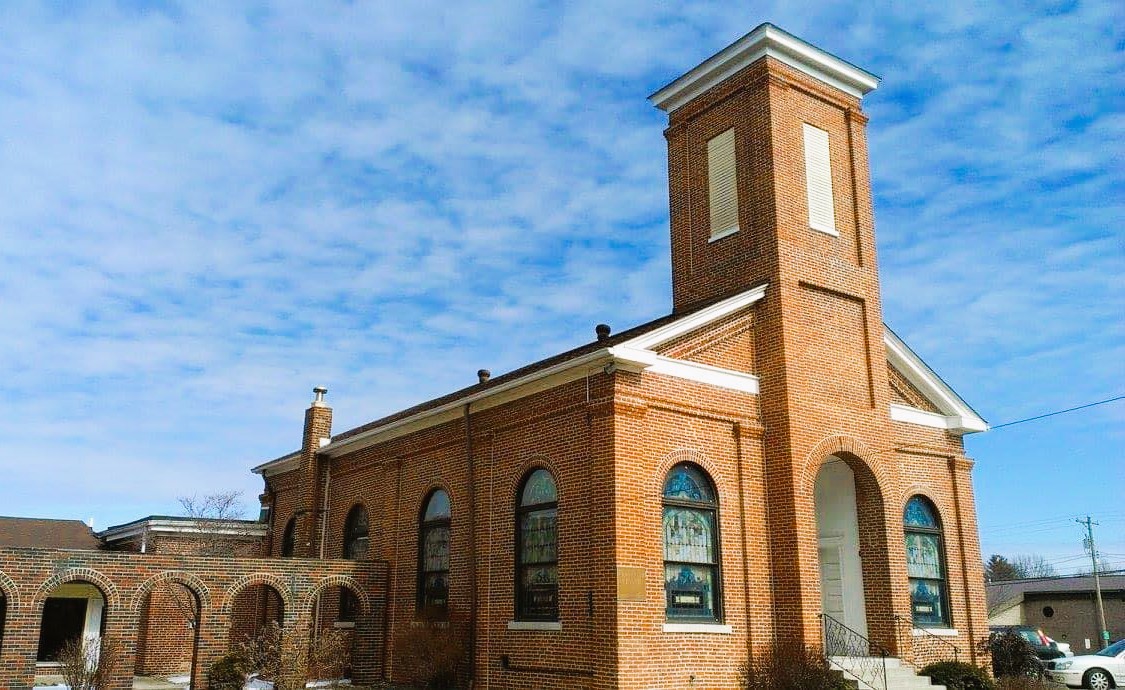

2023-01-19 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
2 manuals
6 stops
28 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2007-08-28 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2012-02-27 - Updated through online information from Jeff Scofield. -- The church is a member of the American Baptist and Presbyterian (PCUSA) Churches. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Carlinville, Illinois
        The Federated Church

        Möller   Op. 11683   1985   2/6
        _______________________________________________________________________

        GREAT                  SWELL                        PEDAL
    16' Bourdon    a        8' Rohrflöte        80      16' Bourdon          12
     8' Principal 85        8' Gemshorn         80       8' Principal
     8' Rohrflöte           8' Gemshorn Celeste 49 b     8' Rohrflöte
     8' Gemshorn            4' Spitzprincipal   73       4' Octave
     4' Octave              4' Rohrflöte                 4' Rohrflöte
     4' Rohrflöte           2' Spitzoctave              16' Contre Trompette 12
     2' Super Octave    1 1/3' Larigot                   8' Trompette
     2' Flöte               1' Klein Octave              4' Clairon
III-IV  Mixture   pf        8' Trompette        61
     8' Trompette           4' Clairon
        Chimes    pf           Tremolo

     a  from SW 8' Rohrflöte and PD 16' Bourdon
     b  present pipes and new action by others

                 [Received onlined from Jeff Scofield  March 4, 2012]

Documents

(1985-04-16) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
