Better Pipe Organ Database

M. P. Möller Opus 11680 (1985)

Trinity United Methodist Church: Sanctuary
308 Oneida St.
Beaver Dam, WI

Images

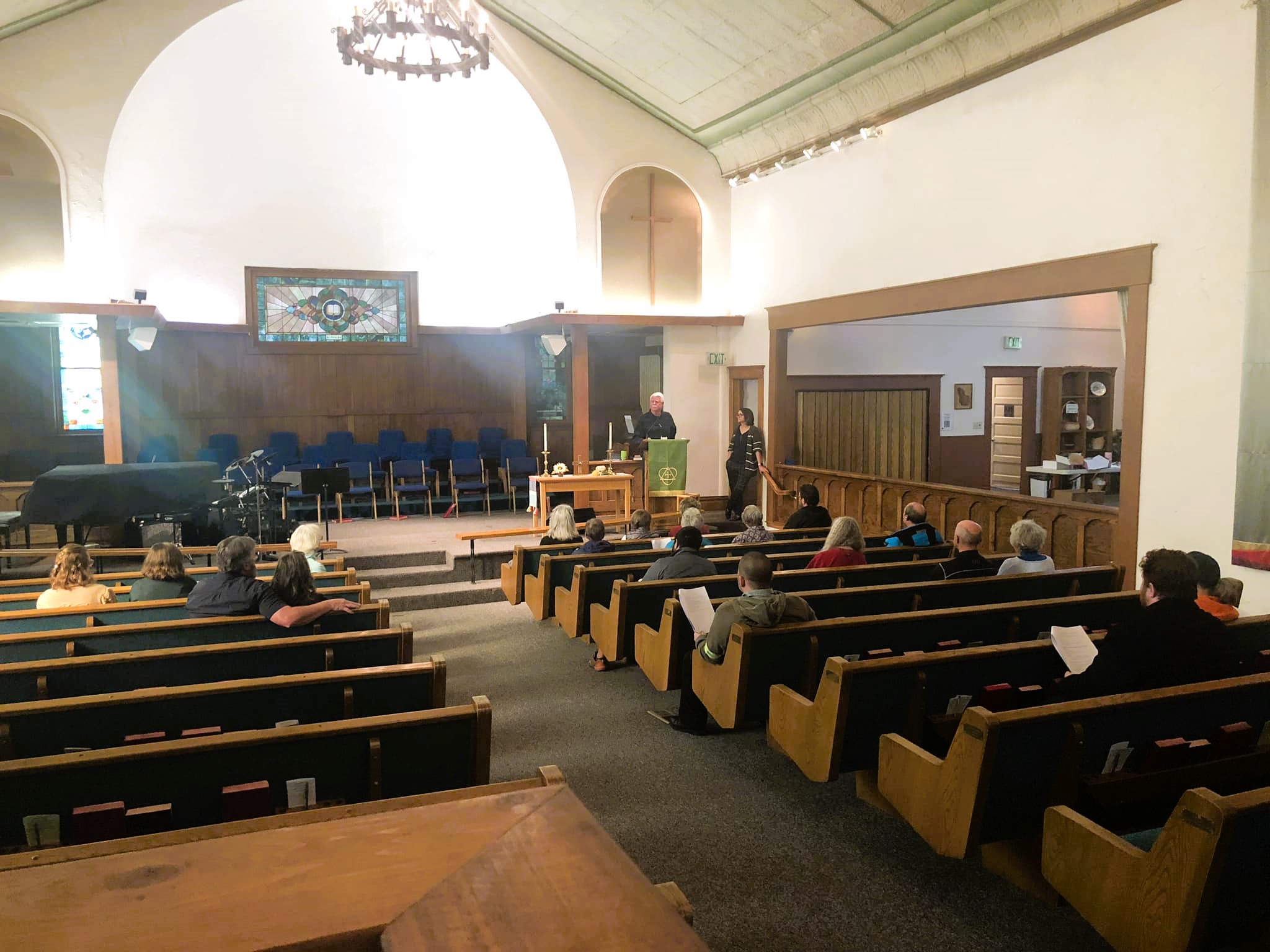

2022-10-22 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

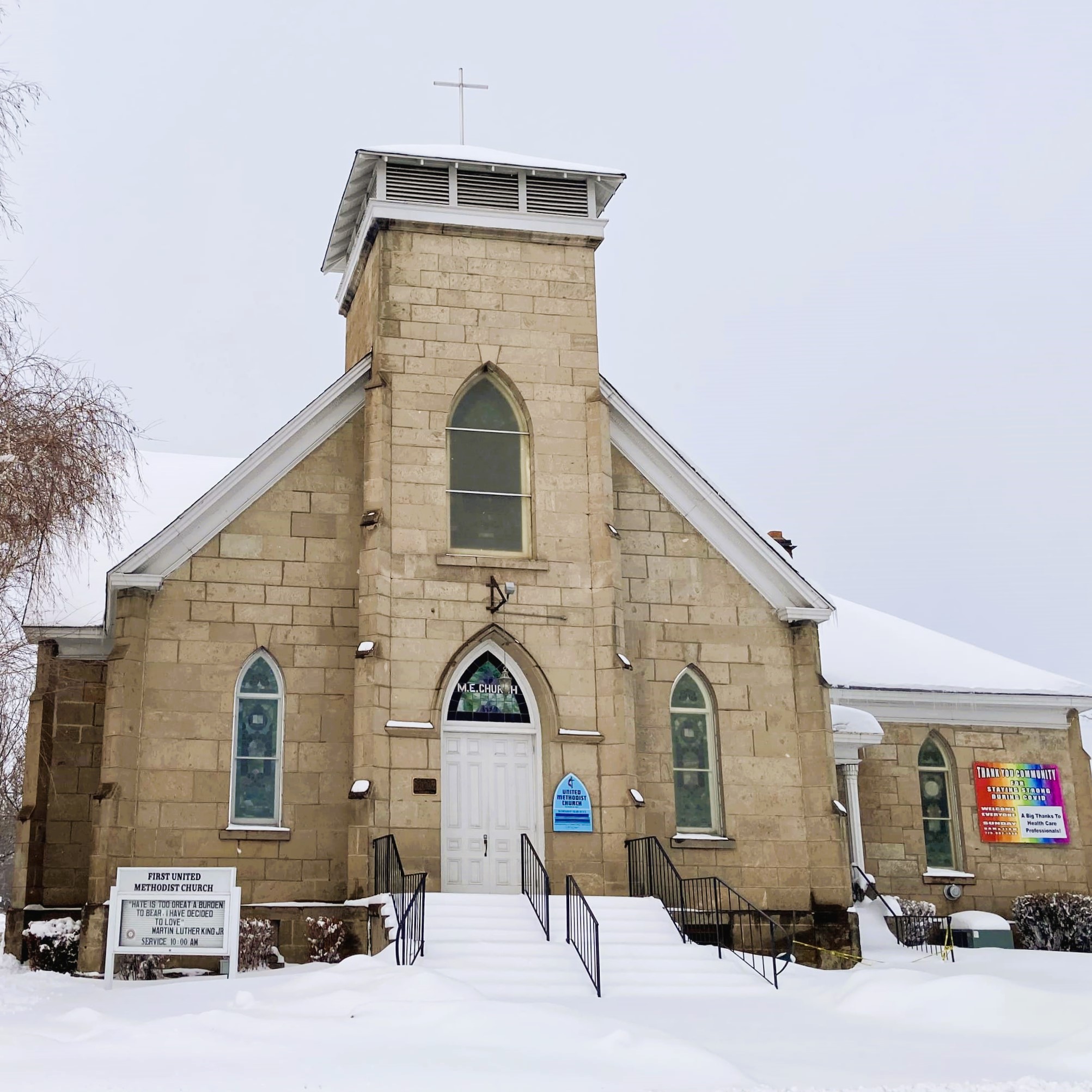

2023-03-05 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
10 stops
34 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons

Notes

2007-08-28 - Identified by Jeff Scofield through information in Möller factory documents. -Database Manager

2012-02-20 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Beaver Dam, Wisconsin
        Trinity United Methodist Church

        Möller   Op. 11680   1985   2/14
        ________________________________________________________________________

        GREAT (enclosed)          SWELL                         PEDAL
    16' Bourdon      92        8' Rohrflöte        73       16' Contrabass    12 b
     8' Principal    80        8' Gemshorn         80       16' Bourdon
     8' Gedeckt                8' Gemshorn Celeste 49        8' Principal
     8' Gemshorn               4' Spitzprincipal   73        8' Rohrflöte
     4' Octave                 4' Rohrflöte                  4' Octave
     4' Gedeckt                2' Spitzoctav                 4' Gedeckt
     2' Super Octave       1 1/3' Larigot                   IV  Grand Cornet
     2' Flute                 16' Contre Trompette 80 a     IV  Mixture
    II  Sesquialtera 98        8' Trompette                 16' Contre Trompette
III-IV  Mixture     208        4' Clairon                    8' Trompette
     8' Trompette                 Tremolo                    4' Schalmei
     4' Schalmei     61
        Tremolo
        Chimes       pf        a  1-6 half-length            b  exposed

                  [Received online from Jeff Scofield  March 4, 2012]
